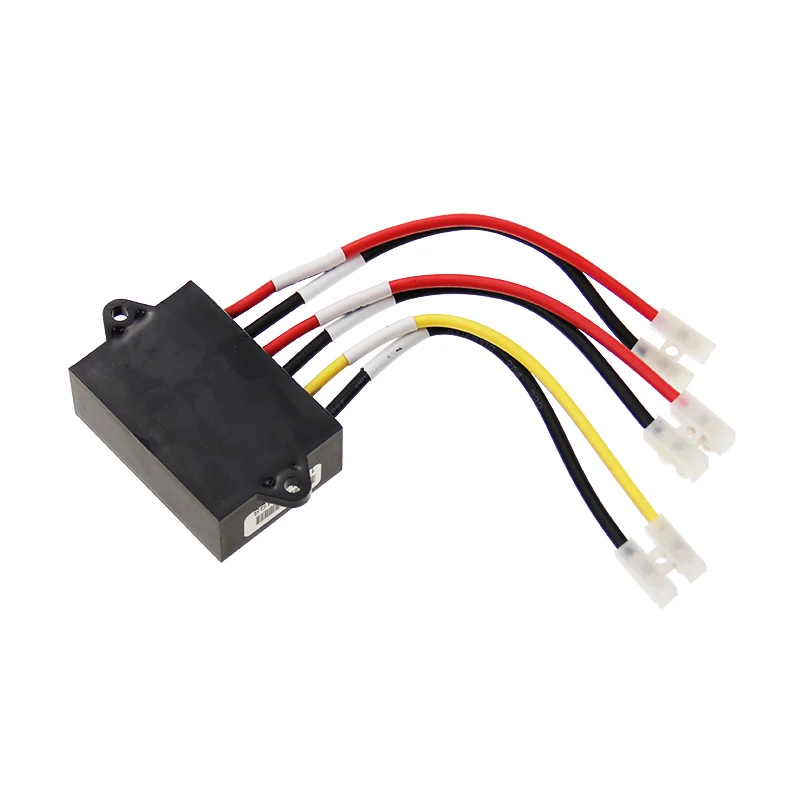

150W MPPT SOLAR CHARGE CONTROLLER 10A 13.8v 99% EFFICIENCY
- Category: Solar Charger Controllers >>>
- Supplier: Hangzhou Frankever Imp. & Exp. Co. Ltd.
Share on (60838801532):
Product Overview
Description
MPPT Controller
MPPT controller's full name "Maximum Power Point Tracking" solar controller is an upgraded product of the traditional solar charge and discharge controller.

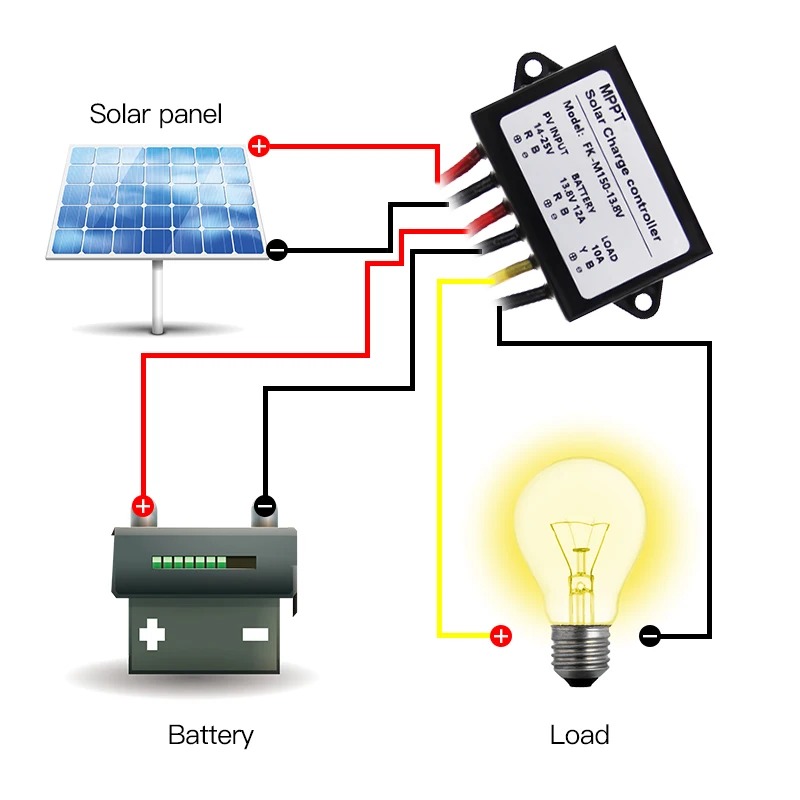

MPPT controller detects the solar panel's generated voltage in real time and tracks the highest voltage and current value (VI), allowing the system to charge the battery with maximum power output. It is the brain of photovoltaic system used in solar photovoltaic systems to coordinate the work of solar panels, batteries and loads.
Product name | MPPT Solar charge controller | |
Model | FK-M150-13.8V | |
Changing Module | Photovoltaic Input power | 150W |
| Photovoltaic Input Voltage | 14-25V |
| Photovoltaic Output Voltage | 13.8V |
| Battery Output Current | 10A(MAX 10A) |
| PWM Conversion Efficiency | 97% |
| MPPT Effectiveness | 99% |
Discharge Module | Input Voltage | Equal Battery Voltage |
| Load Output Voltage | Equal Battery Voltage |
| Load Output Current | 10A(MAX 10A) |
| Load Out type | Normal Open |
Protection Module | MPPT Effectiveness | 9V |
| Battery Short Circuit Protection | YES |
| Short Circuit Protection | YES |
| Temperature Protection | YES |
| Protection Class IP | IP67 |
Line length | 10CM | |

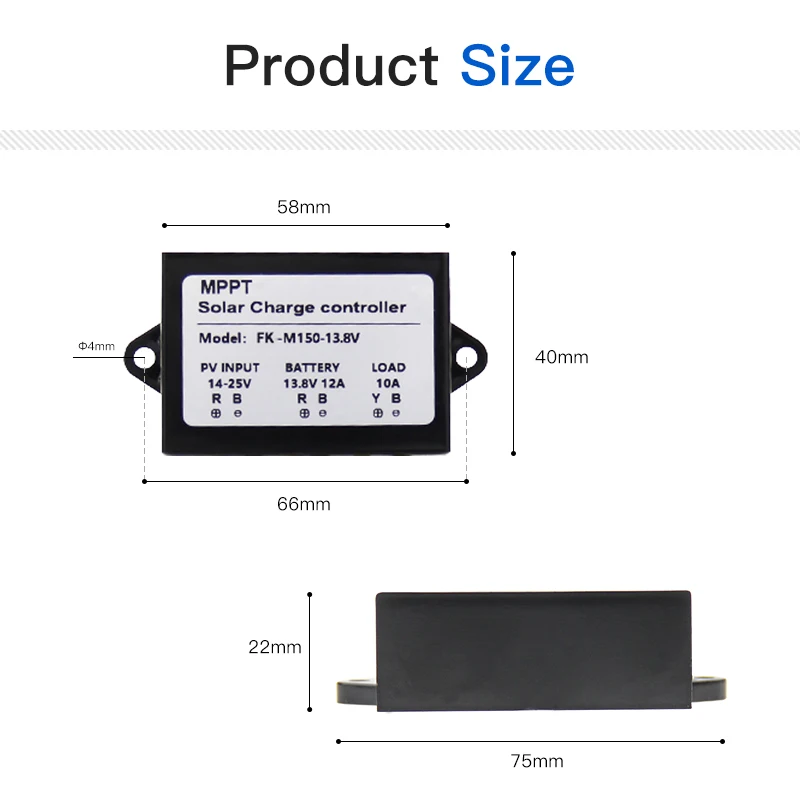

Dimensions | 75*40*22mm | |
N.W | 115g | |
