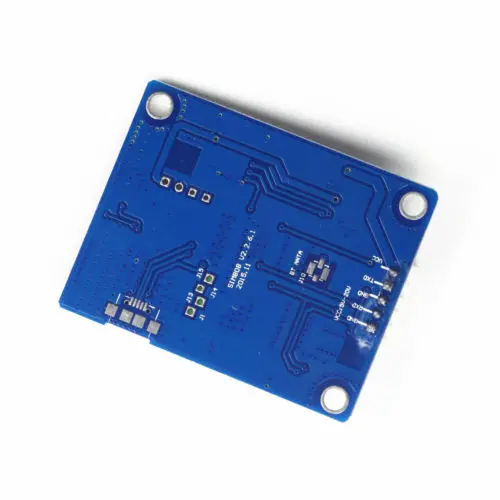

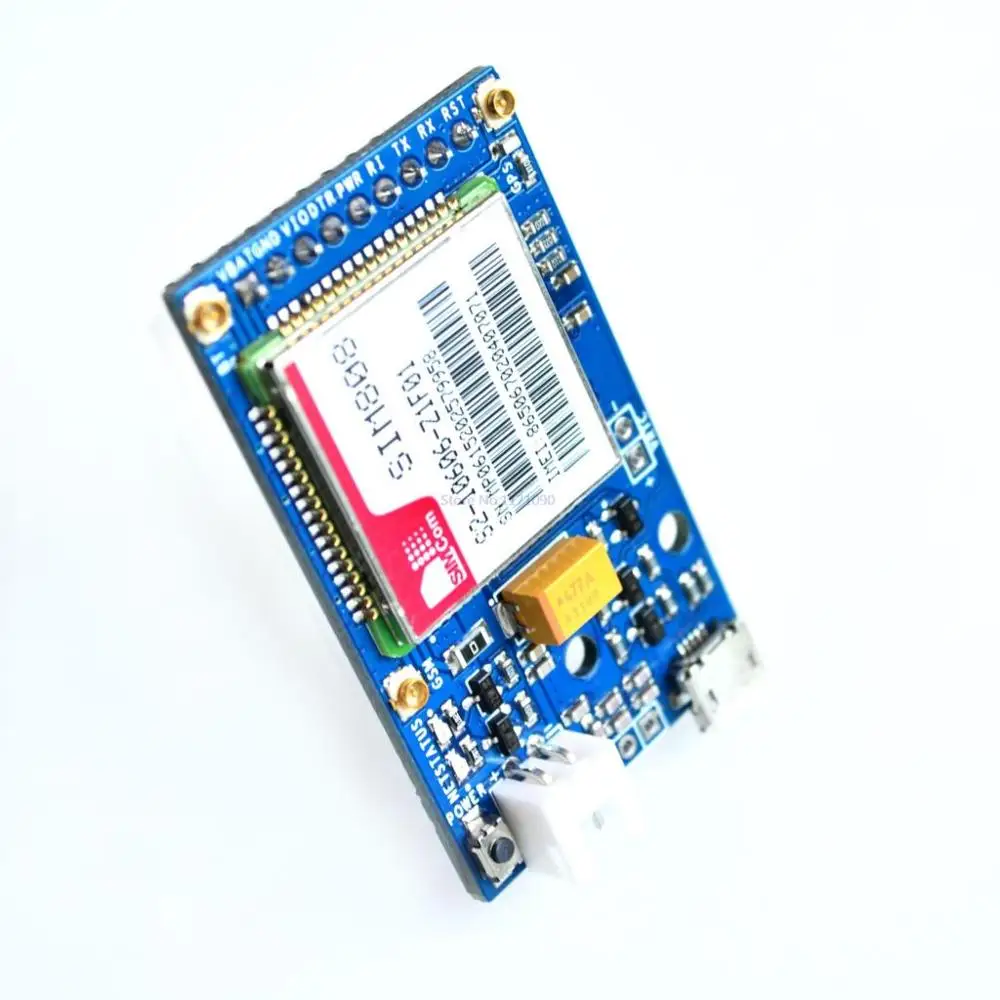

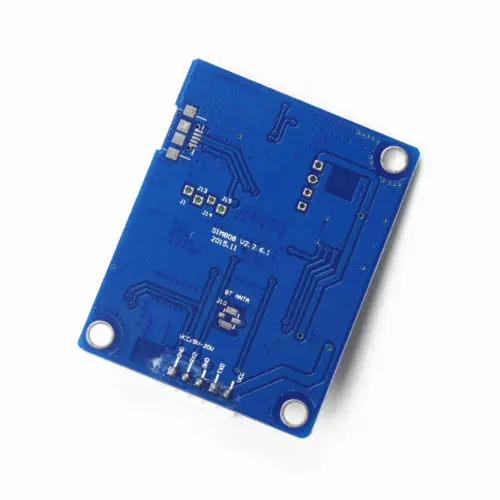

SIM808 модуль GPS GSM GPRS модуль

Description:

SIM808 module is a GSM and GPS two-in-one function module. It is based on the latest GSM / GPS module SIM808 from SIMCOM, supports GSM / GPRS Quad-Band network and combines GPS technology for satellite navigation.

It features ultra-low power consumption in sleep mode and integrated with charging circuit for Li-Ion batteries, that make it get a super long standby time and convenient for projects that use rechargeable Li-Ion battery. It has high GPS receive sensitivity with 22 tracking and 66 acquisition receiver channels. Besides, it also supports A-GPS that available for indoor localization.

The module is controlled by AT command via UART and supports 3.3V and 5V logical level.


Specification:

PCB size 50mm X 30.5mm X 1.6mm

Voltage Input 3.4V ~ 4.4V

Interface UART

Indicator NET, STATUS

Button POWER


Features:

Quad-band 850/900/1800 / 1900MHz

GPRS multi-slot class12 connectivity:. Max 85.6kbps (down-load / up-load)

GPRS mobile station class B

Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)

Supports charging control for Li-Ion battery

Supports Real Time Clock

Supply voltage range 3.4V ~ 4.4V

Integrated GPS / CNSS and supports A-GPS

Supports 3.0V to 5.0V logic level

Low power consumption, 1mA in sleep mode

Supports GPS NMEA protocol

Standard SIM Card

Operation Level

Digital 3.3V

Digital 5V

Power Supply Li-ion


Electrical Characteristics:

Min Typical Max Unit

(VBAT) 3.4 - 4.4 VDC ">Voltage Input (VBAT) 3.4 - 4.4 VDC

Input voltage VinH (Target Voltage = 3.3V) 3 3.3 3.6 V

Input voltage VinH (Target Voltage = 5V) 4.5 5 5.5 V

Input voltage VinL -0.3 0 0.5 V

Peak Current 0 - 2 A

Average Current 2 - 500 mA


Packing Included:

1 X SIM808 GSM / GPRS / GPS Module
