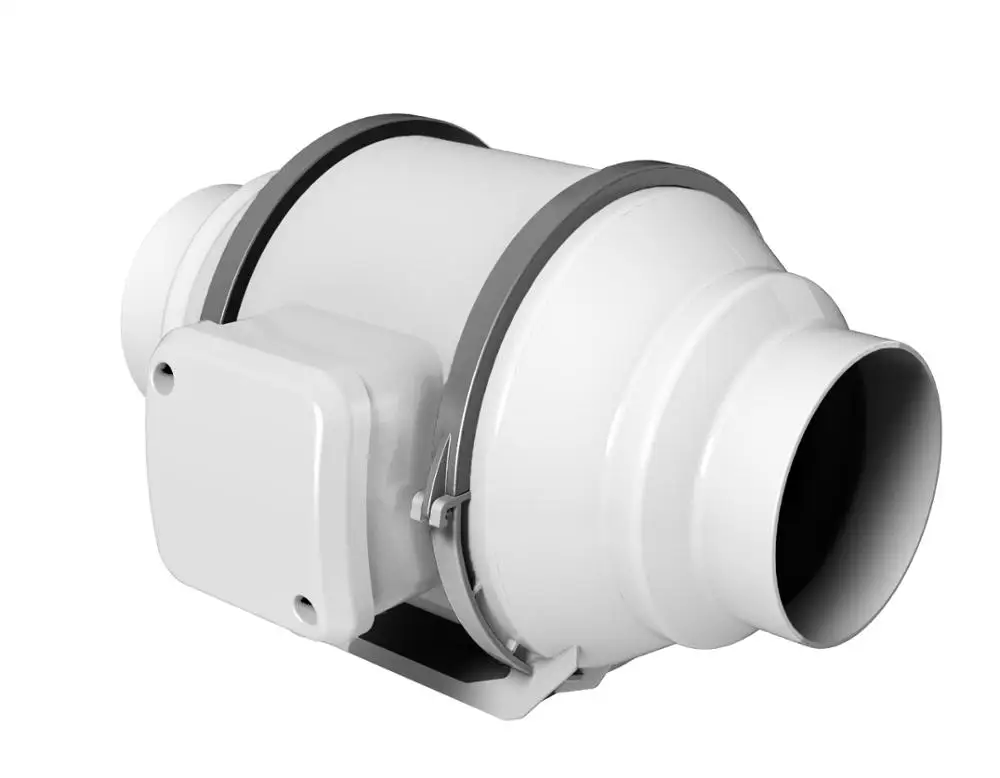

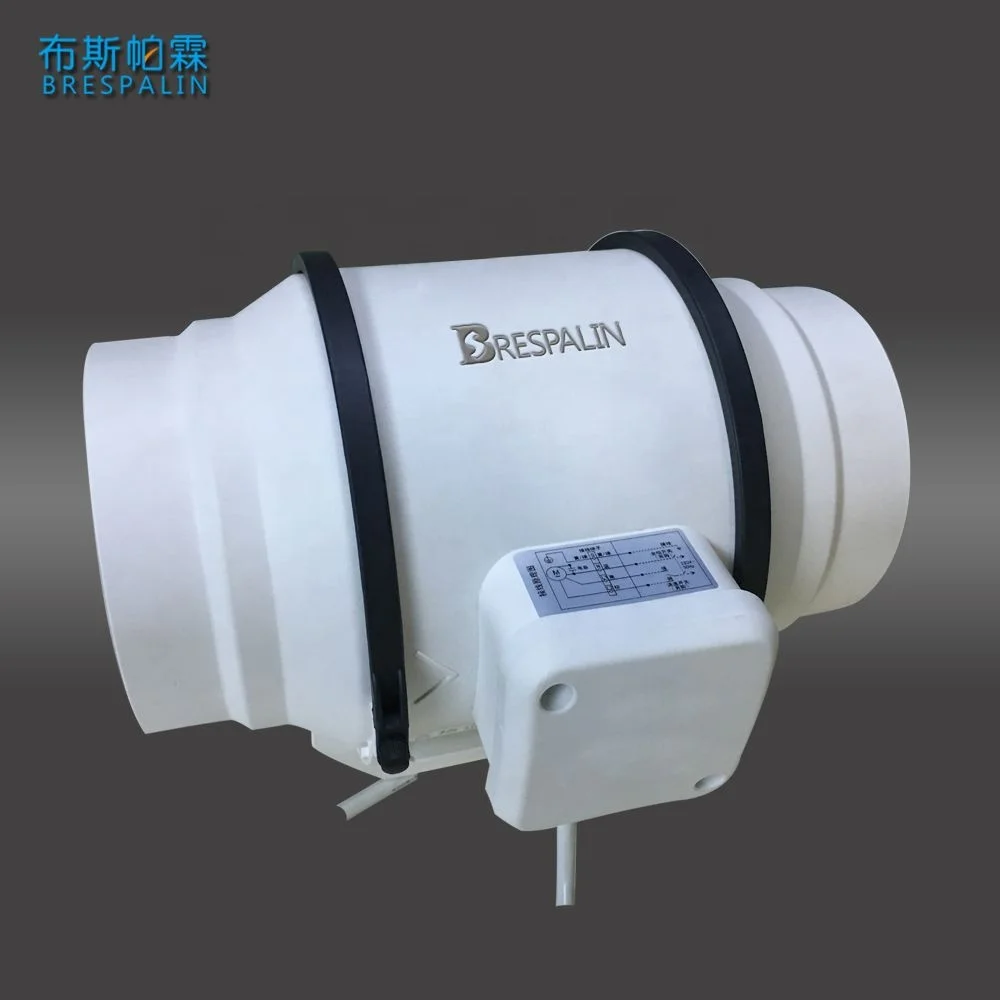

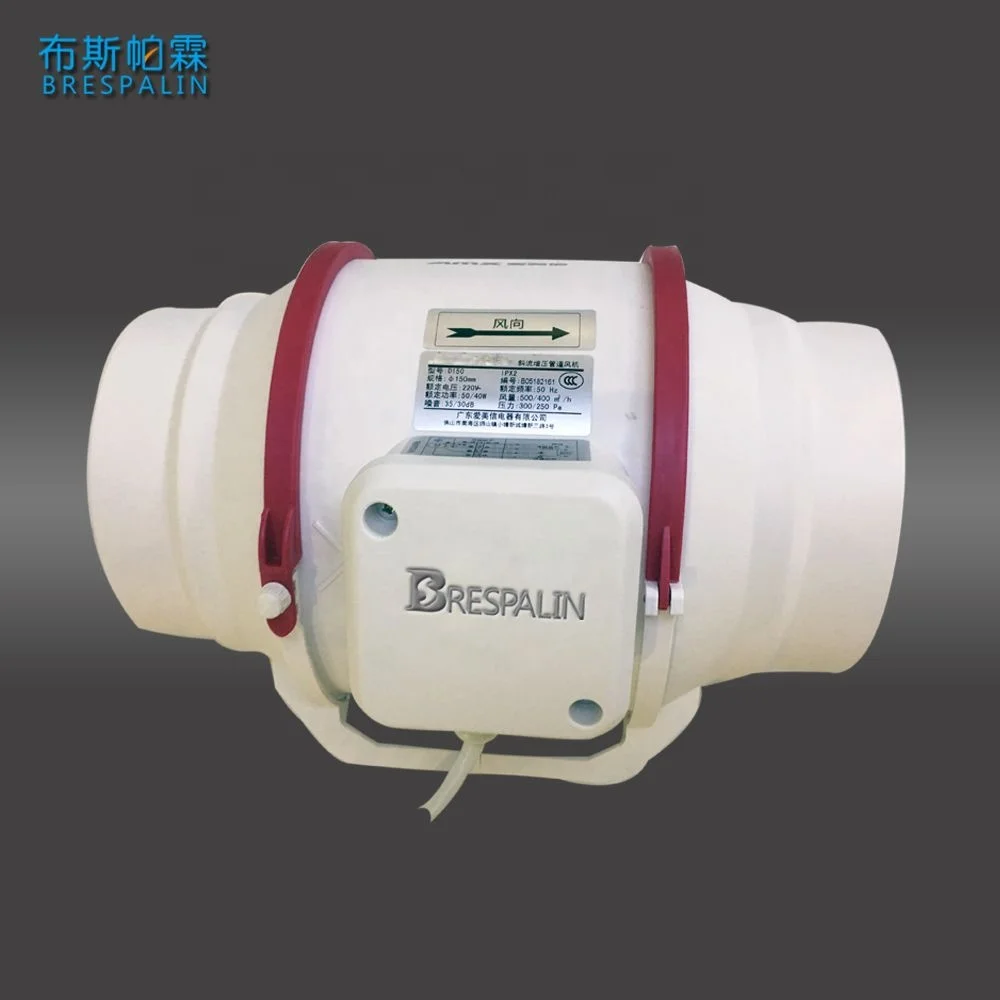

4 5 6 8 10 inch Hydroponic Quite Silent Hydroponic inline Mixed Flow Ventilation Circular Fan

A solution for most kinds of ducting ventilation system.

♦ Simple installation, simple maintenance.

♦ Ball bearing motor.

♦ Large air flow.

♦ High Pressure, high efficiency.

♦ Duct air pressurization.

♦ Stable long service life.

♦ Unique Design.

♦ Low cost.

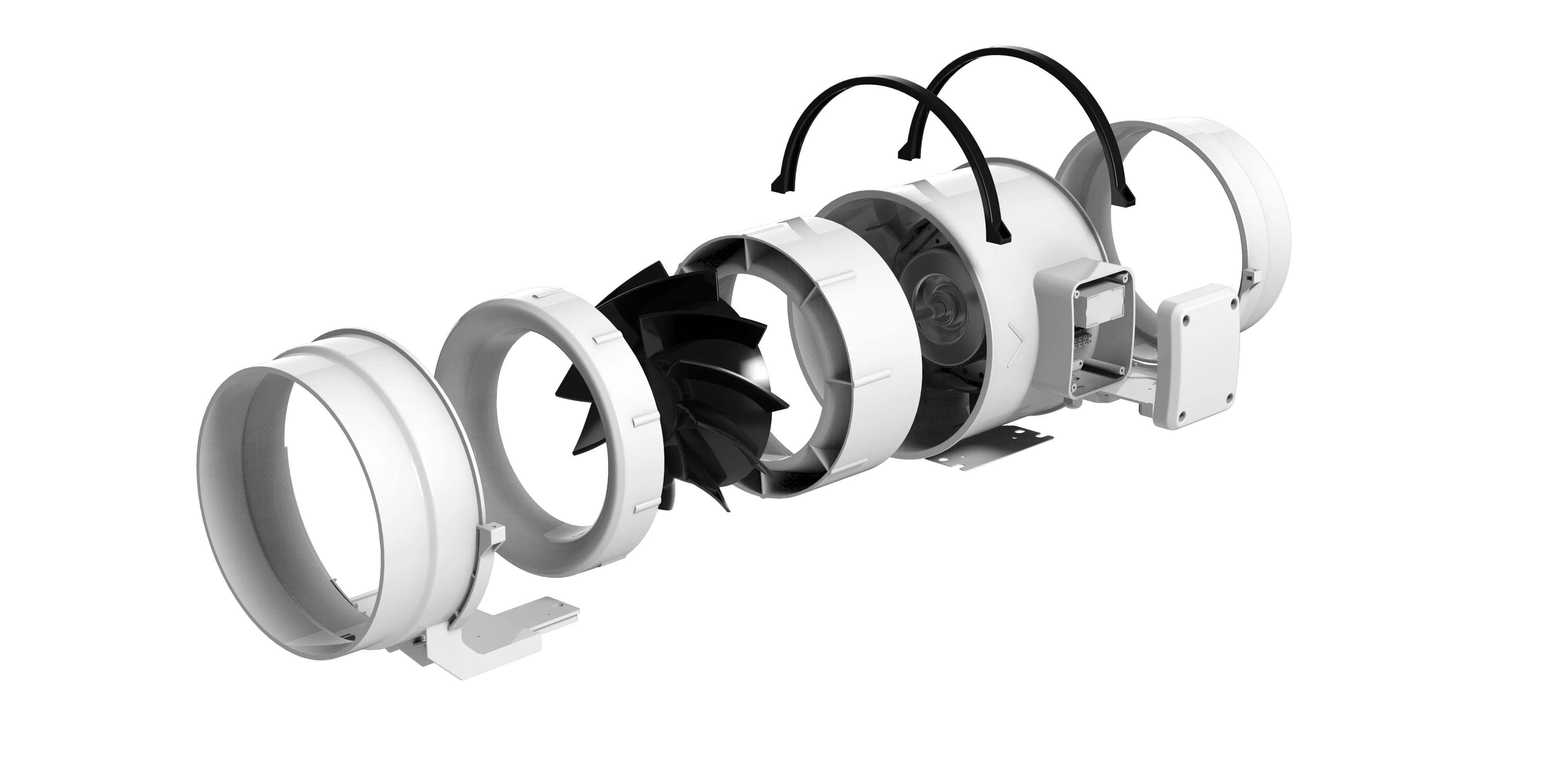

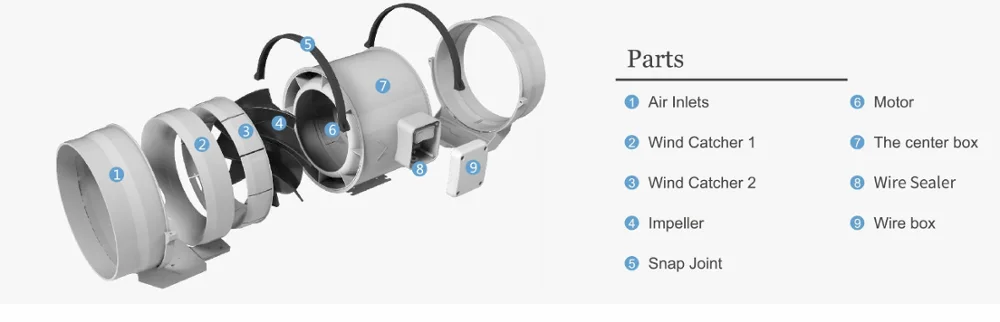

Easy Installation & Maintenance

Blower can be taken out just by unscrew two screws with any operation on the duct and spigot connector.

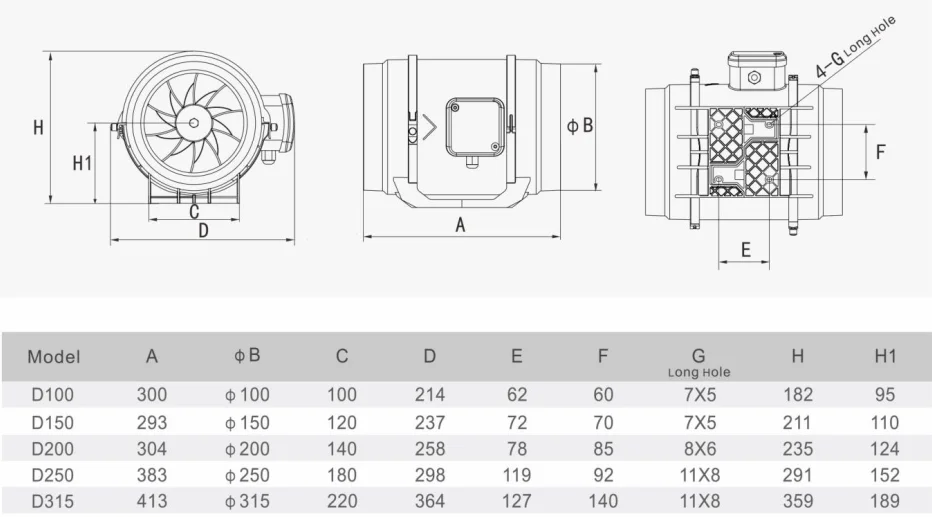

Diameter Table

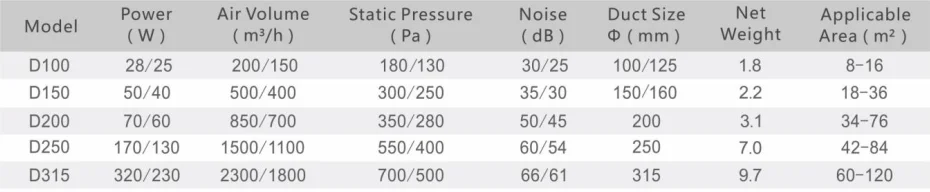

Parameter Table (Voltage 220V/Frequency 50Hz)

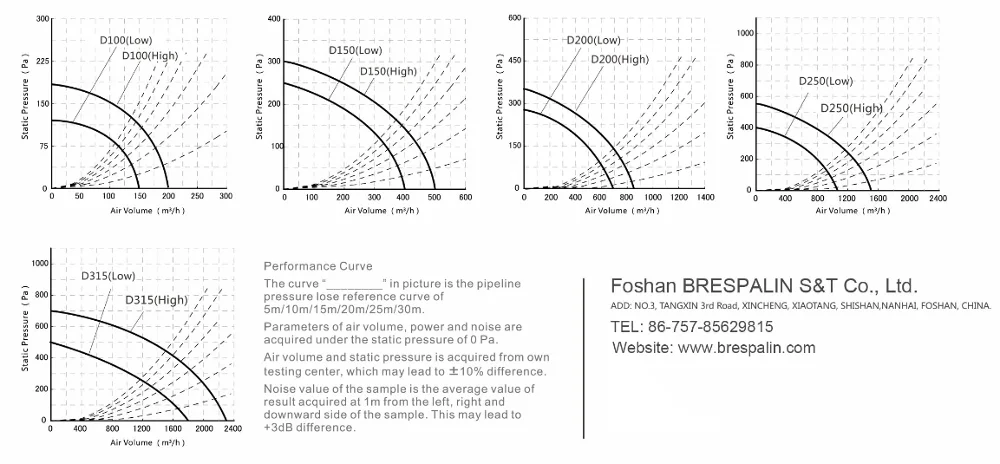

 Performance Curve

We control every step of your order to make sure the goods arrive your side with good situation on time without any worry.

Strict testing for new products, OEM/ODM products, or customized products.

Our own molding factory (90T-1600T) provide us best cost, delivery time, quality for our Air Purifier, Anion generator, UV sterilizer, Fresh Air System, Exhaust Fan, Bathroom Fan, Heat Recovery Ventilator, Inline Duct Fan and so on.

Our own motor production line (two different department separated for different usage of motor.) provide us best cost, delivery time, quality for our own products.

Strictly required 5S workshop, regular staff training, in-process and final inspection, make sure every tiny mistake is stopped before delivery.

Specialized staff gives you an eye on your products. From our detailed loading report, you will know how are the products loaded. What you see will be what you received.
