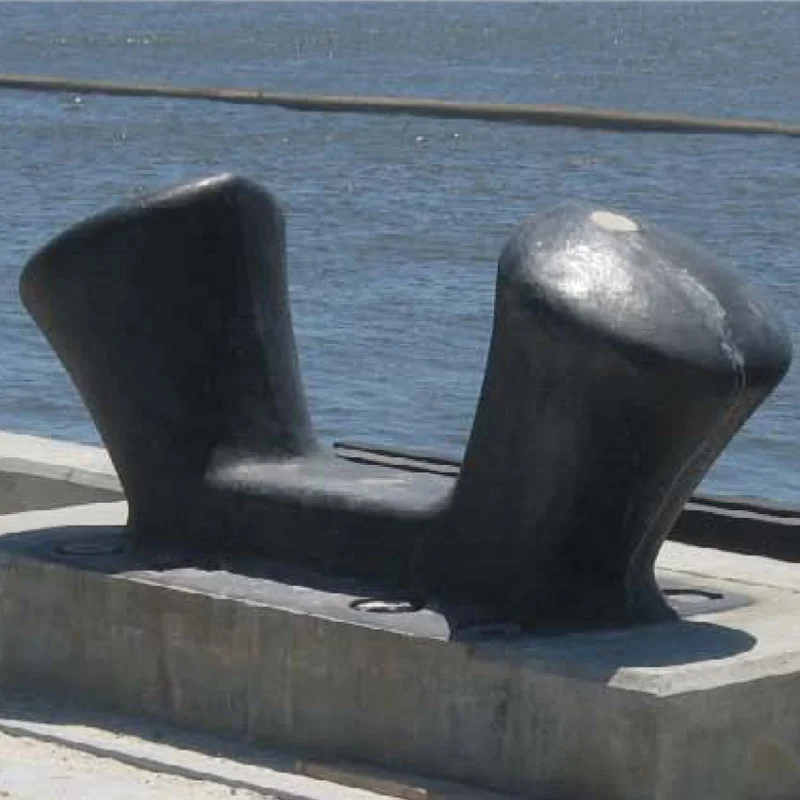

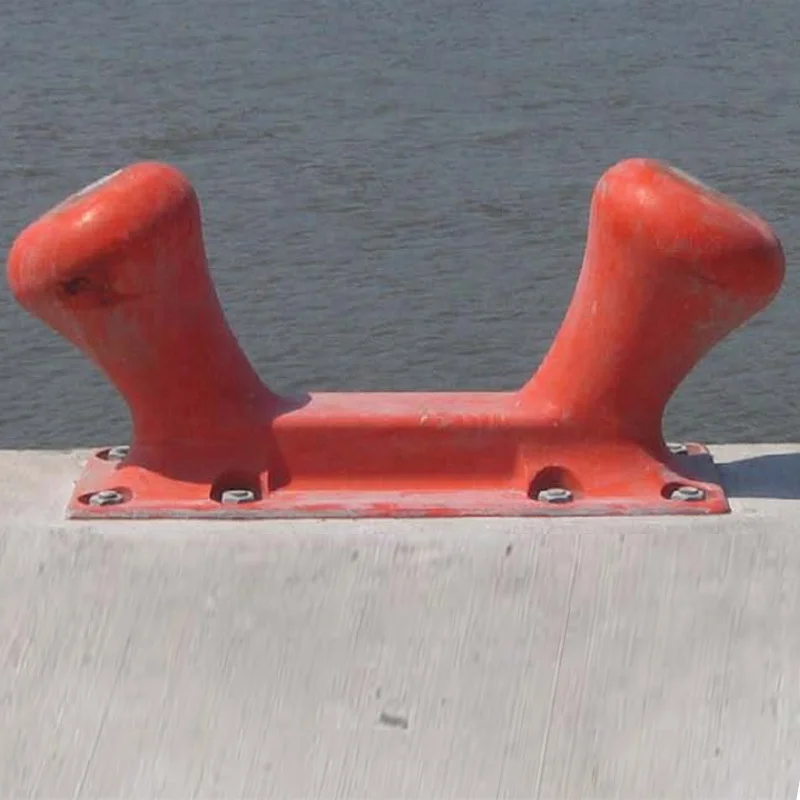

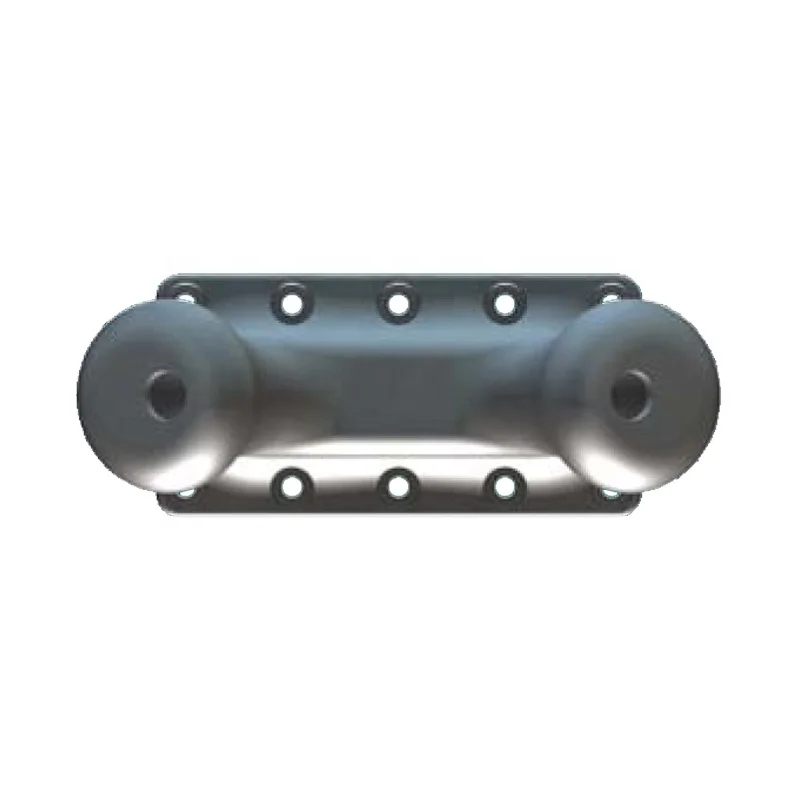

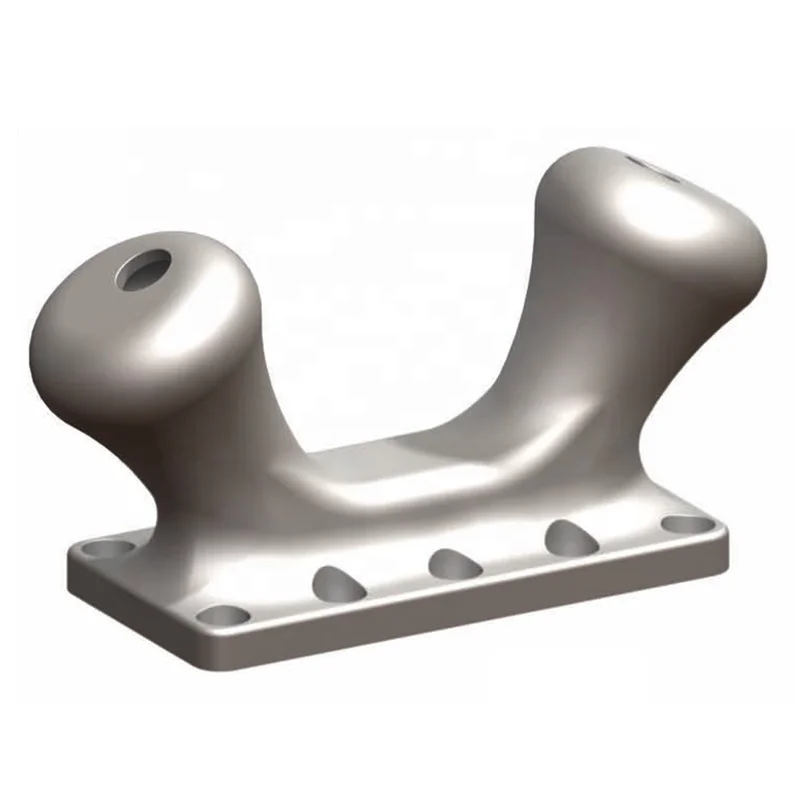

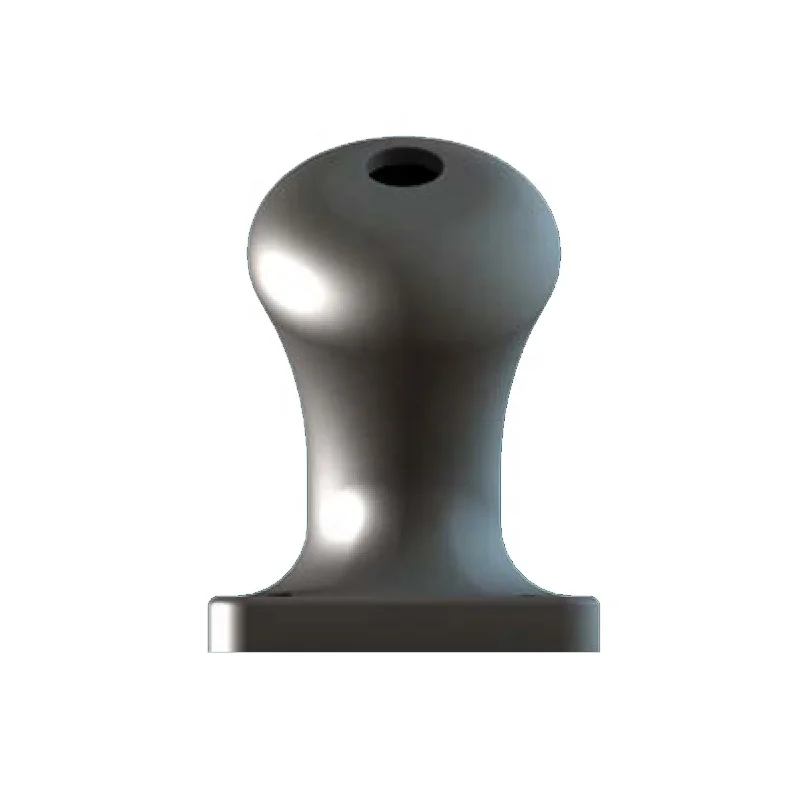

Double Bitt Bollards Mooring Bollard For Marine made in China

Product Overview

Description

Bollard Capacity (tonnes)	Metric Dimensions(mm)
	A	B	C	D	E	F	G	H	I	Bolt Size (mm)	Bolt Length (mm)	Bolt Qty (mm)
20	38	673	204	335	267	533	70	222	191	M20	300	8
30	46	781	236	389	302	604	81	258	221	M22	300	8
50	56	942	285	469	356	711	98	311	267	M30	450	8
75	62	1144	346	570	432	864	189	378	324	M36	450	10
100	73	1346	407	670	508	1016	222	444	381	M42	600	10
125	80	1548	468	771	584	1168	256	512	438	M42	600	10
150	91	1683	509	838	635	1270	278	556	476	M48	750	10
200	98	1885	570	938	702	1422	311	622	533	M56	915	10
