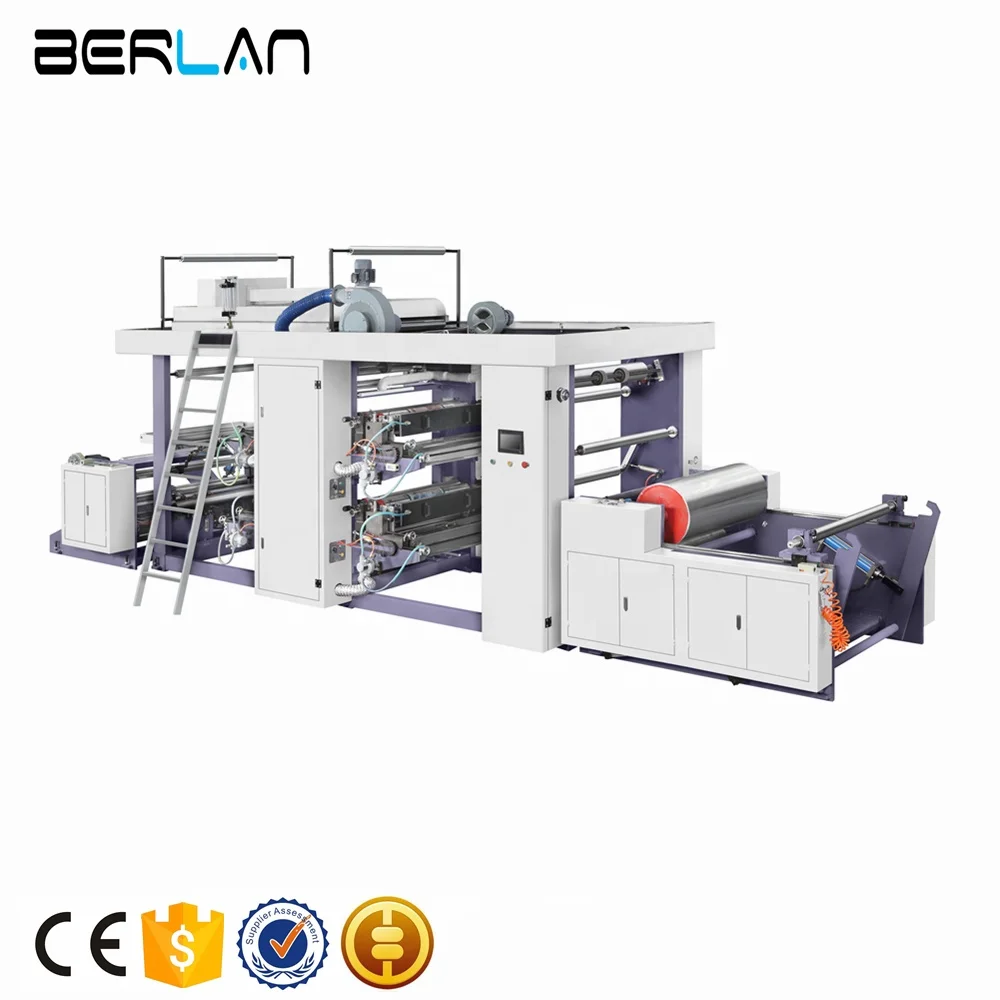

ZYT-Series Printer Is Roll To Roll Flexo Printing Machine ,Suit For Printing Paper ,PP Woven Fabric ,Nonwoven Fabric & Bopp,Opp Plastic Film, etc.
Detailed Images
1.Whole machine adopt synchronous belt link with high precision hardened planetary gear gearbox to drive each printing cylinder.
2.Machine have large space for material guiding after printing ,make sure ink drying and material cooling to get good printing effect.
3.Equipped with PLC system to control whole machine & host motor adopt frequency control
4.Equipped with ink circular system ,each color adopt one set reducer motor independently control ink guiding.
5.Shaftless unwinder with auto lift & lower by air cylinder control
Parameter
Model
ZYT-4C-800
ZYT-4C-1000
ZYT-4C-1200
Max.Materail Width(mm)
800mm
1000mm
1200mm
Max.Printing Width(mm)
760mm
960mm
1160mm
Max.Unwinding Diameter(mm)
1000mm
1000mm
1000mm
Max.Rewinding Diameter(mm)
1000mm
1000mm
1000mm
Printing Length
228-1000mm
228-1000mm
228-1000mm
Color Register Precision
≤±0.15mm
≤±0.15mm
≤±0.15mm
Printing speed
5-100m/min(According to material condition)
5-100m/min(According to material condition)
5-100m/min(According to material condition)
Printing Plate Thickness
2.28mm(According to client requirement)
2.28mm(According to client requirement)
2.28mm(According to client requirement)
Host Motor Power
4KW
5.5KW
5.5KW
Total Power
15KW
17KW
22KW
Machine Size
L4500* W1900*H2950MM
L4500*W2100*H2950MM
L4500 * W2300*H2950MM
Machine Weight
4500Kgs
5000Kgs
5500Kgs
Certifications
CE Certificate
Our Service
Warranty
* 1 year warranty base on export date * Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one. * If beyond warranty,we offer free repair service,Clients need undertake ship cost
After-Sales Service
* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. *In Vietnam,Malaysia.Philippines.Indonesia. We have local engineer ,but client please undertake travelling expenses for them.
