JT400 Waterjet Propulsion for Boat

Water-jet propulsion advantages

Reliability
Water-jets have fewer moving parts and most major components inboard, minimizing the chance accidental damage and increasing the life of components.

Excellent Manoeuvreability
Precise steering control at all boat speeds. "Zero Speed" steering effect provides 360° thrusting ability for docking and holding stationary. Sideways movement possible with multiple jet installations.

High Speed
Water-jets are designed to be optimized for vessel speeds from 25-50 knots, dependent on application's engineering variables including hull resistance and type, engine power rating and rpm, impeller rating, etc.

Shallow Draught
Water-jet intake is flush with hull bottom to allow access to shallow water areas and beach landings with no risk of damage to the drive.

Total Safety

No exposed propeller for complete safety around people in the water and marine life.

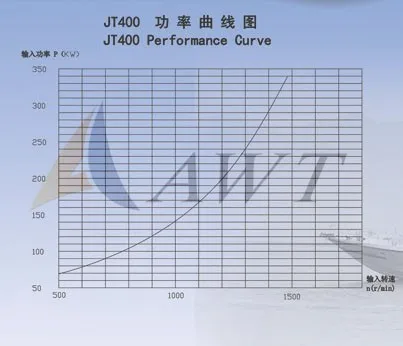

To choose engine with suitable power and speed, refer to below power-speed curve.
If gearbox is needed, consult us for more information.

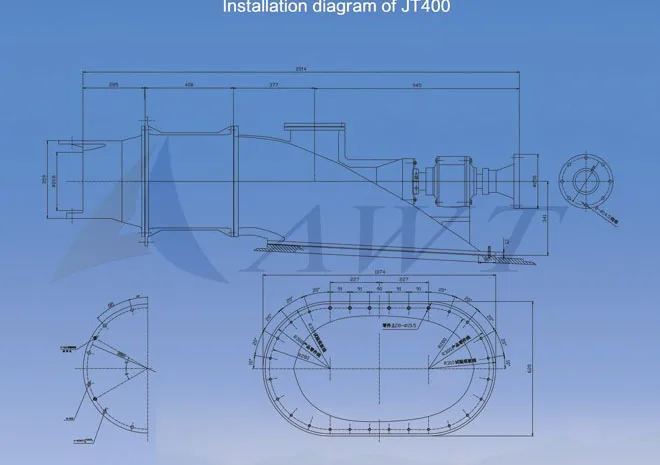

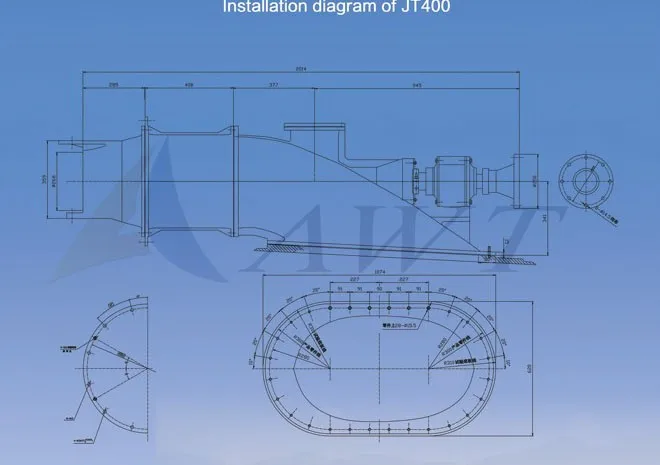

For boat water-jet installation, see below water-jet dimension.
Contact us for clearer pictures.
Consult us for more installation information if needed.

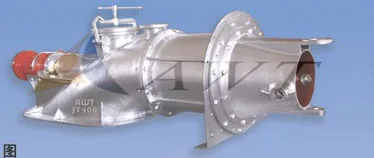

JT400 water-jet pump is designed and produced according to the GJB6681-2009 Standard. It can be widely used in transportation  boats, yachts patrolboats,lifboats ,workboat, engineering boats,passenger ships and amphibian vehicles,etc.

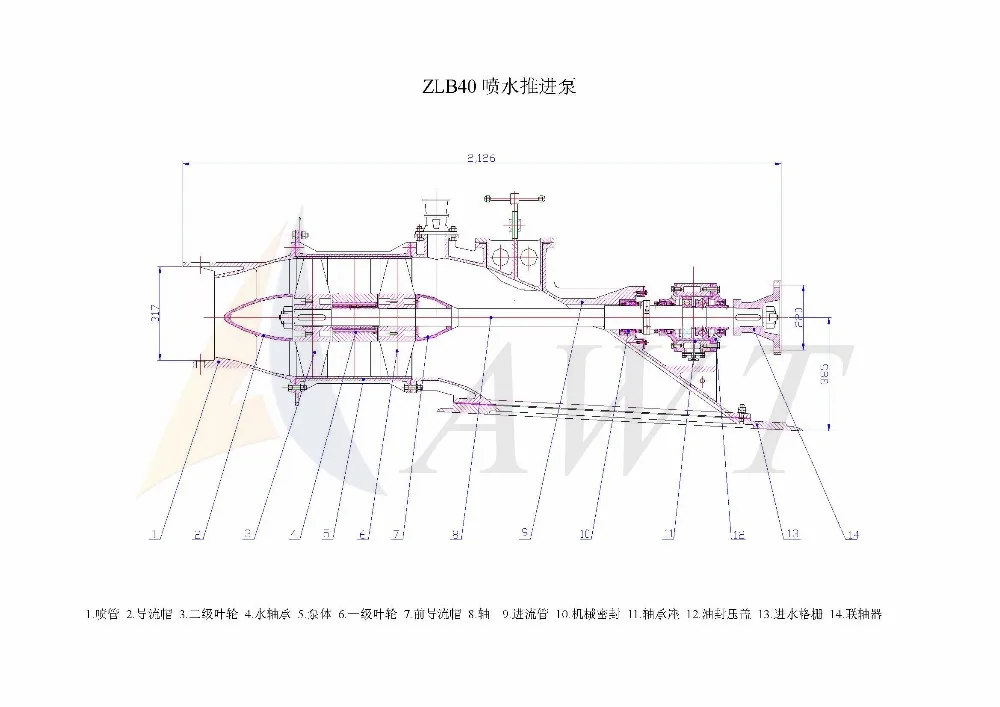

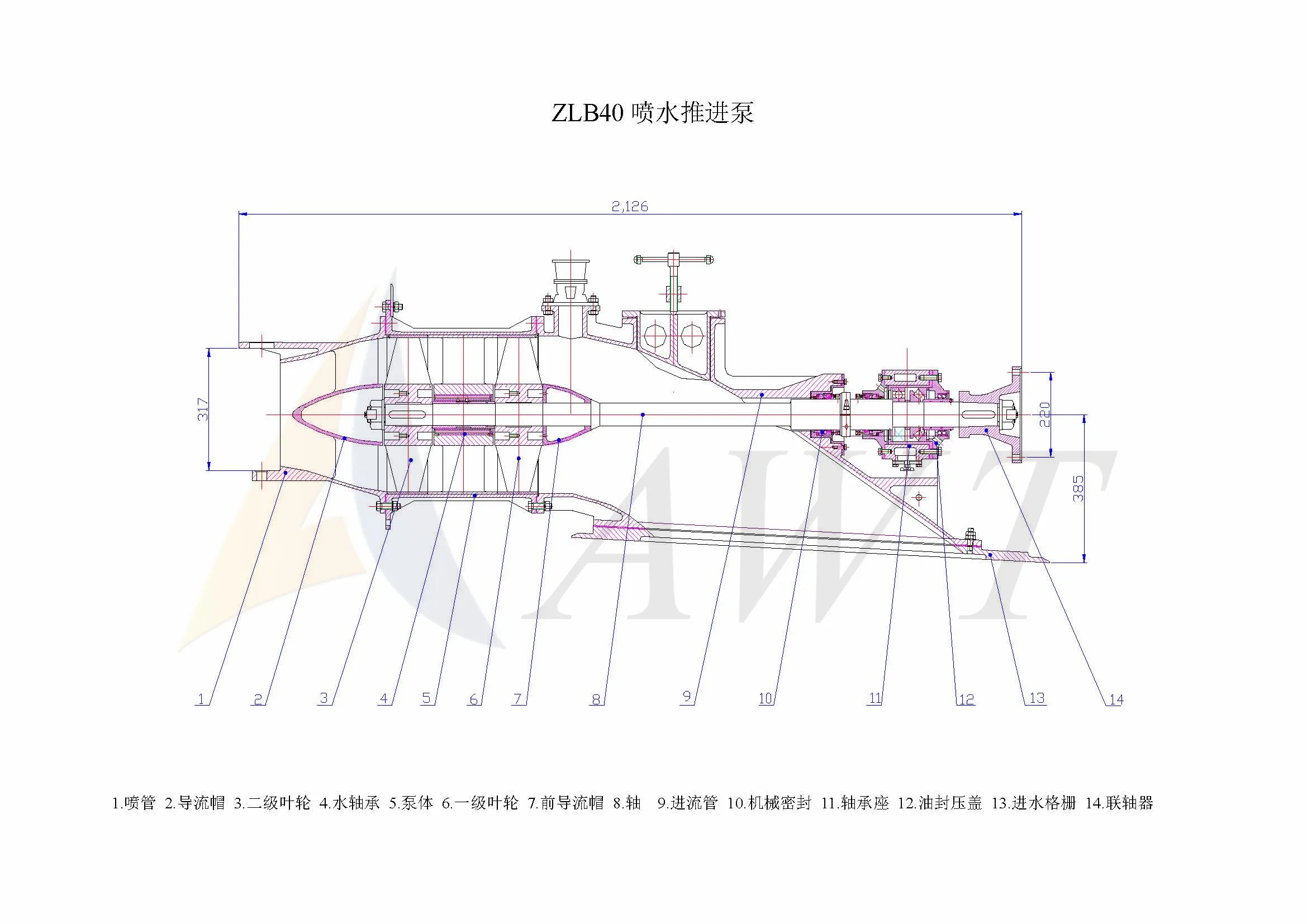

The pump body is made of marine grade aluminium alloy.The shaft and impeller are made of stainless steel. The steering and revesing  are controlled by the hydraulic system. JT400 is an ideal propulsion product with reasonable structure and unrivalled  reliability.
