316 food grade stainless steel products welding tubing sanitary piping bangladesh
- Category: >>>
- Supplier: Foshan Yaolong Hongrun Stainless Steel Pipe Co. Ltd.
Share on (60838977277):
Product Overview
Description
Product Details

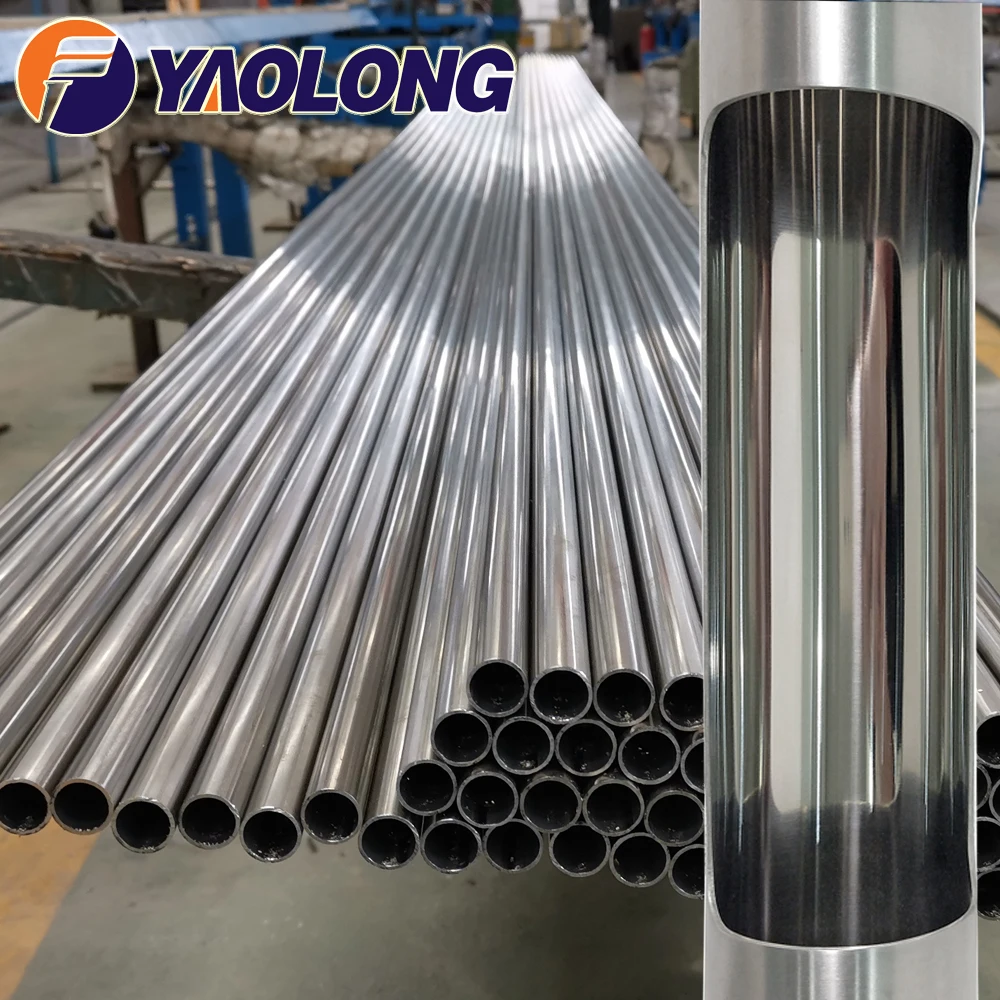

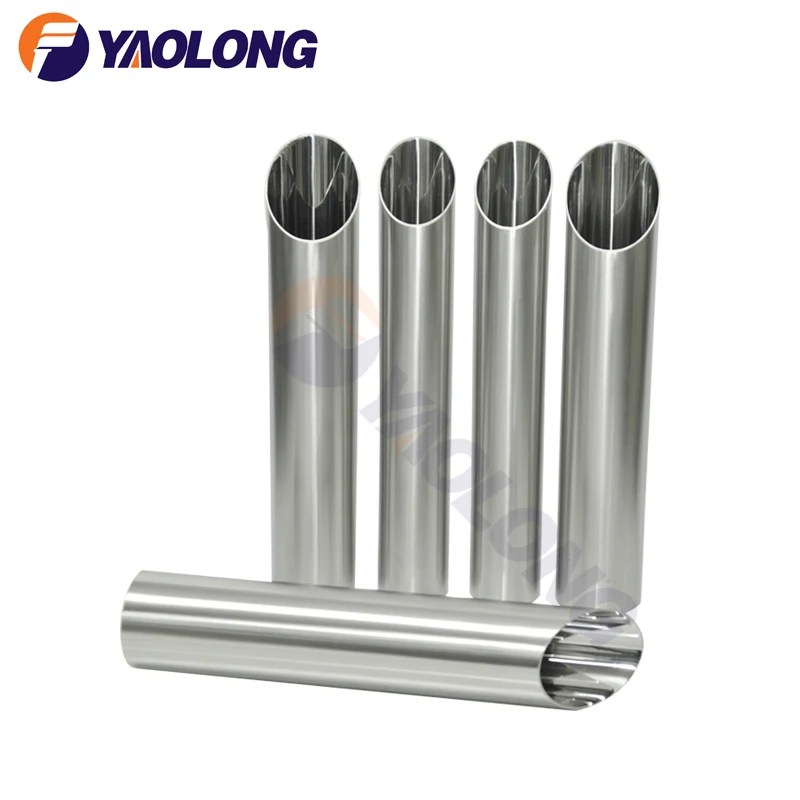

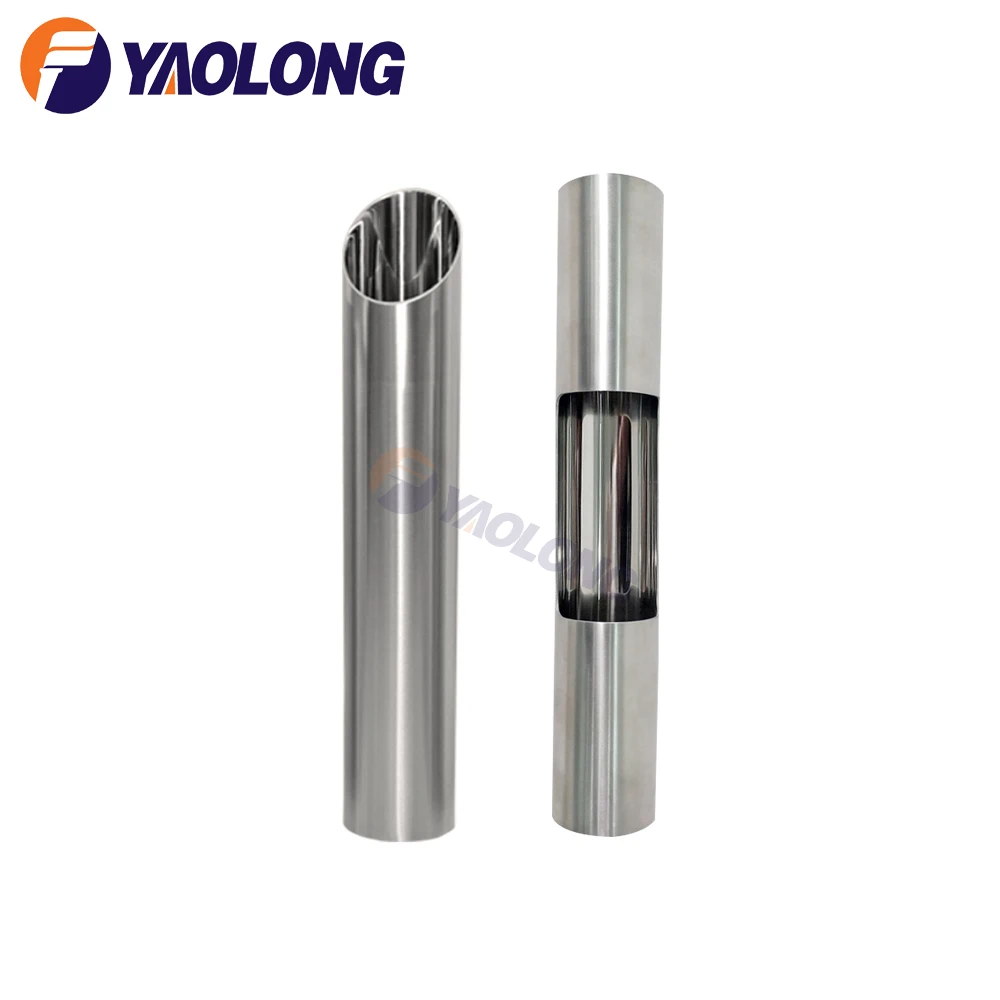

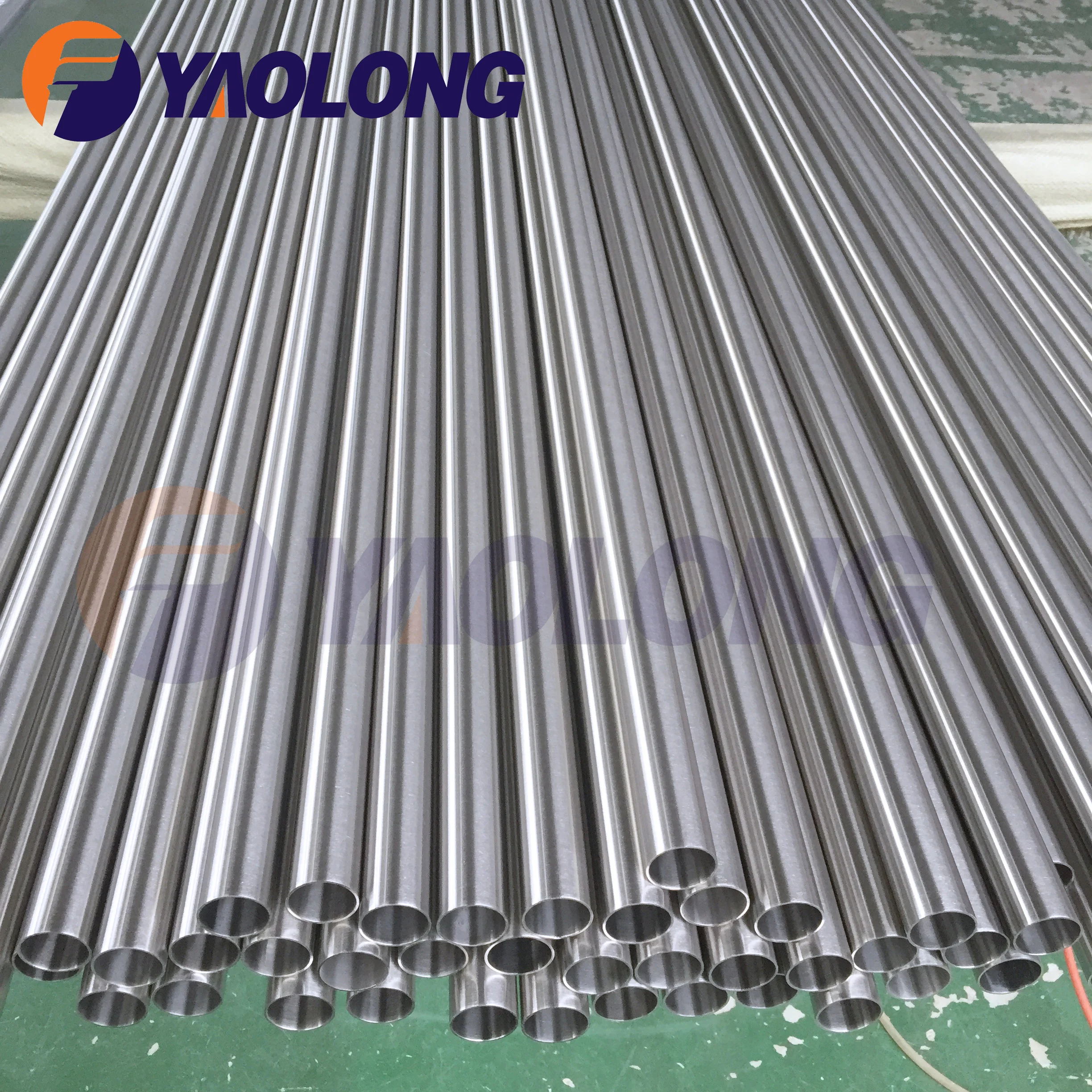

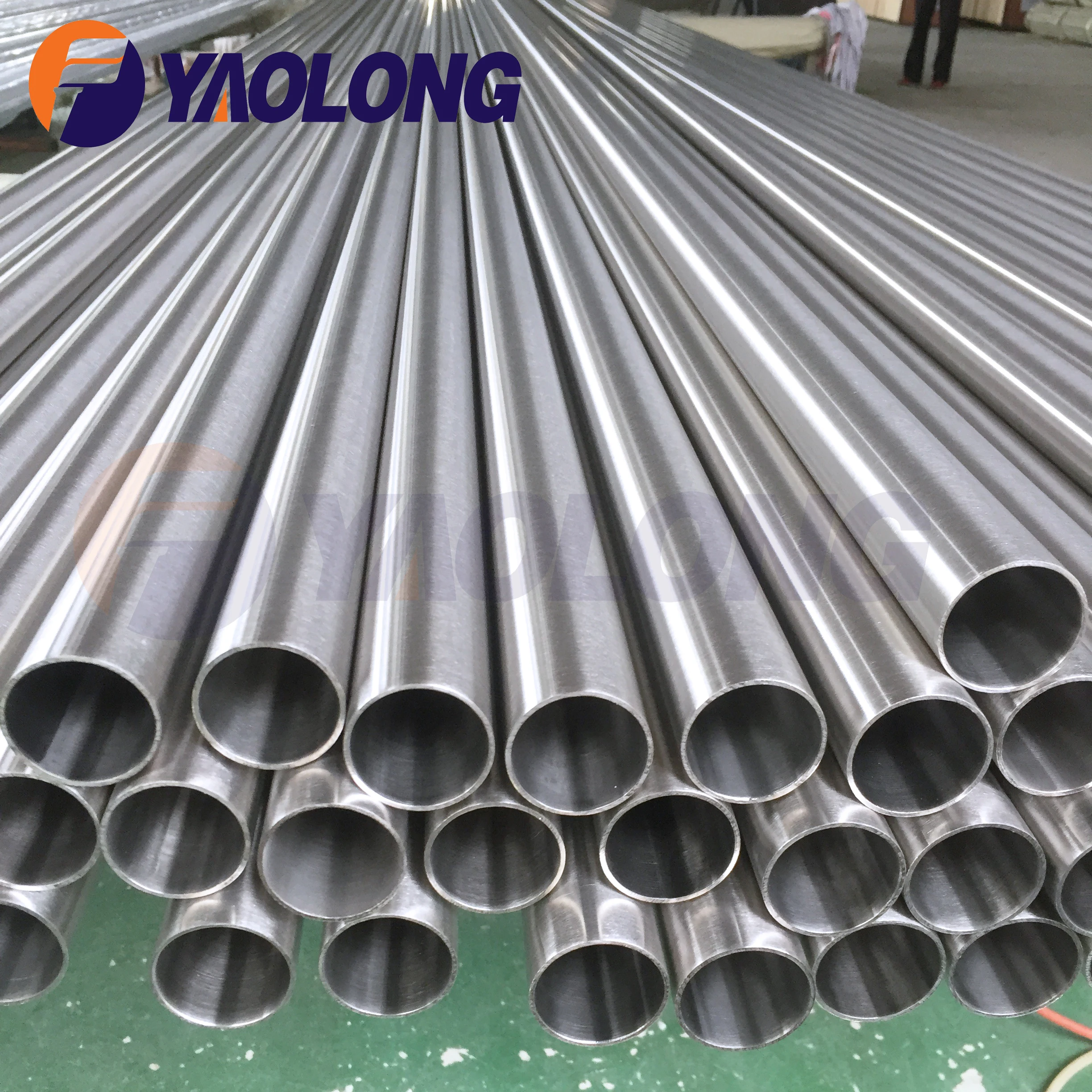

316 food grade stainless steel products welding tubing sanitary piping bangladesh
Features:
1. Our stainless steel tubes pipes are treated by bright annealing, inside weld bead removing, precise polishing. The roughness of tubes could be under 0.3μm.
2. We have the non destructive testing ( NDT ), eg. online eddy current inspection and hydraulic or airtightness testing.
3. Thick welding, good appearance.The mechanical properties of tube could be tested.
4. The raw material is from Taigang, Baogang, Zhangpu and so on.
5. And Our tubes are certificated by AD 2000-W0, PED 2014/68/EU, ISO 9001 : 2015.
2. We have the non destructive testing ( NDT ), eg. online eddy current inspection and hydraulic or airtightness testing.
3. Thick welding, good appearance.The mechanical properties of tube could be tested.
4. The raw material is from Taigang, Baogang, Zhangpu and so on.
5. And Our tubes are certificated by AD 2000-W0, PED 2014/68/EU, ISO 9001 : 2015.
| AS 1528.1 | |||||
| Size OD | Tolerance of OD | Wall Thickness | Tolerance on Wall Thickness | Tolerances on Length | Weight KG/M |
| 12.70 | +/- 0.1 | 1.20 | +/- 10.0% | +3, -0 | 0.344 |
| 15.88 | +/- 0.1 | 1.20 | +/- 10.0% | +3, -0 | 0.439 |
| 19.05 | +/- 0.1 | 1.20 | +/- 10.0% | +3, -0 | 0.534 |
| 25.40 | +/- 0.1 | 1.20 | +/- 10.0% | +3, -0 | 0.723 |
| 25.40 | +/- 0.1 | 1.60 | +/- 10.0% | +3, -0 | 0.949 |
| 38.10 | +/- 0.1 | 1.20 | +/- 10.0% | +3, -0 | 1.103 |
| 50.80 | +/- 0.1 | 1.60 | +/- 10.0% | +3, -0 | 1.455 |
| 50.80 | +/- 0.1 | 1.20 | +/- 10.0% | +3, -0 | 1.483 |
| 63.50 | +/- 0.1 | 1.60 | +/- 10.0% | +3, -0 | 1.961 |
| 76.20 | +/- 0.1 | 1.60 | +/- 10.0% | +3, -0 | 2.467 |
| 101.60 | +/- 0.1 | 1.60 | +/- 10.0% | +3, -0 | 2.973 |
| 3A ASTM A270 | |||||
| Size OD | Tolerance of OD | Wall Thickness | Tolerance on Wall Thickness | Tolerances on Length | Weight KG/M |
| 3/4 " (19.1 mm) | +/-0.005" (0.13 mm) | 0.065" (1.65 mm) / 0.049" (1.25 mm) | +/- 10.0% | +1/8“ (3.18 mm) | 0.7218 |
| 1" (25.4 mm) | +/-0.005" (0.13 mm) | 0.065" (1.65 mm) / 0.049" (1.25 mm) | +/- 10.0% | +1/8“ (3.18 mm) | 0.9824 |
| 1-1/4" (31.8 mm) | +/-0.008" (0.20 mm) | 0.065" (1.65 mm) | +/- 10.0% | +1/8“ (3.18 mm) | 1.2412 |
| 1-1/2“ (38.1 mm) | +/-0.008" (0.20 mm) | 0.065" (1.65 mm) / 0.049" (1.25 mm) | +/- 10.0% | +1/8“ (3.18 mm) | 1.5078 |
| 2" (50.8 mm) | +/-0.008" (0.20 mm) | 0.065" (1.65 mm) / 0.049" (1.25 mm) | +/- 10.0% | +1/8“ (3.18 mm) | 2.0031 |
| 2-1/2" (63.5 mm) | +/-0.010" (0.25 mm) | 0.065" (1.65 mm) | +/- 10.0% | +1/8“ (3.18 mm) | 2.5585 |
| 3" (76.2 mm) | +/-0.010" (0.25 mm) | 0.065" (1.65 mm) | +/- 10.0% | +1/8“ (3.18 mm) | 3.0797 |
| 4" (101.6 mm) | +/-0.015" (0.38 mm) | 0.065" (1.65 mm) / 0.083" (2.11 mm) | +/- 10.0% | +1/8“ (3.18 mm) | 5.2628 |
| ISO 2037 | |||||
| Size OD | Tolerance of OD | Wall Thickness | Tolerance on Wall Thickness | Tolerances on Length | Weight KG/M |
| 21.30 | +/- 0.13 | 1.00 | +/-10.0% | +3.18 -0 | 0.506 |
| 25.00 | +/- 0.13 | 1.20 | +/-10.0% | +3.18 -0 | 0.712 |
| 25.00 | +/- 0.13 | 1.60 | +/-10.0% | +3.18 -0 | 0.933 |
| 33.70 | +/-0.20 | 1.20 | +/-10.0% | +3.18 -0 | 0.972 |
| 33.70 | +/-0.20 | 1.60 | +/-10.0% | +3.18 -0 | 1.280 |
| 38.00 | +/-0.20 | 1.20 | +/-10.0% | +3.18 -0 | 1.100 |
| 38.00 | +/-0.20 | 1.60 | +/-10.0% | +3.18 -0 | 1.451 |
| 40.00 | +/-0.20 | 1.20 | +/-10.0% | +3.18 -0 | 1.160 |
| 40.00 | +/-0.20 | 1.60 | +/-10.0% | +3.18 -0 | 1.531 |
| 51.00 | +/-0.20 | 1.20 | +/-10.0% | +3.18 -0 | 1.490 |
| 51.00 | +/-0.20 | 1.60 | +/-10.0% | +3.18 -0 | 1.970 |
| 63.50 | +/-0.25 | 1.60 | +/-10.0% | +3.18 -0 | 2.467 |
| 70.00 | +/-0.25 | 1.60 | +/-10.0% | +3.18 -0 | 2.730 |
| 76.10 | +/-0.25 | 1.60 | +/-10.0% | +3.18 -0 | 2.970 |
| 88.90 | +/-0.25 | 2.00 | +/-10.0% | +3.18 -0 | 4.330 |
| 101.60 | +/-0.38 | 2.00 | +/-10.0% | +3.18 -0 | 4.983 |
| HOT SALE PRODUCTS | ||
| Food Grade Tube | Food Grade Tube | Heat Exchanger Tube |
 |  |  |
316 food grade stainless steel products welding tubing sanitary piping bangladesh
Company Information
316 food grade stainless steel products welding tubing sanitary piping bangladesh
FAQ
Q: Are you trading company or manufacturer?
A: We are the manufacturer with 3 factories. Specializing in producing welded stainless steel pipe / tube, stainless steel bollard for over 10 years.
Q: How long is your delivery time?
A: It is according to quantity. Generally it is 30 days.
Q: Can you provide us sample, is it free or need to pay?
A: If you don’t need to print your logo or other artwork on the products, we will not charge any cost, just tell us your freight collect account like Fedex, DHL, TNT. If you don’t have, we need to charge Express fee properly.
Q: Can I get your best price?
A: Our goal is to provide you the best price with great quality assured in a long run. Please leave your contact information for the best quotations, we will get back to you with the best solutions as soon as we can.
