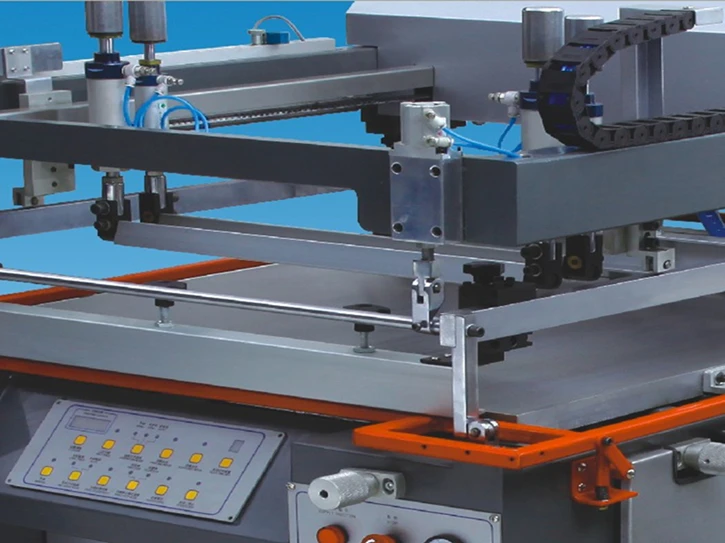

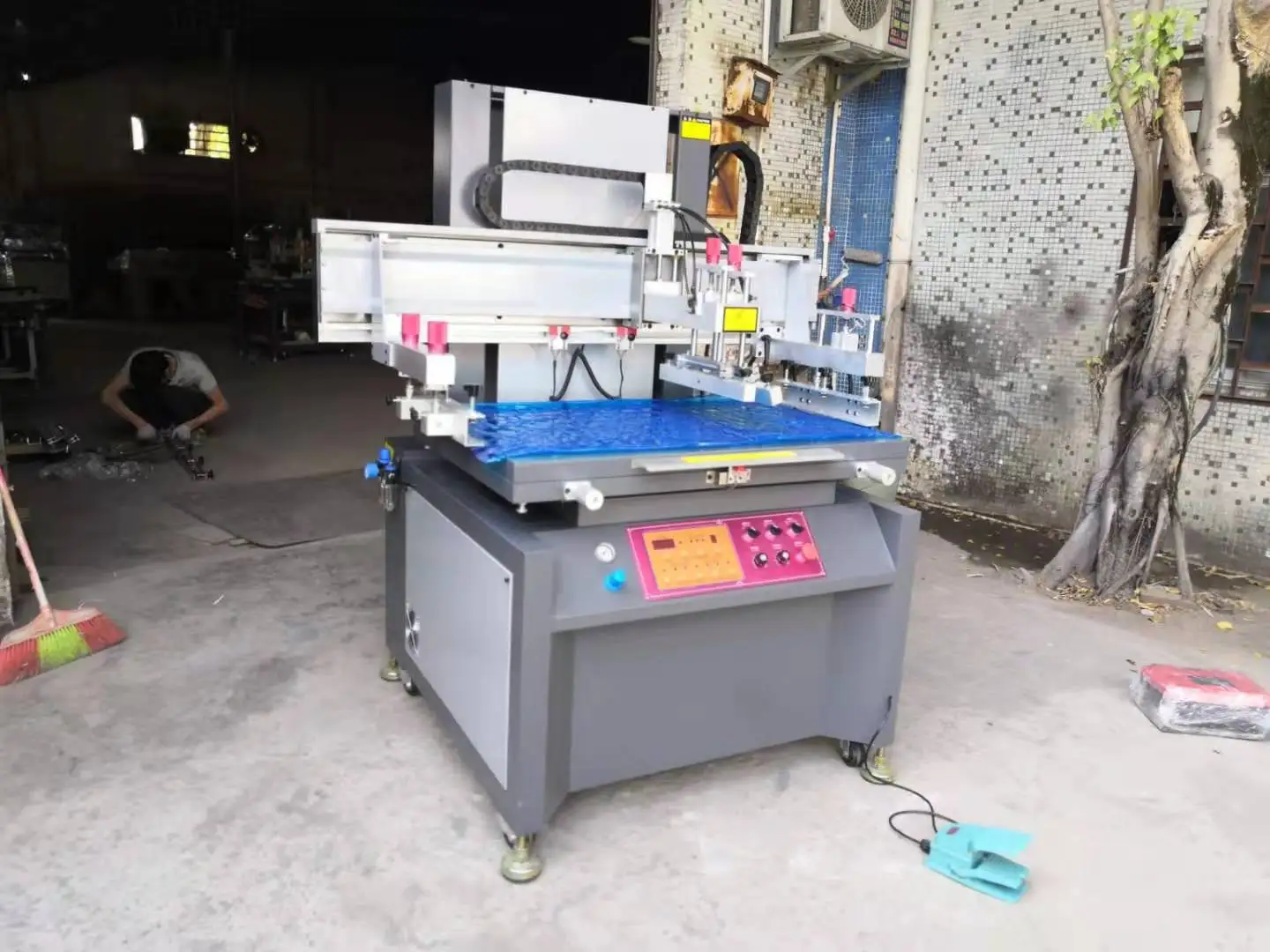

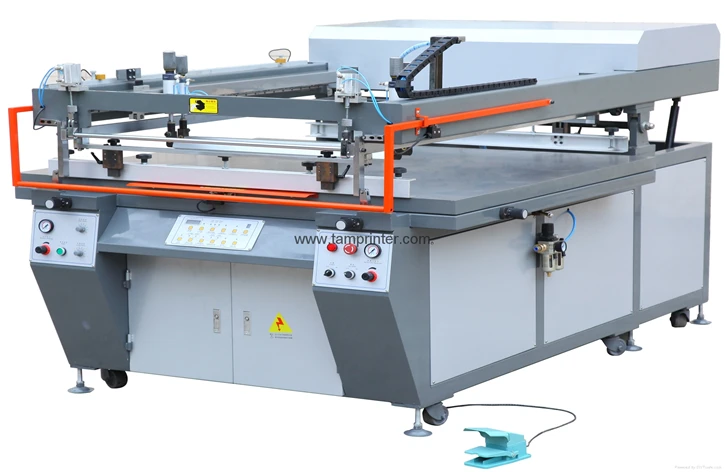

Clam shell sheet screen printer for electronics industry

Product Overview

Description



Product description



Model No.:TMP-120140

Brand Name:Tamprinter

Country of Origin:China

-Minimum Order:1 SET



video link

//youtu.be/d0zJxbDc-Js
youku Video
ttp://v.youku.com/v_show/id_XNTUxOTc1OTgw.html



1. Technical parameter:

Type	TMP-120140
Worktable area (mm)	1400X1600
Max printing area (mm)	1200X1400
Max screen fame size (mm)	1550X1700
Thickness of materials (mm)	20
Printing speed	400~900pcs/h
Air pressure (Mpa)	0.4~0.8
Air consumption (L/pcs)	13
Power	5.5KW
Max worktable height (mm)	880
Dimension (LXWXH)	1.4*2.54*1.78m
Weight	660kg
Rated voltage	220V/50Hz











2. Application:

   This printing machine is widely used in electronics industry (such as PCB, thin-film switch and so on), packaging industry (such as cigarette case, wine box, gift box and so on), paper board industry (such as trademark, calendar, oil painting, computer keyboard, new year picture, transfer print paper, adhesive sticker, credit card, plate board and so on).



3. Features:

1, Rugged design

2, Low maintenance

3, Excellent performance

4, Easy to operate

5, Efficient performance



Packaging & Delivery

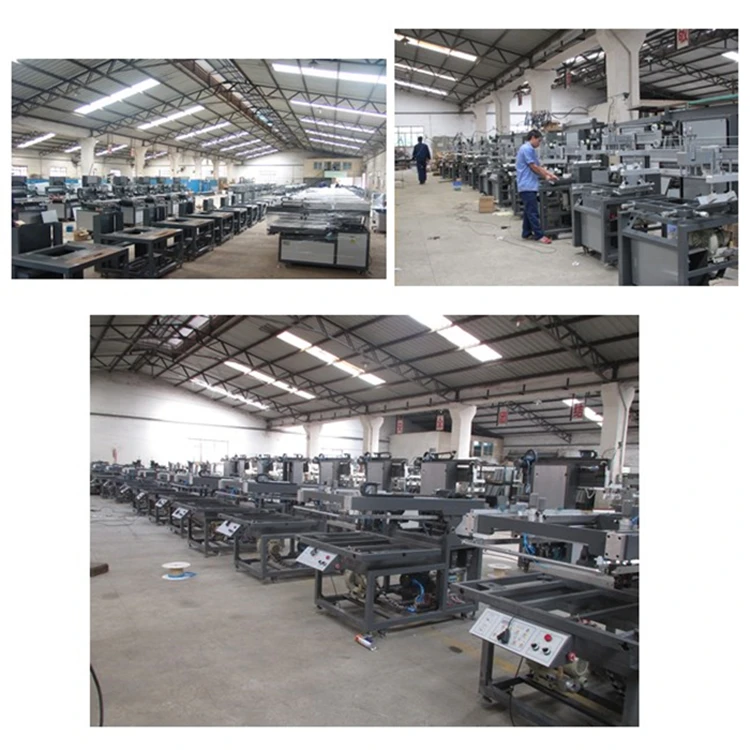

Working shop



Cetefications

Cooperative Partners



More about this machine:

Work done through these machine: Spot Gloss, Embossed, Glitter, Abrasive, Bubbles, Wrinkle and many more..
Technical Details:
1,The main motor is controlled by an advance variable frequency drive for easy control of speed for stable and precise running.

2, Rugged and heavy duty machine for years of trouble free performance.

3, The printing stroke and fixing mechanism of screen frame can be adjusted to meet different sizes of print

4, Impression table is equipped with suction mechanism for vacuum hold- down and auto- cut.

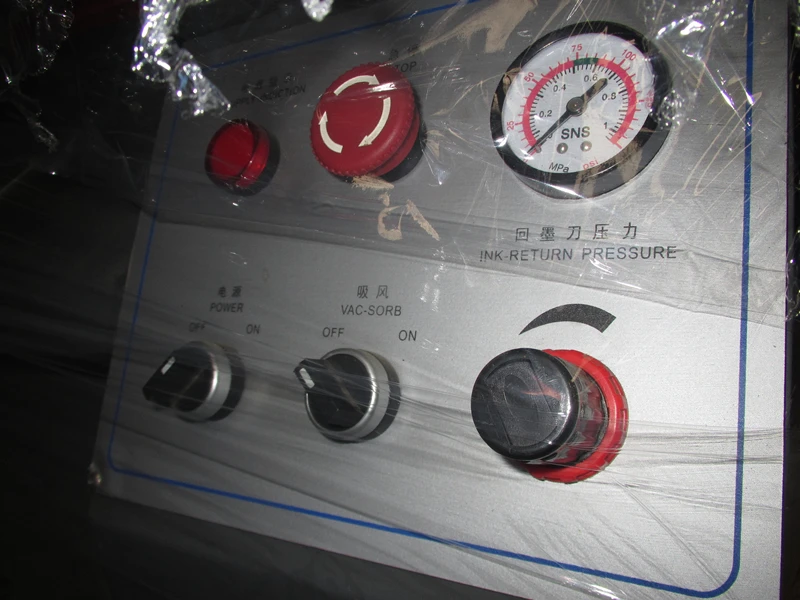

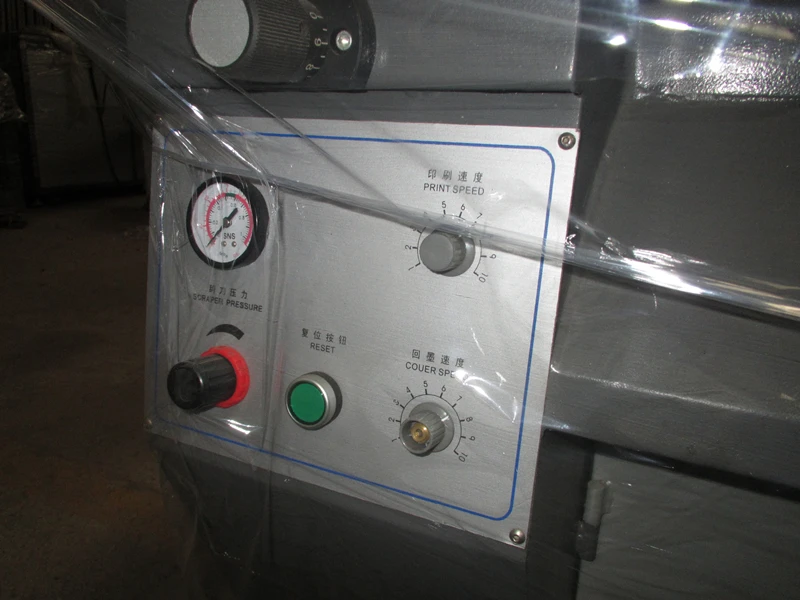

5, The squeegee and ink return blade are controlled pneumatic cylinders and can be adjusted separately for pressure with uniform distribution of pressure even at high pressures for high print quality.

6, The surface of the table I.e. the impression bed is made of the stainless steel for long life with scratch proof surface.

7, The impression bed is precise within flatness within 0.02mm for high quality printing with precise dot reproduction and smooth solid grounds.

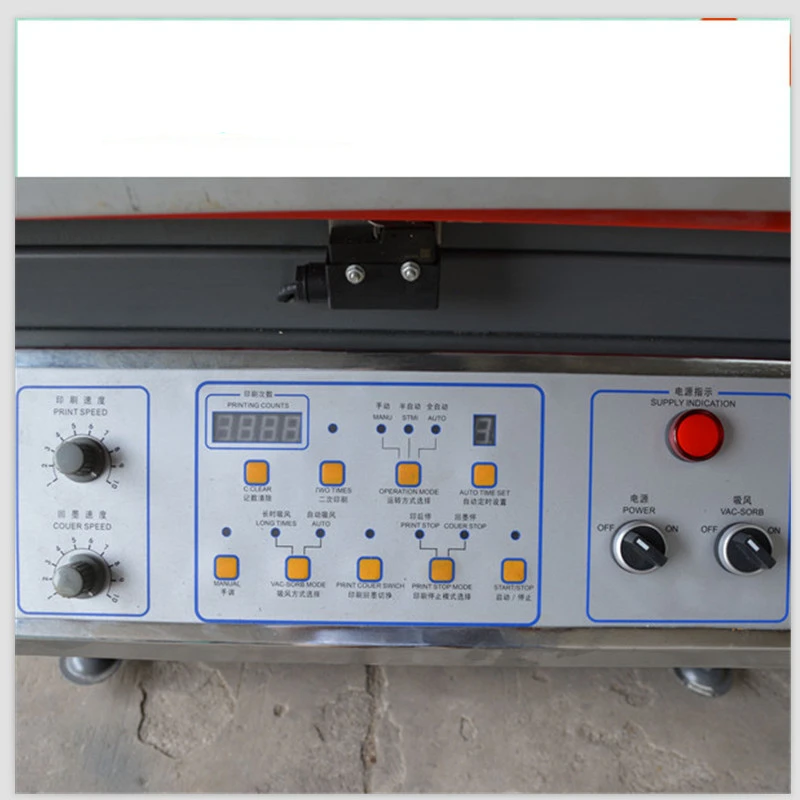

8, The machine is controlled by a user friendly membrane keyboard with Micro- processor controller.

9, Parameters like printing time and next impression delay can be adjusted easily. Membrane key board, Car decal, and many more applications
