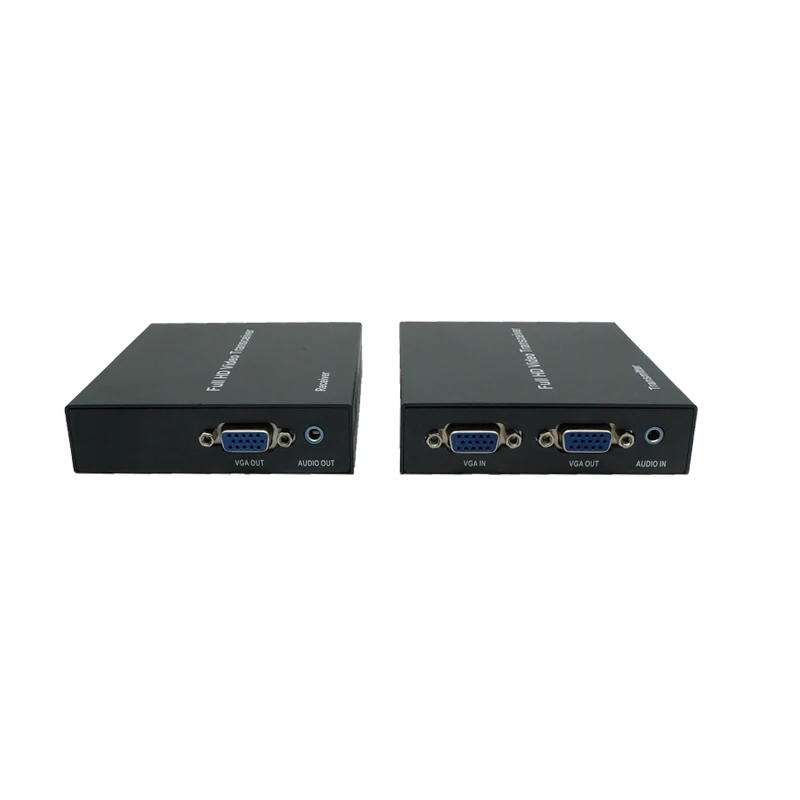

PWAY DT215V 1080P@60Hz TCP/IP loop out cat5e/6 one input to many output 200m VGA extender

Product Overview

Description



PWAY DT215V 1080P@60Hz TCP/IP loop out cat5e/6 one input to many output 200m  VGA extender



1. Description



  VGA Extender could transmission high-definition video long distance through a single cable ,, external independent audio and other functions, can adapt to a variety of complex applications. The device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA.







2.Features



l Transmit VGA video and audio over long distances through the cat5e/6 up to 200 meters;

l The highest resolution HDMI video signals up to 1080P @ 60Hz;

l Compliance with VGA standard protocol;

l Support for external one-way analog stereo audio signal transmission;

l Support local VGA loop output;

l It can automatically identify and configure a variety of display modes;

l Built-in automatic equalization system, the picture is smooth, clear and stable;

l Built-in ESD Protection Circuit, comprehensive protection system security;

l Easy to install, plug and play, no need to set;





3.Package list

l  VGA transmitter 1pcs

l  VGA receiver     1pcs

l  Mini USB cable              1pcs

l  Power adapter             2pcs

l  User manual     1pcs





4. Specifications

Parameter		Description
Video	Signal Type	VGA
	BW	380MHz
	Resolution	1024X768 @ 60fps 1280X720@ 60fps 1280X800@ 60fps 1280X1024@ 60fps 1440x900 @ 60fps 1660x1200 @ 60fps 1680x1050 @ 60fps 1920x1080 @ 60fps
	Impedance	75Ω
Audio	Port	3.5mm Stereo audio socket
	Type	Stereo
Ethernet port	Cable Type	IEEE 568B
	Max transmission distance	Cat5e /6 :200m
Other	Power	Adapter:DC 5V
	Power dissipation	MAX 6W
	Temperature	Operating:-5℃ ~ +70℃
	Humidity	Operating:5% ~ 90%
	Size	104*92.5*24mm
	Warranty	1 year

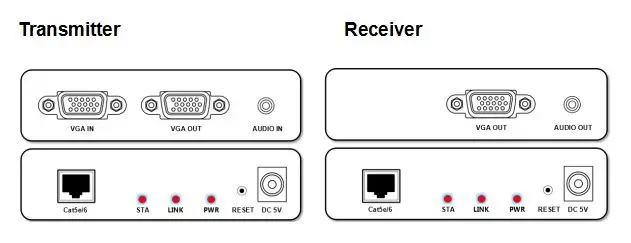

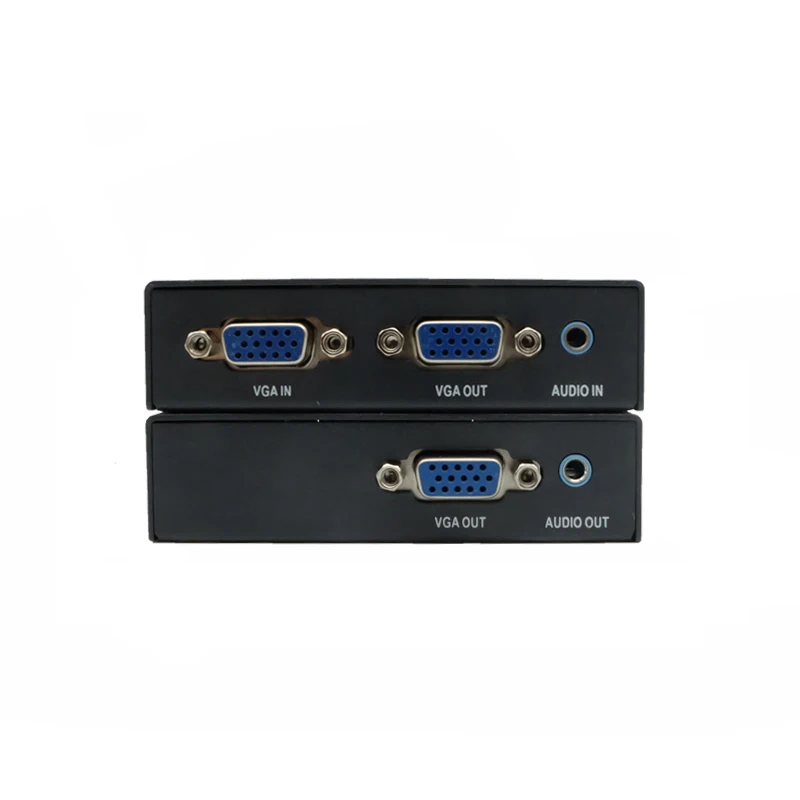

5. Panel



Port Name	Function
VGA IN/VGA OUT	VGA signal input/output
AUDIO IN/OUT	Stereo audio input/output
DC 5V	The power adapter input
Cat5e/6	Ethernet interface
RESET	Restore button, press for 7 second to restore system setting to factory default
LED indicator	Description
LINK	Connect light
STA	Communications equipment indicator light
PWR	System power indicator





6. Installation



1. The VGA signal source access VGA Extender transmitter,

2. Stereo audio access VGA Extender transmitter,

3. The receiving end VGA Extender connected to a display device (such as

4. high-definition TV, splicing screen, etc.),

5. The VGA extender output audio access receiving end audio equipment,

6. Use network cable to connect the sender and receiver of the Ethernet port,

7. The sender and the receiving end on the power, when the lights are on, the system running.

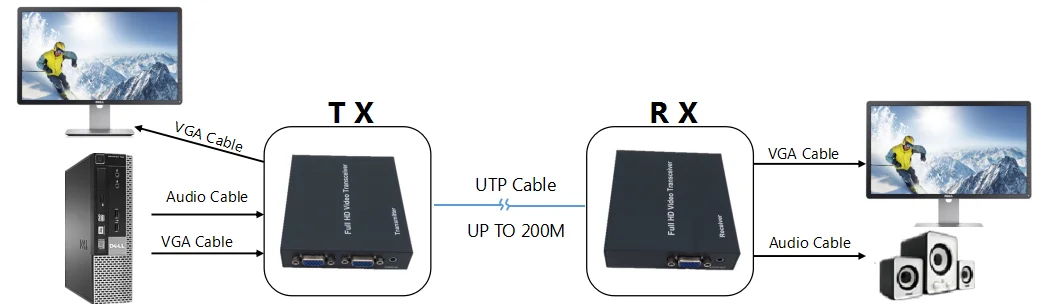

7. Diagram



8. Warranty



Thank you very much for using our products.

    The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.

Free maintain won’t be given under the following circumstance:

l The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration;

l The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage;

l The product malfunction caused by not in accordance with the user manual operation;

l The malfunction and damaged caused by the other barriers(man-made factors or external device);
