Product Overview

Description


Product Description

Product Application

G-motor's GH60 series is a kind of /20HP treadmill incline motor,without stroke switch.It's transmission is depending on screw rob,with reed sensor.

\t
SPECIFICATIONS FOR 1/20HP treadmill incline motor GH60
\t
Name
\t
Treadmill incline motor
\t
Model
\t
GH60-2082-185/260-S
\t
Power
\t
1/20HP
\t
No Load Current
\t
0.4 A
\t
Voltage
\t
220 VAC 50Hz
\t
Capacitor
\t
2.5uF/450VAC
\t
signal set
\t
Reed induction
\t
Min.Mounting dimension
\t
stroke+115mm
\t
Exposed length of power cord
\t
420  mm
\t
Stroke Length
\t
Option
\t
Rated Load
\t
200KG
\t
Duty Cycle
\t
1 ON 9 OFF

Main Features

1.Mounting Tube:Iron\t
2.ACME Screw\t
3.Built-in Thermal Protection Device\t
4.Built-in Reed Sensor\t
5.Small Body /Lower Noise

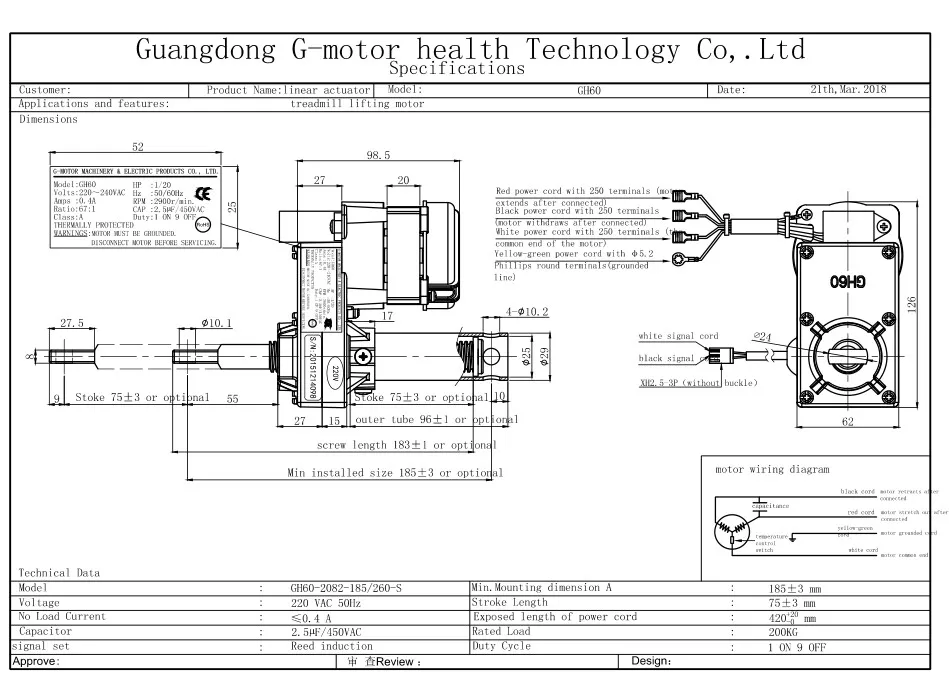

Demension size
