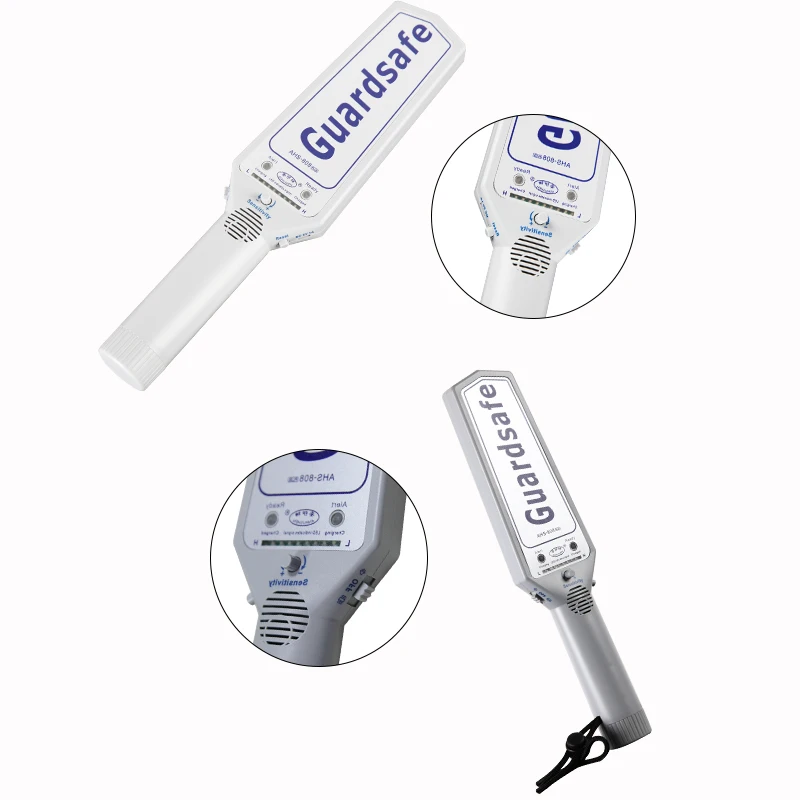

Factory Price for sale portable hand Held Metal Detector Scanner with Body Induction function

Product Overview

Description

 Factory Price for sale portable hand Held Metal Detector Scanner with Body Induction function



Application :
1. Detection inspection at airports, station, wharf, electronics factory
2. Security inspection of customs, court, public securities
3. Quality inspection of medicine and food commercial systems
4. Security inspection of the important sites and playground
5. Noble metal detection, such as gold and silver jewelry factory as well as processing factory and so on

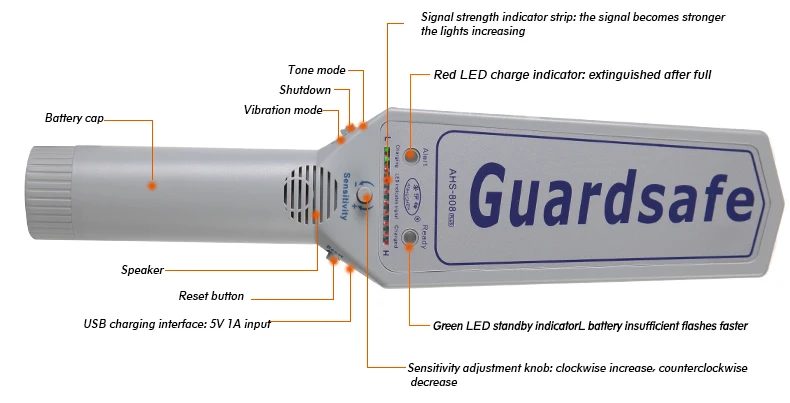

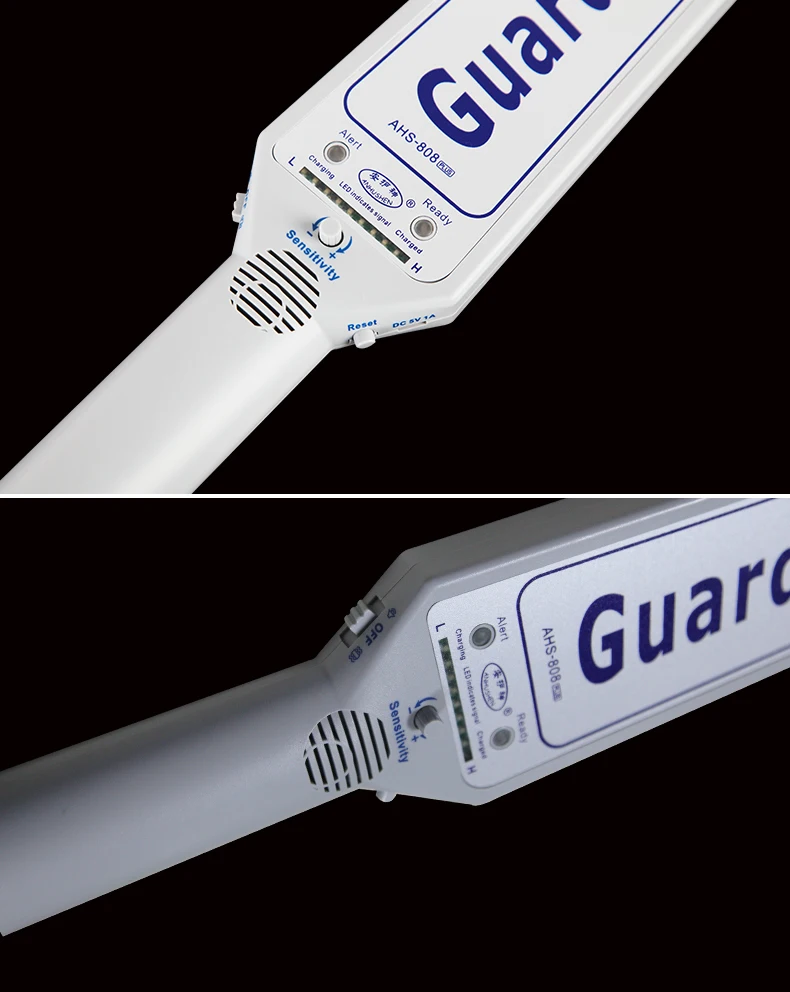

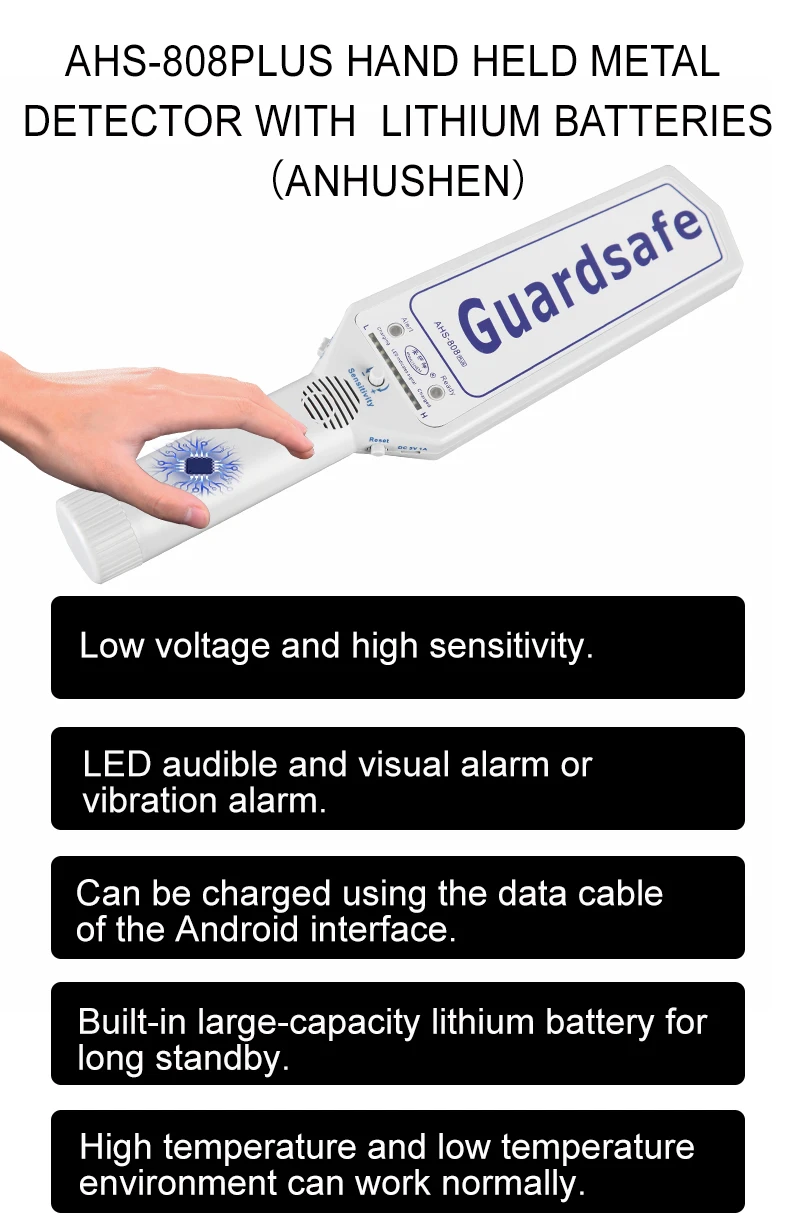

Features and function:

1.Low voltage, high sensitivity.
2..Portable and easy operation, reset with one key.
3..Round handle design, elegant appearance, highly sensitivity.
4.Sturdy and durable, normal drop without damage.
5. Light weight is 200g, the area of detection probe is large , detection speed is fast.
6.Two modes of alarm are switchable : LED audible and visual alarm or vibration alarm.
7. Sensitivity can be adjusted externally, easy to use, and suit for more different occasions .
8.It has the function of under-voltage indication.( Use flash frequency to display low power).
9.Extreme voltage current has automatic shutoff function. ( When the host power is severely reduced, it will automatically shut down, and the machine will turn off automatically ).
10.Charge indication function ( when charging, it is red, after full, it is green).
11.Can use power bank to charge and come true to use while charging.
12.Have signal strength indication function ( the stronger the signal the greater the light , the nearer the metal, the more light).
13.According to the distance and size of detecting metal objects ,the tone and volume of the machine will change.
14.You can use the charging treasure to charge and use while charging.

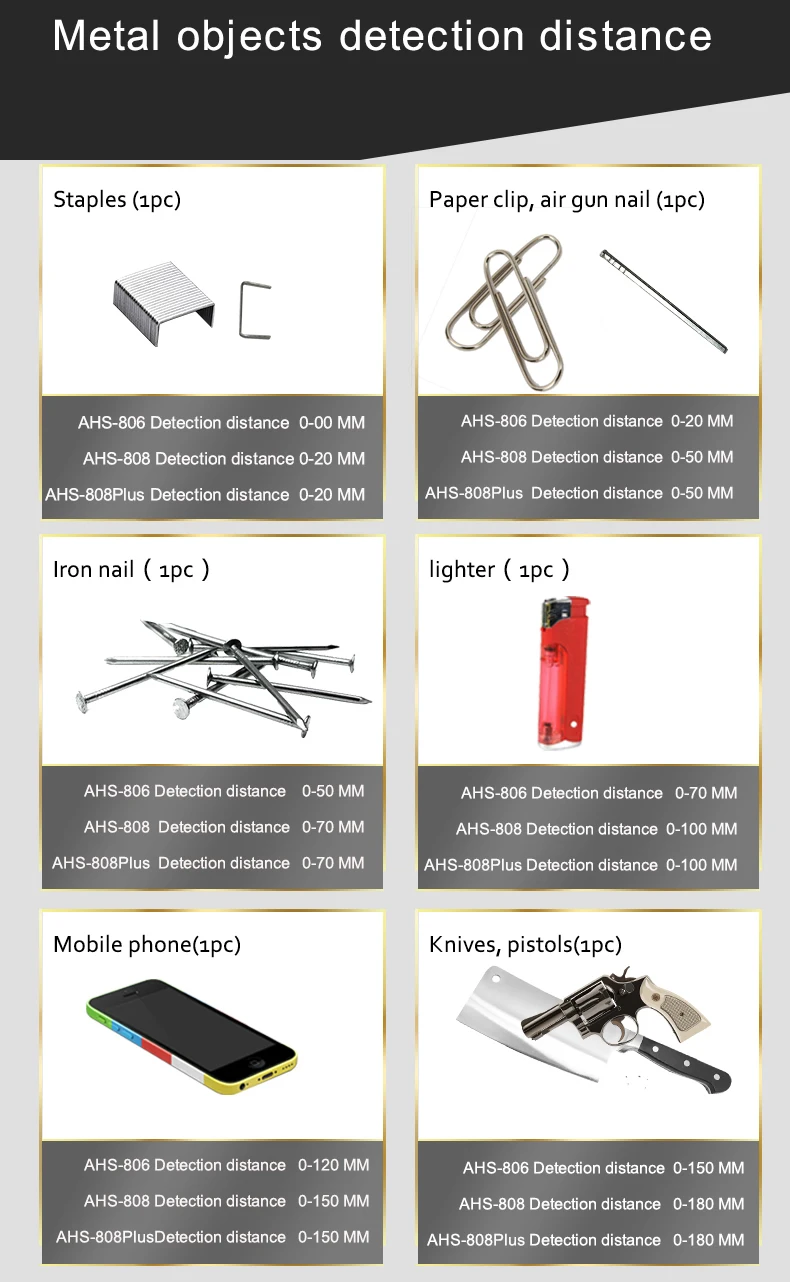

Detection range:

1. Pin 30mm;
2. 64 model handgun 120mm
3. 6 inch long knife 120mm
4. diameter 20mm steel ball 60mm
5.One yuan coin 70mm

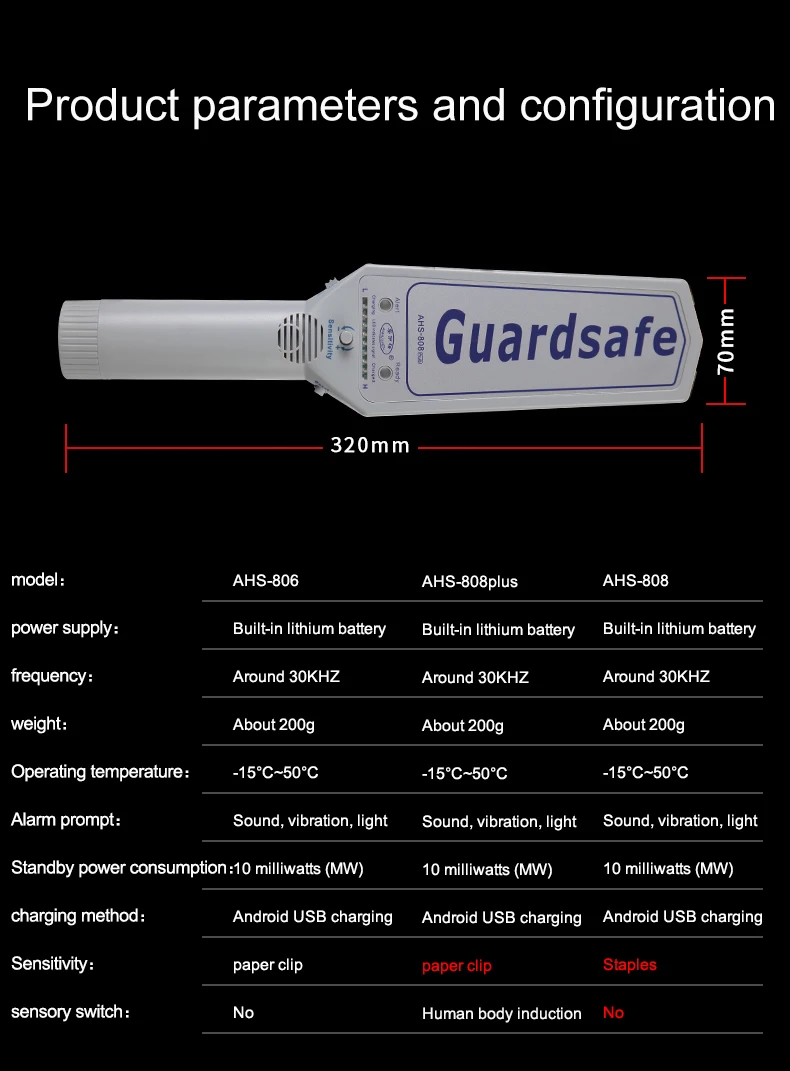

Technical parameters:

1. Size: length 320mm, width 70mm, height 40mm
2. Power supply: 5V USB smartphone charger
Note : 9V battery can not charge while using
3. Frequency: about 50KHz
4. The standby power: Standby power: less than 1 milliwatt when letting go, about 20 milliwatt when holding the standby for up to 3 months, holding the standby time up to 200 hours working time up to 120-150 hours.
5.Working current: sound alarm mode current 20 mA vibration alarm mode current 100 Ma
6.Voltage: 3.7V polymer lithium battery (can be customized to 9V (6F22) battery version)
7.Net weight : 200G (including a built-in lithium battery)
8.temperature : -15℃ to +55℃
9.Packing: 20 pcs (5kg)



Packing list:

1) handheld metal detector 1pc
2) transparent sealed pocket 1pc
3) user manual 1pc
4) USB charging cable 1pc
5) certificate of conformity & a warranty card 1pc









Junhong Electronic&Technology (Dongguan) Co., Ltd is a professional manufacturer, who established in 2005. We have more than 14 years experience in security detection this field. We are focus on the metal detectors, X-Ray inspection machine and checkweigher research & development, production and sales. We provide superior security products, multiple solutions and great service that meet customers’ most demanding threat detection needs.

 Advantages and mission

           Junhongbuild a team included engineers, sales and technical support team, who can offer professional service to our customer. Junhonghas its own fabrication company to lower the cost of mechanical parts, and we in turn extend this discount to the customer. Most of all, we buy primarily from China reliable vendors and manufacture at our headquarters in DONGGUAN city. Assembling at our headquarters gives us direct control over quality and improved manufacturing efficiency, all this we pass onto the customer in lead time, reliability and value. Our mission is keeping everybody safe and establish a harmony society and make the world becoming better place.



    INDUSTRY EXPERIENCE

           The Junhongteam is comprised of experienced professionals that are experts in the metal detection and x-ray screening, and know it’s markets, applications and products firsthand. We do not just want to sell you a machine, we want to be your go-to source for answers - including how to choose the appropriate products. We also supply operator training, operation tips and more.







1. Why does the handheld metal detector continue to sound or vibrate?

Abnormal cause: insufficient battery voltage

Solution: 1. If you are using a disposable dry battery, please replace the battery

                     2. If you are using a rechargeable battery, please charge it for 2-5 hours.

                     3. Reduce sensitivity



2. Only the alarm sounds no vibration or only vibration does not sound an alarm?

Abnormal cause: the switch is not switched

Solution: There are two kinds of alarm methods for hand-held metal detectors, namely, audible alarm and vibration alarm. These two alarm modes cannot be turned on at the same time. Only one type of alarm can be selected. They are switched by switching the switch. You only need to switch to the corresponding function.



3. Didn't react after loading the battery?

Abnormal cause: the battery is reversed

Solution: Remove the battery, adjust the positive and negative electrodes, and reload the battery.



4. Charging does not respond?



Abnormal causes:

 1. Built-in charging protection function, charging overload

2. A non-rechargeable battery is used, which is a disposable dry battery.

3. The charger is mismatched.

Solution:

1. Operate in sequence, correctly insert the battery, turn off the detector power switch, plug in the charger and connect to the external power supply.

          2. Please use a rechargeable battery
