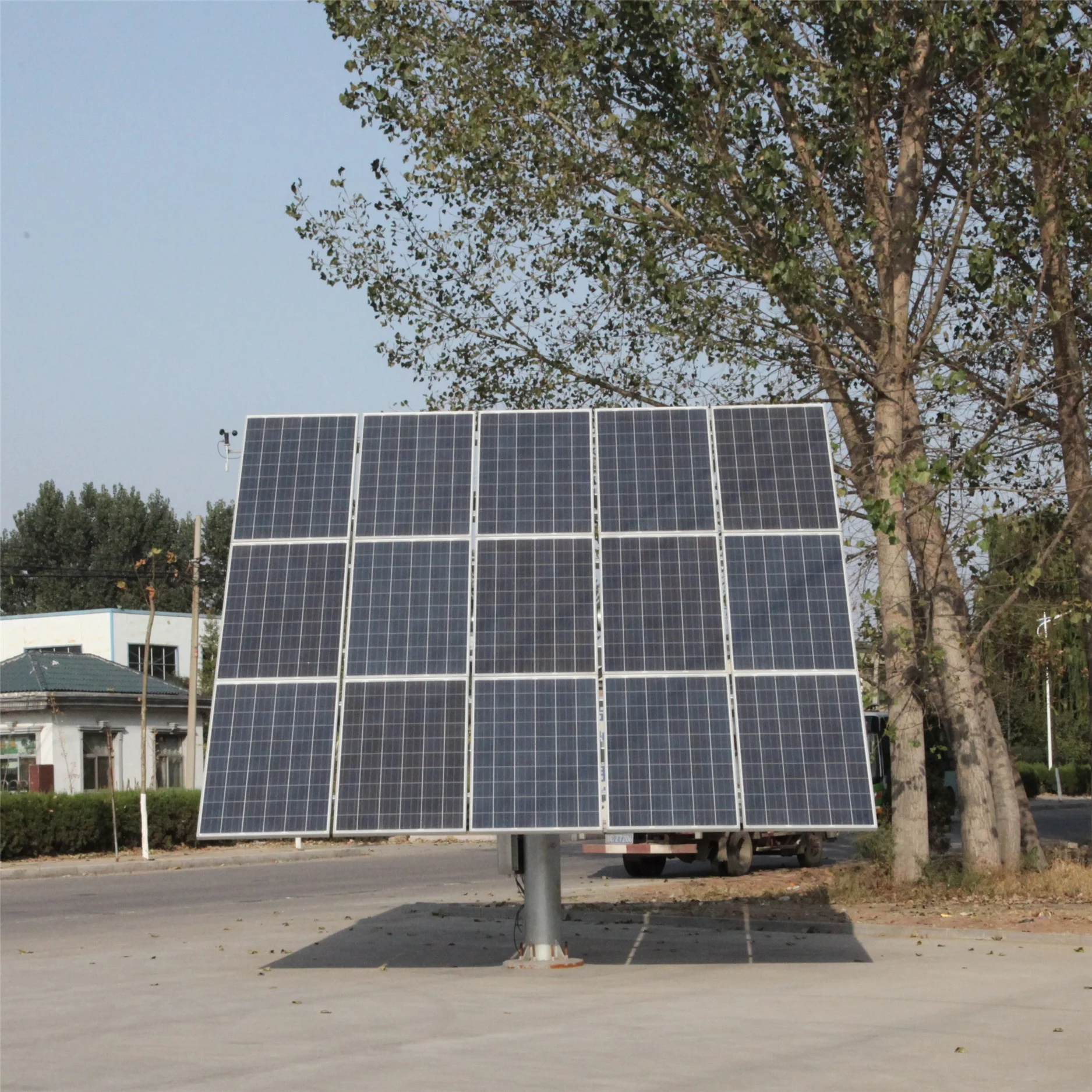

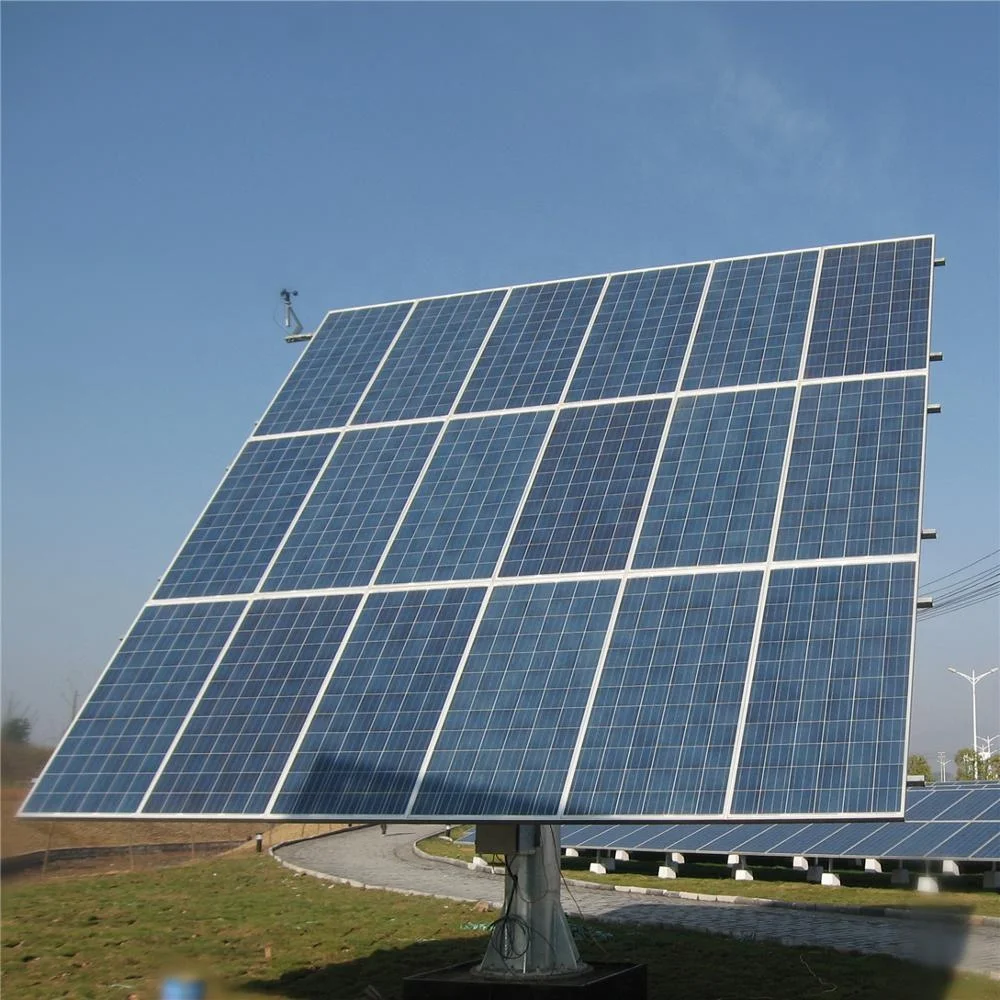

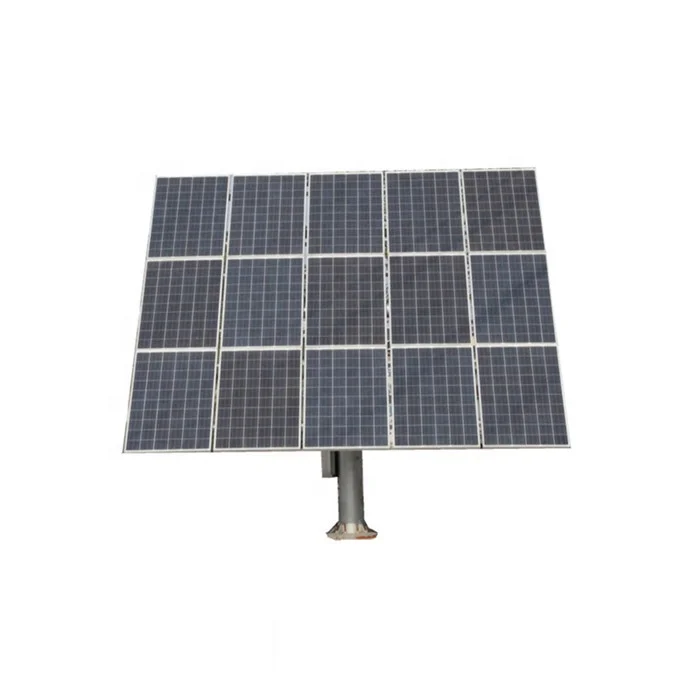

5kw 7kw solar tracking system
5kw 7kw solar tracking system
5kw 7kw solar tracking system
5kw 7kw solar tracking system
5kw 7kw solar tracking system
5kw 7kw solar tracking system
5kw 7kw solar tracking system

5kw 7kw solar tracking system

Share on (60839069722):


Price:$2,280.00 - $3,385.00

Quantity:


Product Overview

Description


Product Description

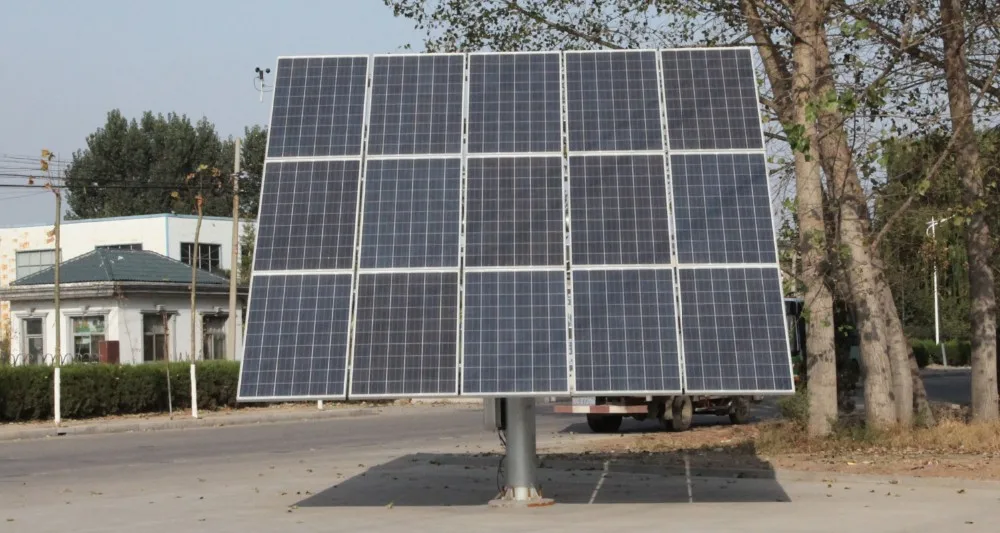

dual axis solar tracker

The solar tracker uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance microcontroller (DSP core), making the system accurate and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.
Product Details
Solar Tracker main Technical Parameters

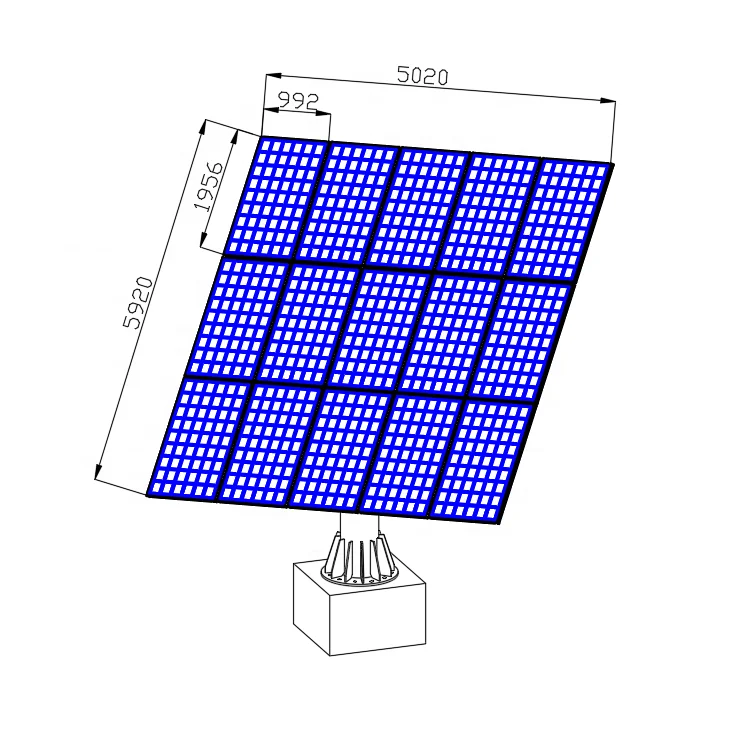

Module Num
15 units
Module Size
1956*992mm
Tracking Precision
≤1°
Communicating Protocol
RS485-MODBUS
Power Supply
90~264VAC,47~63HZ
Electricity Consumption
≤0.5(KW·h)
X tracking angle
-120°~+120°
Y tracking angle
0°~60°
Bracket Area
≈30m2
Operating Temperature
-40℃~+80℃
Bracket Material
Hot Galvanizing
Device Weight
≈1000KG
Standard
GBT29320-2012
Design Life
>25 years
Certification
CE,CQC,ISO9001,ISO14001,OHSAS18001


Main Features

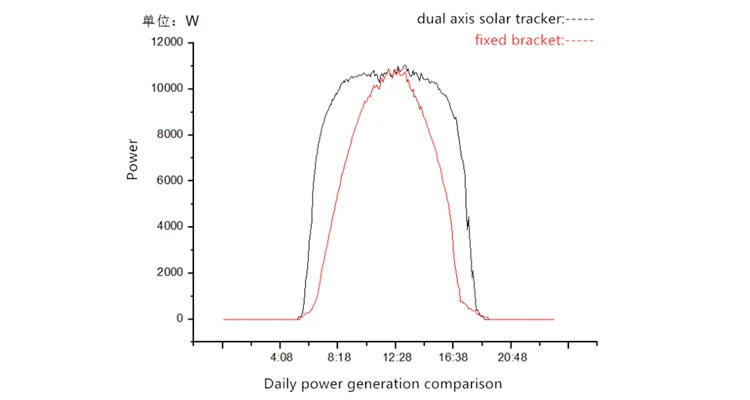

1) Power generation efficiency increased by 35%~40%.
2) Simple structure ,easy in installation and debugger application.
3) Adopting advanced world famous brand components in inclination,electric parts and actuator parts.
4) The tracker could adjusts solar panels into horizontal when meeting strong wind.
5) Adapt to outdoor environment,working temperature -40~80C°.
6) Running in a high automation and intelligence,no pollution.
7) Hot-dipped zinc galvanization will extend the work life of the brackets,25 years service life.
Product Advantage
Long service life

It is made of Q235 steel, and the surface is treated with hot-dip galvanizing for anti-corrosion treatment. The thickness of zinc layer is over 85um. It is suitable for various outdoor environments and has a service life of up to 25 years.

High compatibility and customizability
Whether you use monocrystalline , polycrystalline, double glass or bifacial solar panels, we can customize the tracker for you. The height of the column, the area of the grid and other parameters can also be customized to your needs.

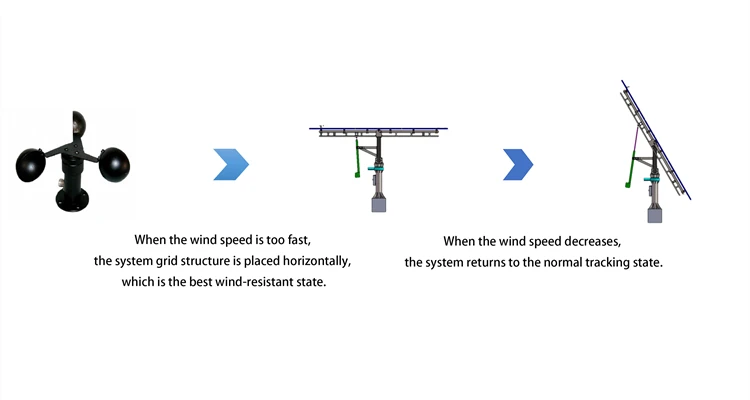

Wind resistance mode

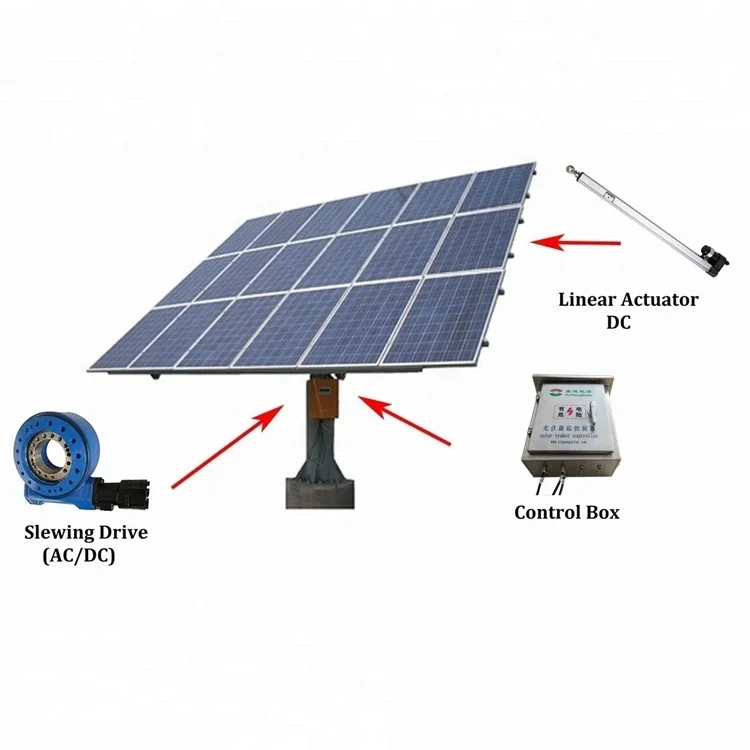

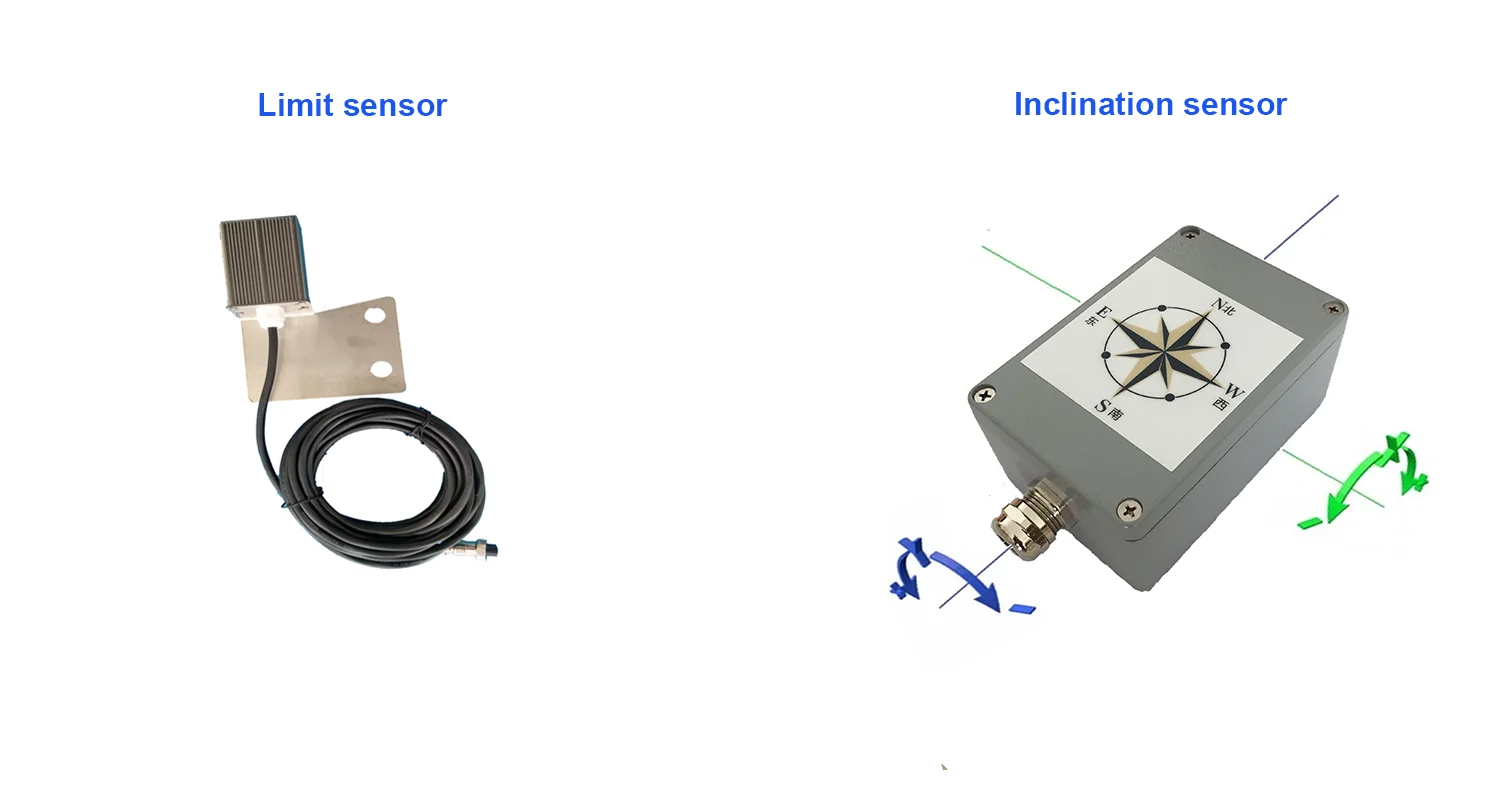

Control system accessories
Provides maximum protection
for the safe operation
of mechanical structures.
We use high-precision inclination sensor to intelligently identify the angle of rotation without the need for manual adjustment of the angle.

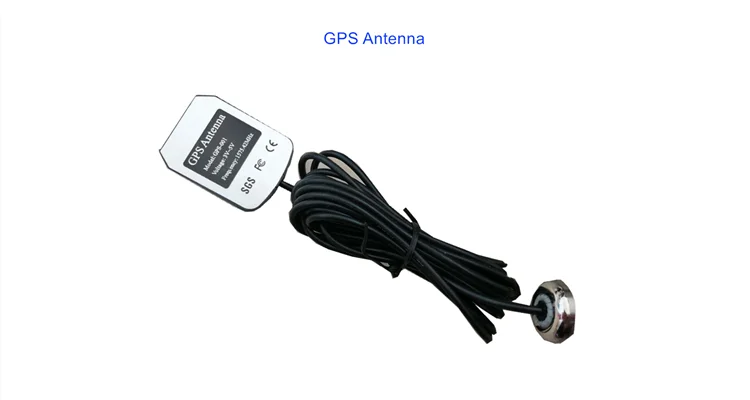

After the system is installed, it can automatically determine the latitude
and longitude and match the local sun's running track.

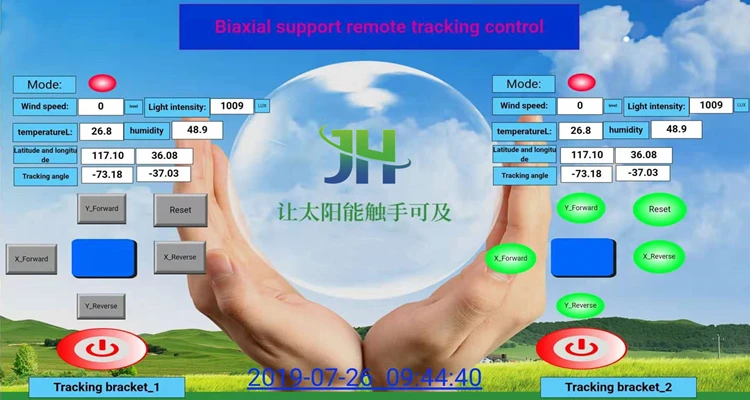

Optional function: Remote Control

Remote manual control via mobile phone, computer or touch screen.
 If you want to add this feature, please contact us.
Packing & Delivery

1. Special logistics packaging

2. Suitable wooden box size

3. Shock bubble film

4. Professional placement

5. Professional shock

6. Complete package

Our Company

Shandong Jinhong New Energy Co., Ltd. is a manufacturing enterprise specializing in R&D, production and sales of solar systems. We are committed to providing customers with one-stop solar system solutions by adhering to the business philosophy of promoting and popularizing clean energy applications. Our aim is to provide quality, reliable and cost-effective solar system solutions to our customers.

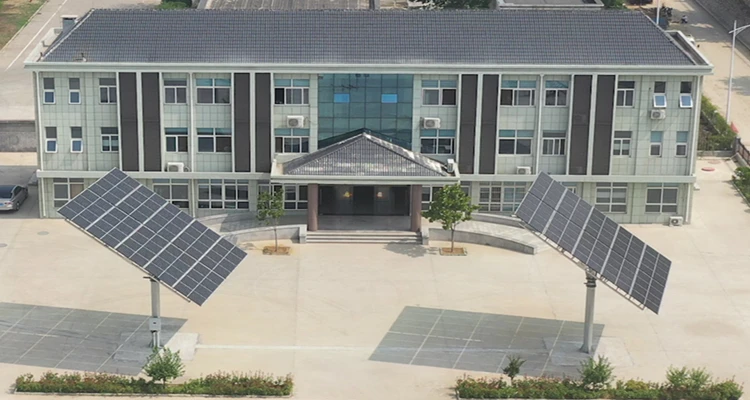

Our Office

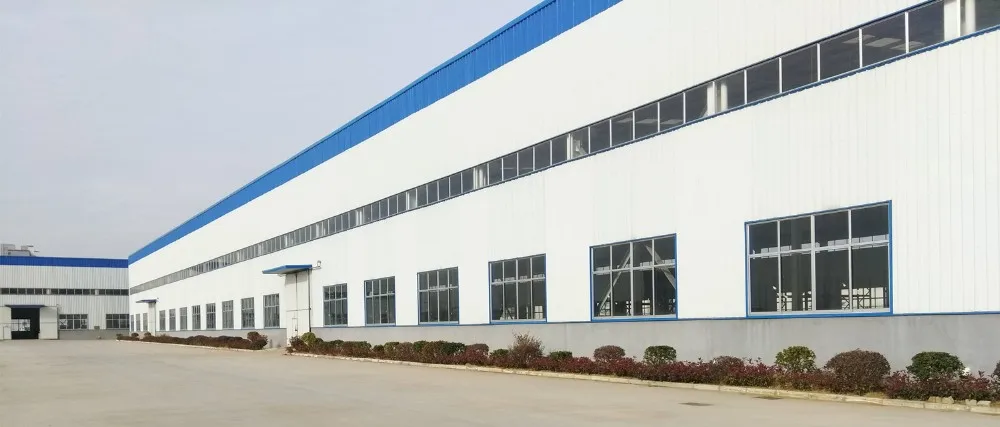

 Production Workshop

 Production Site

 Warehouse



Exhibition and Customer

FAQ

Q: How long is your delivery time?
A: Generally solar tracker is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in         stock, it is according to quantity.

Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our payments vary according to different countries and regions.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before                 shippment.
