Description of NB Industrial Drilling Mud Water Slurry Pump
1.The power end: The frame of NB Industrial Drilling Mud Water Slurry Pump is welded steel-plate construction. Its stress-relieved after welding. The drive gears are involute type gears which allow smooth operation,high efficiency and long life. The power end is either splash or pressure lubricated.
2.The fluid end: The suction and discharge flanges conform to ANSI and API specifications.
3.The piston rod includes an inter-mediate rod, that allows quick assembly&disassembly.
4.The valve seat bores have a bottom shoulders. The pistons and liners are spray lubricated and cooled, which allow an extended service life.
Specifications of NB Industrial Drilling Mud Water Slurry Pump
Model
3NB800
3NB1000
3NB1300
3NB500C
3NB1000C
3NB1300C
3NB1600
Power KW(HP)
588(800)
735(1000)
956(1300)
368(500)
735(1000)
956(1300)
1176(1600)
Strokes per minutes (pm)
160
150
140
95
110
120
120
Stroke (mm)
216
235
245
254
305
305
305
Gear ratio
2.51
2.658
2.868
3.82
3.833
3.81
3.81
Max. working pressure
33
35
35
30
35
35
35
Max. dia of liner(mm)
160
170
171.5
160
170
180
190
Dia. Of suction pipe (mm)
257
254
257
254
305
305
305
Dia. Of discharge pipe (mm)
100
100
100
100
100
100
100

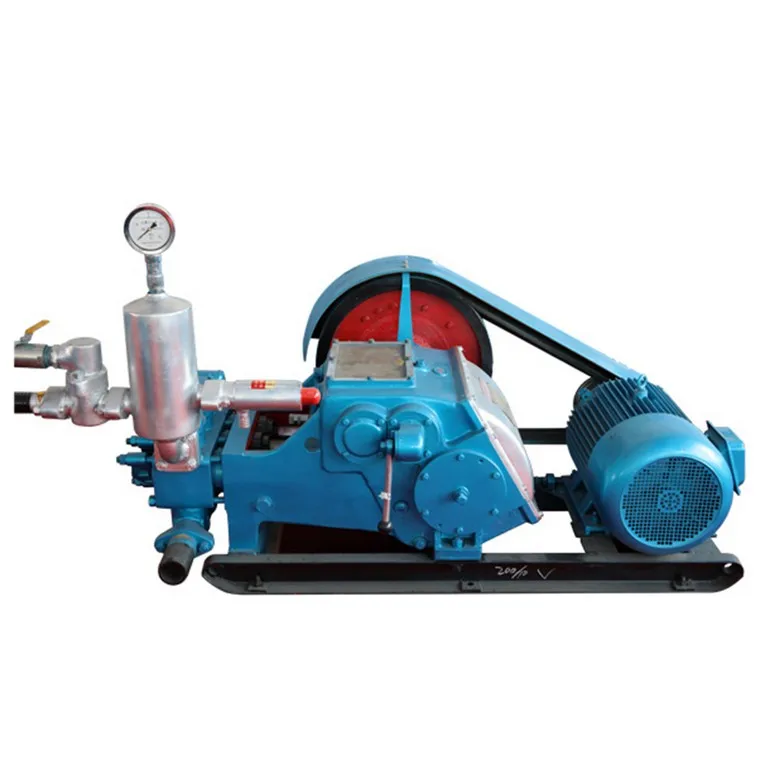

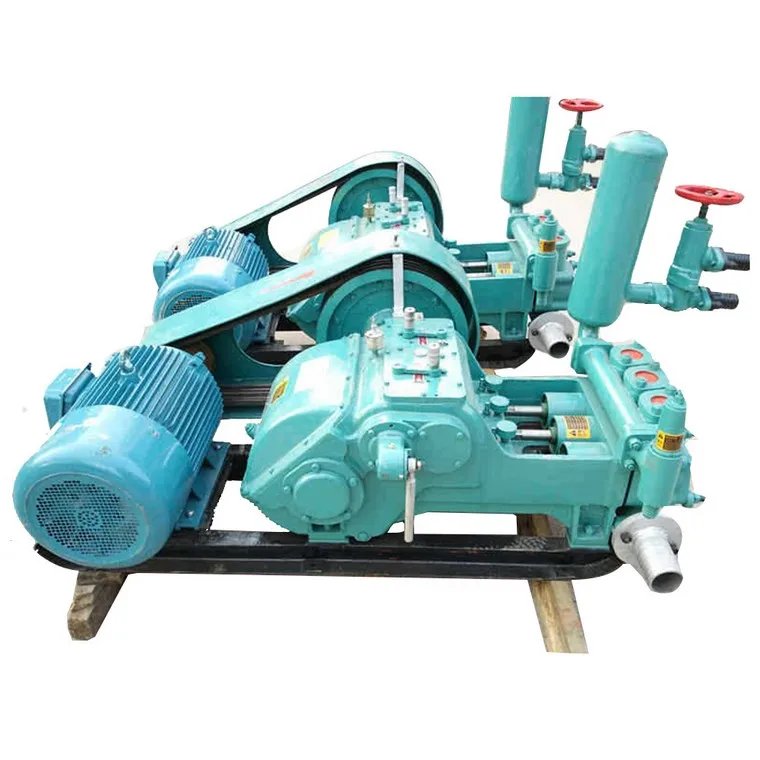

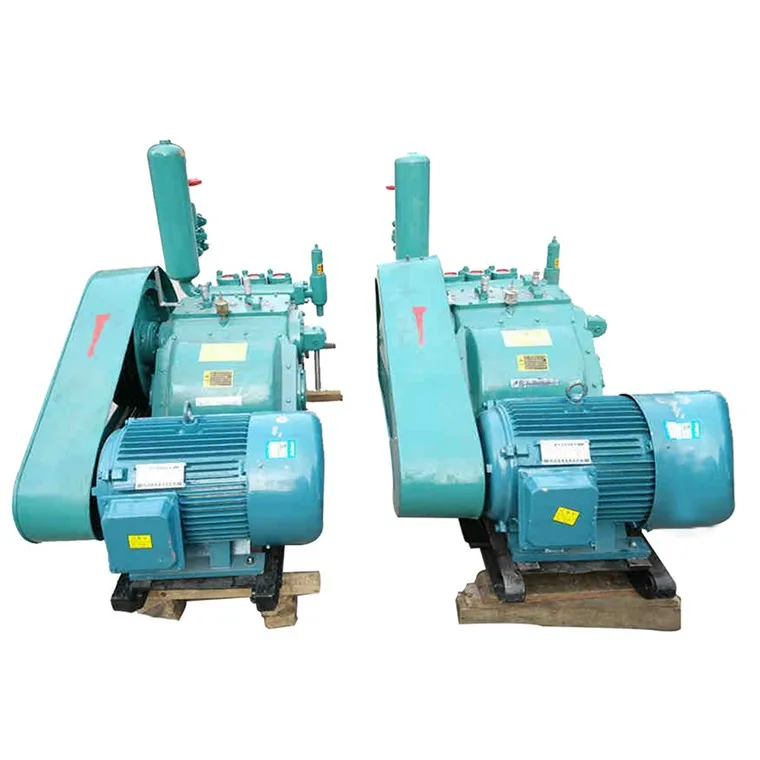

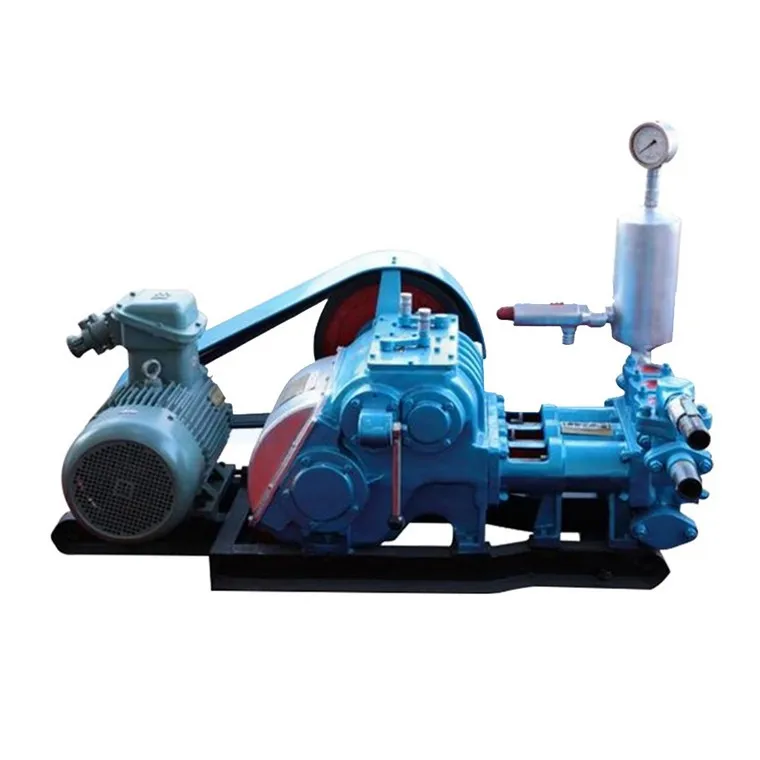

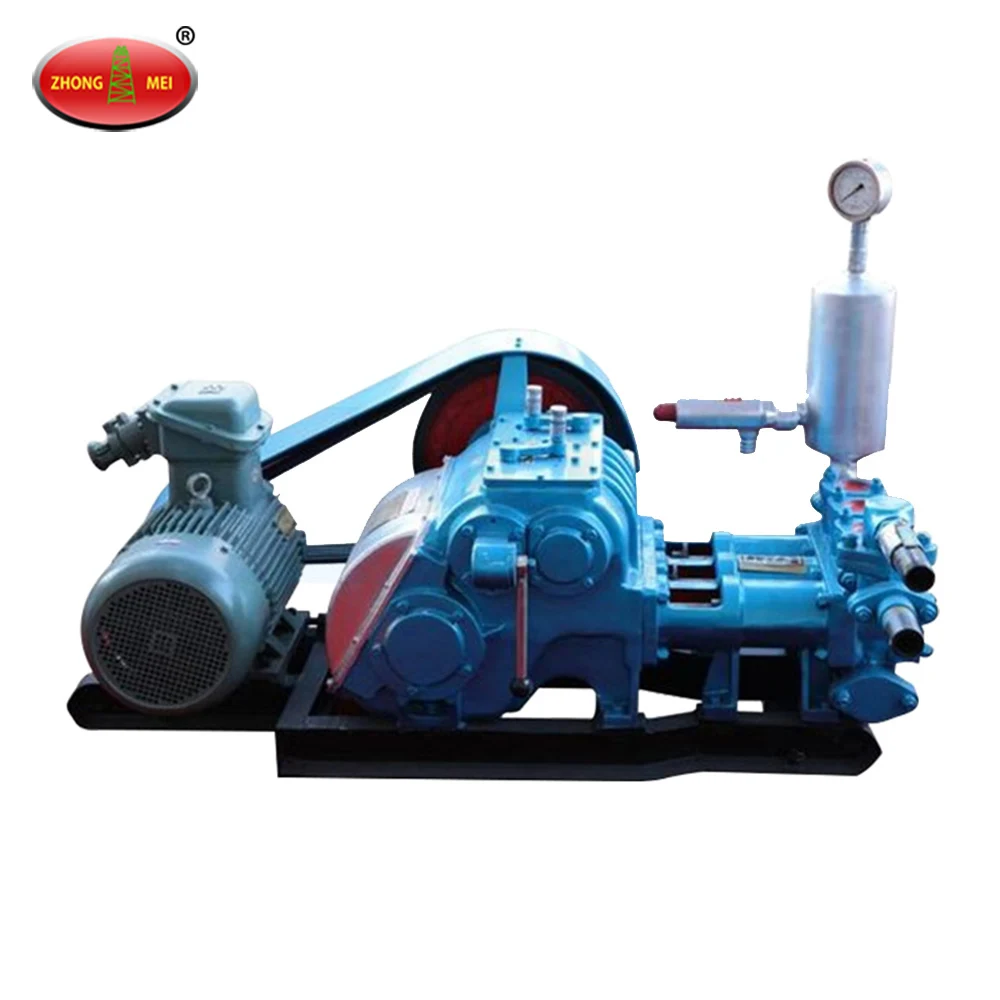

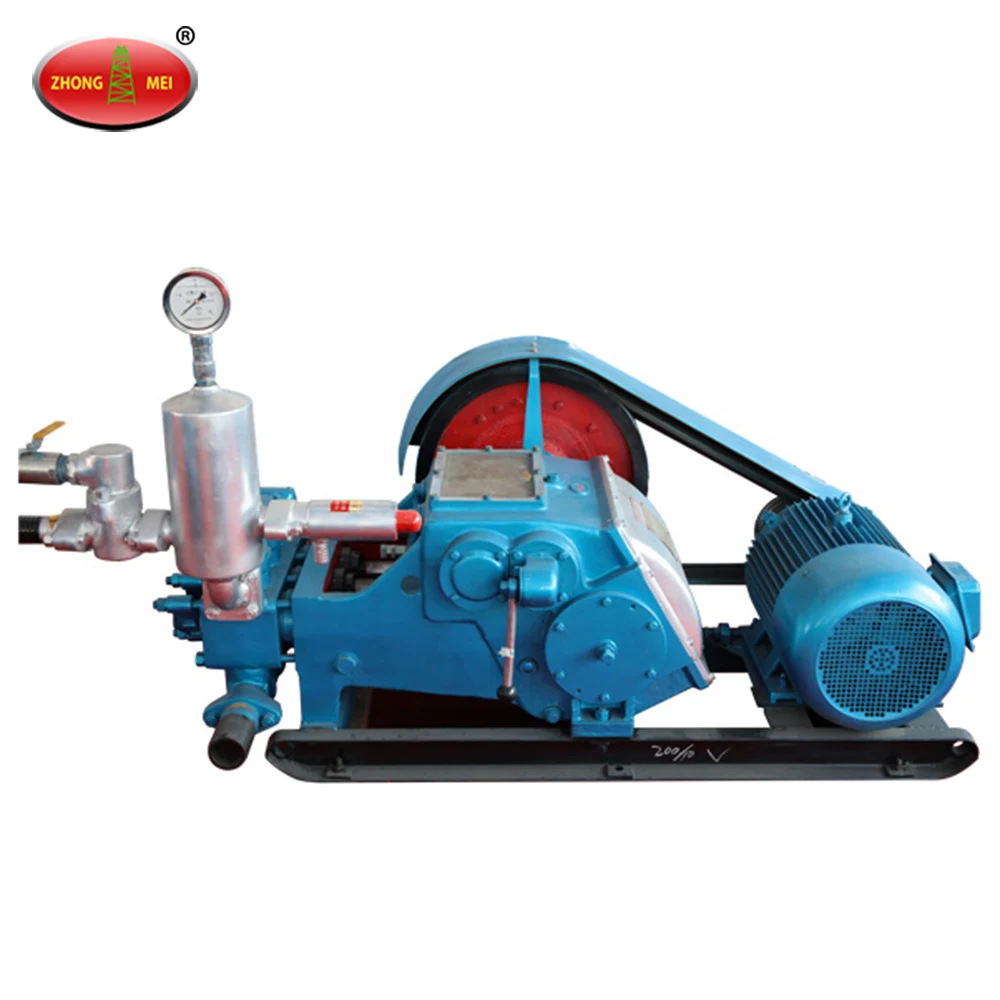

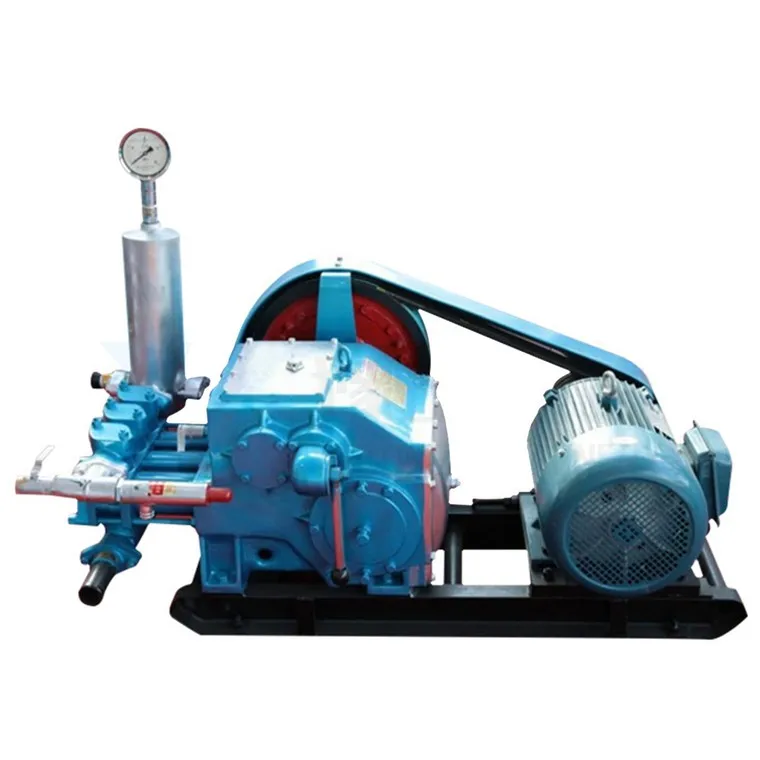

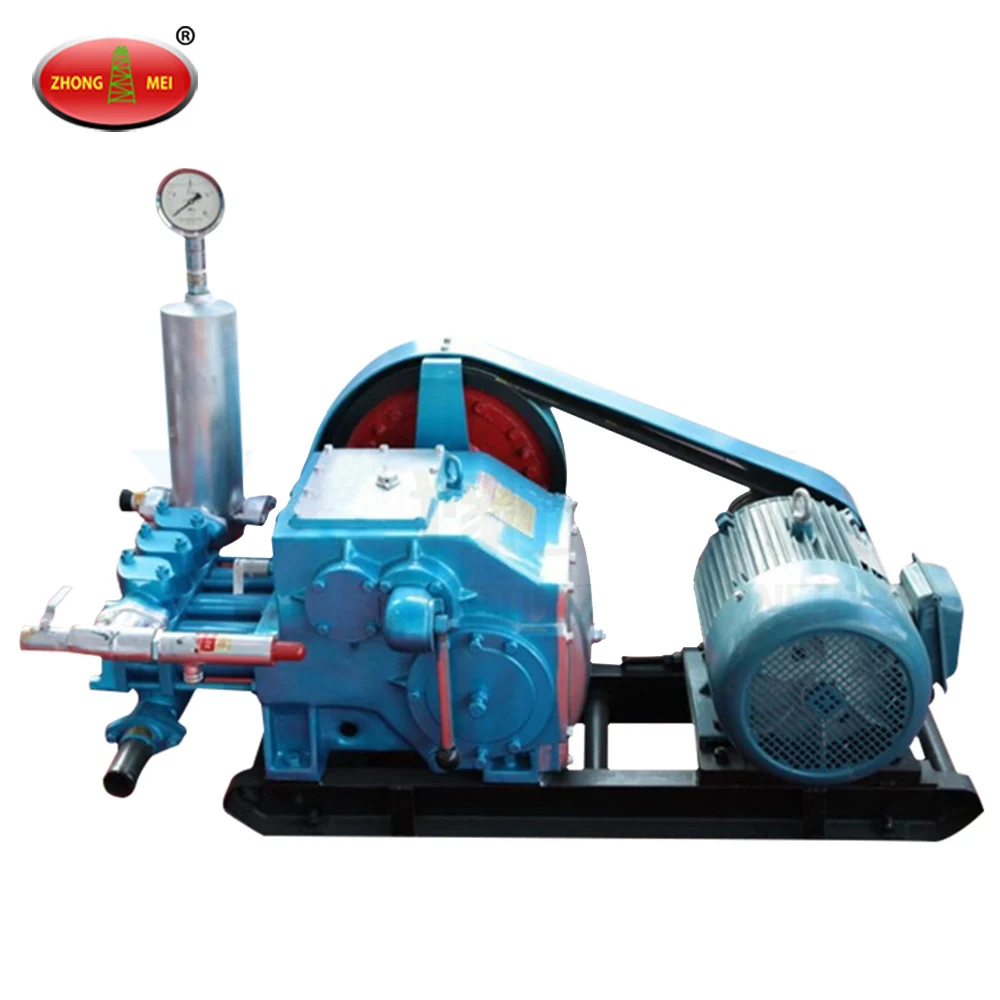

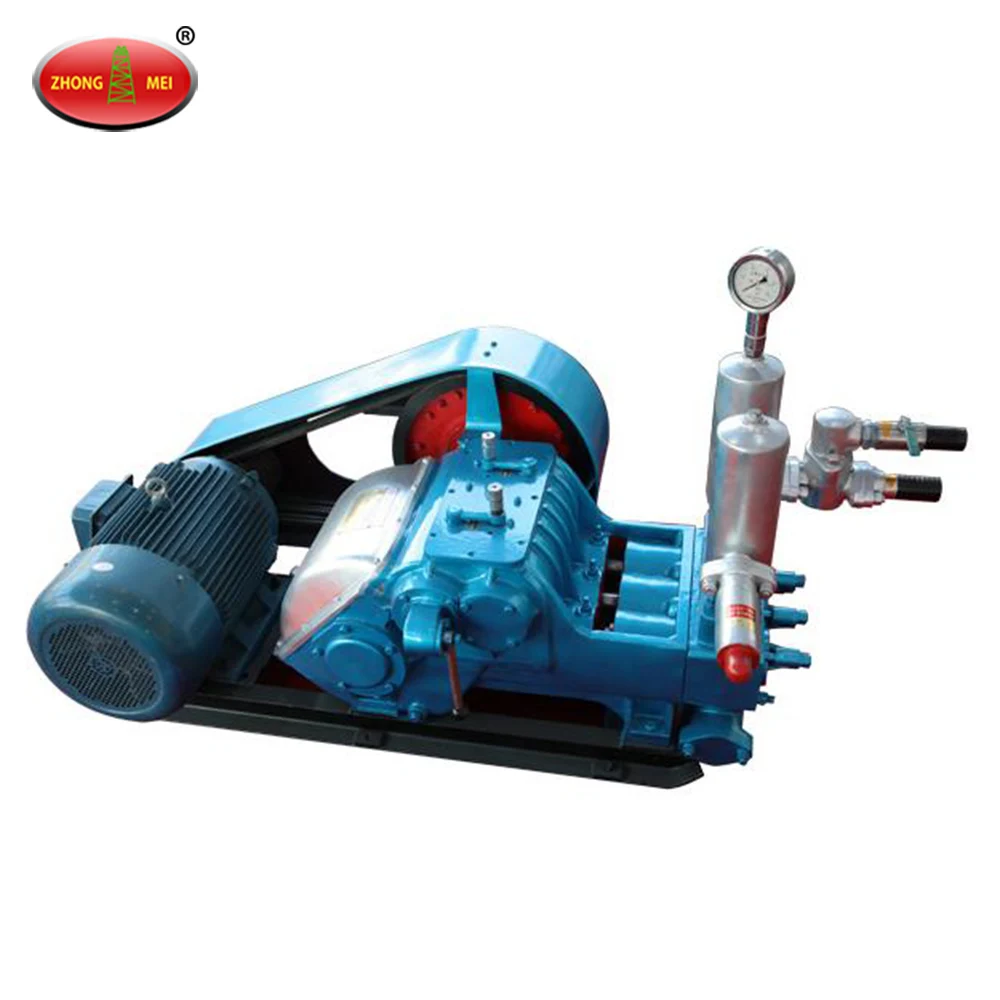

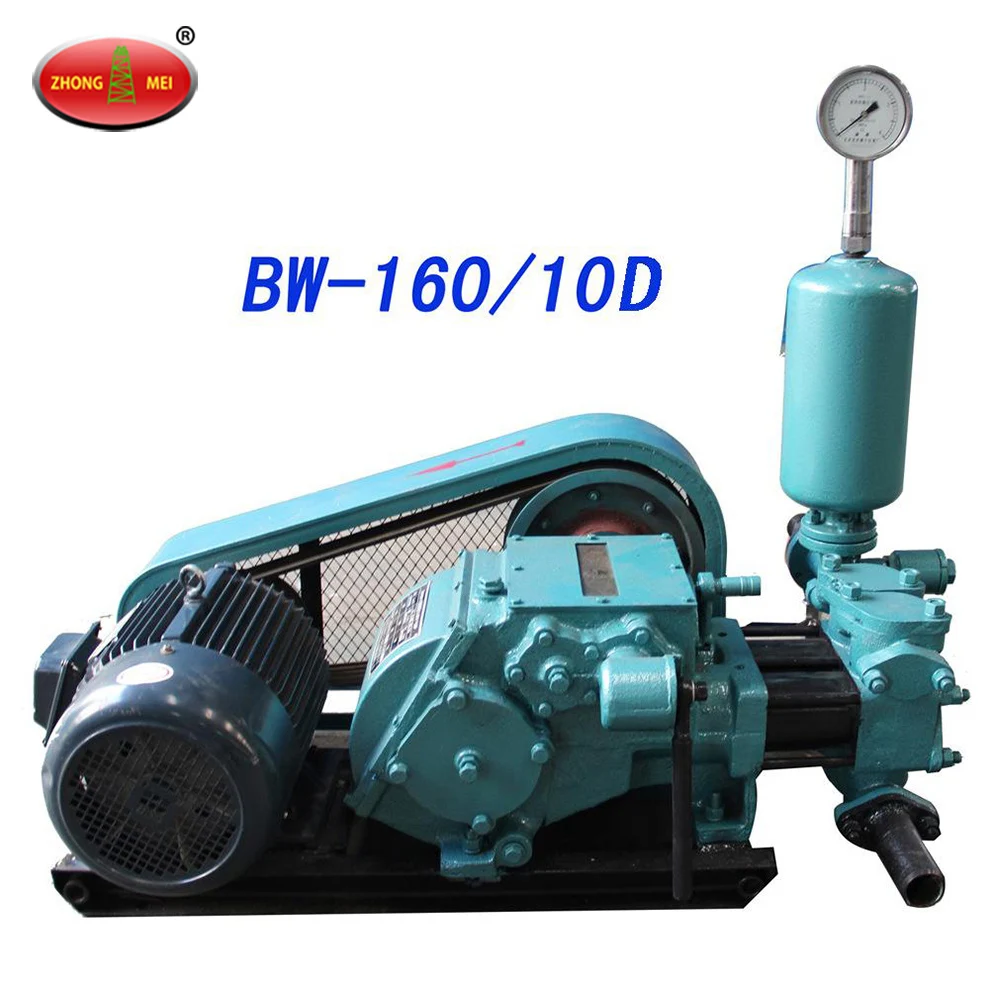

Images of NB Industrial Drilling Mud Water Slurry Pump
