50T horizontal full automatic zinc die casting machine advantages :

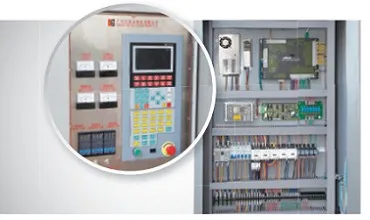

1. Easy operation Adopt newest computer control, can store up to 150 sets of data for mold die casting conditions, have functions of memory, adjustment control for production processing and self-adjustment.
2. High productivity Have very fast mold locking function and the production cycle is reduced effectively.

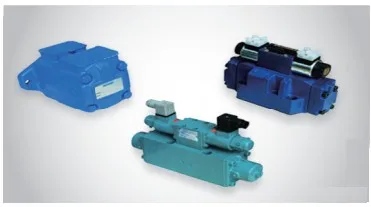

3. High products rate Adopts advanced and high effective hydraulic circuit for injection, and it ranks top among the same profession. The proportional flow rate control is adopted for slow speed injection, and fast & slow can be adjusted by NC. It helps the runner system.Achieved best result in gas discharging, and greatly raised products rate for die casts.
4. Good products solidification Large injection /ejection force, high die casting force, with very good die casts solidification.
5. Good adaptability Adopts unique energy saving design for proportional type of hydraulic system, and it makes any adjustment freely achieved their best status, such as, speed & pressure in movement of mold opening/locking, ejector and nozzle clamping unit.

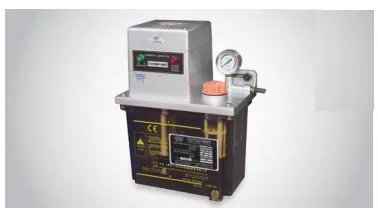

6. Good machine stability Mold locking in three stages, through computer and proportional hydraulic circuit inter relations, and ensured safety function is achieved at low-pressure stage of mold locking, and effectively protected mold platens and mold. The automatic lubrication system is adopted, and troubles in manual lubrication are eliminated. Machine are running quiet and smoothly and convenient in maintenance.
7. Fast mold adjustment Adopt computer control for automatic mold adjustment , precision for position control reached 0.1mm.
8. Easy maintenance Have implemented multi-points control, and given out actively warnings for machine stop and display on screen for their faults and happening, and it is convenient for checking and repairing.

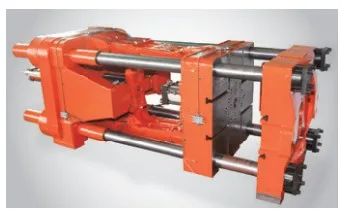

9. Machine durability Mold locking force in machine is ensured by strong with force machine hinge, and firmness of machine is ensured by modular cast iron platen and sliding seat, and its durability is highly raised.

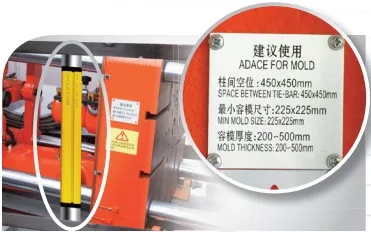

10. High safety performance Adopt safety device by electro-mechanic inter-locking, and ensures injection at safety door is closed and after mold is tightly locked and nozzle clamping unit is closed. The production in safety is ensured.
11. Energy saving Patent furnace , no chimney and energy-saving above 30% .
50T horizontal full automatic zinc die casting machine specification:
Item
Unit
CM-50
locking system
locking force
ton
50
tie-bar diameter
mm
50
space between tie-bar
mm
310*310
mold thickness
mm
80/320
die stroke
mm
220
shot position
mm
0/50
injection system
plunger diameter
mm
40/45
plunger stroke
mm
130
injection force(max)
ton
6
max shot weight
kg
0.8/0.9
traverse stroke
mm
190
crucible capacity
kg
300
electrical furnace capacity
kg
300
ejection system
ejection force
ton
4.5
ejection stroke(max)
mm
60
hydraulic system
motor power
kw
7.5
electrical furnace power
kw
21
operation pressure
kg/cm2
145
oil tank capacity
L
200
Accumulator
L
16
Other
machine size
mm
3645*1410*1770
machine weight
ton
3
Company Information
Guangzhou Zhen Gao Die-casting Machine Co., Ltd. was established in the year of 1993, and it is mainly in manufacturing hot chamber & cold chamber die casting machine."Zhen Gao" is already become a well-known leading brand in domestic market of die casting machine.Zhen Gao die casting machine has owned CE. The products are well sold to all places in China, and also as far as to many countries, such as Europe, South America, Africa,Russia ,Middle-East, and South-East Asia.
Followed with the principle of "Customers are honored and Precision is reached for after precision," quality and service management is further enhanced. We have the ability to provide high quality machine and good service. Take high tech & excellent quality as a tenet, and provide for customers with superior machines at performance vs prices.ZHEN GAO will be more and more professional!
Company History
In 1993-2003 Hong Kong Chen Hsong Group and Guangzhou Machinery Institute (formerly China Machinery Industry Ministry of enterprise) joint venture, set up "ZHEN GAO" company , specializing in manufacturing die casting machine.
In 1996 In an only one-time national wide, among monitoring draw-checking for product quality, Zhen Gao runs No.1 .
In 2002 Evaluated as "Excellent quality brand", by the China Technology Monitoring Information Association .
IN 2003-2008 Hong Kong Chen Hsong out of fund stock,and remain technical stock ,instead by Guangzhou Machinery Engineering Research Institute (China mechanical equipment group Company) holding 75% shares, and the remaining shares by Australian, American composition.
In 2005
Fast melt and energy-saving furnace ,awarded national patent . Awarded CE certification .
In 2006 Awarded Guangdong famous brand .
In 2009-2012 Guangzhou Machinery Engineering Research Institute (China mechanical equipment group Company) become a wholly owned holding company.
In 2012 Change tobe Private company and renamed "Guangzhou Zhen Gao Die-casting Machine Co.,Ltd. " continue to serve customers.
In 2016
Auto extractor with spray ,deburr cutting machine material return , whole auto system work successfully
Our Certificates
In 1996 In an only one-time national wide, among monitoring draw-checking for product quality, Zhen Gao runs No.1 .
In 2002 Evaluated as "Excellent quality brand", by the China Technology Monitoring Information Association .
In 2004 Evaluated as "Qualified Products in National Quality Checking", by China Quality Checking Association.
In 2005 Fast melt and energy-saving furnace ,awarded national patent . Award CE.
In 2006 Awarded Guangdong famous brand .
In 2009 Adopted ISO9001 certification .
Our Service
Professional service for pre-sales and after-sales :
Followed with the principle of "Customers are honored and Precision is reached for after precision," Zhen Gao will try best to provide professional service for customer .
* Provide plant layout and peripheral equipment configuration for new customers, make the machine more reasonable installation, safety.
* Install and adjust machine for customer , also train worker how to operate and solve normal trouble .
* After-sale service department and branch office will provide professional service for customer ,make sure machine normal working .
* Preventive maintenance: After-sale engineer will not regularly visit customers , give advice according to machine use, maintenance and adjustment etc. .
* We will provide various training ,to teach customer how to operate ZHEN GAO machine well ,and also organize many communication meetings of die casting technology.
Pre-Sales Service
* Inquiry and consulting support.
* Provide plant layout and peripheral equipment configuration for customer.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
