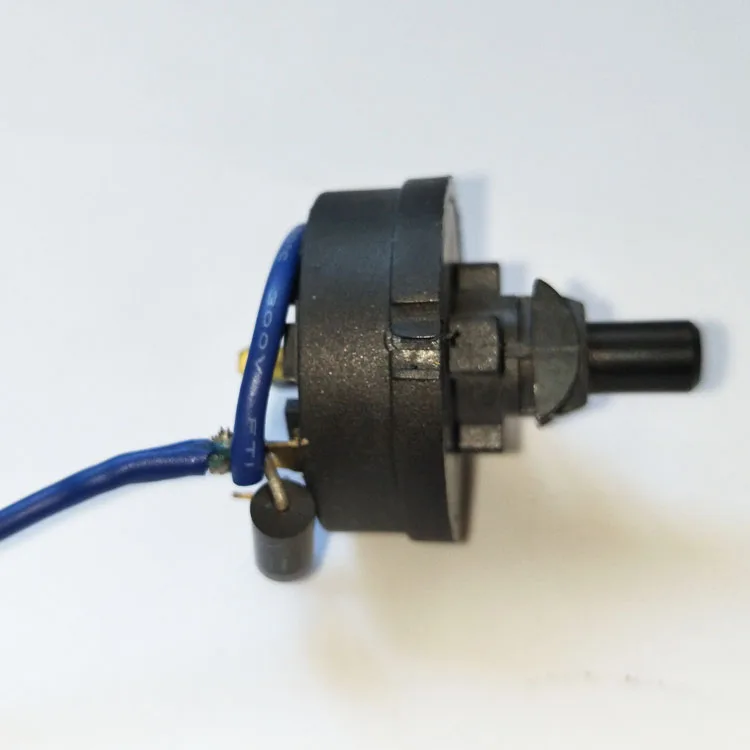

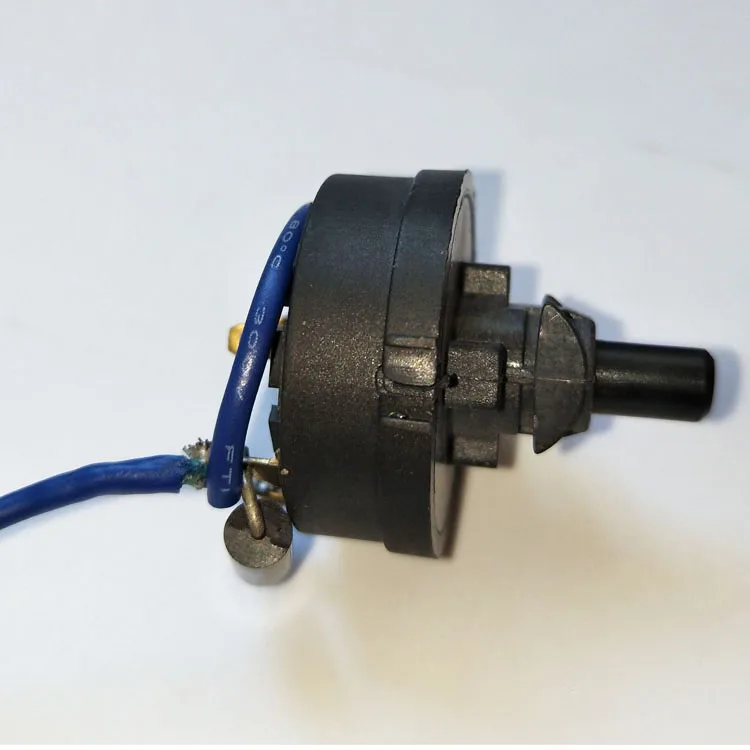

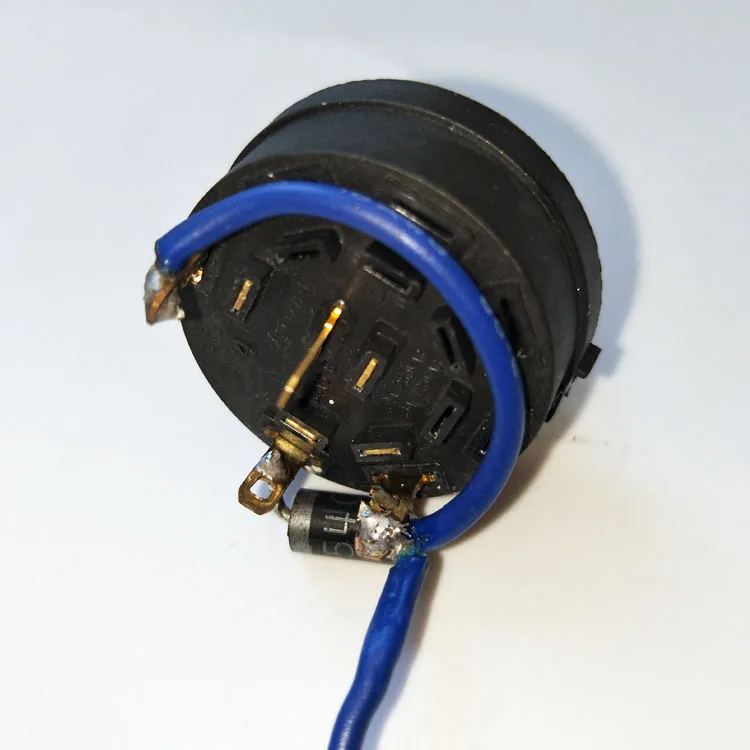

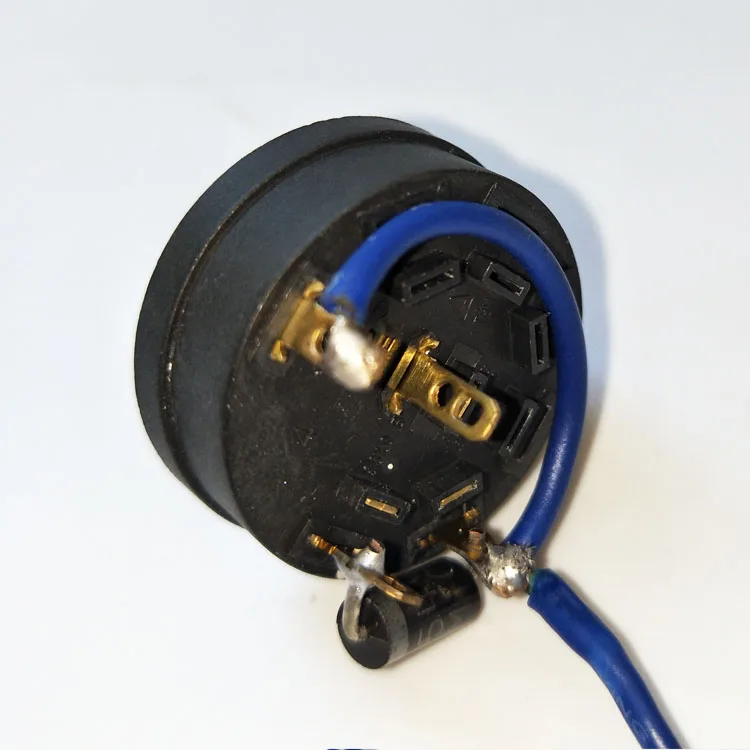

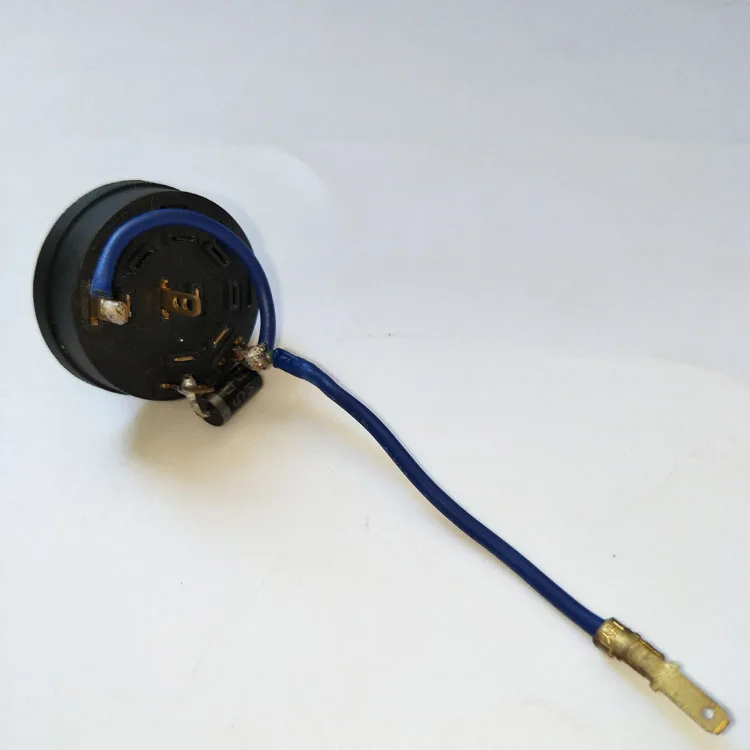

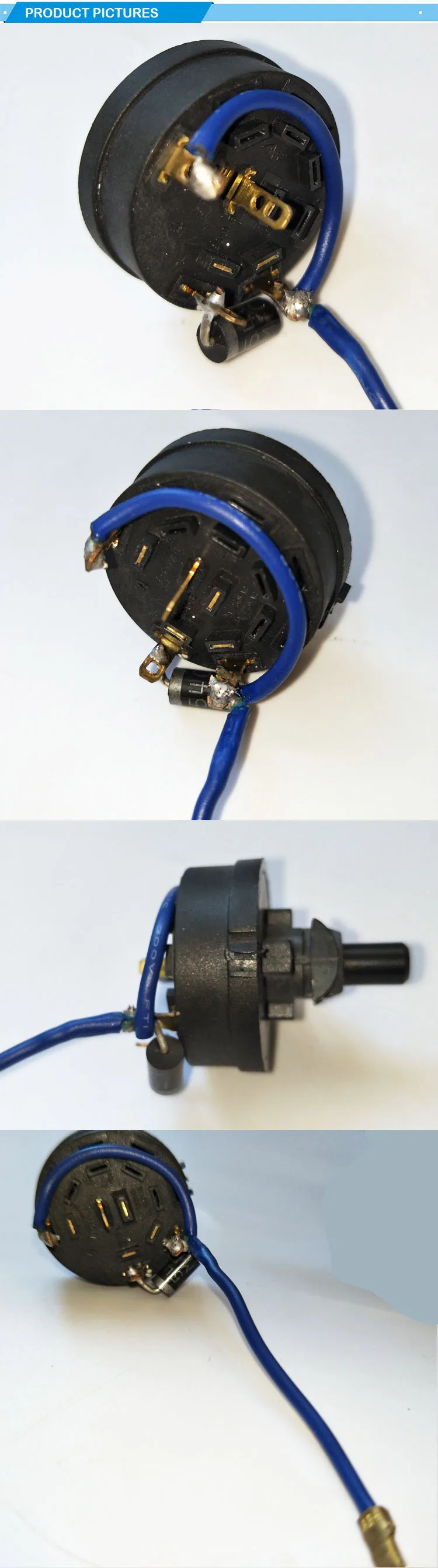

Pulse-OFF 4 position 2 speed high quality Blender rotary switch with wire

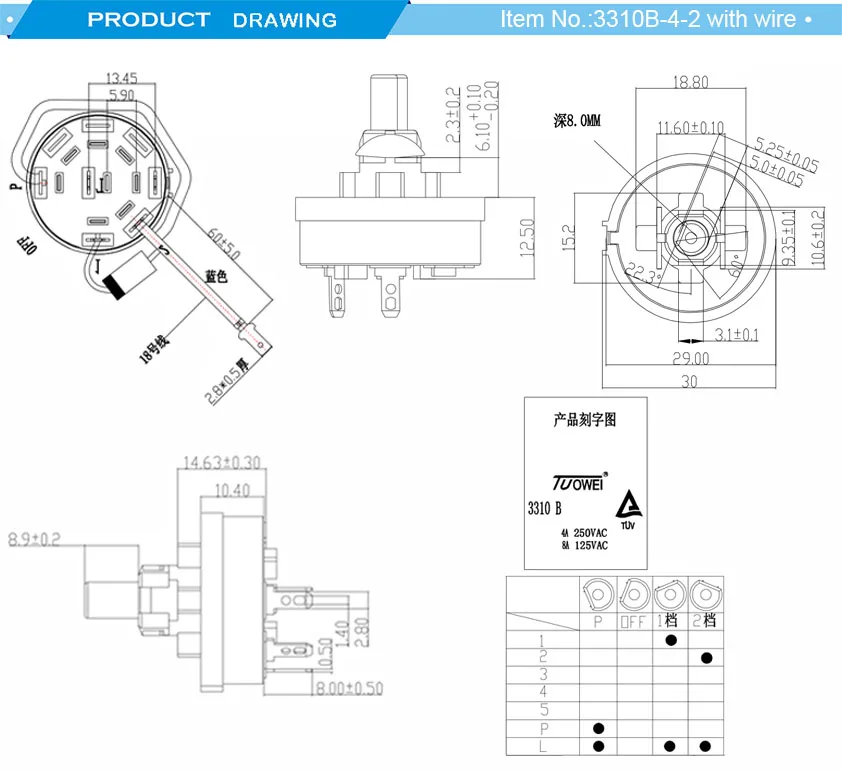

Item No.: 3310B-4-2
Technical Parameter | |
Electrical Rating | 8A ~125V.AC. 4A ~250V.AC. |
Function | PULSE, OFF, L-1, L-2 |
HZ | 60/50 |
| Load | Res/ Mot |
| Temp(C) | 125°C |
| Pol/Thr | 1/ M |
| PP/Circuit | A/-- |
| Endur | 10K CYCLES |
| OPERATION FORCE | 750G+_250GF |
| SPCOA | 24-18AWG UL1015 |
Material: | |
| Cover: PC | |
| Insulating piece: PF Grade: SABIC | |
| Rotary: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Movable Contract: Copper | |
| Terminals: Brass | |
| Base: PC Flame rating: V-2 or V0 Temperature: 130°C Grade: SABIC | |
| Apply to: | |
Electric juicer, Mixer, Blender and other home appliances
| |
