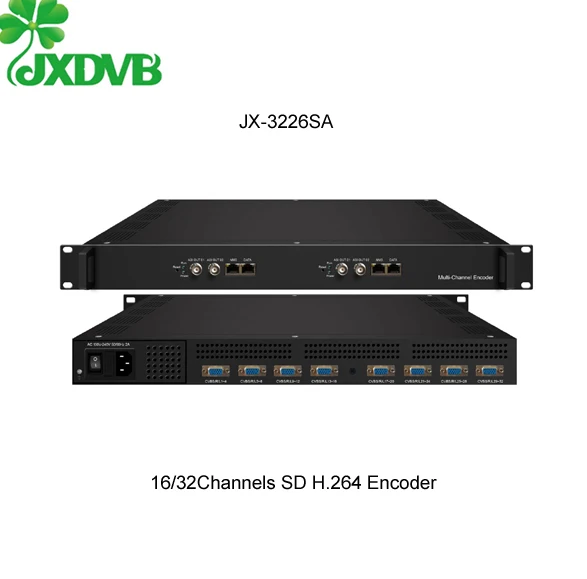

32 Channel Digital TV 1080P HD H264 IPTV Encoder

Input

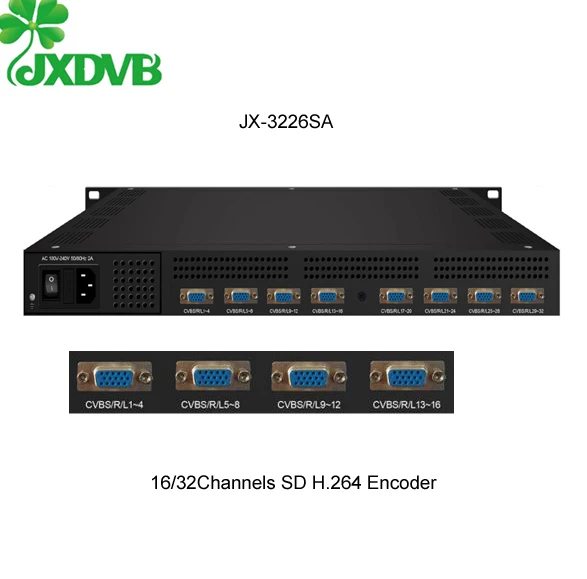

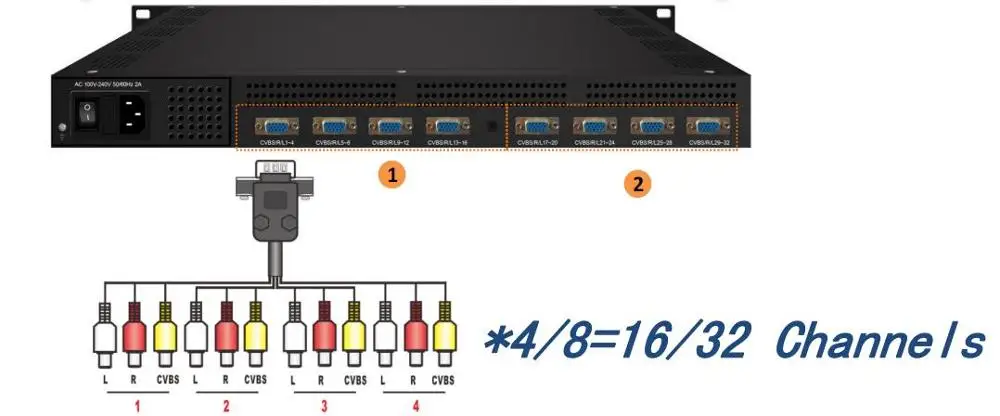

16/32 CVBS inputs , DB15-To-RCA interface

Video

Resolution

720×576i, 720×480i,

Encoding

MPEG4 AVC/H.264(HP/MP/BP)

Bit-rate

1Mbps~5Mbps each channel

Rate Control

CBR/VBR

GOP Structure

IPP (P frame is adjustable)

Aspect Ratio

4:3; 16:9

Audio

Encoding

MPEG-1 Layer 2

Sampling rate

48KHz

Resolution

24-bit

Audio Gain

0-255 adjustable

Bit-rate

64/128/192/224/256/320/384Kbps each channel

Stream output

IP (1*MPTS and 16/32*SPTS) output over UDP and RTP, 1000 Base-T Ethernet interface (Multicast and unicast)

1 MPTS output through 2 ASI output ports (one for back up), BNC interface

System function

Network management (WEB)

English language

Ethernet software upgrade

Miscellaneous

Dimension(W×L×H)

482mm×328mm×44mm

Environment

0~45℃(work);-20~80℃(Storage)

Power requirements

AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
