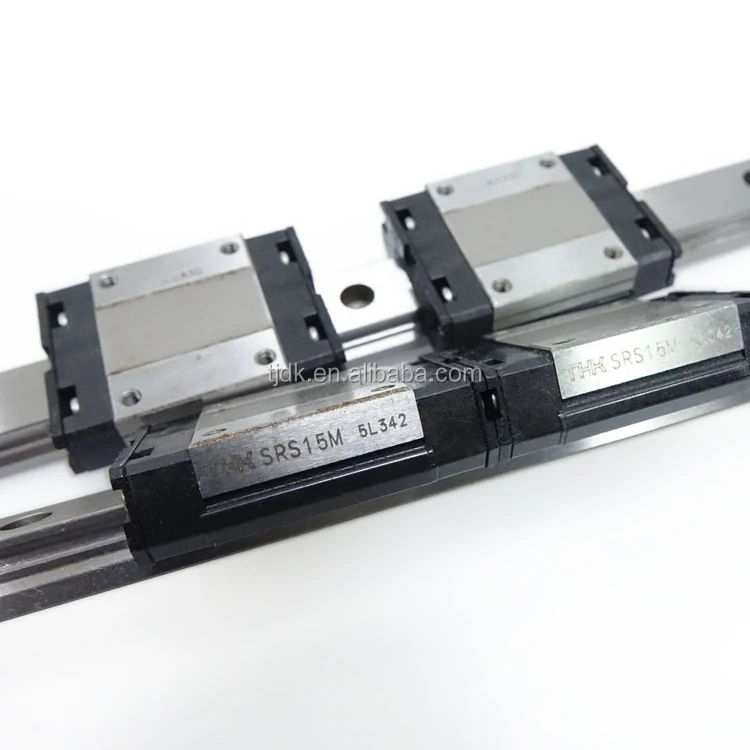

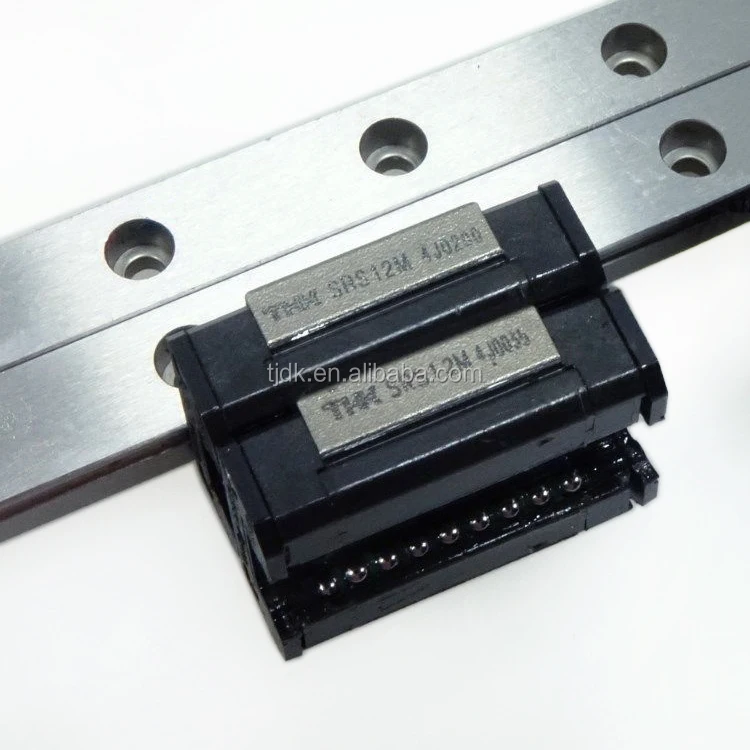

Japan THK SRS25M SRS25GM Miniature linear guide rail for cnc
- Category: >>>
- Supplier: Ding Kun (Tianjin) International Trade Co. Ltd.
Share on (60839179013):
Product Overview
Description
Product Description

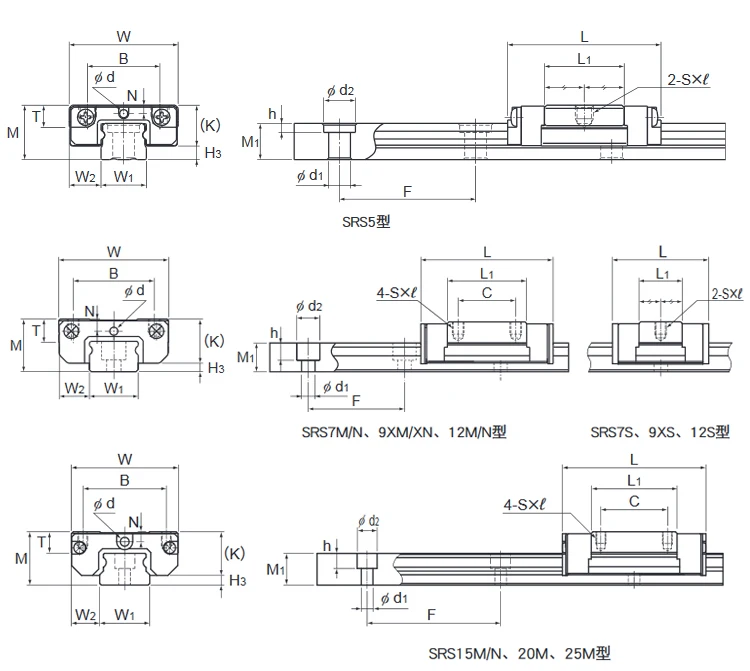

| Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | ||||||
| Radial | ||||||||||
| Height M | Width W | Length L | B | C | S x l | Pitch F | d1xd2xh | Dynamic C | Static C0 | |
| kN | kN | |||||||||
| SRS7M | 8 | 17 | 23.4 | 12 | 8 | M2 x 2.3 | 15 | 2.4x4.2x2.3 | 1.51 | 1.29 |
| SRS7GM | 8 | 17 | 23.4 | 12 | 8 | M2 x 2.3 | 15 | 2.4x4.2x2.3 | 1.16 | 1.54 |
| SRS9XM | 10 | 10 | 30.8 | 15 | 10 | M3 x 2.8 | 20 | 3.5x6x3.3 | 2.69 | 2.75 |
| SRS9XGM | 10 | 10 | 30.8 | 15 | 10 | M3 x 2.8 | 20 | 3.5x6x3.3 | 2.22 | 3.06 |
| SRS12M | 13 | 27 | 34.4 | 20 | 15 | M3 x 3.2 | 25 | 3.5x6x4.5 | 4 | 3.53 |
| SRS12GM | 13 | 27 | 34.4 | 20 | 15 | M3 x 3.2 | 25 | 3.5x6x4.5 | 3.36 | 3.55 |
| SRS15M | 16 | 32 | 43 | 25 | 20 | M3 x 3.5 | 40 | 3.5x6x4.5 | 6.66 | 5.7 |
| SRS15GM | 16 | 32 | 43 | 25 | 20 | M3 x 3.5 | 40 | 3.5x6x4.5 | 5.59 | 5.72 |
| SRS20M | 20 | 40 | 50 | 30 | 25 | M4×6 | 60 | 6×9.5×8 | 7.75 | 9.77 |
| SRS20GM | 20 | 40 | 50 | 30 | 25 | M4×6 | 60 | 6×9.5×8 | 5.95 | 9.4 |
| SRS25M | 25 | 48 | 77 | 35 | 35 | M6×7 | 60 | 7×11×9 | 16.5 | 20.2 |
| SRS25GM | 25 | 48 | 77 | 35 | 35 | M6×7 | 60 | 7×11×9 | 13.3 | 22.3 |

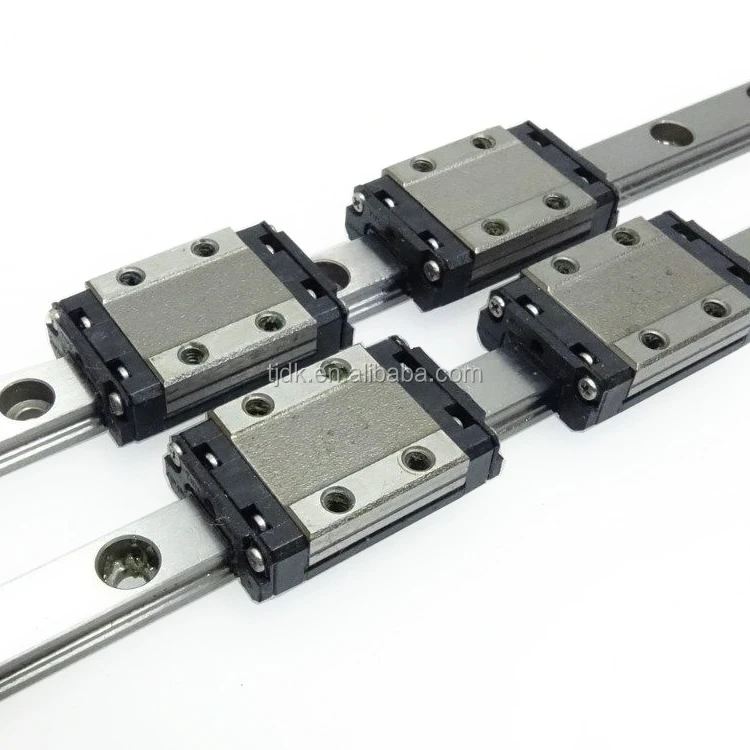

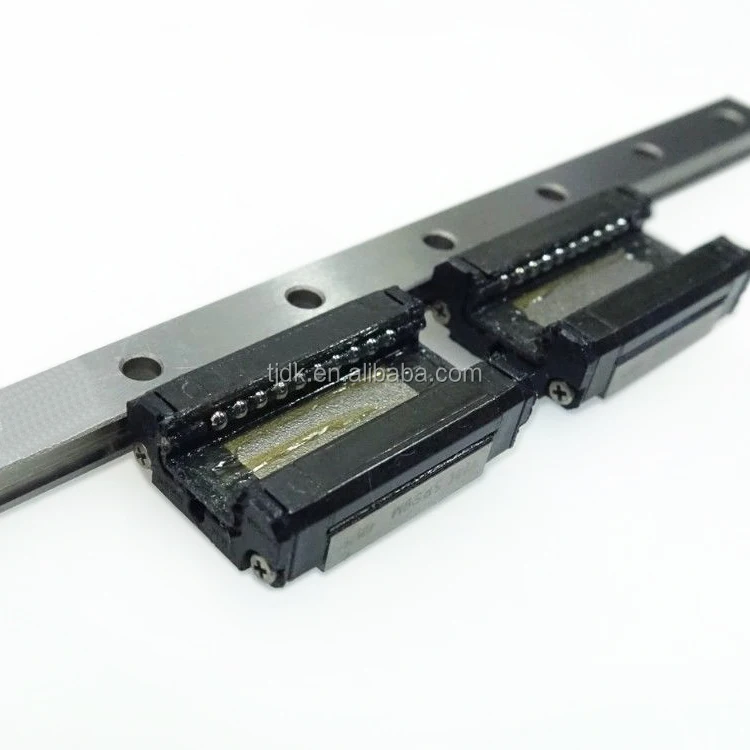

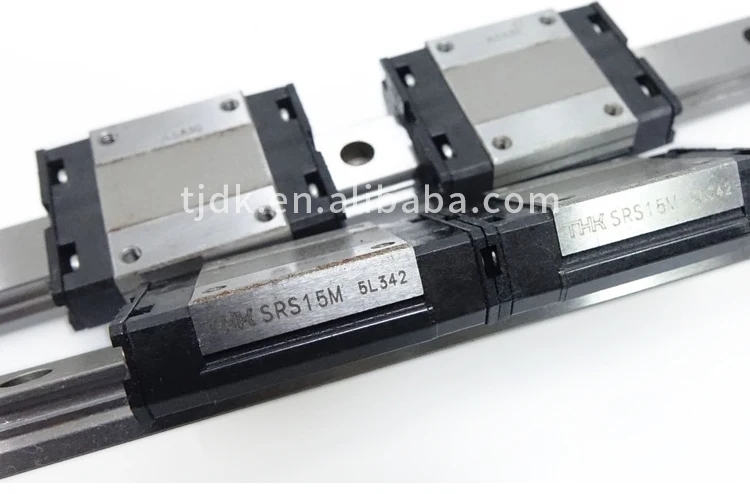

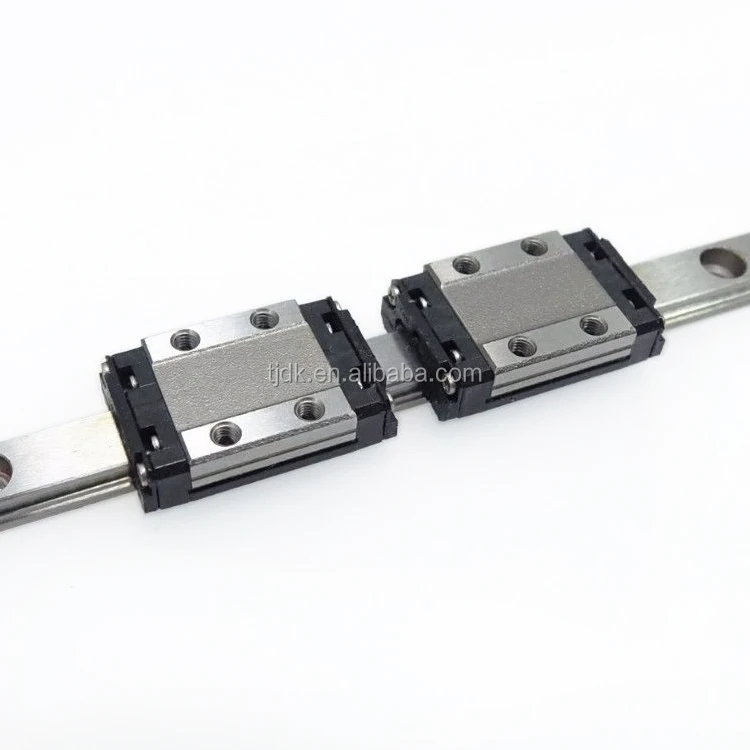

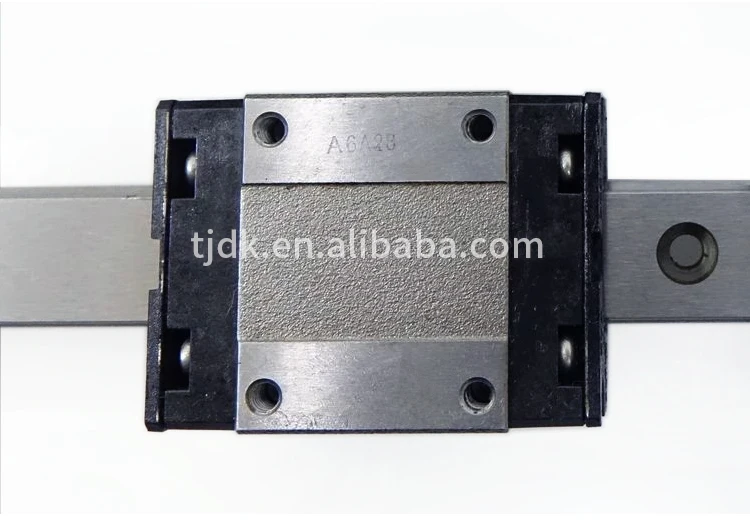

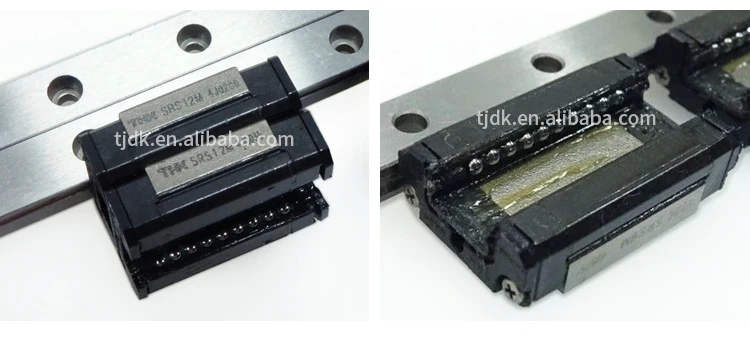

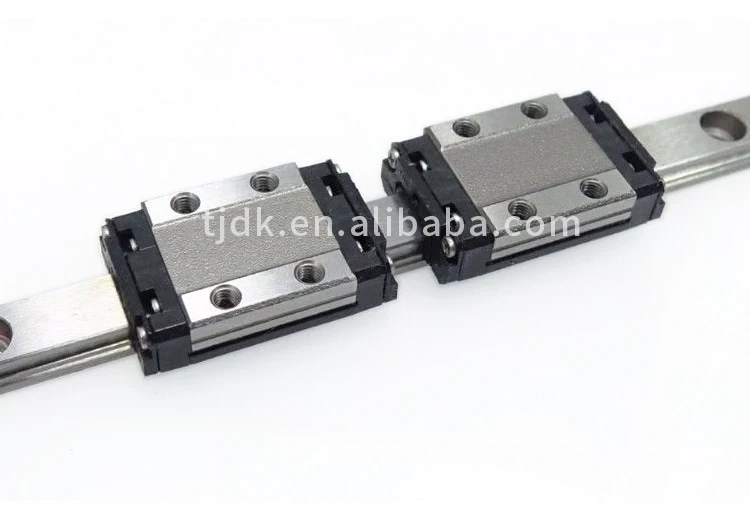

Products Show

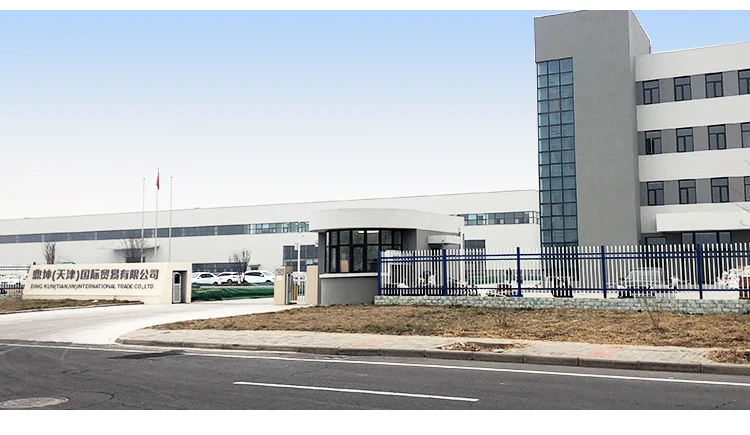

Our Company
Our Service
Our Certifications
Packaing & Delivery
Customer Photo
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: 2 days
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
