High torque 48v 1000 watt brushless dc motor 1500rpm bldc motor
- Category: >>>
- Supplier: Jinan Keya Electron Science And Technology Co. Ltd.
Share on (60839187876):
Product Overview
Description
High torque 48v 1000 watt brushless dc motor 1500rpm bldc motor
Model:KY110AS0410-15
Product overview
1.Product Features:
| 1)Protection grade:IP65, insulation grade:F |
| 2)Winding overhang structure optimization, to minimize the copper loss and iron loss minimization, small volume, light weight, low temperature rise, high efficiency |
| 3)Super high coercivity, the maximum magnetic energy product NdFe35 permanent magnetic materials, strong resistance to demagnetization, motor performance is stable. |
| 4)Low noise, low vibration, low moment of inertia. |
| 5)High torque, fast dynamic response, wide speed range, strong overload capacity (four times) |
2.Features:
*High Torque to inertia ratio&up to 25000Nm/kgm² |
*Fast dynamic response *time constant <20ms |
*Wide speed adjusting&feedback up to 1000:1 |
*Steady speed precision up to 0.5% |
*High overload,2Mn/30s,3.5N.m/10s |
*Small volume and light |
*Silent,the lowest noise is only 45dB(A) |
*Protected with IP65,Class F insulation |
3.Industry class:
1)The altitude should be over 1000 meters above sea level
2)Environment temperature:+5℃~+40℃
3)The month average tallest relative humidity is 90%,at the same the month average lowest temperature is less than 25

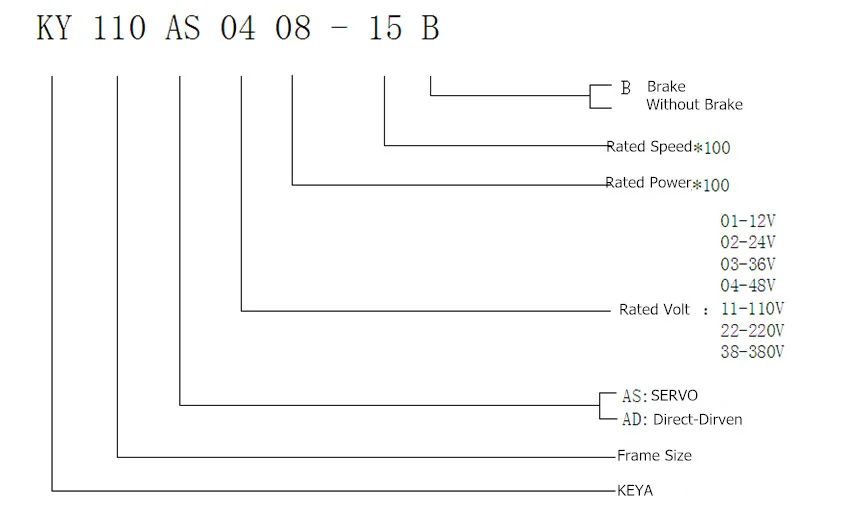

4.Type Description:
5.Product parameters:
| Model | KY110AS0410-15 | Volt | 48v |
Power | 1000w | Rated Torque | 6.3N.m |
Rated Speed | 1500rpm | Rated Current | 28A |
Peak Torque | 22N.m | Line Resistance | 0.11Ω |
Rotor Constant | 0.05mH | Torque constant | 0.225Nm/A |
Back EMF Constant | 15.6v/kr/min | Rotor Inertia | 740Kg.m2×10-6 |
Mechanical Time Constant | 2.1ms | Electrical Time Constant | 1.8ms |
Encoder | 2500ppr | Weight | 7.8kg |

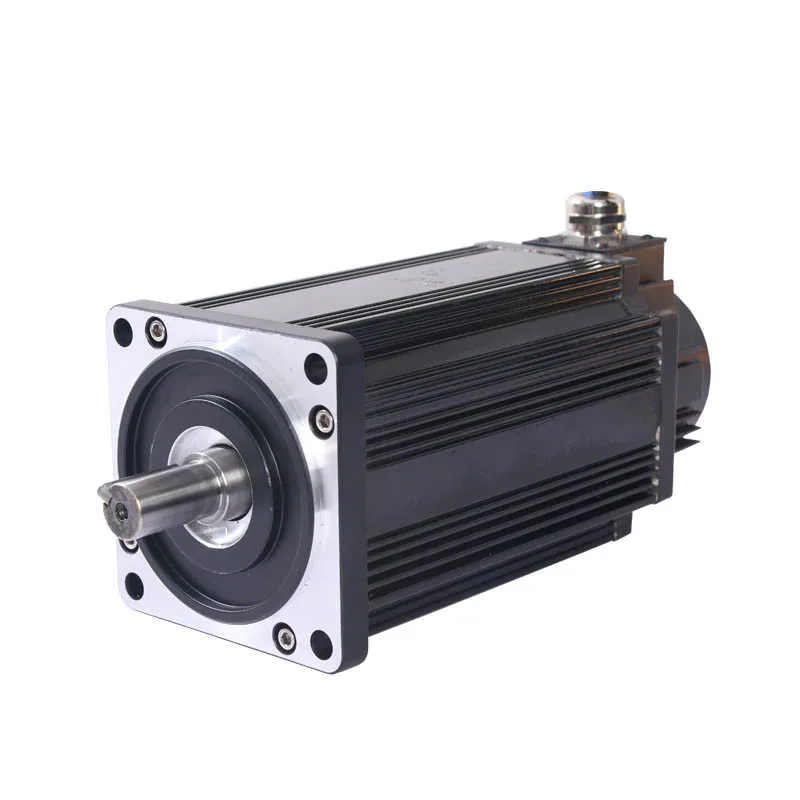

Product show
High torque 48v 1000 watt brushless dc motor 1500rpm bldc motor
Application
Application:Tracked car,Logistics shuttle,Rail car,Fire fighting Robot Etc.
1000 watt brushless dc motor
1000 watt brushless dc motor
Company introduction
High torque 48v 1000 watt brushless dc motor 1500rpm bldc motor
Shipping
We have strong cooperation with DHL,TNT,EMS,China Post.You also can choose your own shipping forwarder.
1500rpm bldc motor
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: What are your main products?
A: We produce various kinds of BLDC motor & controller.
Q: How do you ensure the product quality?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.We have strict test system in every link of material selection, production and final product, packing according to ISO9001 management.
Q: How soon can you deliver the goods?
A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.
