3000 face capacity web server based Biometric Fingerprint Scanner Time and Attendance with Face Scanner
- Category: Fingerprint Scanner >>>
- Supplier: Granding Technology Co. Ltd.
Share on (60839189054):
Product Overview
Description
Product Description

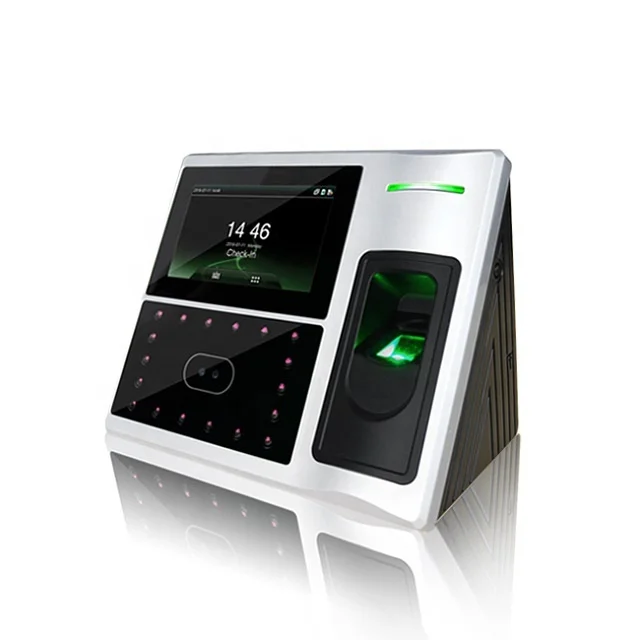

FA1-H Granding 4.3 Inch TFT Touch Screen Facial Recognition Time Attendance and Access Control System Support Fingerprint Verification.
FA1-H is new version of facial recognition system with access control and time attendance function; 4.3 inch touch screen with friendly UI, faster verification and better performance, can define expiry date to exact user, can set user role and SMS. Main-screen picture can also be changed freely; the most advantage is the mulfunction rate is much lower than old one.
Basic Features
• The facial recognition time attendance, access control system offers a composite algorithm system with high speed operating.
• Embedded LINUX system, easy to integrate into various systems.
• It support standalone or network environment.
• Infrared optical system enabling user identification in dark environments.
•4.3" TFT touch screen LCD, elegant design, fashionable and simple interface.
• 6 user-defined function keys and is easy to operate.
• It saves data during power outage.
• Built in backup battery support extra 4 hours continuous operation if power failure
• Support TCP/IP, USB, RS232/485, also can customize wifi or GPRS/3G
specifications
Display/Speaker | Language |
LCD Display: 4.3" TFT Touch screen | Multi Language, English, French, Spanish, Arabic, etc., for more than 40 languages can be selected |
Speaker: Voice Prompt (language can be selected) | |
Technical Specifications Capacity |
Environment |
Face capacity: 3000; Fingerprint capacity: 4,000 | Operation temperature: 0℃ ~ 45℃ |
10000 card(optional) Log capacity: 100,000 | Operation humidity: 20% ~ 80% |
Verification/Identification |
Verification/Identification |
Verification speed (1:1): ≤1s | FRR: ≤0.01% |
Identification speed (1:N): ≤1s | FAR: ≤0.0001% |
Power Supply |
Machine Size |
Power: 110/220VAC ~ 12VDC | 194(L)*165(W)*86(H)mm |
Communication |
Attendance Status |
TCP/IP, RS232/485, USB Host*2, Wiegand out | Check in/out, Break in/out, Overtime in/out |
Standard Function |
Customize Function |
High definition infrared camera; 6 user-defines function keys; Built-in relay, access control interface for door lock, door sensor, exit button and Alarm, Dismantlement alarm, break-in alarm, duress alarm; Scheduled bell, Workcode , SMS, T9 input, DST, Self inquiry, Photo-ID, scheduled bell, ADMS, multi-verify, webserver, Li-battery | 14-PIN code, Printer output; RFID reader, Wifi , GPRS/3G |
Connection Diagram
Free Software
WEB software
Payment & shipment
Payment terms: Paypal or West Union for sample order; T/T for regular order; L/C for large order
Shipment way: International Express TNT, UPS, Fedex, DHL, Aramex ; International Air; or by Sea shipment
