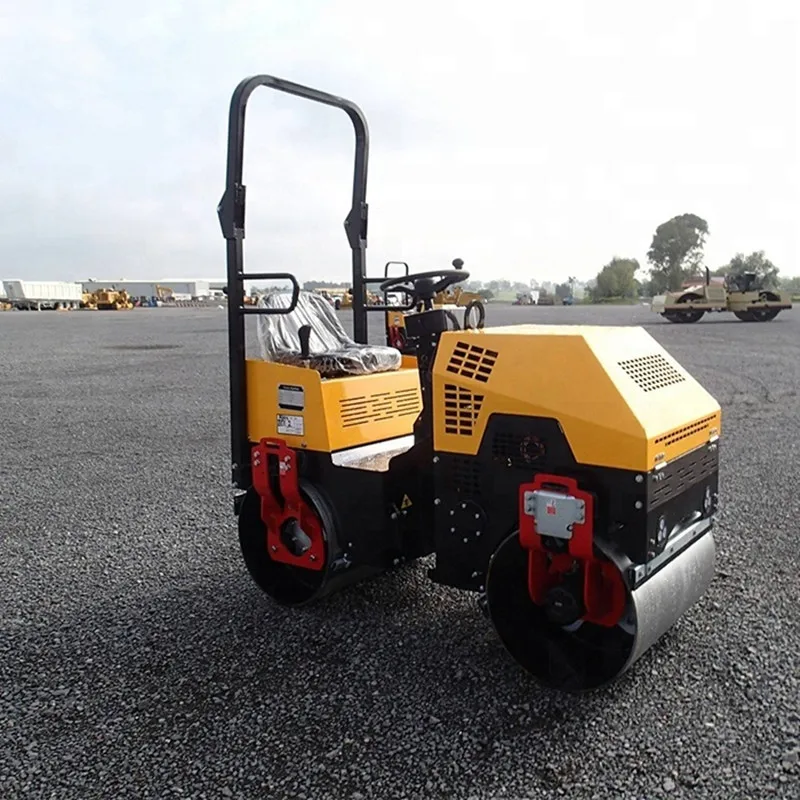

High quality low price double drum vibrstion pavement road roller machine

Product Overview

Description

Hydraulic Mini Road Roller 1000kg Vibratory Asphalt Compactor(WYL-880)

Product Description

FYL-880 (small vibratory road compactor), both the front and rear wheel have the hydraulic drive set which has strong gradeability and high compacting efficiency. FYL-880 road rollers is the single drum (front drum) vibration, rear drum compaction. Adopt water-cooled diesel engine, which has good heat dissipation. Small-size ride-on vibratory road roller operate flexibly

Application:

Earthwork and asphalt applications. New construction and repair work for medium and small scale construction projects, on parking lots, sidewalks, cycle paths, playing fields and sports grounds as well as rolling of joints in road construction.

Technical Parameters



Model	WYL-800
Walk Speed	0-5km/h
Gradeability	30%
Drive Type	Hydraulic transmission
Vibration Control	Electromagnetic Clutch
Static Linear Load	20/55N/cm
Nominal Amplitude	0.6mm
Vibration Frequency	70HZ
Exciting Force	25KN
Water Tank	60L
Hydraulic Oil Tank	19L
Engine Model	90N water-cooled diesel	CF186F	Honda GX390
Power	9.0HP	9.0HP	13.0HP
Steel Wheel Size	Φ540*740mm Φ540*800mm
Package Size	2100*1000*1650mm
Net Weight	1000kg
Starting Mode	Electric



Features:

1.  Adopts  Fully Hydraulic Transmission: Hydraulic Steering and Hydraulic Turning, Mechanical Vibration;

2.  2 ton Exciting force, good compaction.  soil compactor vibratory roller.

3.  The equipped with large capacity water tank, reduce the return water trouble, so that equipment can be continuous growth of working time.

4. Operate radius small, can work in small area, suitable for groove backfill.

5. Use famous diesel engine, water-cooled diesel, high nd quality assurance, superior performance, easy to start.

6.  Adopt international famous brand SAUER hydraulic drive unit, and infinitely variable speed, walk forward and backward, reversing convenient.

7.  Use electrical startup, machine vibration control use electromagnetic clutch, easier operation.

8.  Adopt international NSK bearing, MITSUBOSHI triangle belt, ensure the machine’s work performance.

9. SAUER Hydraulic Pump; American WHITE Motor;

10.  Surface spray, beautiful appearance, rust resistant.
