How to Order Hot melt adhesive Machine Gear Metering Pump for AB glue

Product Overview

Description

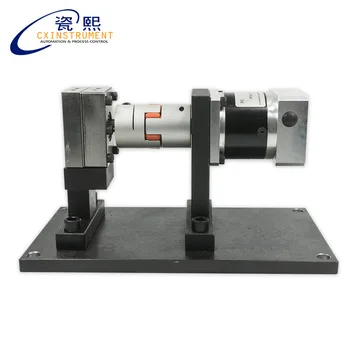

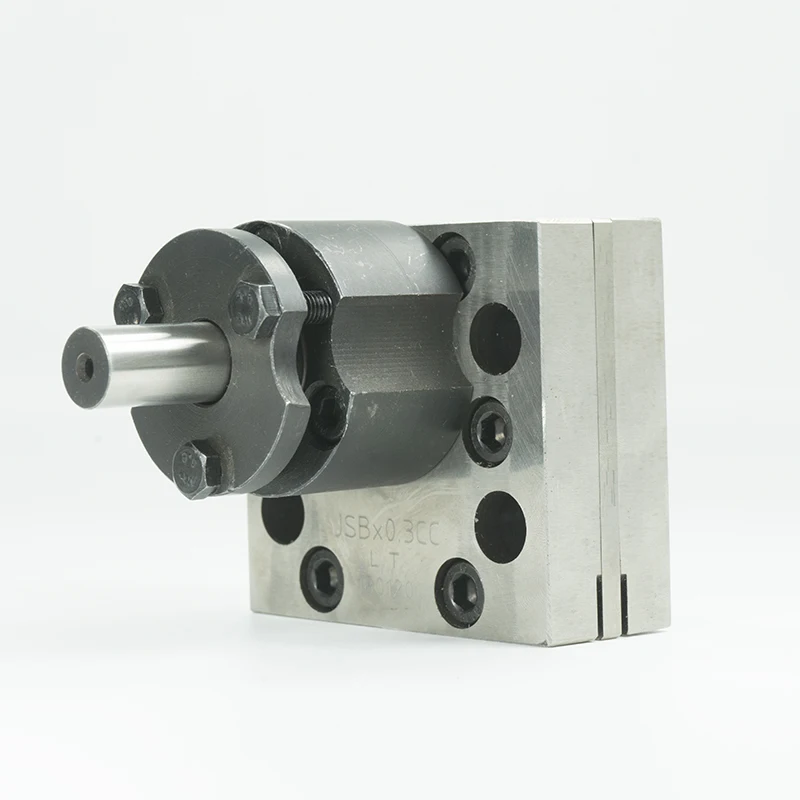

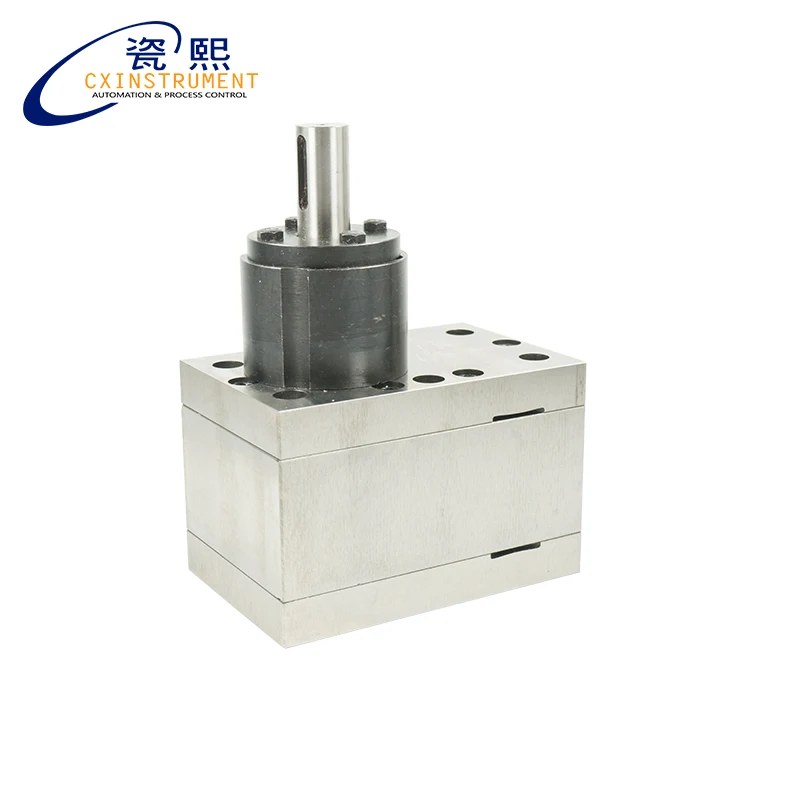

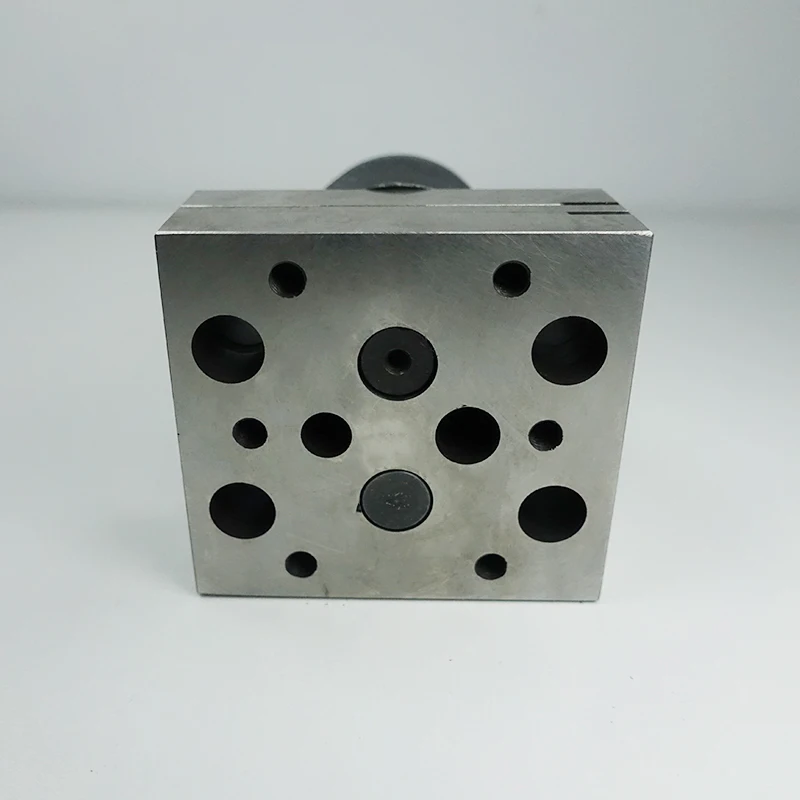

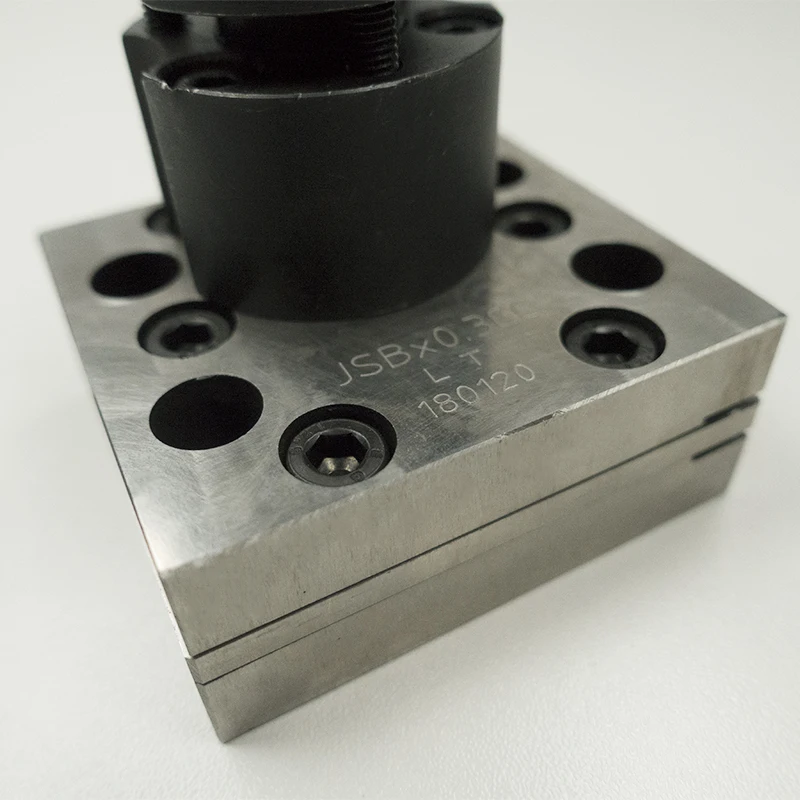

Hot melt adhesive Machine gear metering pump for AB glue

[Features of Hot melt adhesive Machine gear metering pump for AB glue ]

High precision

The Cixi  Hot melt adhesive Machine gear metering pump for AB glue accuracy is (+-)0.3%



Unique design
Using a sturdy gear drive coupling Reduced product accuracy error;



Long lasting

The gear metering pump usually can be used 5-10 years.



cixi  Hot melt adhesive Machine gear metering pump for AB glue working principle of the gear metering pump is that the gear metering pump passes through a pair of mutually meshing gears, one of which is a driving gear and the other is a driven gear, which is driven to rotate by the driving gear. The gears have a small gap directly in the housing of the pump. When the gear rotates, in the liquid suction chamber where the gear teeth gradually disengage, the sealed volume between the teeth increases, forming a partial vacuum, and the liquid is sucked into the liquid suction chamber under the pressure difference. As the gear rotates, the liquid is divided into two paths. The casing is pushed forward by the gear and sent to the draining chamber. In the draining chamber, the two gears are gradually meshed, the volume is reduced, and the liquid between the gears is squeezed to the draining port.

[Parameters]

The parameters of Hot melt adhesive Machine gear metering pump for AB glue
Displacement	0.15CC/R
Medium	fluid
Minimum pressure	< 0.2Mpa
Maximum outlet pressure	< 30Mpa
Process temperature	200℃
Direction of rotation	clockwise from the axis of rotation
Accuracy	±3%
