Product Overview
Description

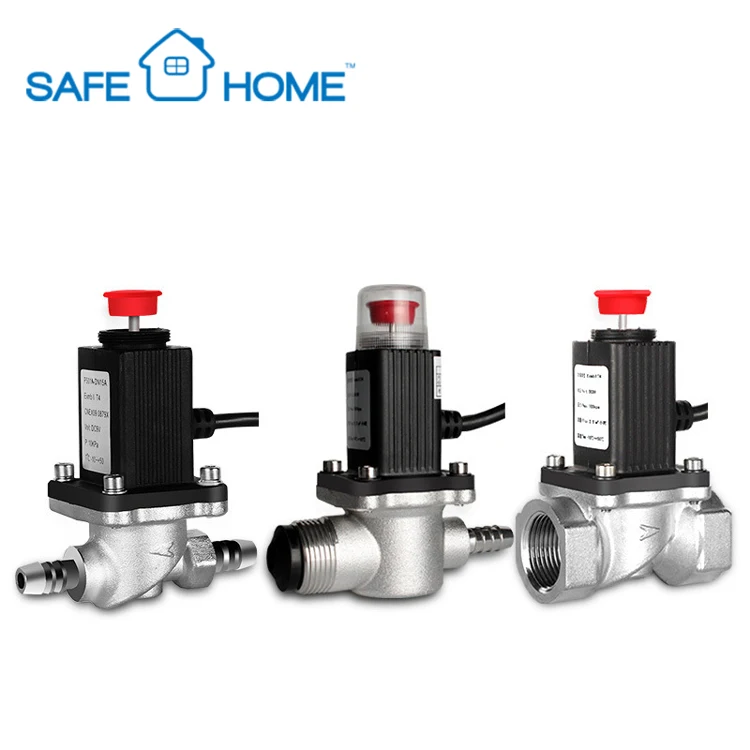

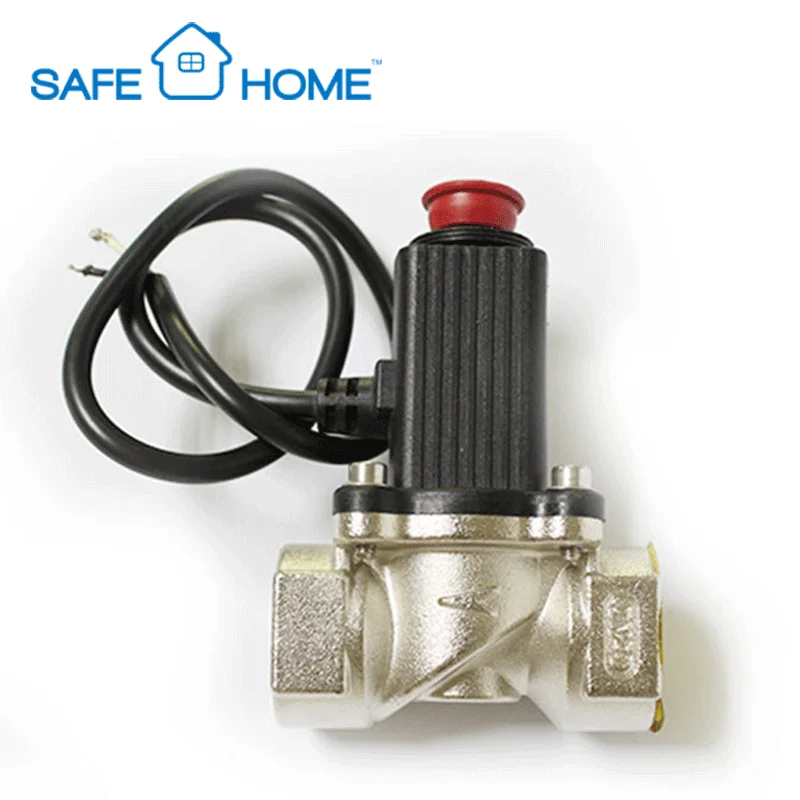

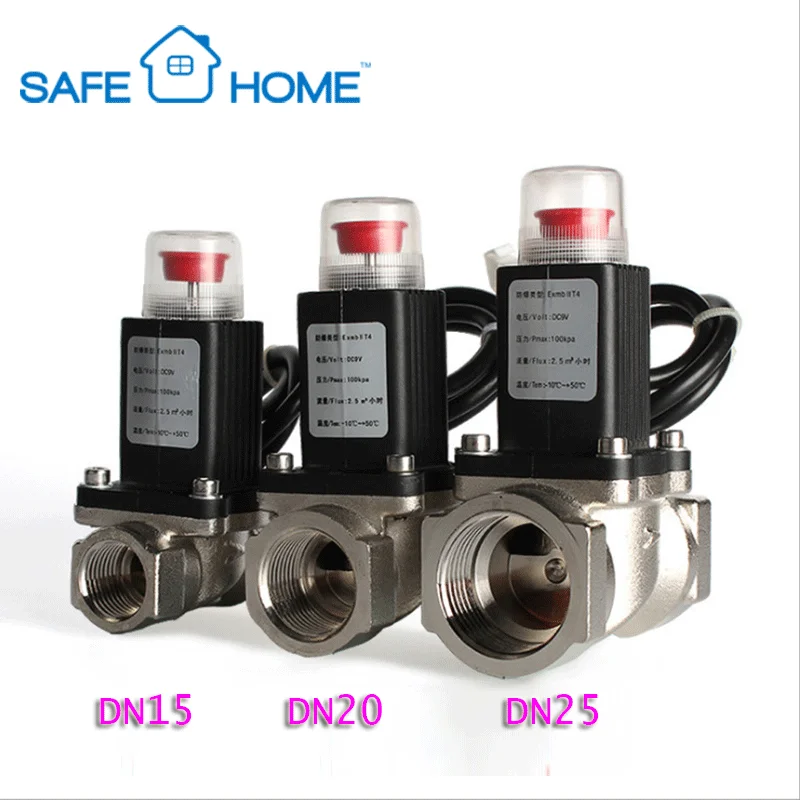

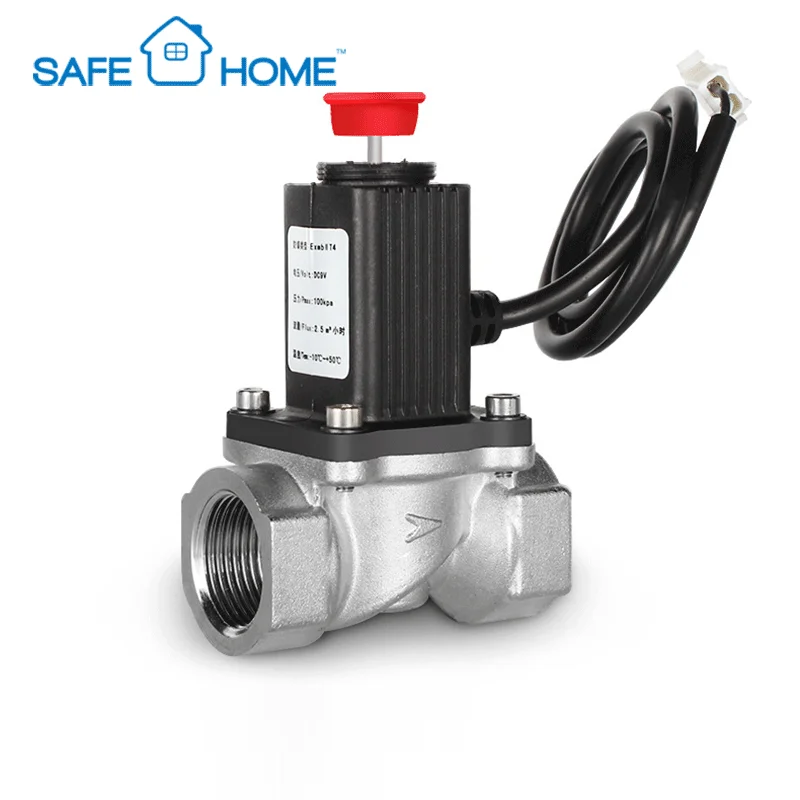

High Pressure Brass 9V 12V 24V Solenoid Valve For LPG Gas
Product Description
Features
l Explosion-proof pouring closure:simply put an end to spark generation,and there is no safety problems if installed in the gas pipeline.it will not be a source of detonation.
l The way off valve:in two ways:1000uf capacitor discharge auto-off valve and manual off valve
l The way open valve:manual open,open valves have to go to the site for operating,in line with gas-processing feature of the accident.
l Off valve speed:1 seconds and cut off gas supply
l Hold mode:it can maintain open and normally closed state capacity without any power(bistable)
l Strong Earthquake off valves:Adjustable open valve state to maintain power,meet the function of auto-off valve under the strong harmful vibration
l Seal reliable:the structure of multi-level sealing measures,precised processing which ensure the gas tightness and security,materials using special NBR/FKM rubber(based on designs for gas),anti-ageing is 15years for the city
l Action reliable:No trouble for electromagnetic implementing agencies switch 2 million times
Technical parameters
Drive Voltage | DC9V-DC12V(pulse) |
Valve Material | Brass / Alloy |
Drive Current | <1.5A(pulse) |
Sealing Materia | NBR Rubber |
Close Valve Time | <1s |
Explosion-Proof type | Poured seal-type |
Maximum working pressure | 50kPa |
Outlet length | 0.4M |
The way Off valve | DC pulse drive/Manual |
The way Open Valve | Manual Reset |
