Cnc bar lathe CK61100L traub cnc lathe machine
- Category: >>>
- Supplier: Shandong Gsk Cnc Equipment Co. Ltd.
Share on (60839357529):
Product Overview
Description
Cnc bar lathe CK61100L traub cnc lathe machine
Products Description

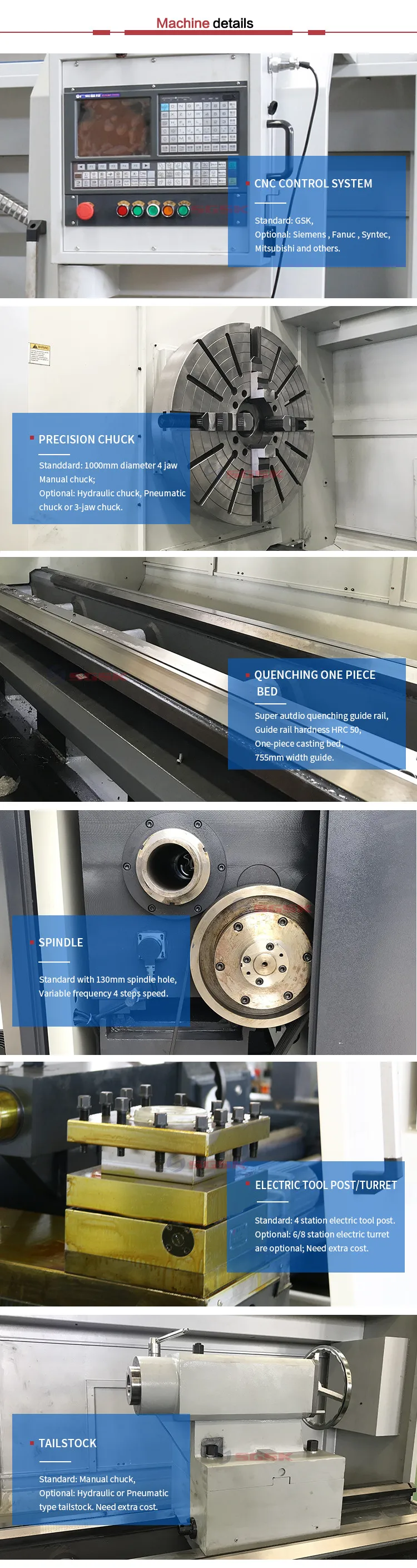

Details Display
Product main features and uses:
This machine can undertake a variety of turning workpiece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.
The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.
Product main technical specification:
This machine can undertake a variety of turning workpiece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.
The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.
Product main technical specification:
Item | Specifications | Unit | CK61100L |
Technical specification | Max.swing over bed | mm | 1000 |
Max.swing over cross slide | mm | 600 | |
Max.turning length | mm | 1500-12000 | |
Bed width | mm | 755 | |
Max.work piece weight | T | 6(8) | |
Main drive | Form | 4 step variable speed | |
Range of spindle speeds | R/min | 4-330 | |
Terminal structure | A2 15 | ||
Hole diameter of Spindle | mm | 130(145) | |
Spindle hole fore-end taper | Metric 140 1:20 | ||
Model of main motor | YVP180L-4-22KW(30kw optional) | ||
Feeding system | Maximum cross travel of turret | X:560 | |
Ball-screw diameter *pitch | mm | X:5008, Z:8012 | |
Speed of quick travel | mm/min | X:4000 ,Z:6000 | |
Setting accuracy | mm | X:0.03 ,Z:0.04 | |
Resetting accuracy | mm | X:0.012 ,Z:0.02 | |
Precision pf workpiece | IT7 | ||
Surface roughness | mm | Ra3.2 | |
Sleeve diameter of tailstock | mm | 160(6T)200(8T) | |
Tailstock | Sleeve travel of tailstock | mm | 300 |
Cone hole taper tailstock’s sleeve | Morse | Morse 6 | |

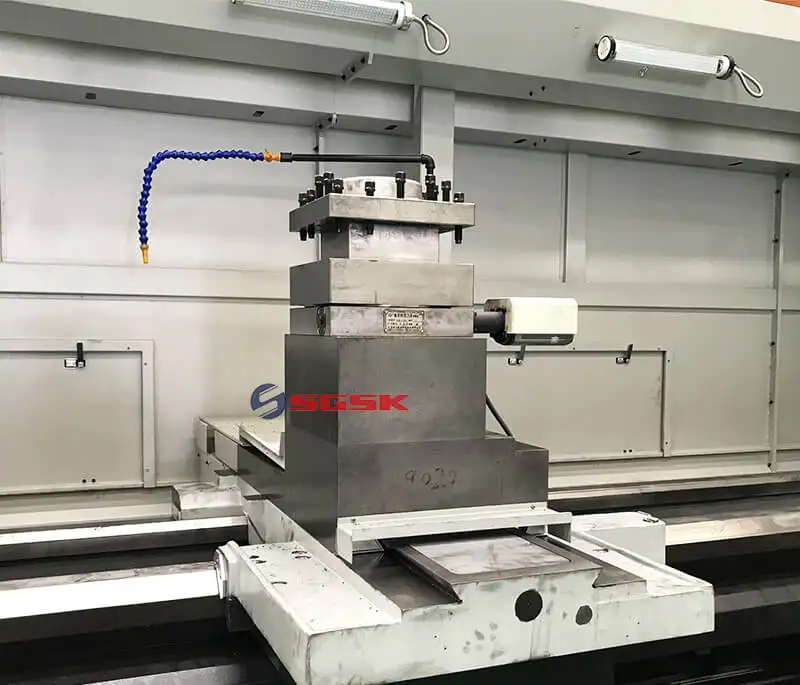

Turret | Standard configuration | Four-station Vertical electric knife rest | |
Alternative configuration | Horizontal Six-station electric knife rest | ||
Resetting accuracy | mm | 0.01 | |
Tool section size | mm | 45x45 | |
Control system | Standard configuration | GSK980TD | |
Alternative configuration | FANUC,SIEMENS | ||
Servo motor | X 180NM ,Z 22NM | ||

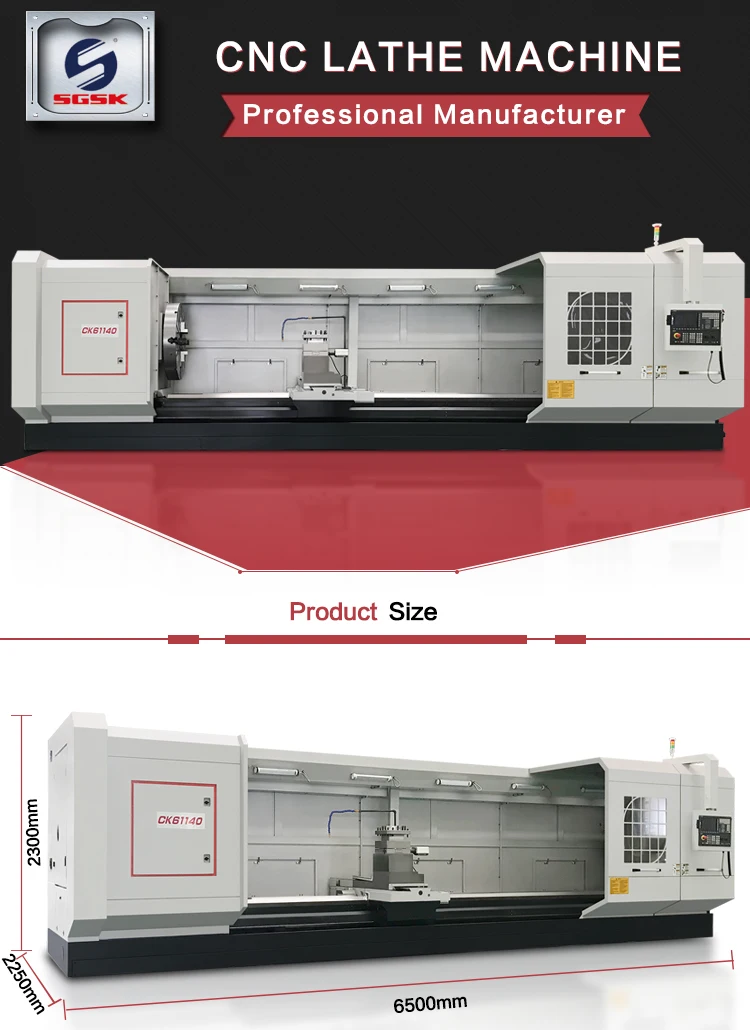

Size | L*W*H | mm | 4600X2000X2040(1500MM) |
weight | N.G | KG | 11000(1500mm) |
