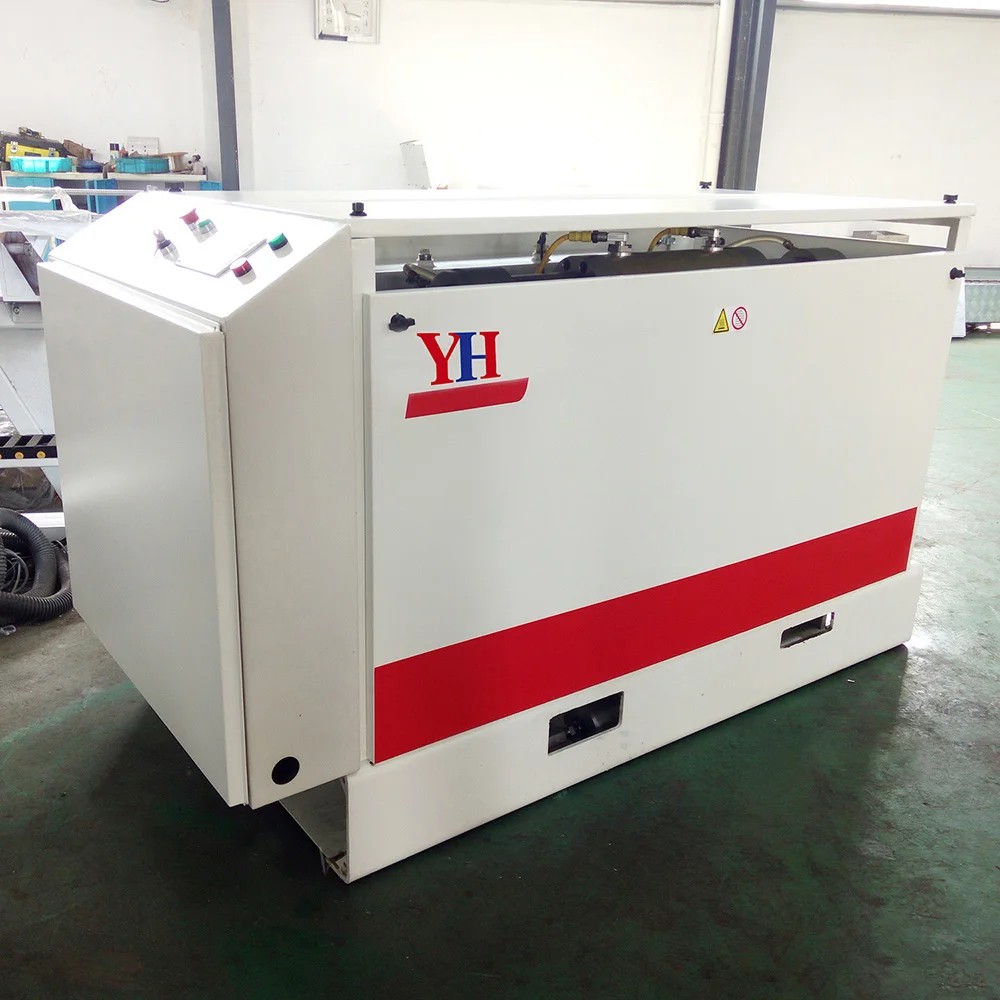

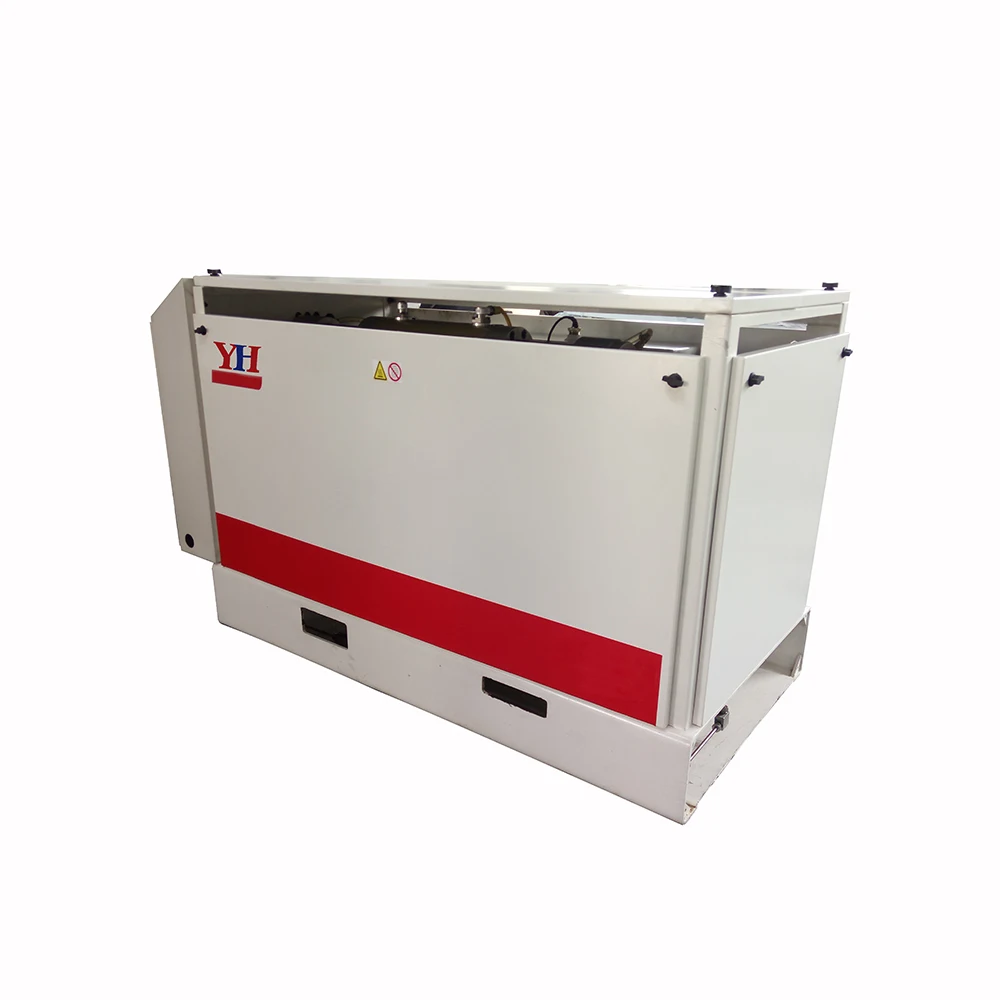

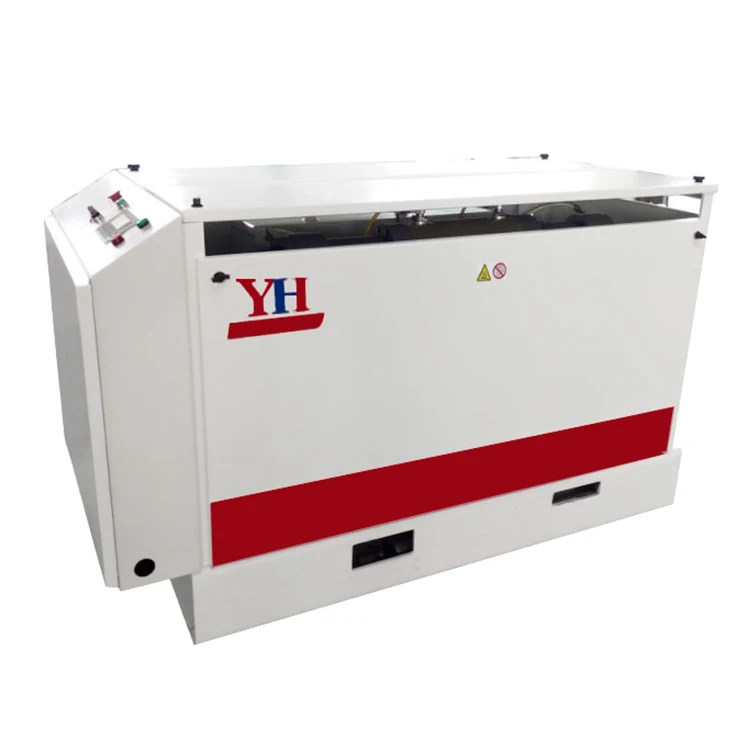

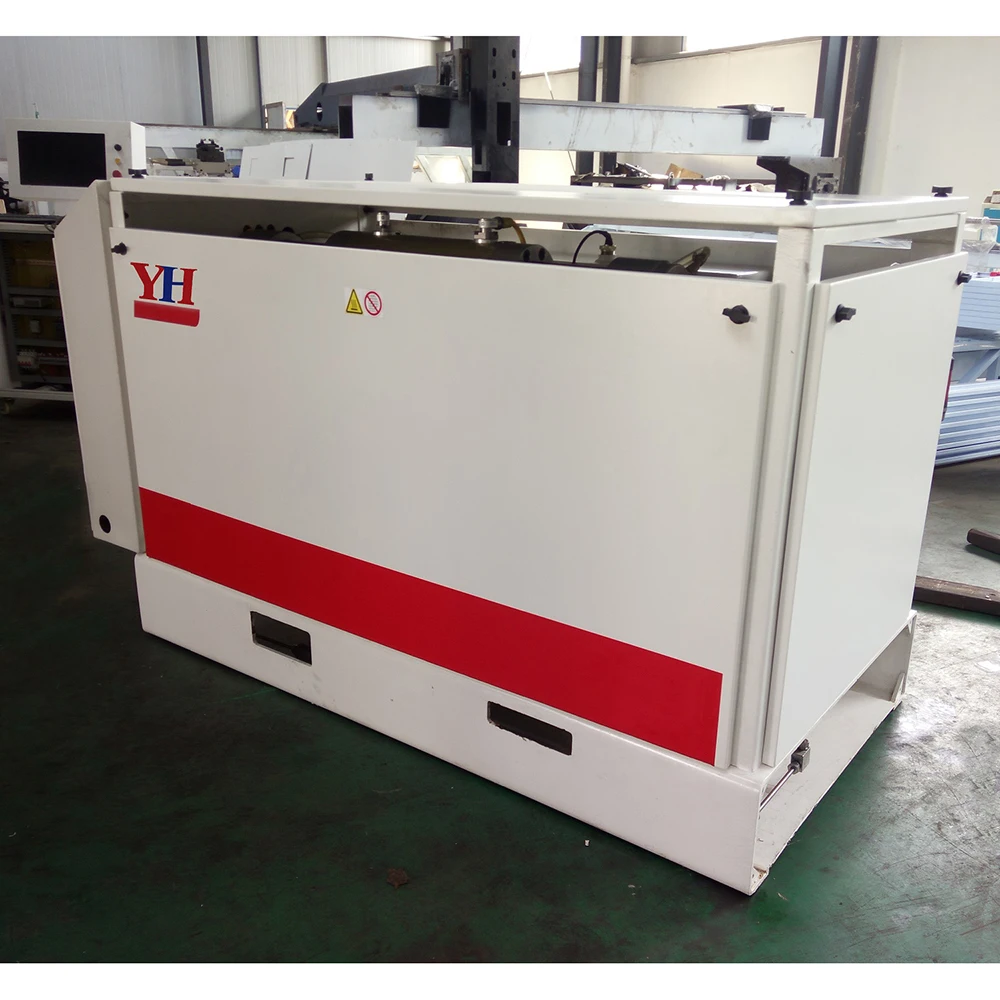

Top Quality Marble CNC Waterjet Cutting Machine with High Pressure Intensifier Pump
- Category: >>>
- Supplier: Shanghai Yuanhong Ultra High Pressure Waterjet Technology Co. Ltd.
Share on (60839364545):
Product Overview
Description
Product Description
Related power:50HP(37KW)
Max. Pressure:60000PSI(4137bar)
Max. Flow:3.79L/MIN
Max. single orifice diameter:0.355mm
Control voltage and current:24DC 10AMPS
Ambient temperature:5-10℃
Fuel tank capacity:106L
Cooling flow:11.4L/MIN
Attenuation:1L
Long:1700MM
Width:914MM
Height:1453MM
Weight:933KG

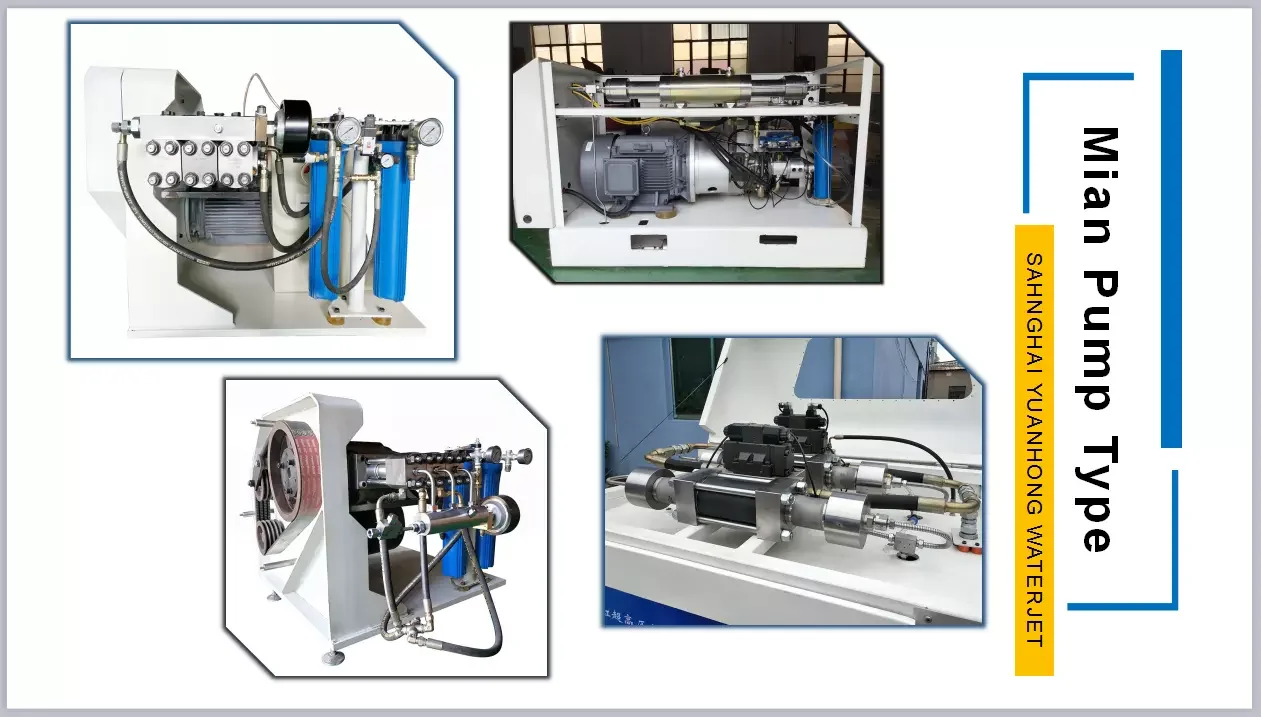

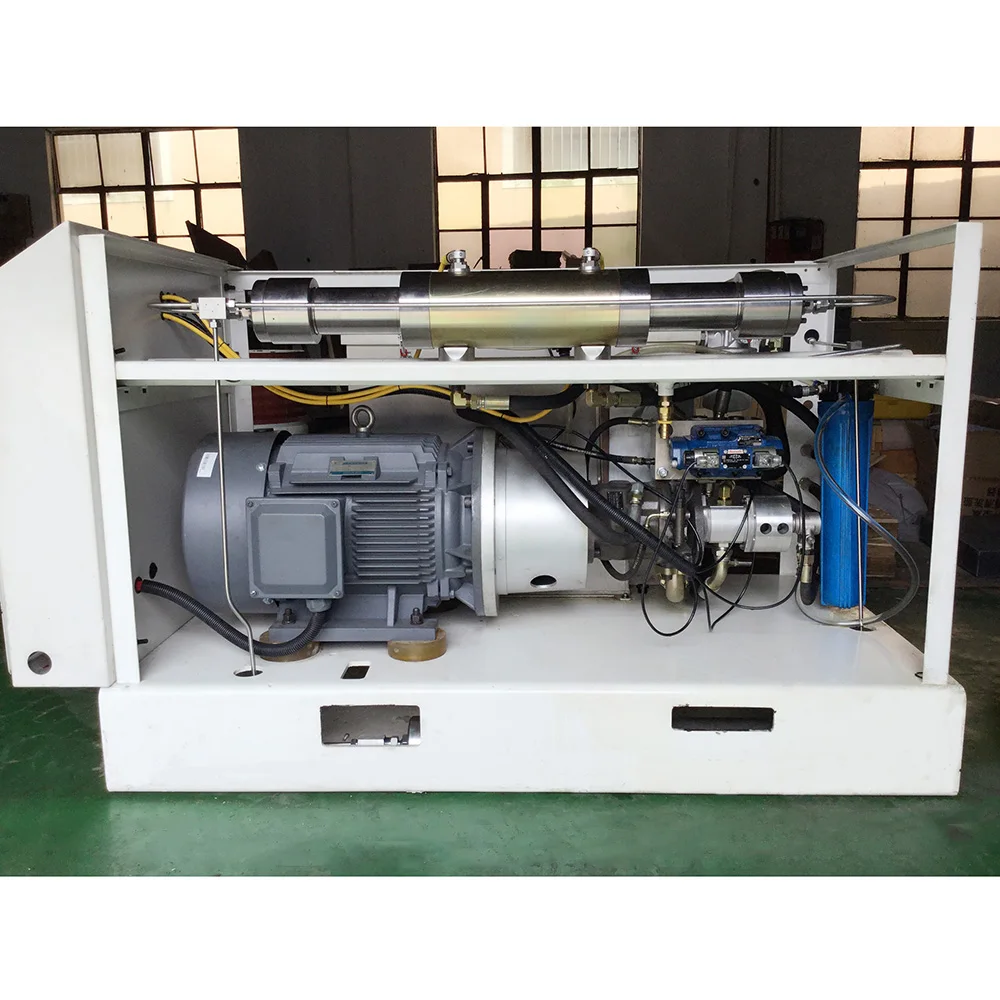

Pump type
| Intensifier pump/ direct drive pump | Intensifier pump | Direct drive pump | ||||
| Reted power: 50HP (37 KW) | Max.pressure: 60000psi (4137 bar) | Control voltage and cuttent : 24DC,10AMPS | Reted power: 30HP (22KW) | Output pressure: 55000psi | Max.pressure: 60000psi (4137 bar) | |
| Ambient temperature: 5-40 ºC | Fuel tank capacity: 114L | Cooling flow: 11.4L/MIN | Air: 80-120psi | Operating voltage and power:210-240/360-420V 50HZ | Ambient temperature: 5-40 ºC | |
| Attenuation: 1L | Long:1473 MM | Width: 1205 MM | Min.inlet water: 60psi 1 gallon/min. | Pump speed: 720 rmp | Fuel tank capacity: 2.6 L | |
Main products
Waterjet parts for many brands:
1. Waterjet pump
Intensifier pump: 40k, 60k, 87k
Direct drive pump
2. Waterjet cutting head
Abrasive water cutting head
Pure water cutting head
3. Repair kit/Maintenance kit/Seal kit
4. High pressure components
High pressure tubing
Elbow
Tee
Application
| 1. Creamics and stones and glass spell flower | 9. Food industry |
| 2. High speed railway | 10. Cleaning scope |
| 3. Automobile spare parts | 11. Jewelry industry |
| 4. Airpalne manufacture | 12. Manufacture paper industry |
| 5. Aviation aerospace | 13. Children diaper industry |
| 6. Nuclear power | 14. Women sanitary towel |
| 7. Army industry | 15. Electron industry |
| 8. Foundry industry | and so on |
Company Information
Yuanhong ultra-high pressure water jet technology co.,ltd cooperate with many world famous companies,including vibration hong and Taiwan,the united states of silver PSP (Puget Sound Precision).
Shanghai Yuanhong will in line with " customer first,quality first"the idea,the full use of the various water jet essence,according to the customer need to configure the best solutions and service for the user.
We set up a research center focused on ultra high pressure. We hired technical personals as researchers from foreign and domestic water jet companies. Also we employed researchers in famous colleges and universities to give us technical support.
Factory
Our advantages:
Price: we are a factory with 50 people, so the price is more competitive.
Quality: we have professional engineers to guarantee the quality of products.
After-sale service: we offer free replacement of problem products and technical support.
Certificate: our products are CE and ISO certified
FAQ
Q: What kind of products do you have?
A: We can supply a range of waterjet cutting machine and related parts for many famous brand.
Q: Are you a trading company or manufacturer ?
A: We are a manufacturer of waterjet products with good quality and competitive price.
Q: How long is your delivery time?
A: Generally we will arrange shipment as soon as receive payment if the goods are in stock, or it is about 5 days if the
goods are not in stock(according to quantity).
Q: What is your terms of payment ?
A: We accept T/T, Bank Transfer, Paypal, West Union.
For waterjet machine: 30% T/T in advance ,balance before shippment.
For waterjet parts: 100% in advance.
Q: What is the mode of transportation ?
A: TNT, DHL, FEDEX, UPS, SF and so on.
Q: Do you have the products I want?
A: We have the most complete waterjet machine parts. We also support the customization of any parts of the sizes you need. Please feel free to contact us if you have any needs.
Packaging & Shipping
Packing: Industrial packing or single box+ wooden box+ pallet or as your requirement.
Delivery time: 10-15 days after payment or as your requirement.
1. If you buy water jet spare parts, we will provide a soft package for your products
2. If you buy the large water jet cutting machine equipment, we will provide you the wooden box for your products.
