LANBOO New LED 19mm Signal Lights With Red Green Blue White

Share on (60839406420):


Price:

Quantity:


Product Overview

Description


16MM ad22-22ds din rail led indicator lamp 230v for panels



Product Description


1.Unique design;


2.Matt Luminous,not dazzling;


3.Ultra short installation size;


5.Use the built-in voltage dropping resistor


6.10/12mm can be customized dual color;


7.Waterproof and dustproof grade up to IP67;


8.Lamp life: up to 40,000hours

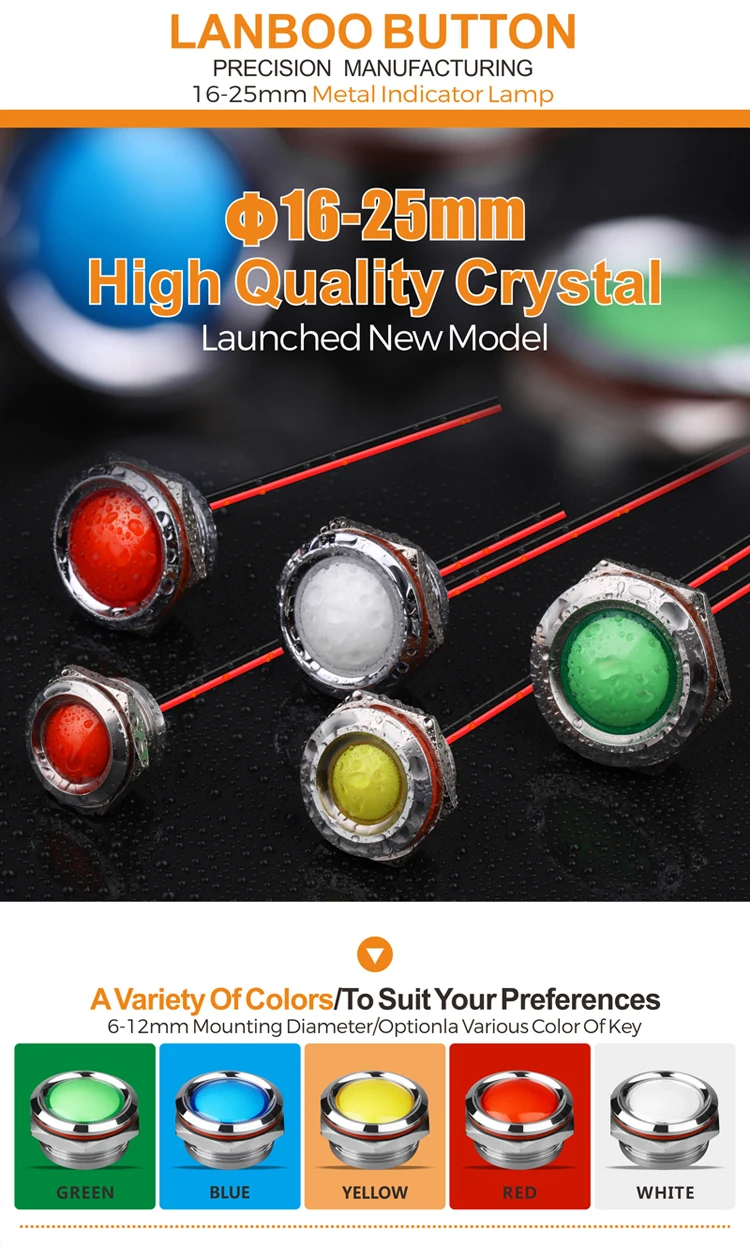

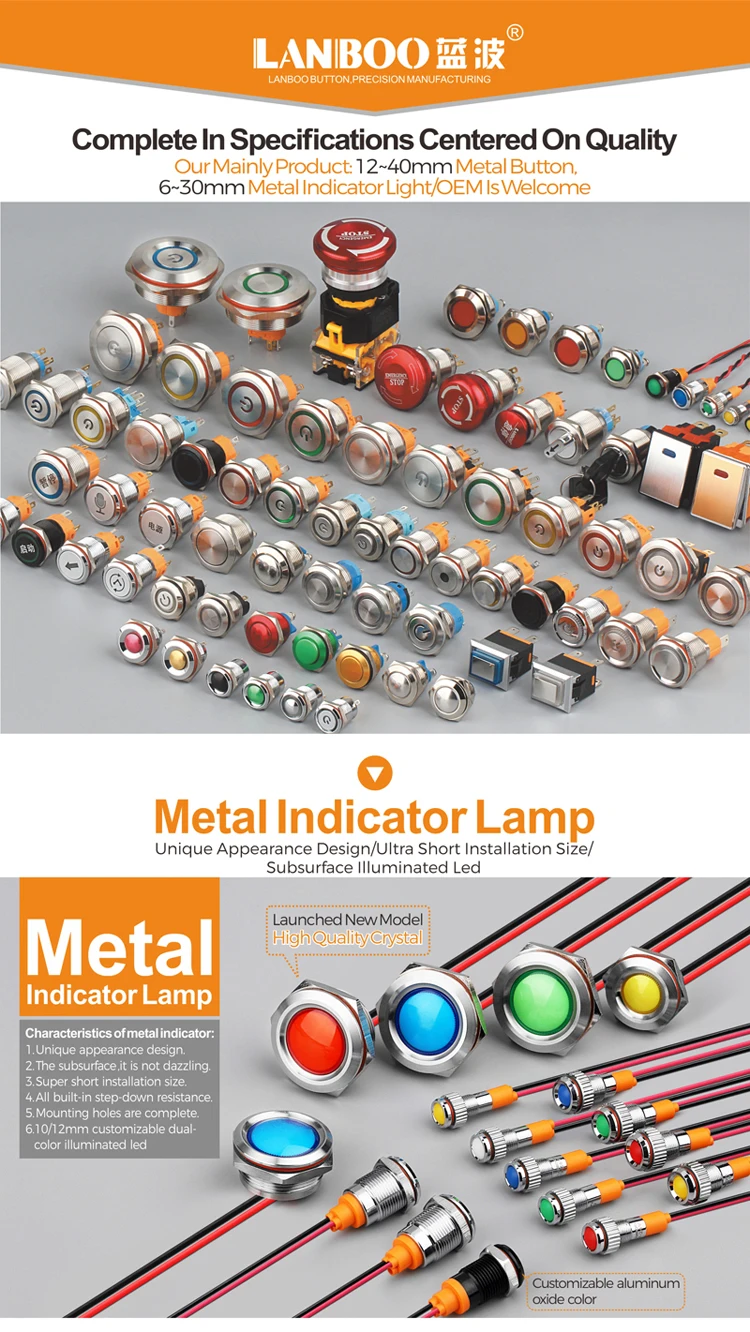

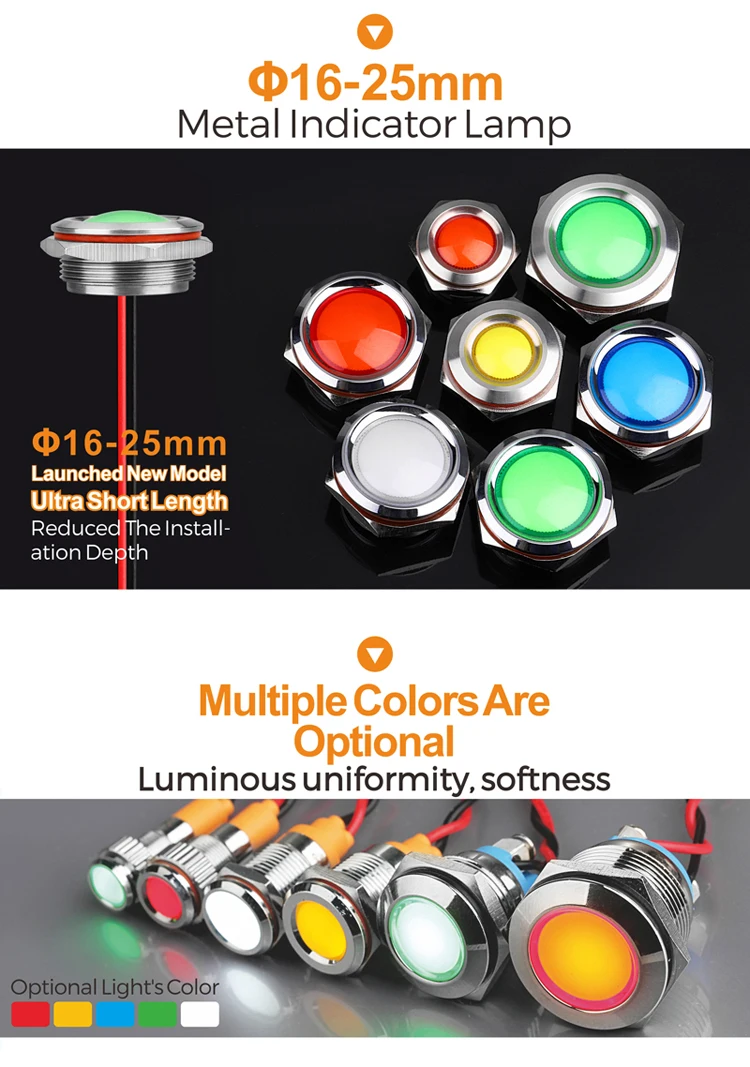

--20180916_01--20180916_02--20180916_03





Specification
































































                                       Specification
Model           LB16D           LB19D          LB22D          LB25D
 Diamete                 φ16mm                 φ19mm               φ22mm                φ25mm
 Lamp shape                   Flat                   Flat                 Flat                  Flat
 Crust Material

Copper plating(nickel)/


Aluminum oxide



Copper plating(nickel)/


Aluminum oxide



Copper plating(nickel)/


Aluminum oxide



Copper plating(nickel)/


Aluminum oxide


 Model of connectionTerminal,150mm/PinTerminal,150mm/PinTerminal,150mm/PinTerminal,150mm/Pin
 Protection gradeIP65/IK08IP65/IK08IP65/IK08

IP65/IK08


 Luminous colorRed,green,blue,yellow,whiteRed,green,blue,yellow,whiteRed,green,blue,yellow,whiteRed,green,blue,yellow,white
 Luminous voltage

ACDC:2V/3V/6V/12V


/24V/36V/110V/220V



ACDC:2V/3V/6V/12V/


24V/36V/110V/220V



ACDC:2V/3V/6V/12V/


24V/36V/110V/220V



ACDC:2V/3V/6V/12V/


24V/36V/110V/220V






Mode Of Connection

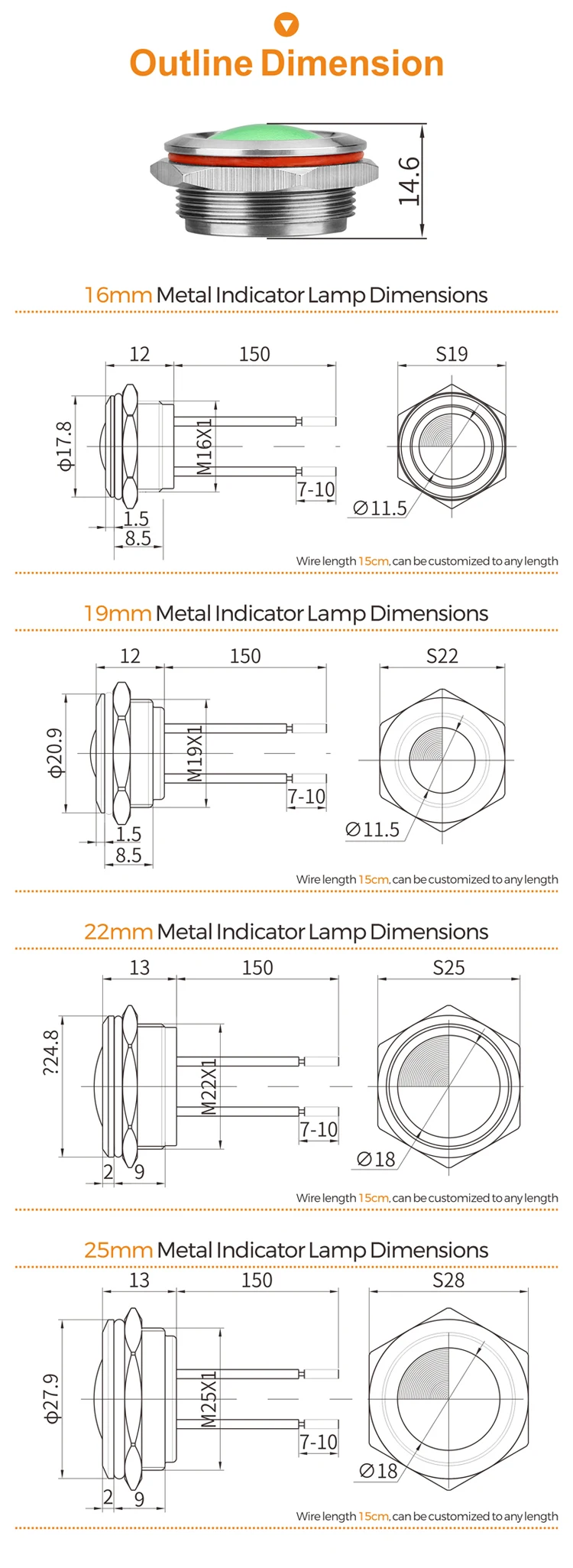

 --20180916_04





Packaging & Shipping


   0.85x1m











Company Information








FAQ


 --123


Q1: What's the payment terms?
A1: We accept TT,Western Union,L/C,PAYPAL, 30% deposit and 70% balance against copy of BL.





Q2: How's the delivery time ?
A2: It rests with the quantity you need,1-30days usually





Q3: Tell me the standard of package?
A3: For the small capacity, small box and EPS as inner package and carton as delivery package. But also we can pack it according to your requirment.





Q4: How about the logo? Would you accept to use our logo ?
A4: Our logo is LANBOO. If your order has good quantity, it absolute no problem to do OEM. But you use our logo LANBOO will be high appreciated.








Q5: How do it know that you have sent the products out?


A5: Onece the products already finished ,We will send pictures ,video to you .Also a tracking number will be provided so that you can check where your goods at all time.





Q6: Could you offer Form A or C/O ?
A6: It totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.








Q7: We want to know month capacity?
A7: It depends on which model.For example for 16mm metal button switch , month capacity can reach near 500,000pcs





Q8: Where is your market?
A8: Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western European so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.





Q9: What kind of certificate you have ?
A9: Our company already Obtained RoHS,CQC,CE,CCC,IP67,IK10 ,design and technical patents certificates


Q10: Can I ask for a sample?


A10: Of course ,my friends. It’s free for you .





Now pls feel free contact with us asap. J
