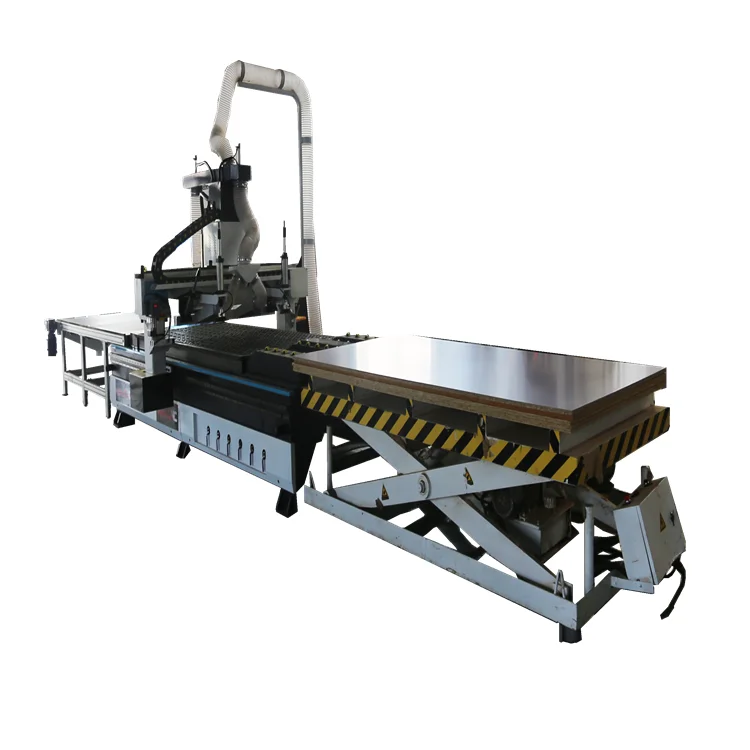

Ready To Ship!! Export To Spain Atc Router Multi Woodworking Tool Cnc Cutting Machine

Product Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Main Features

※12-Position rotary tool carousel
※  Automatic loading&unloading system
※  Italian HSD 9.6kw air cooling spindle
※  Japan Yaskawa servo motor
※ Taiwan Delta inverter
※ Japan Shimpo gear reducer
※ German WMH Herion helical rack pinion
※ 5.5kw TongYou vacuum pump(German Becker for option)
※  Taiwan Hiwin or PMI square rail 30mm
※ Pneumatic material placement stops
※ Double layer vacuum table
※ Automatic tool calibration pad
※Taiwan AirTAC electromagnetic valve-
※ German Igus cable

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

CNC Tool Rotary Carousel magazine

 Automatic loading&unloading system

Faster loading and unloading, saving labor costs

9kw High Frequency Automatic Tool Changer Spindle

The Alpha ATC CNC Router machine comes standard with a 9kw high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.

Drive Motors

The Alpha ATC Series CNC Router utilizes digital AC Servo motors powered by Japan Yaskawa Drives. These motors require no regular maintenance - therefore, reducing any maintenance downtime.

Taiwan Syntec FC-60WA Serial controller

 New Model with Big Screen, bus communication, support high resolution axis motor, simple distribution, easily install, better performance

CNC Tool Calibration

Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

Pneumatic Material Alignment Stops

The Alpha Series CNC machine comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin.

PMI square rail&High quality helical rack pinion

The machine adopts Taiwan PMI square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.

Automatic lubrication system

The function of the automatic oil pump is mainly to perform regular quantitative oiling on the easily wearable guide rail, ballscrew and the rack gear. It is by the digital controller to control the lubrication pump working cycle; lubrication time and intermittent time.

Optional Parts
