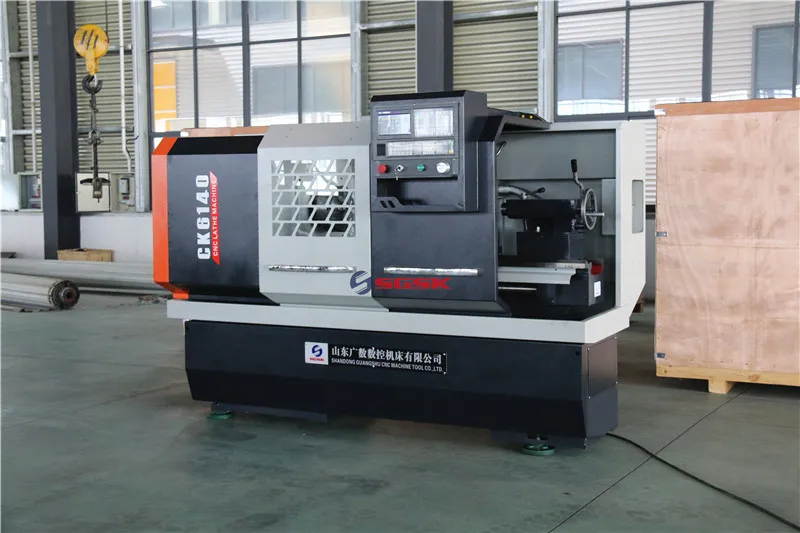

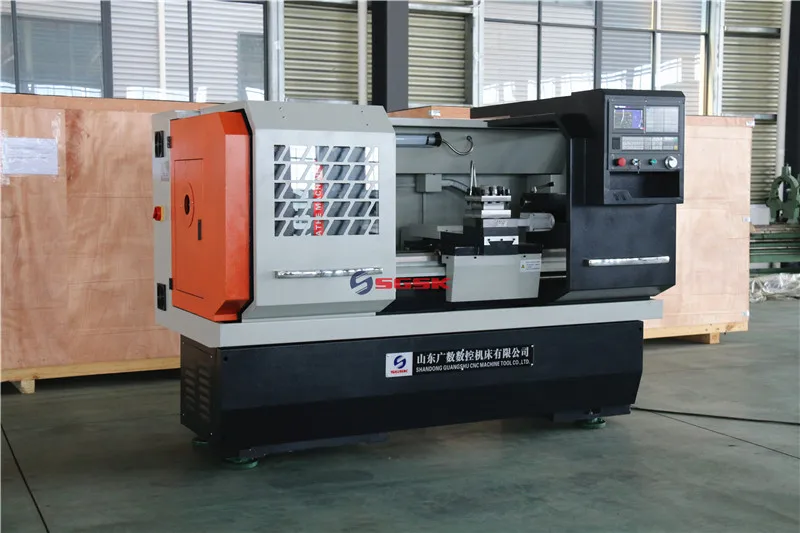

CK6140 CNC lathe automatic lathe high precision lathe stepless speed change CNC machine tool
- Category: >>>
- Supplier: Shandong Gsk Cnc Equipment Co. Ltd.
Share on (60839446383):
Product Overview
Description
CNC lathe CK6140 CNC lathe automatic lathe high precision stepless speed change CNC machine
Products Description
VR

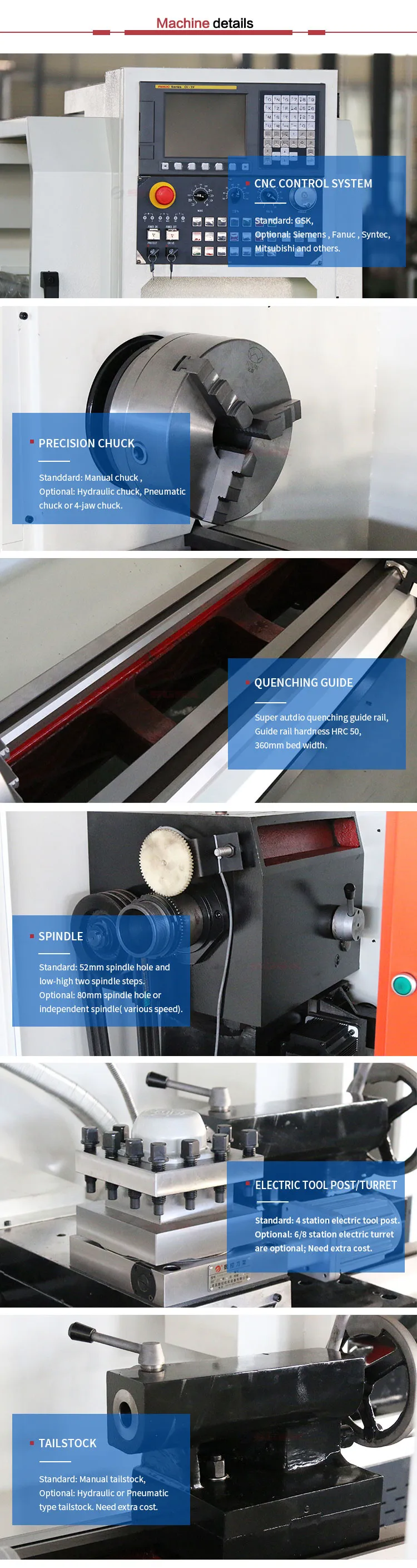

Details Images
Product Paramenters
Features:

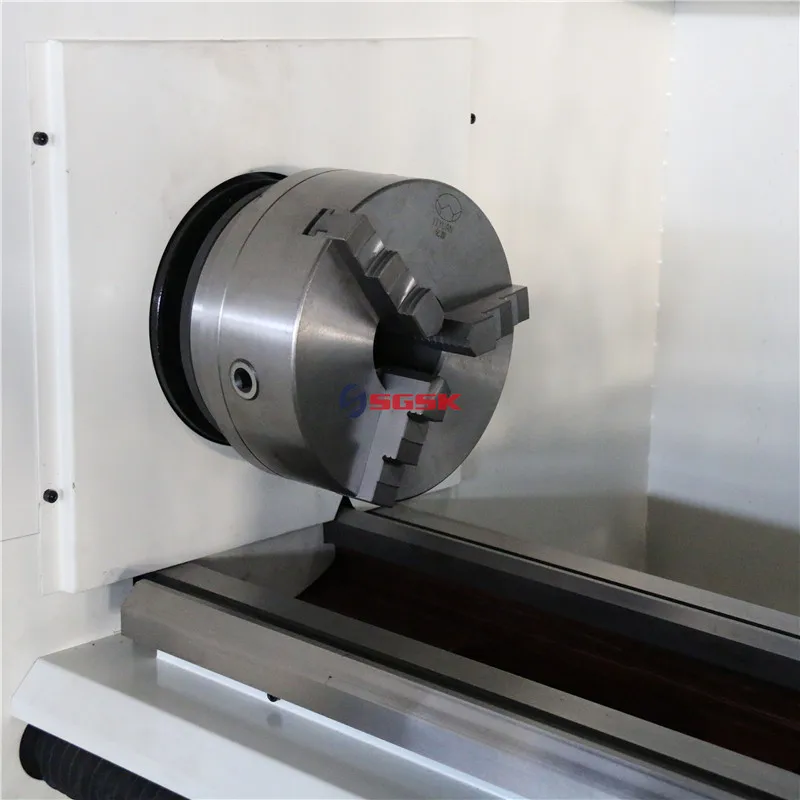

1. Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw
transmission, good dynamic performance, precision positioning.

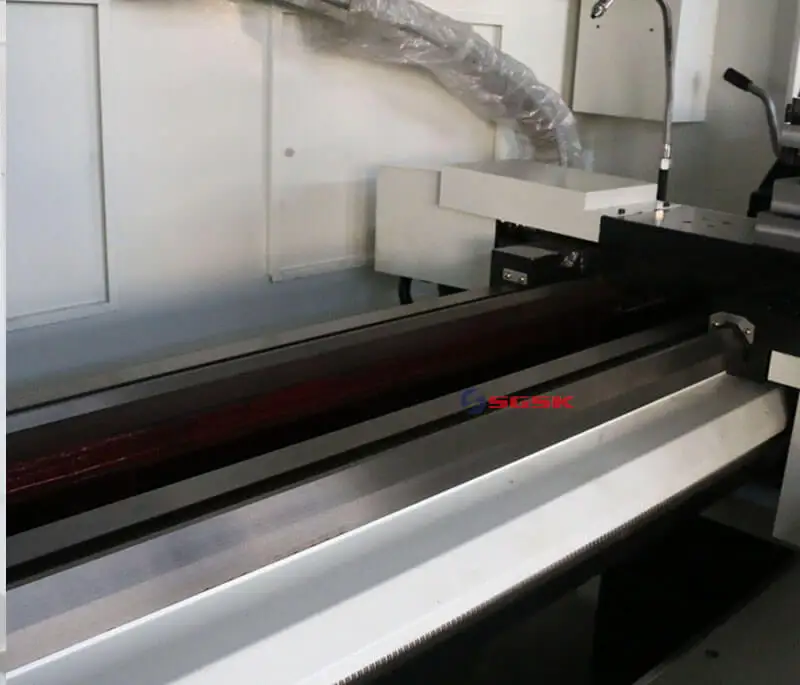

2. The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy
transmission, good dynamic performance, precision positioning.
2. The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy
Product main technical specifications:
SPECIFICATIONS | Units | CK6140 |
Swing over bed | mm | 400 |
Swing over cross slide | mm | 210 |
Distance between centers | mm | 750/1000/1500/2000 |
Spindle bore | mm | 52(Optional 80) |
Spindle bore taper | - | MT6 |
Spindle nose type | - | C6 |
Spindle speed steps | - | Manual 2 steps |
Spindle speed range | rpm | L:100-500 H:500-1800 (Optional 90-1800 stepless) |

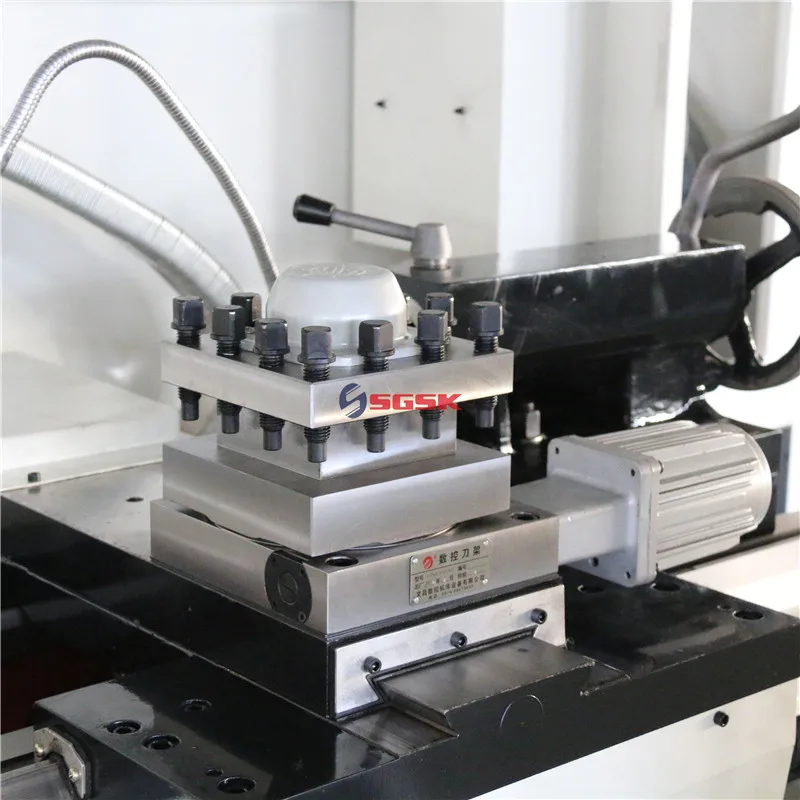

Turret/tool post | - | Electric 4 position |
Tool size | mm | 25 x 25 |
X axis travel | mm | 230 |
Z axis travel | mm | 750/1000/1500/2000 |
X axis rapid traverse | mm/min | 6000 |
Z axis rapid traverse | mm/min | 8000 |

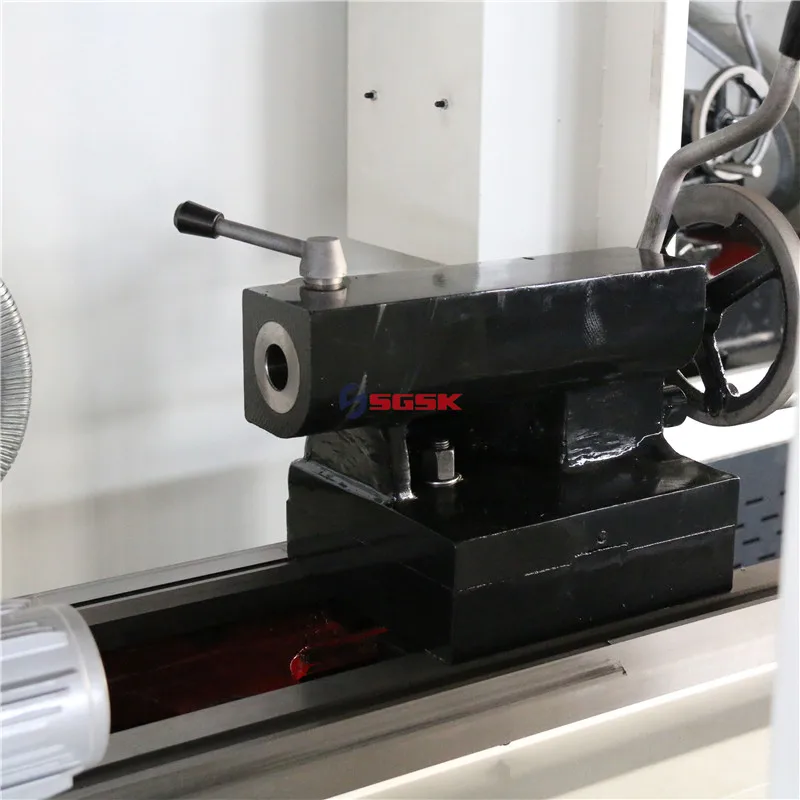

Tailstock quill diameter | mm | 65 |
Tailstock quill taper | - | MT4 |
Tailstock quill travel | mm | 130 |
Main spindle motor | kw | 4 |
Coolant pump motor | kw | 0.09 |
Weight for 750 | kg | 1700 |
Weight for 1000 | kg | 1800 |
Weight for 1500 | kg | 1900 |
Weight for 2000 | kg | 2000 |
Dimension for 750 | mm | 2200x1650x1700 |
Dimension for 1000 | mm | 2500x1650x1700 |
Dimension for 1500 | mm | 3000x1650x1700 |
Recommend Products
Company Profile
Certifications
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
