20t/h Gas Fired Shaft Type Copper Scrap Melting Furnace Tilting Type Holding Furnace

20t/h Gas Fired Shaft Type Copper Scrap Melting Furnace+Tilting Type Holding Furnace

Application

This furnace is used to refine scrap copper, the refined molten copper could be cast into anode copper plates through anode casting machine or low-oxygen copper rod through ccr line(continuous casting and rolling line)

 Advantages:

 Compared to traditional reverberatory furnace:

1 the furnace is more environmentally friendly and has higher thermal efficiency.

2.The Oxidation-reduction of the furnace is more complete and it needs less manpower

Components:

1. 20t/h shaft furnace                                           1se

2.2 m²  prechamber                                            1set

3.Upper launder                                                  1set

4. Combustion system                                         1 set

5. 30t/h  skip bucket winch charging machine      1set

6. 10 Nm³/h, 0.3MPa Nitrogen supply system    1set

7. Control,digital data recording system            1set

 8. 25T holding reduction furnace                      1set

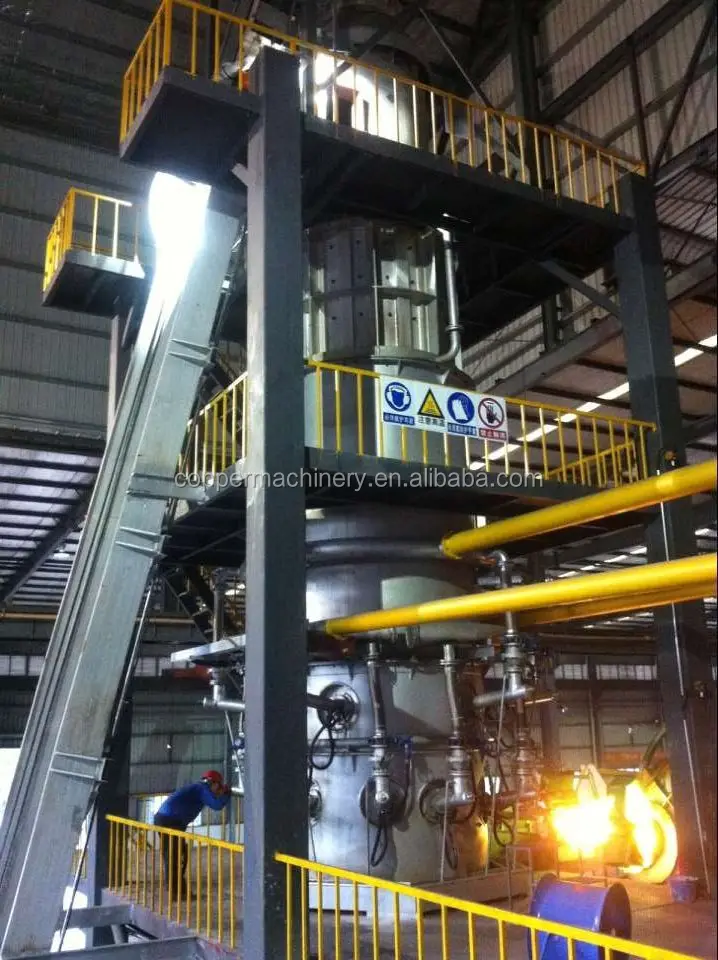

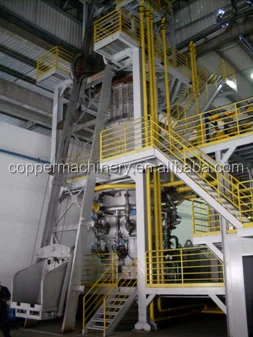

Photos of the equipment

Photos of delivery
