TPX 6111 CNC table type mechanical metal boring milling Conventional horizontal with certifications and provide best service

Share on (60839468208):


Price:$6,000,000.00

Quantity:


Product Overview

Description

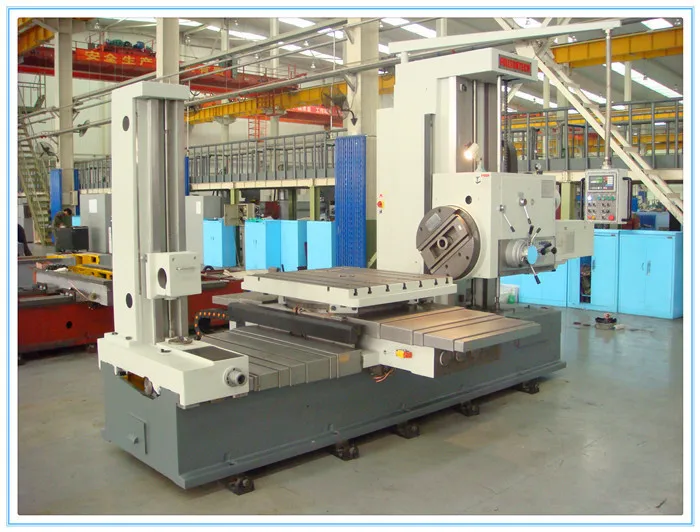

table type borer machine (3)



Product Description





 1.Main specification Of TPX 6111 CNC table type mechanical metal boring milling Conventional horizontal with certifications and provide best service















































































































Main specifications



Unite



TPX6111



Spindle diameter



mm



110



Spindle taper




#6



Number of spindle speed step




22



Range of spindle speed



r/min



8-1000



Range of facing head speed



r/min



4-200



Facing head diameter



mm



630



Number of facing head speed step




18



Worktable size (L×W)



mm



1140×1000



Max. load of worktable



kg



2500



X axis traverse



mm



1000



Y axis traverse



mm



1000



Z axis traverse



mm



1000



W axis traverse (spindle travel)



mm



600



U axis traverse (Facing spindle travel)



mm



180



B axis worktable rotary




360°



Rapid speed (X/Y/Z/W)



Mm/min



2500



Measurement system reading precision(X/Y/Z)



mm



0.005



B-axis measurement system reading precision




0.001



Power of main motor



kw



7.5

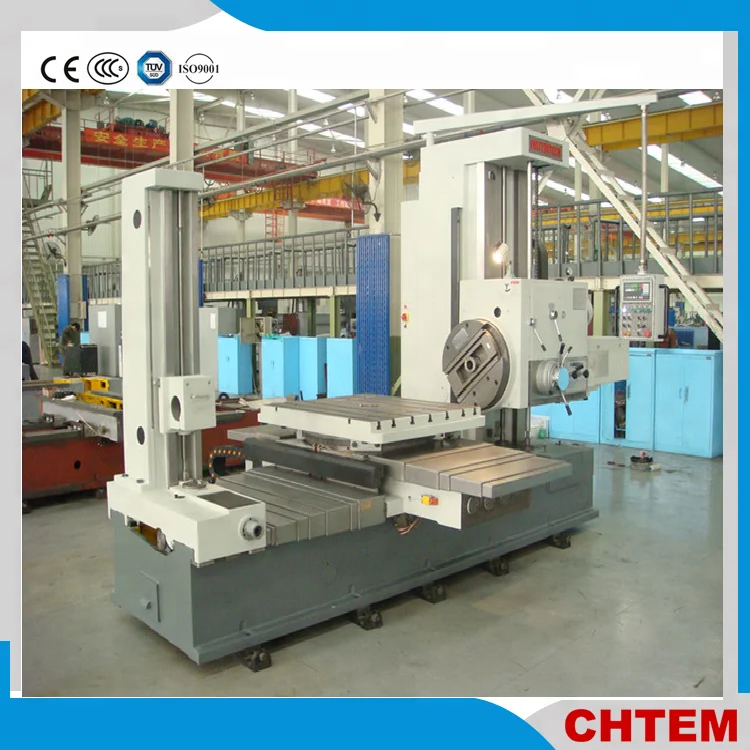

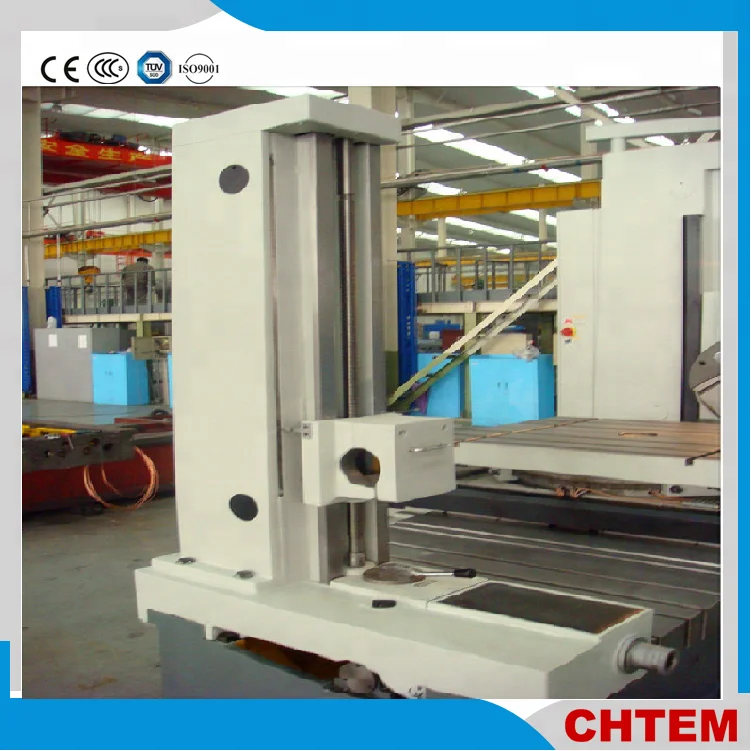

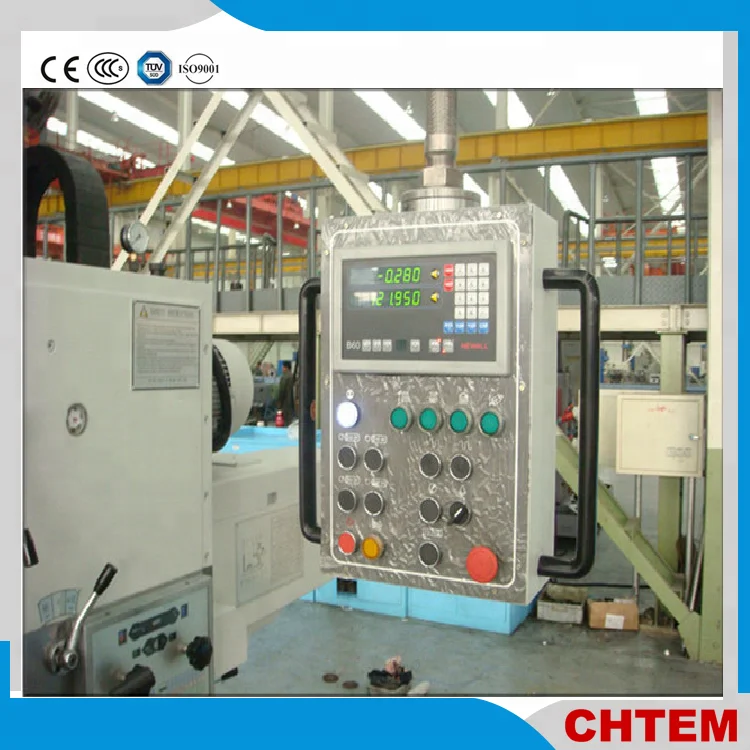

2. Pictures of TPX 6111 CNC table type mechanical metal boring milling Conventional horizontal with certifications and provide best service

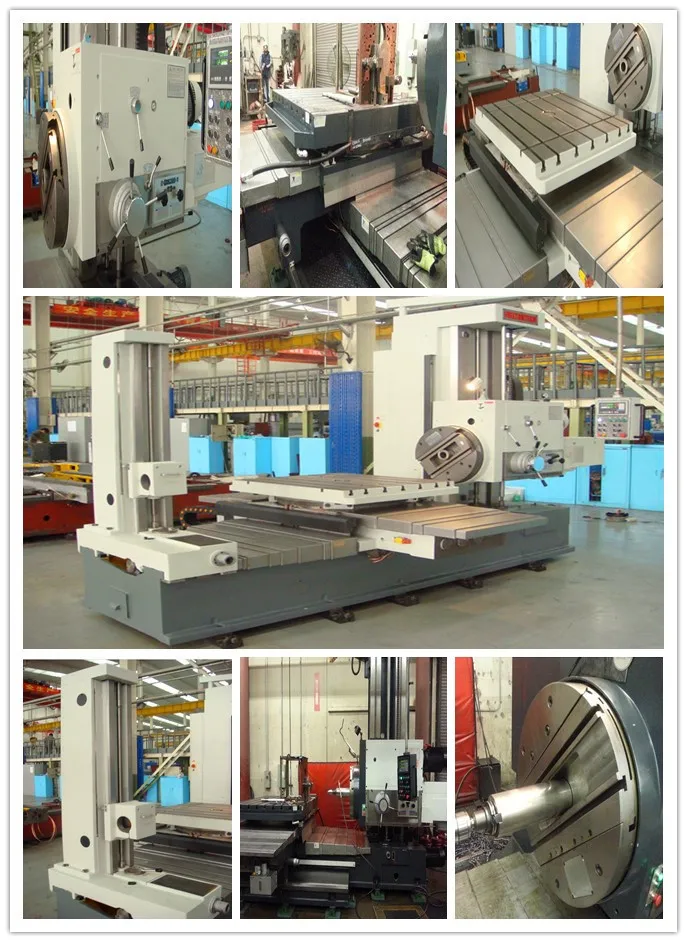

Conventional Boring And Milling Machine






Packaging & Shipping











1. Before shipment, every part of machine will be painted with a layer of anti-rust and


water-proof oil to prevent possible errosion during transportation.





2. A plastic cover to wrapp around machine parts to enhance corrosion prevention.





3. Export standard fumigated wood cases are measured and sepcially made for packing.





4. Steel wire will be used to tighten and strengthen the packages inside container.





5.  At seaprot, extra strengthen with wire ropes, bandages, wedges ect. to avoid packages leaning


or moving during transportation.







Company Information




4.jpg  QQ20170118152505.jpg





Our sales references










FAQ












1. MOQ?
    1 Set





2. DELIVERY TIME:
    About 2-4 months. the delivery time will be confirmed by different machines with different configura-


    tions





3. WARRANTY PERIOD:
    One year from the date of B/L, during the warranty period, daily damage parts will be supplied freely,


    the after sale service will be covered by dealer (if there will be problem, plsnotify). After warranty per-


    iod, the spare parts will be supplied with a factory price.





4. PAYMENT TERMS:
    30% of the whole contract value should be paid as the advance payment after the contract has been


    signed. The other 70% of the whole contract value should be paid before shipment.
