2.5KW Automatic High Speed Nonwoven Fabric Roll Cutting Winding Machinery

Share on:

Price in USD:Details


Product Overview


Product Description

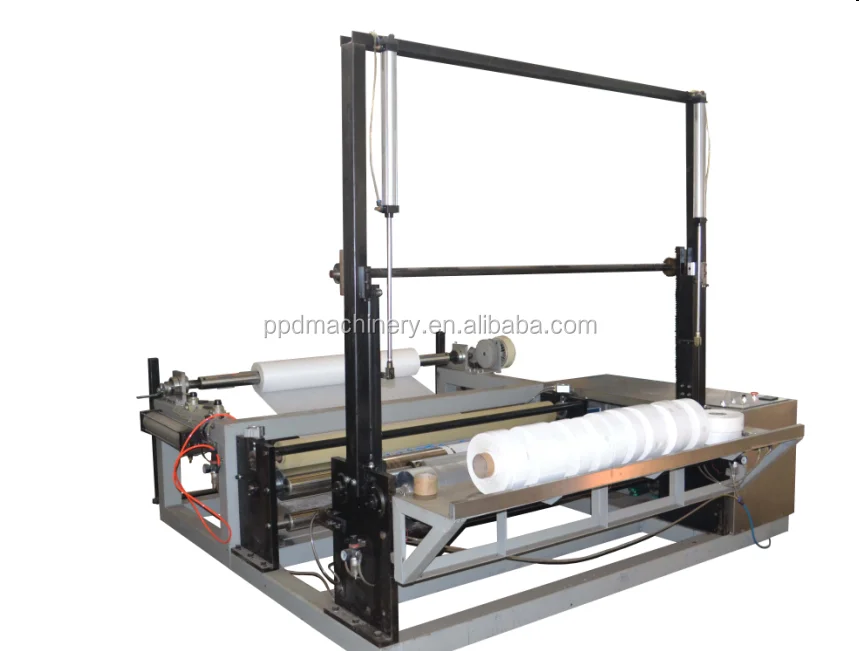

 High speed nonwoven fabric roll cutting winding machinery

Product Description

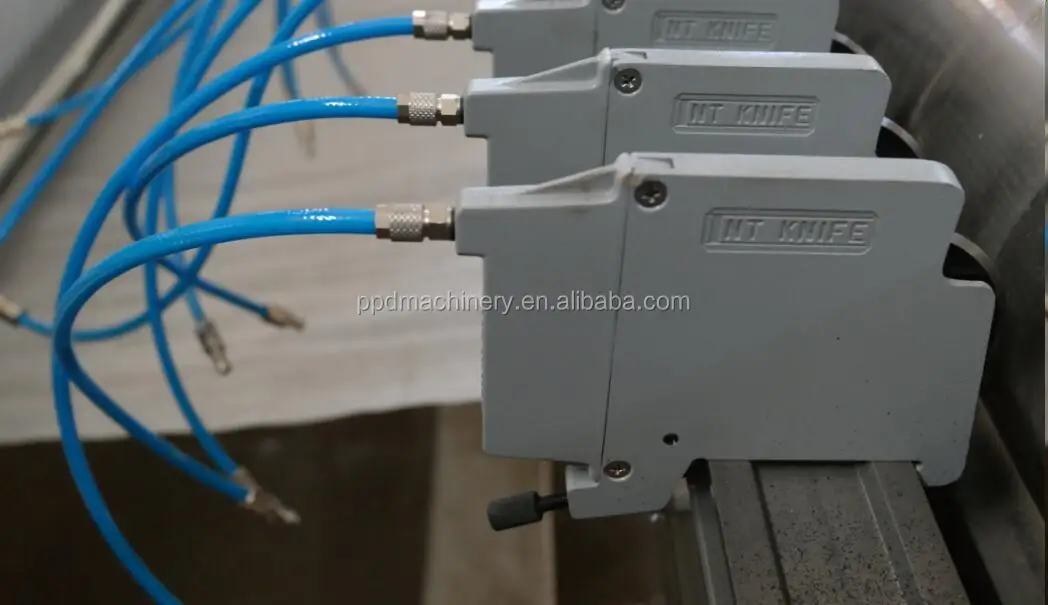

High speed nonwoven fabric roll cutting winding machineryPPD-PNSR is a new series model for slitting machine of nonwoven fabrics for most advanced slitting knife installed,pneumatic knife.
It is the latest technology from Taiwan,by pneumatic knife,machine is able to slit for the flexible width of finished roll,the changing width is very simple.
There is no bottom knife requires for this machine.Operator will save a lot time by changing the bottom knife.
It is designed for single shaft rewinding for user friendly.The tension control is by automatic set.
With the high power of magnetic power break clutch system,together work via meter counting system,the rewinding roll length control is very accurate and precise at the length setting.
The different width are available for different option,800,1300,1600,2500mm etc,machine work perfect with spunlace nonwoven,viscose nonwoven,PP nonwoven,pet non woven etc.

Main parameters:
Product Name:High speed nonwoven fabric roll cutting winding machinery
Material:Nonwoven Fabrics
Unwind roll width:800/1300/1600/2500mm
Unwind roll ID:76mm
Unwind roll OD:1200mm max

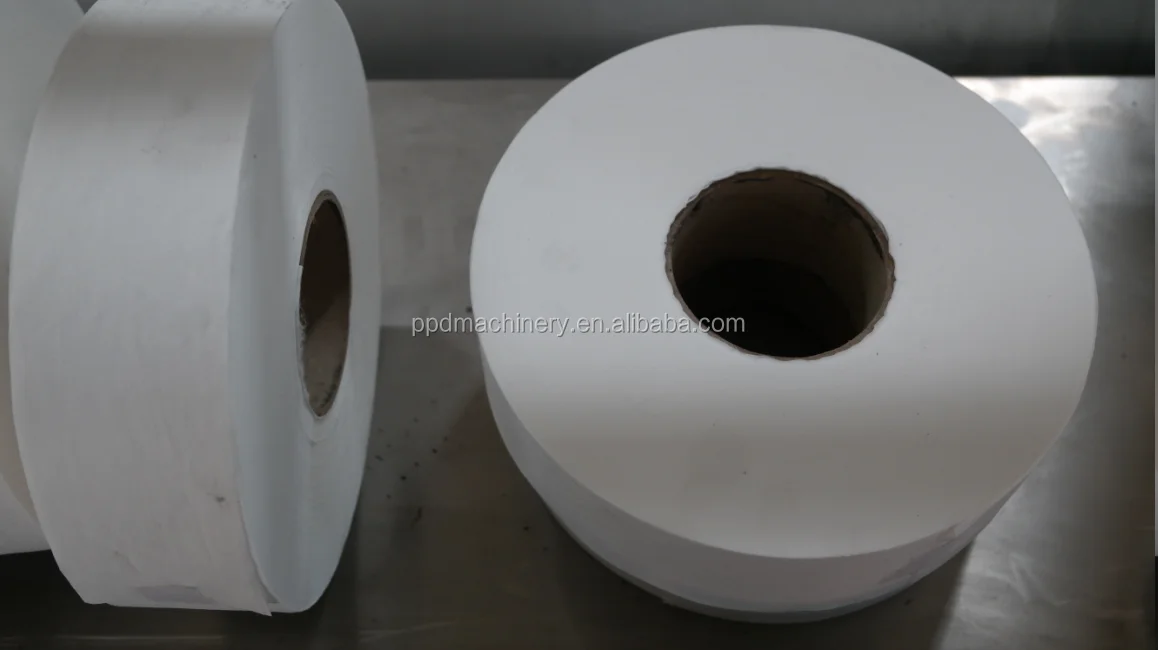

Finished roll width:30mm to max unwinnd roll width
Finished roll ID:76mm
Finished roll OD:max600mm(optional)
Total power:2.5kw
Pneumatic requirement:0.3Mpa
Warranty:Nonwoven Fabrics Slitter Rewinder  For 1 Year
