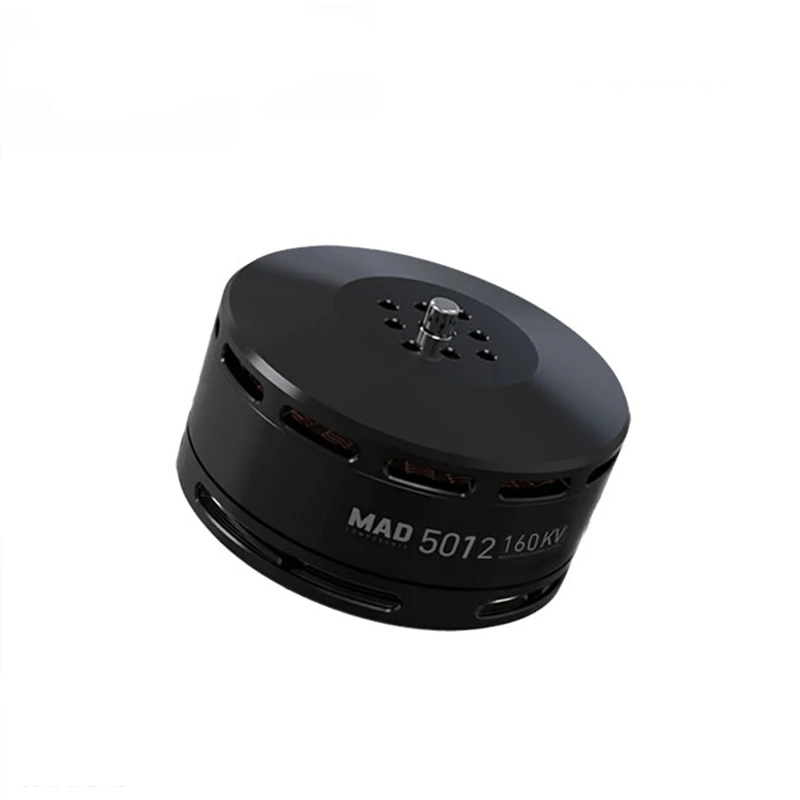

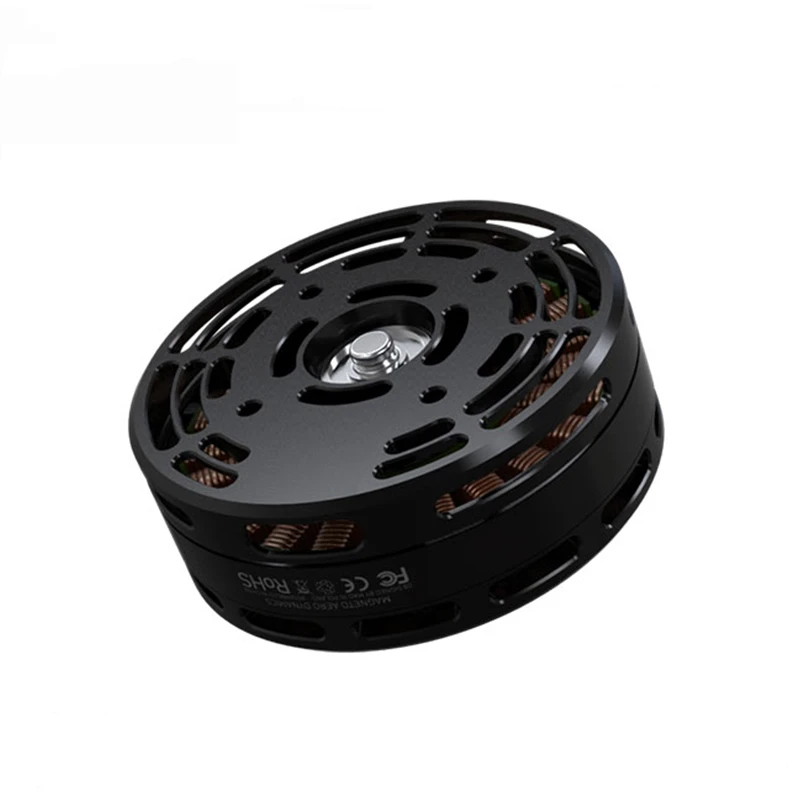

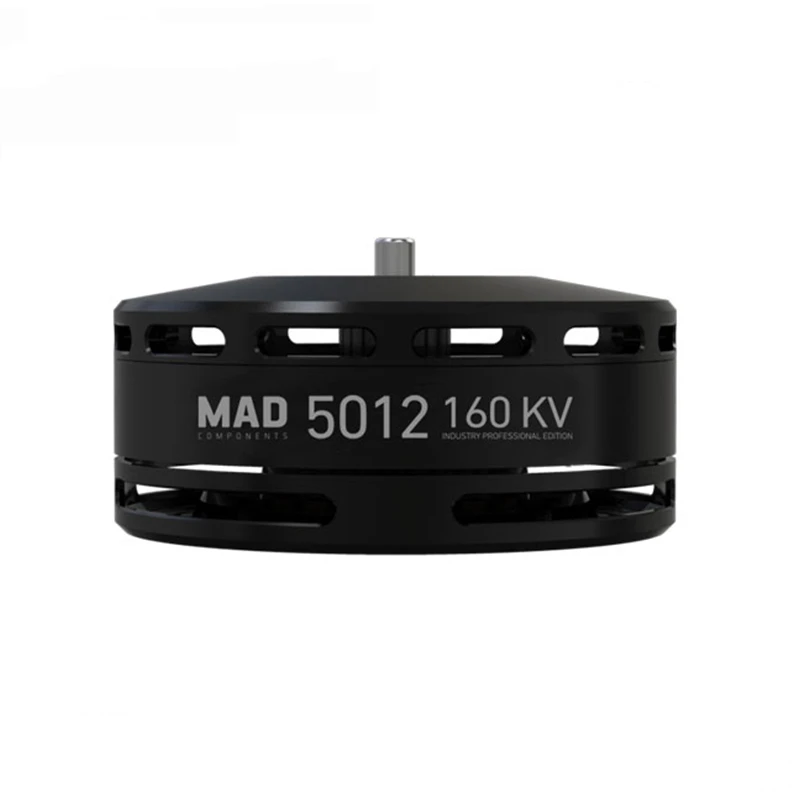

CE certified high torque brushless dc electric motor 40kw
Product Description
Key features
- Water and dust proof IP35 degree of protection
- Internal fan for active heat dissipation
- Ultra durable bearings
- Hollow shaft design
- Propeller installation adapters
- Motor mounting holes standarization
- Repairable
- Maximized performance
- Low power consumption
- Designed for 8-12S voltage
SPECIFICATIONS

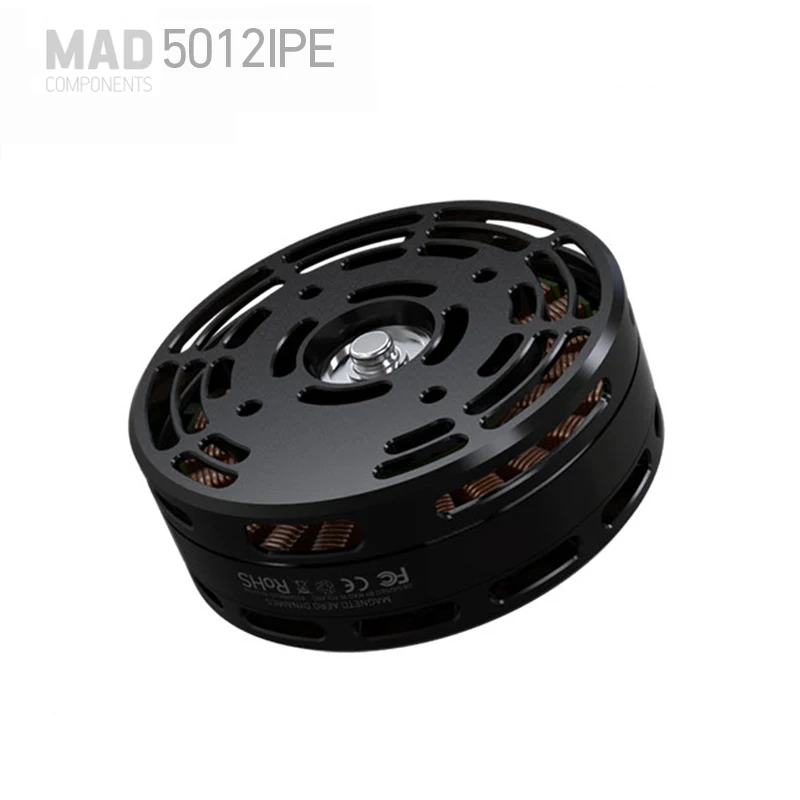

MAD5012 |
IPE |
Configuration | 24N28P |
RPM/V | 160KV |
Stator Size | 50 x 12 mm |

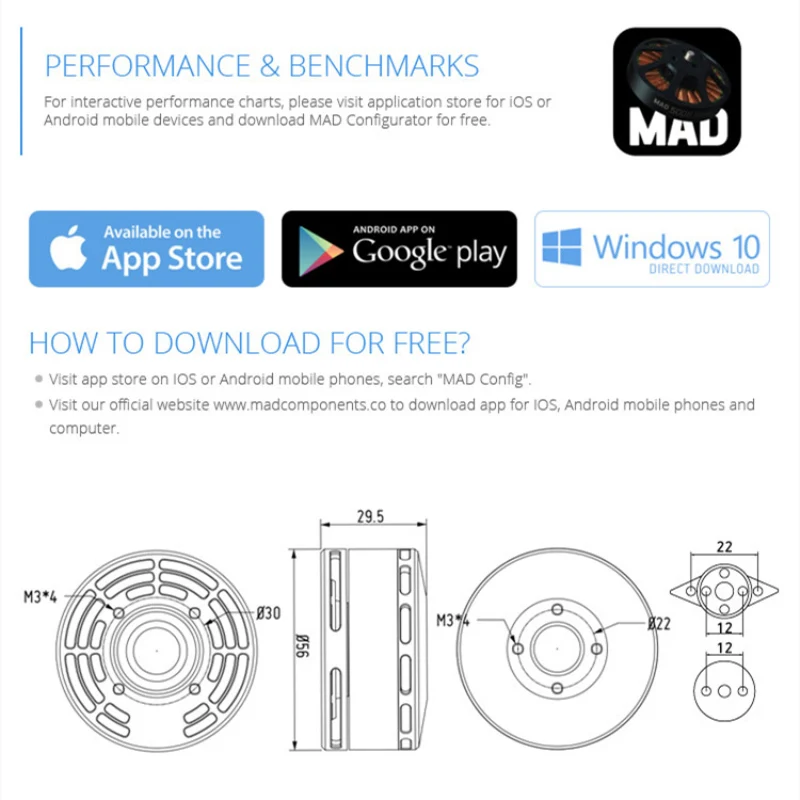

Motor dimensions | 56 x 29.5 mm |
Shaft Diameter | OD:15 mm, ID: 13 mm |
Bearings | EZO |
Continuous(60 min) | 220 W |
Maximum Power (60 secs) | 400 W |
Maximum Current (60 secs) | 14 A |
Idle Current at 6.8 V | 0.6A |
Internal Resistance | 161 mΩ |
Motor Weight | 180 g |
Product Boxed Weight | 295 g |
Product dimension | 110*110*50 mm |
Degree of Protection | IP35 |
Heat dissipation | Passive |
Rotor balanced | Yes |
Heavy duty design | Yes |
Maximum Thrust | 3300 g(8S) - TBA g(12S) |
Efficiency at 750 g thrust | 13.8g/W |
Propeller Mounting Holes | 4 x M3 Ø22 mm |
Motor Mounting Holes | 4 x M3 Ø30 mm |
Wire | Winding Extended 150 mm |
Propeller Adapter | 1pcs 4x M3 Ø12 mm |
Additional accessories | 3x bullet connector, 3x Hot sleeve, 2x M3 10mm screws, 1x propeller seat, 1x MAD sticker |
RECOMMENDATIONS | ||
MAD5012 IPE | 160KV | |
Propeller size | 20” - 24” TBA | 8-12 S |
Takeoff Weight | 700-2000 g/rotor(8S) TBA(12S) | 8-12 S |

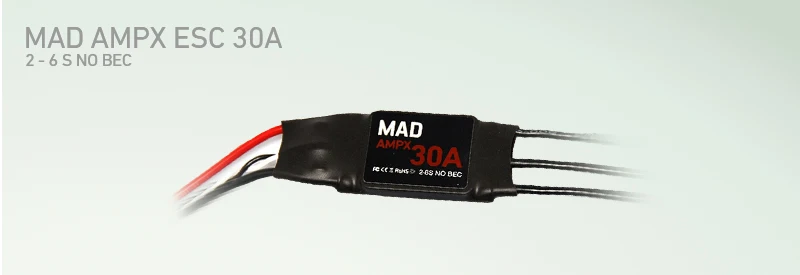

Recommended ESC

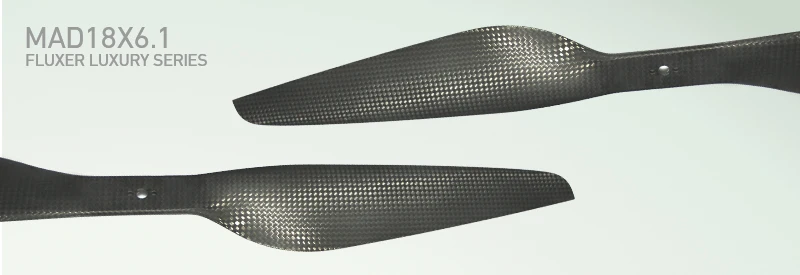

Recommended PROPS
Packaging
No accident shipping term:
DHL: 3-5 working days;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country
Production Showcase
Who We Are
MAD Components is technology division of Magneto Aero Dynamics, newly established innovative company, designing, developing and manufacturing propulsion systems for wide range of multirotor aerial vehicles (UAVs, drones, etc.).
What We Do
INDUSTRY SOLUTIONS
MAD offer made-to-order products as well as designing and developing motors, propellers and ESCs from scratch according clients requirements and demands.
We are open for cooperation, our Research and Development team provides new concepts of building efficient propulsion systems, motors, ESCs, and propellers to meet the unique needs of clients from around the world.
CE ROHS Certificate
FAQ
Q1: Are you trading company or manufacturer ?
A: We are manufacturer and do both OEM and ODM. We have our own R&D team.
Q2: How to order?
A: Send inquiries → Reply you quotations → Discuss details → Confirm samples →
Deposit → Mass production → Cargo ready → Balance/Delivery → More cooperations.
Q3: What is your payment method ?
A: We accept T/T, Western Union, Paypal and MoneyGram, those depend on specific cases.
Q4: How long is your delivery time?
A: Usually 1-3 working days for products in stock. If we do special offer, it usually takes
4-6 weeks. Also delivery time is according to your quantity of order.
Q5: How to transport?
A: DHL, UPS, FedEx, TNT, EMS, China Post and Sea are available.
Q6: How is your warranty service?
A: We do strict test before shipping and guarantee for 365 days. If quality problem you
could send us pictures or video clips about problem. Then we deal with the problem ASAP.
