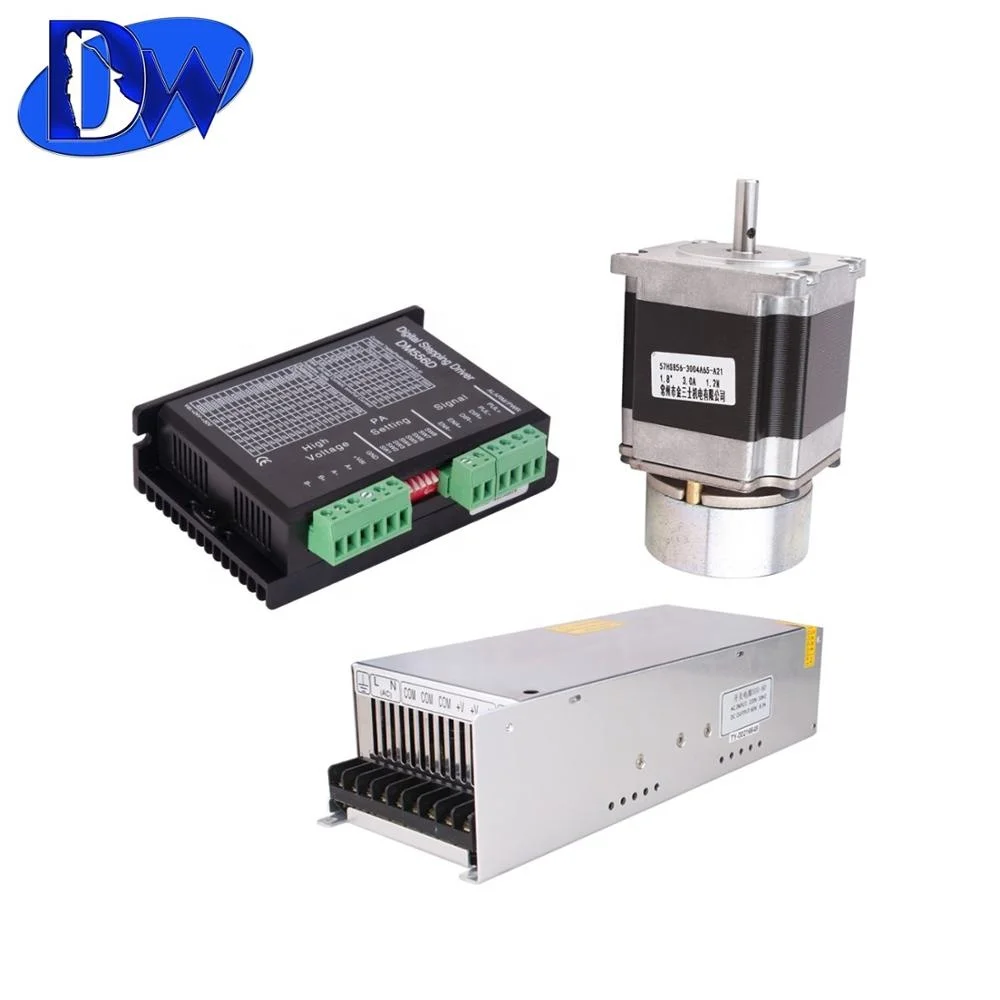

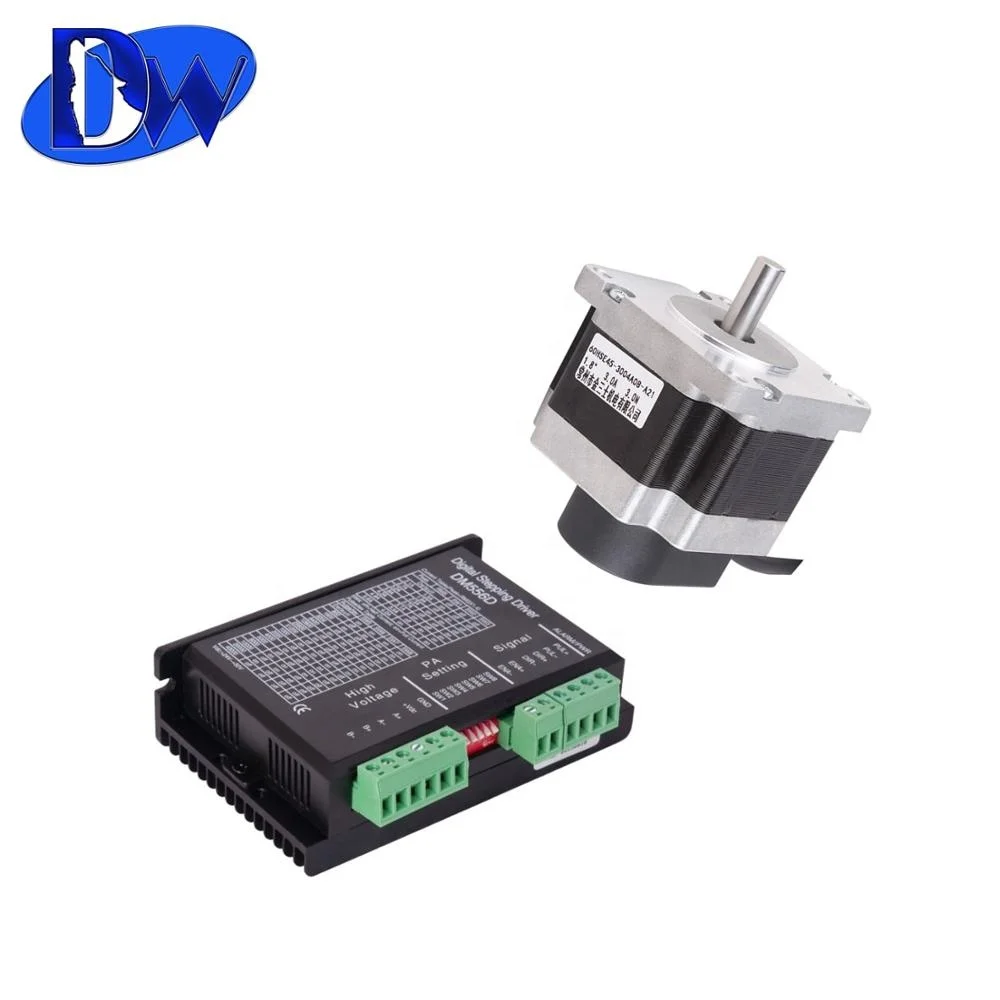

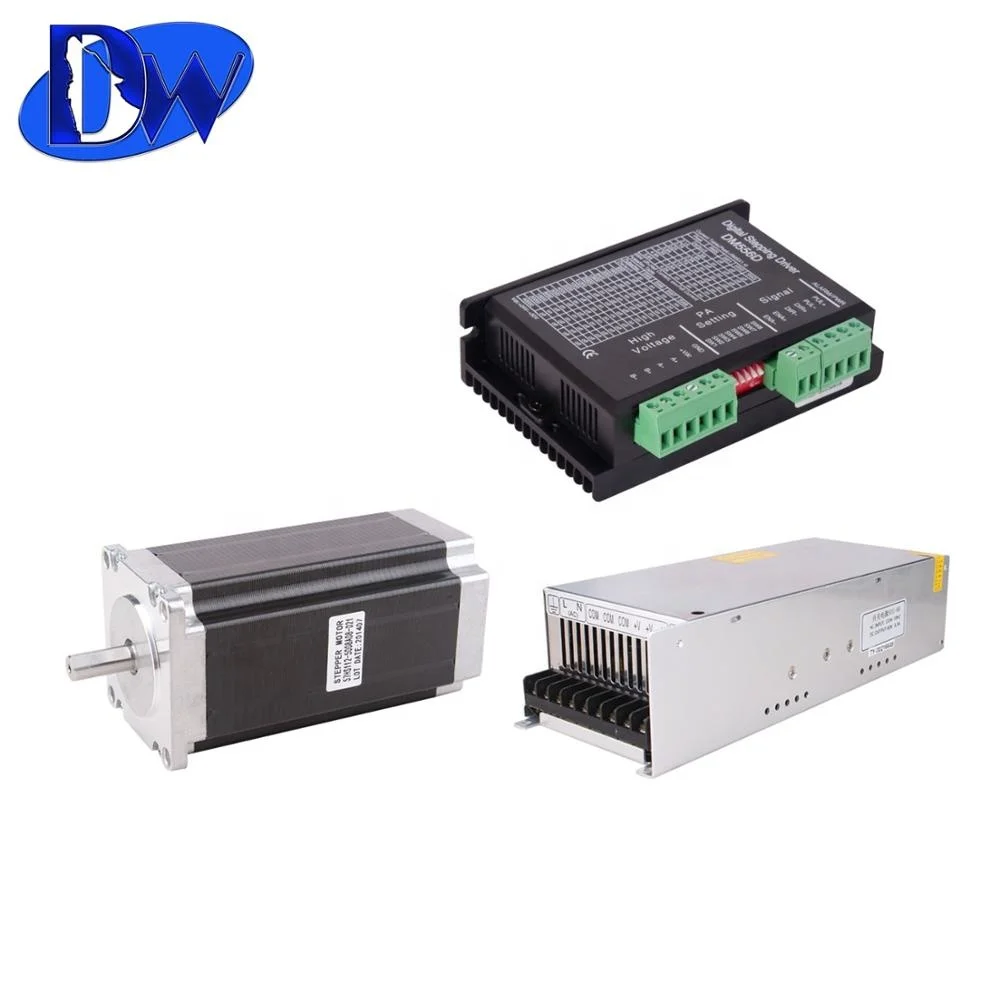

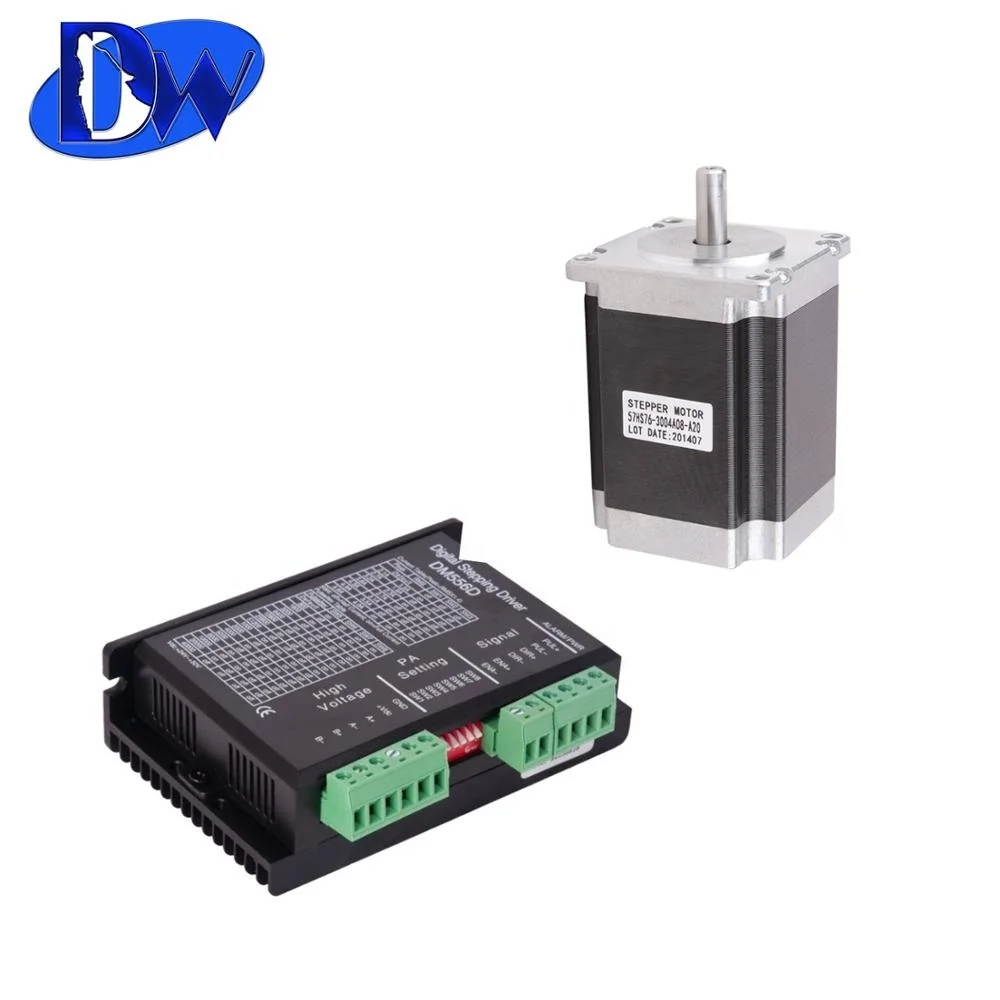

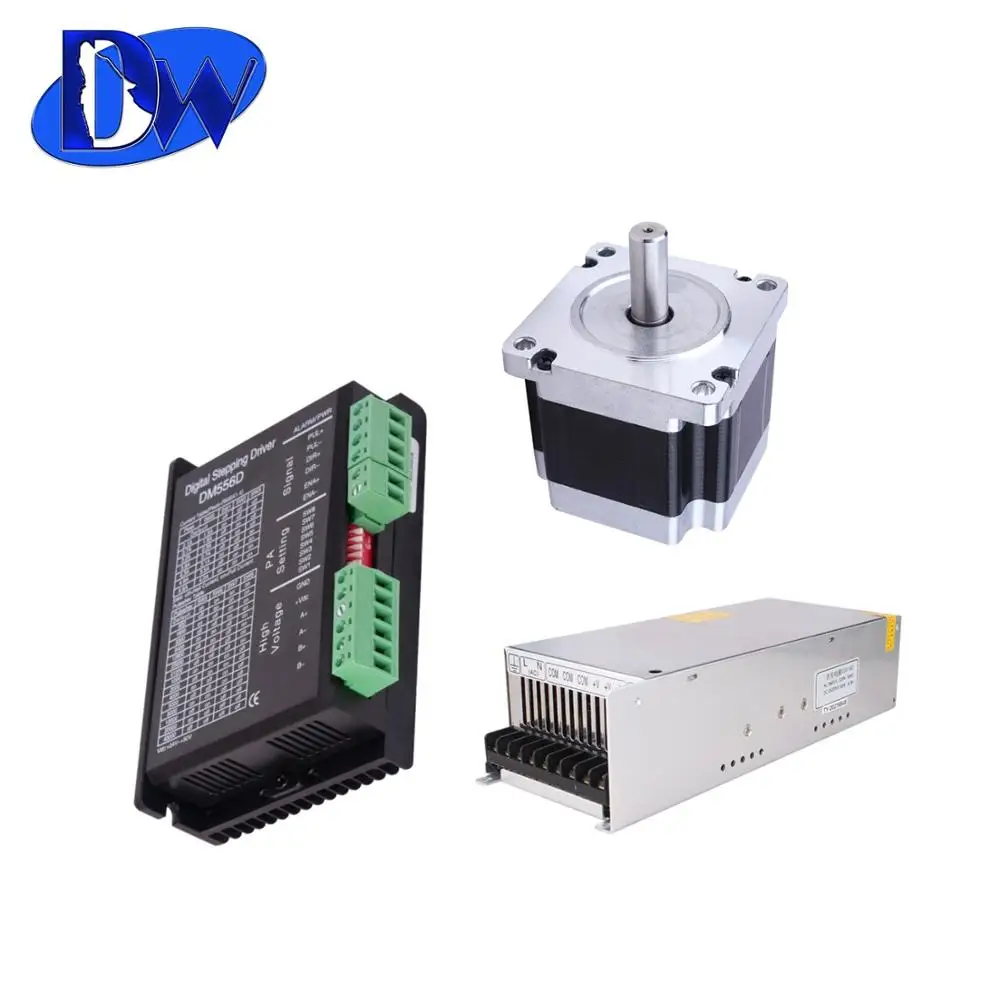

High quality stepper motor driver DM556 for nema 17 nema 23 stepper motor

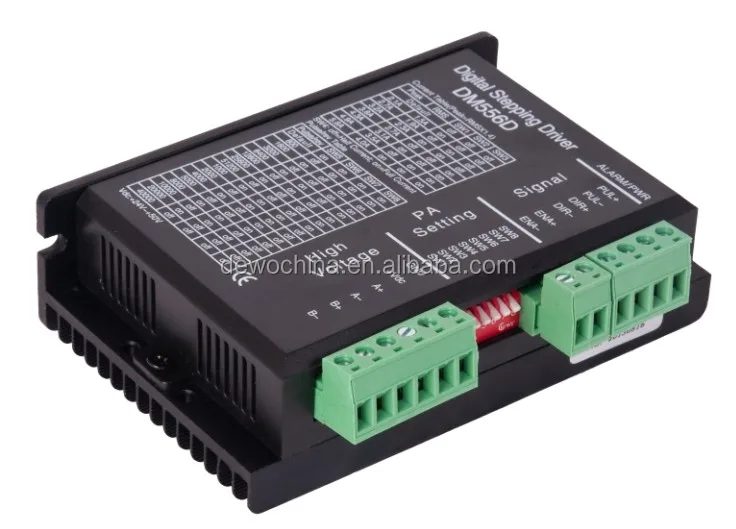

DM556D stepper motor driver features

1.Adoption of 32-bit DSP,pure sine wave subdivision technology.

2.Low-noise,low-vibration and low temperature rising.

3.Voltage 24-50VDC

4.With 8 stalls output current setting,peak current 5.6A.

5.With 16 stalls microstep subduvision setting.

6.Automatic half current ,self -test ,over voltage ,under voltage.over current protection.

7.Internal optical isolation,highest frequency response 200KHZ.

8.Suitable for current range 2.1-5.6A  2,4 phase nema 23,nema 34 hybrid stepper motor.

Microstep selection

Pulse/Rev	SW5	SW6	SW7	SW8
Default	ON	ON	ON	ON
800	OFF	ON	ON	ON
1600	ON	OFF	ON	ON
3200	OFF	OFF	ON	ON
6400	ON	ON	OFF	OFF
12800	OFF	ON	OFF	ON
25600	ON	OFF	OFF	ON
51200	OFF	OFF	OFF	ON
1000	ON	ON	ON	OFF
2000	OFF	ON	ON	OFF
4000	ON	OFF	ON	OFF
5000	OFF	OFF	ON	OFF
8000	ON	ON	OFF	OFF
10000	OFF	ON	OFF	OFF
20000	ON	OFF	OFF	OFF
40000	OFF	OFF	OFF	OFF

Current Selection

Peak	RMS	SW1	SW2	SW3
Default		OFF	OFF	OFF
2.1A	1.5A	ON	OFF	OFF
2.7A	1.9A	OFF	ON	OFF
3.2A	2.3A	ON	ON	OFF
3.8A	2.7A	OFF	OFF	ON
4.3A	3.1A	ON	OFF	ON
4.9A	3.5A	OFF	ON	ON
5.6A	4.0A	ON	ON	ON

Default:Customized according to customers' requirenents.

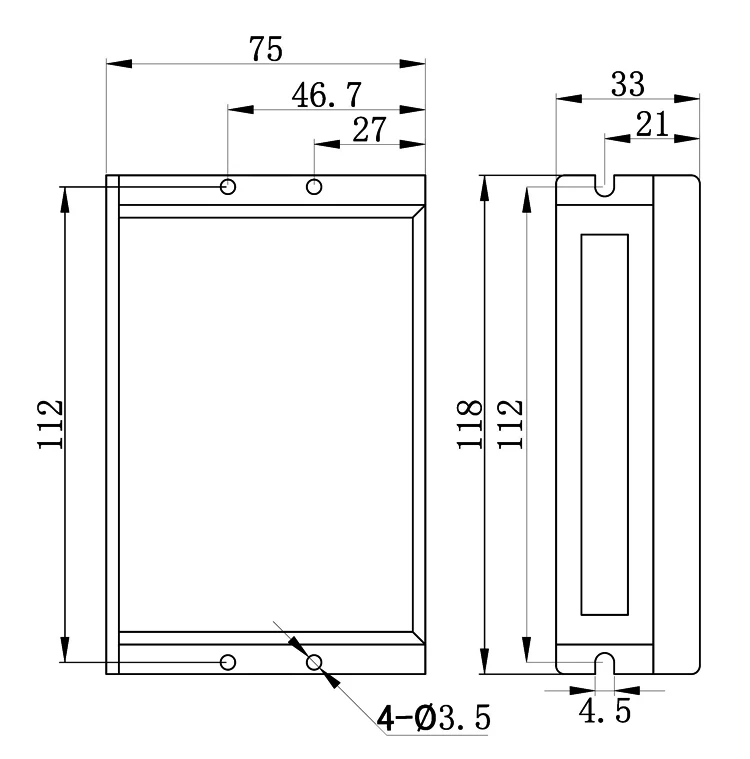

Dimensions:
