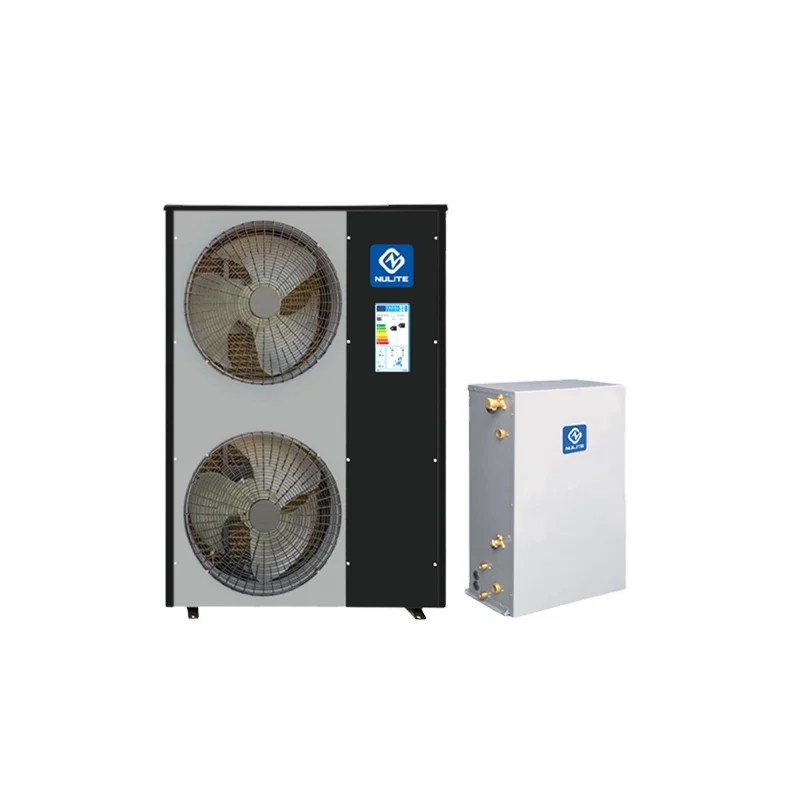

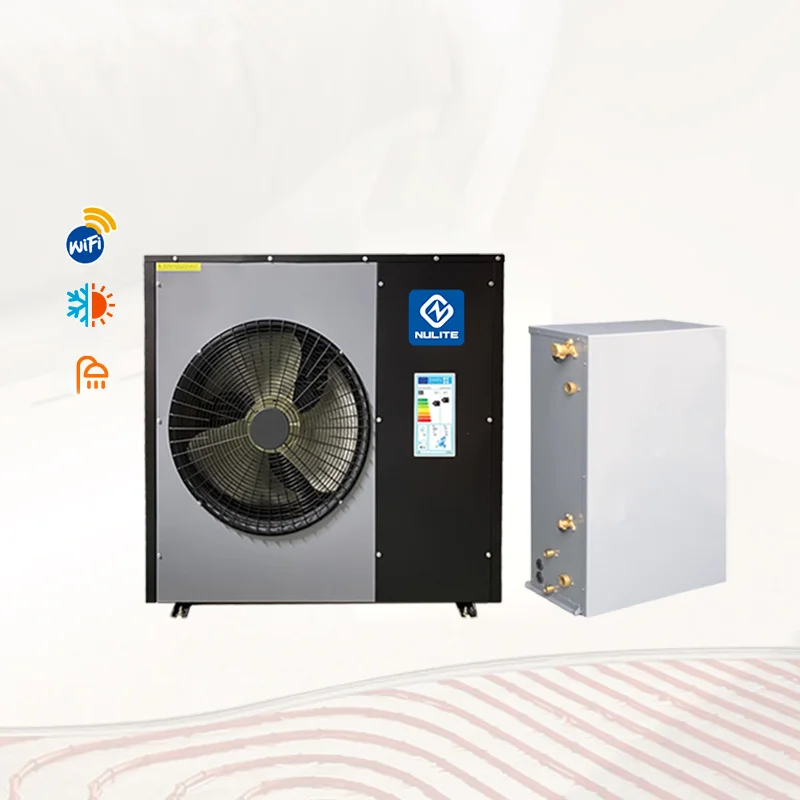

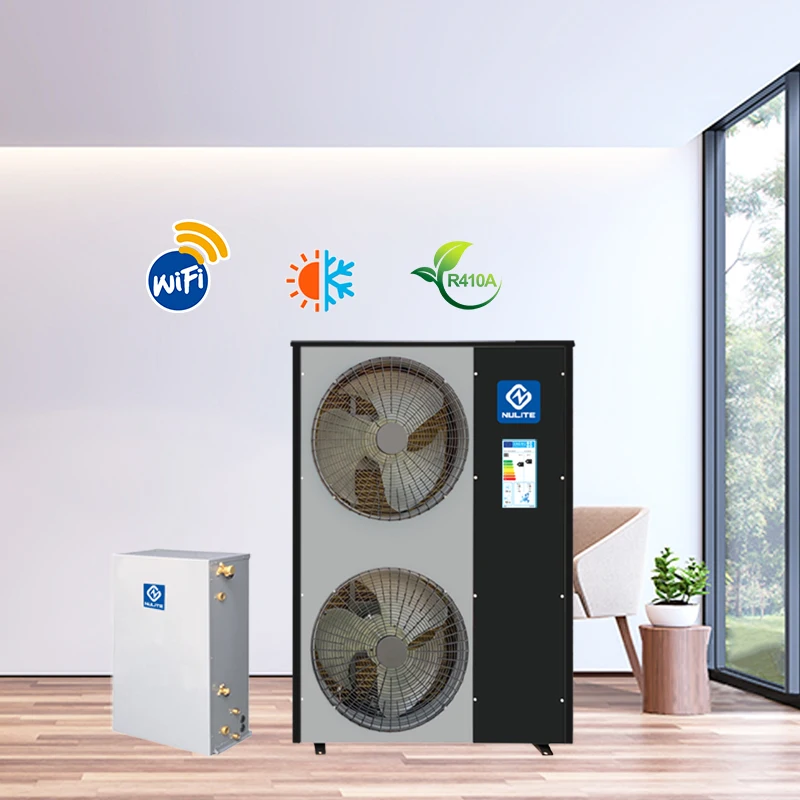

20KW DC Air Conditioner Mini Split Heat Pump Water Heater Split Air Conditioner
- Category: >>>
- Supplier: Nulite New Energy (guangzhou) Co. Ltd.
Share on (60839622126):
Product Overview
Description

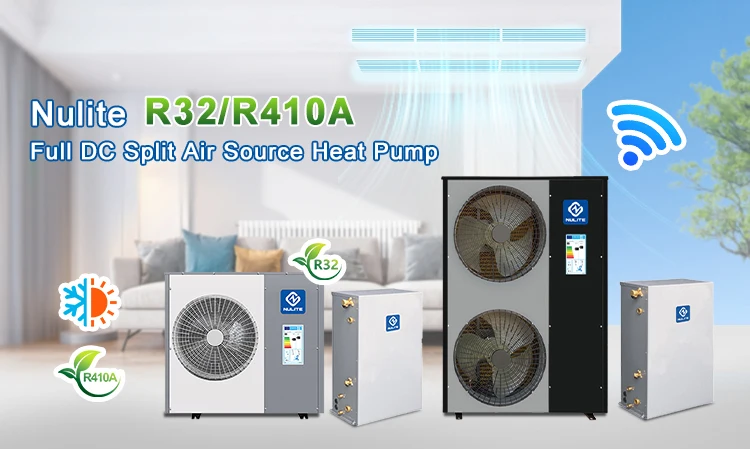

NULITE R410A/R32 ERP A+++ DC Inverter Split Heat Pump For Heating Cooling Hot Water
* OEM Factory Wholesale DC Inverter Mini Split Inverter Air Source Heat Pump
* 1.ASHP Heating Capacity: DC Inverter Split 10KW 15kw 20KW.
* 2.Best Selling Market: Central Europe North & East Europe, North Europe, North America.
* 3.Ambient Temp of Using: Minus 25℃ ~ 43℃ , max 60℃ hot Water Output.
* 4.Certification: ISO9001, CE, erP Energy Label, ROHS, EMC.
* 1.ASHP Heating Capacity: DC Inverter Split 10KW 15kw 20KW.
* 2.Best Selling Market: Central Europe North & East Europe, North Europe, North America.
* 3.Ambient Temp of Using: Minus 25℃ ~ 43℃ , max 60℃ hot Water Output.
* 4.Certification: ISO9001, CE, erP Energy Label, ROHS, EMC.
HEAT PUMP TYPE | DC Inverter Split Heat Pump For Heating Cooling Hot Water | ||||||
MANUFACTURER | NULITE NEW ENERGY GROUP | ||||||
FACTORY SCALE | With in total 5 factory in China 200,000 sq meters. 120,000 units producing ability, 100,000 units sold in 2022. | ||||||
HEAT PUMP FUNCTION | Heating Cooling Hot Water | ||||||
MOQ | 5-10 Units (1-2 Units available with stocks) | ||||||
SUITABLE MARKET | Minus 25°C stable Working Central, North & East Market, North America | ||||||
Specification
Model | NL-C3BFII/R | NL-C4BFII/R | NL-C5BFII/R | ||
Rated heating capacity | 2.6~9.5KW | 3.8~15.5KW | 4.5~20KW | ||
Rated cooling capacity | 2.7~6.6KW | 3.8~10KW | 4.5~11KW | ||
Rated hot water capacity | 2.2~9.2KW | 3.5~15KW | 4~19.4KW | ||
Power consumption | 1~3.2KW | 1.5~4.5KW | 2~5.7KW | ||
Voltage | 220V~50HZ/60HZ | 220V/380V~50HZ/60HZ | |||
Rated outlte water temperature | Hot water: 55~60C / heating:40～45C / cooling:10～12C | ||||
Max water temperature | 60°C | 60°C | |||
Rated water flow | 1.8m³/h | 2.7m³/h | 3.6m³/h | ||
Refrigerant | R410A/R32 | ||||
Control mode | Microcomputer central processor (linear control) | ||||
Compressor | Mitsubish inverter compressor | ||||
Ambient temperature | (-25℃ -- 43℃) | ||||
Inlet and outlet pipe size | DN25 | ||||
Energy efficiency | ERP A+++ | ||||
Features&Advantages
DC Inverter MitsubishI Compressor Super Energy Saving.
DC inverter heat pump, ambient temperature is lower to minus 25 ℃ and up to 43℃,heating capacity is 10kw to 20kw. Operating steadily, COP is 30% higher than normal heat pump, meeting the needs for cooling&heating&hot water.
* There are two types of DC inverter heat pump, Split and monobloc. Indoor units and outdoor units are connected by copper pipe,and there is no electric heating part in it. Installation is easy and flexible and convenient. In door units can be set in kitchen, bathroom, bedroom, widely used everywhere in the house, room heating and cooling and hot water supply, saving energy everywhere in daily life.
* Indoor unit include:
Heat pump Heat exchanger, controller,water pump,differential pressure flow switch, three way valve and other parts.
* Outdoor units include:
heat pump compressor, evaqorator, controller, expansion valve, four way valve, motor refrigerant valve and so on.
* Using DC inverter compressor and DC inverter fan, saving more power and reducing more noise, quiet and efficient.
* Indoor unit include:
Heat pump Heat exchanger, controller,water pump,differential pressure flow switch, three way valve and other parts.
* Outdoor units include:
heat pump compressor, evaqorator, controller, expansion valve, four way valve, motor refrigerant valve and so on.
* Using DC inverter compressor and DC inverter fan, saving more power and reducing more noise, quiet and efficient.

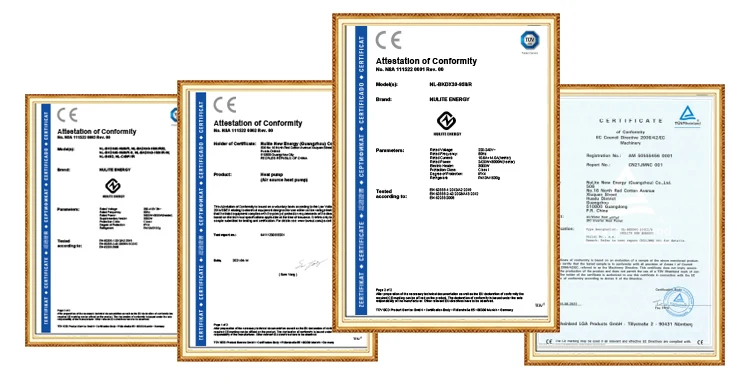

Certifications
With CE and Erp Certificate.

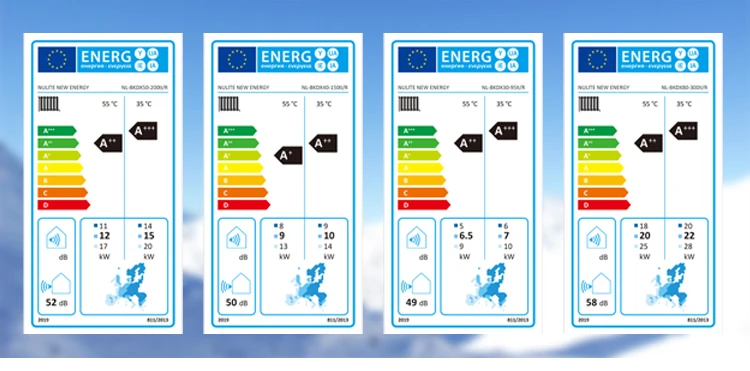

Under testing condition: A7W35, the energy efficiency grade is A+++/A++, SCOP is around 4.6.
Under testing condition: A7W55, the energy efficiency grade is A++/A+, SCOP is around 3.5.

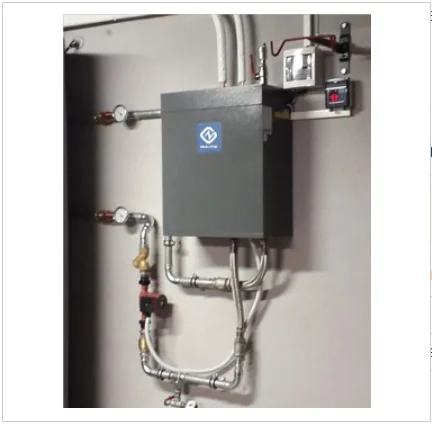

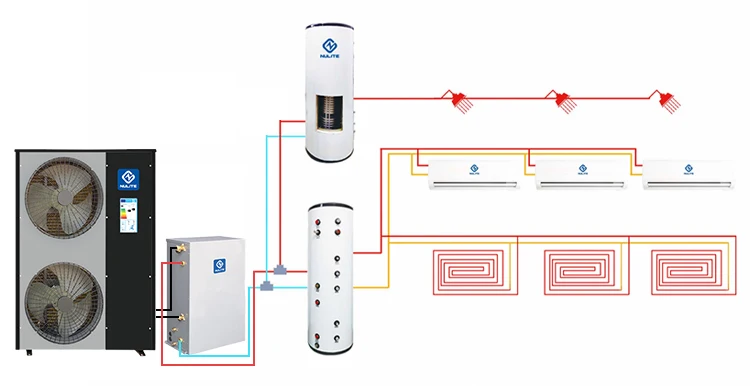

Installation & Application
Customers Feedback
Company Introduction
NuLite New Energy (Guangzhou) Co.,Ltd.
Guangzhou NuLite New Energy Group, located in Guangzhou City, is the China-Singapore Joint Venture established in 2003, with three main modern manufacturing factories covering 200,000 square meters, 120,000 units of production ability, and over 800+ employees.NuLite New Energy, as one of the largest air source heat pump manufacturers in China, owns three famous brands, while NuLite brand is fully committed to exporting services to overseas markets.
With strong R&D engineers and heat pump experts from Singapore Nanyang Technological University, is dedicated to supplying high-efficiency energy-saving solutions for household & commercial applications. NuLite New Energy has developed advanced & unique technology and takes the leads in Floor Heating EVI & Inverter Heat Pump, Swim Pool Heat Pump, Central Hot Water Heat Pump, Fan Coil Unit, and Geothermal Heat Pump applying our technologies to contribute to society and daily life, and acting one of the important roles of blue sky protector.
Our quality management system was certified in conformity with ISO9001, and ISO14001 Standards, heat pumps with CE, EMC, ERP, and CB are certificated. And also with customized OEM/ODM services for distributors all over the world. Now NuLite New Energy-Brand Heat Pump has been exported to more than 100 countries, even well installed and stable used at China North & South Pole Expedition Site Kunlun Station. And we are also the 18th Indonesia Jakarta Asian Games Official Partner, providing central heating cooling & hot water solutions for the grand Asian sports competition fields.
NuLite New Energy Heat Pump, One Step Ahead of Comfort Life!
Our quality management system was certified in conformity with ISO9001, and ISO14001 Standards, heat pumps with CE, EMC, ERP, and CB are certificated. And also with customized OEM/ODM services for distributors all over the world. Now NuLite New Energy-Brand Heat Pump has been exported to more than 100 countries, even well installed and stable used at China North & South Pole Expedition Site Kunlun Station. And we are also the 18th Indonesia Jakarta Asian Games Official Partner, providing central heating cooling & hot water solutions for the grand Asian sports competition fields.
NuLite New Energy Heat Pump, One Step Ahead of Comfort Life!
Heat Pump Produce Assembly Line
Nulite New Energy Headquarter have 5 main professional installation teams, which are full of efficiency and ability.Every team member is devote to work and provide the best quality of our product.

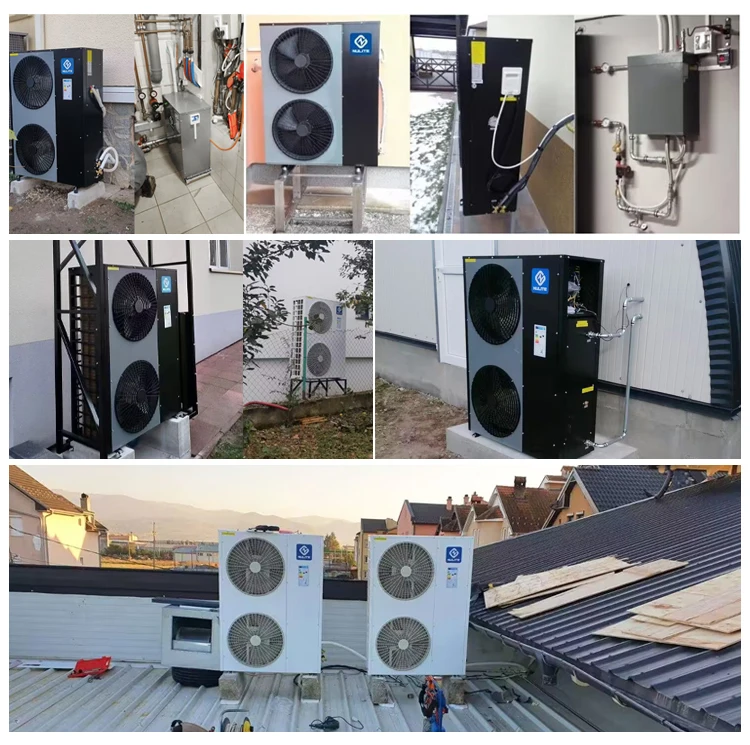

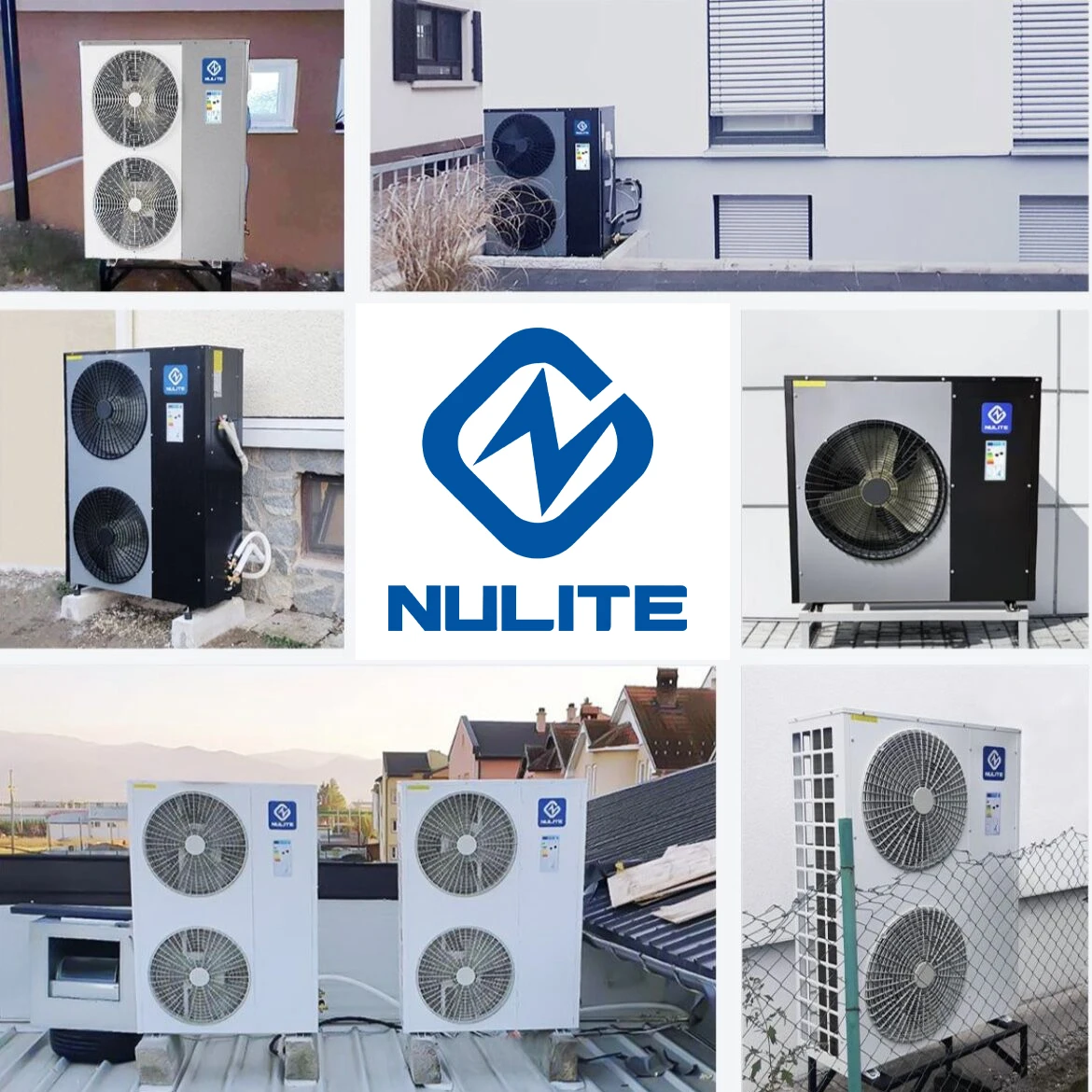

Customer Photo
Nulite New Energy is the the official heat pump supplier,Over 100 distributors who joined the submit and explore the market support by Nulite New Energy Group.Nulite heat pump is well sold around the whole world,eapecially in US, Canada, Germany, Sweden, Poland, Ukraine, Russia, Finland, Czech, Slovak,Slovenia, etc
Stable Ply-Wooden Package
We have a good buffer performance, corrosion resistance, moisture-proof and seismic effect.
Professional forwarding company
We have a long-term good cooperation to ensure the safety of heat pump.
FAQ
1. About Nulite New Energy Heat Pump company.
We are based in Guangdong, China, start from 2003,sell to Eastern Europe(21.00%),Western Europe(19.00%),
Welcome to OEM&ODM. Please feel free to contact us. Nulite, Be your right !
We are based in Guangdong, China, start from 2003,sell to Eastern Europe(21.00%),Western Europe(19.00%),
Northern Europe(15.00%),Southern Europe(10.00%),Southeast Asia(10.00%),South America(6.00%),Mid East(5.00%),
South Asia(3.00%),Central America(3.00%),Eastern Asia(2.00%), North America(2.00%),Oceania(2.00%),Africa(2.00%),Domestic Market(0.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Inverter/EVI/High/Low Temp Tech | Air/water/Geothermal source | CE ERP etc.
*House heating/cooling/DHW heat pump
*Household/Commercial heat pump
* Pool heater heat pump
*FCU | Stainless Steel Water tank (Buffer&DHW)
4. why should you buy from us not from other suppliers?
1. Top Scale Air Source Heat Pump R&D Manufacturer in China
3.what can you buy from us?
Inverter/EVI/High/Low Temp Tech | Air/water/Geothermal source | CE ERP etc.
*House heating/cooling/DHW heat pump
*Household/Commercial heat pump
* Pool heater heat pump
*FCU | Stainless Steel Water tank (Buffer&DHW)
4. why should you buy from us not from other suppliers?
1. Top Scale Air Source Heat Pump R&D Manufacturer in China
2. 2018 Asian Games Official Supplier for Central Hot Water&Swim Pool Solutions
3. EVI Heat Pump Stable Working at South Pole Since 2012
4.CE,erP,CB,CCC,TUV,RoHS,ISO9001,ISO14001 Approved
Welcome to OEM&ODM. Please feel free to contact us. Nulite, Be your right !
