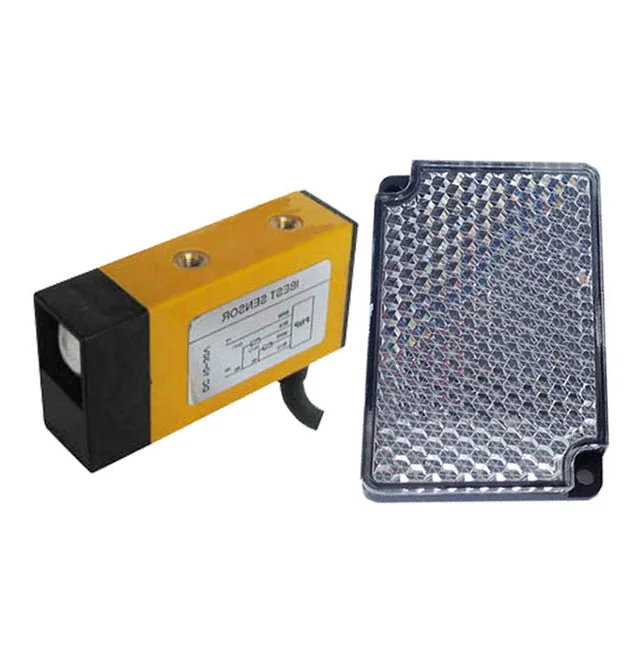

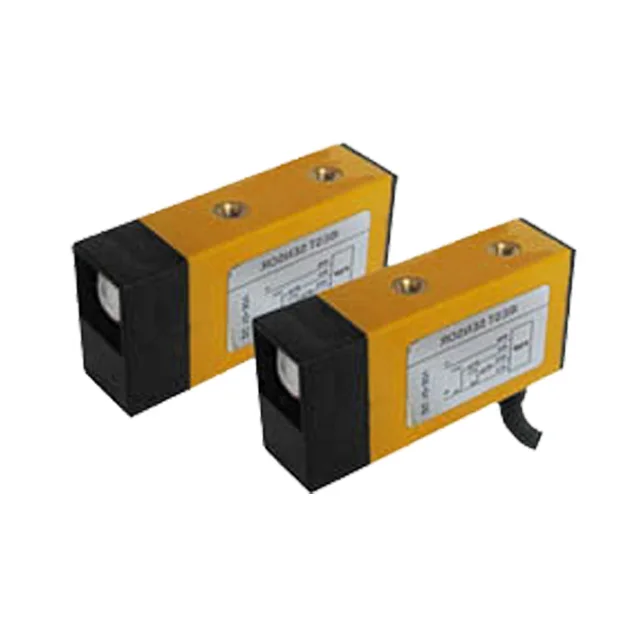

C26 NPN/PNP 4 Wires Square Infrared Diffuse Reflection Optical Photoelectric Photoeye Sensor Switch 50cm 5Vdc/12V/24Vdc (IBEST)

Product Overview

Description

C26 Infared Diffused Reflective Type Photo Sensor Switch

NPN or PNP / NO+NC Output / 0-50CM Adjustable



1.Features:

--     C26 Through-beam, detect distance: 5m / Retro-reflective, detect distance: 2-3M/ Diffusec-reflective, detect distance: 50cm.
--     PNP or NPN; NO or NC or NO+NC, DC 3 wire or 4 wires,Or AC 2 Wires.
--     Light resource: Infrared LED
--     Strong anti-shock and anti-vibration.
--     Non-contact object detect: Avoid the photoelectric sensor to contact the object directly, protect the inducing component from damage and extend the operation life of the sensor.
--     Detect any objects with different materials: Detect objects by the light quantities reflected and received, detect objects such as glass, metal, plastic, wood, fluid...etc.
--     Fast response: Max. 3ms
--     Identify object colors: According to the colors' reflectivity and absorptivity, the sensors detect the light that the object reflected and identify the colors.
--     High precision: Precise electron circuit, can detect tiny objects with accurate position.

--    IP ratings: IP65 Dust proof.

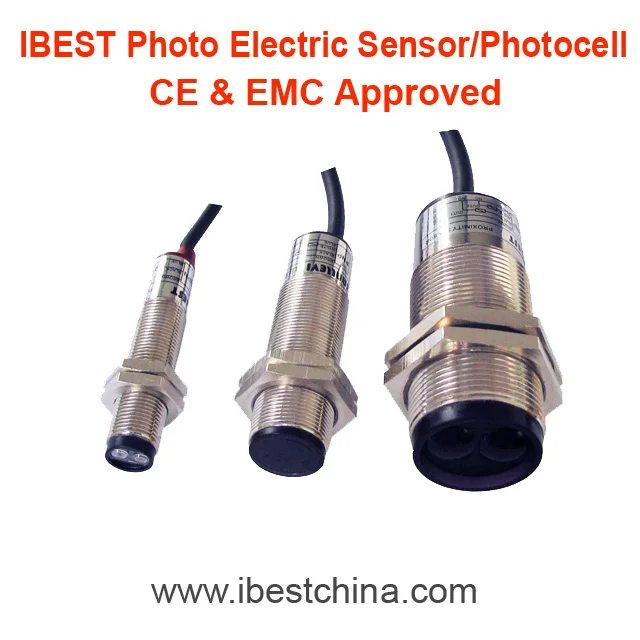

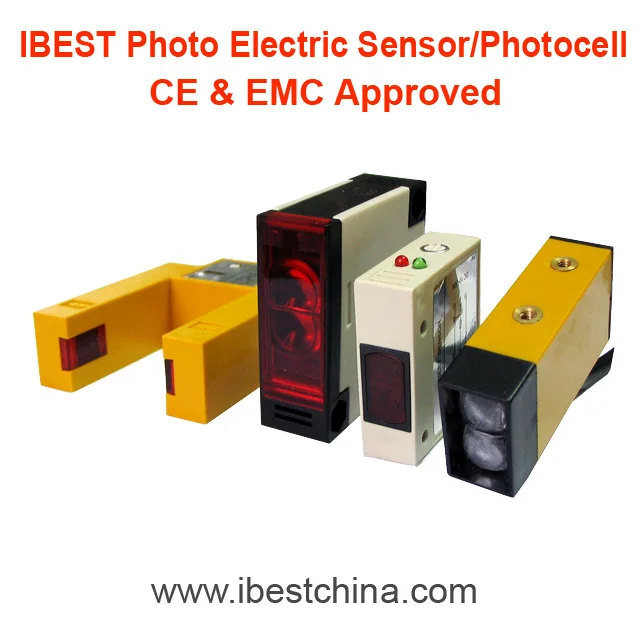

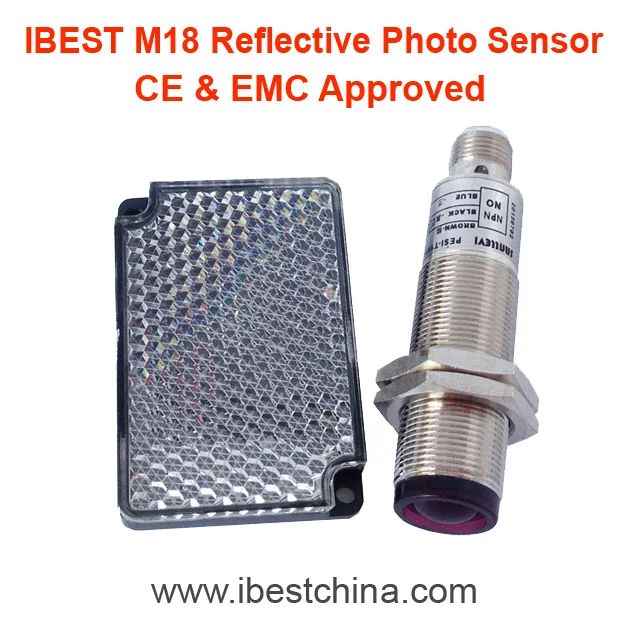

--    Various other shapes: M12/M18 and square types.

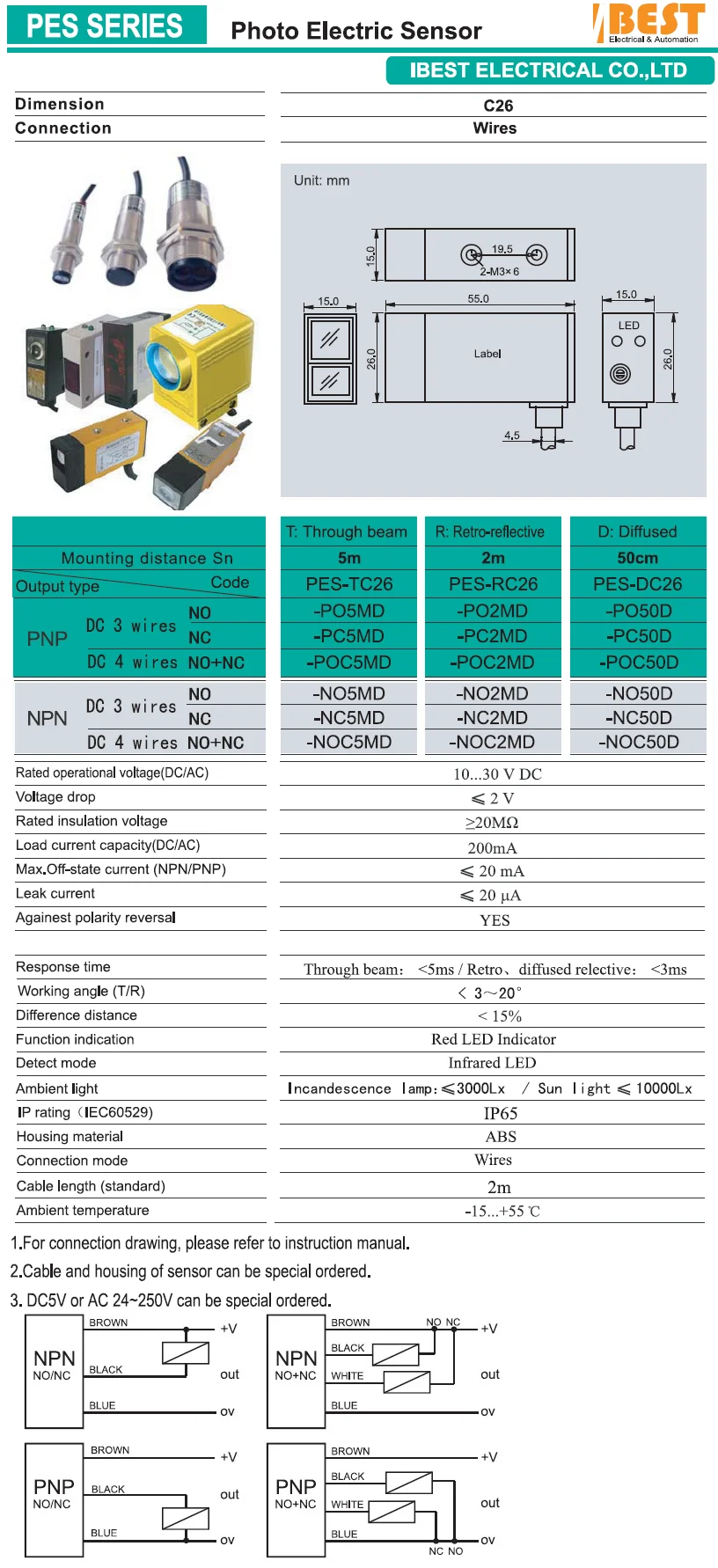

2. Ordering Code:
