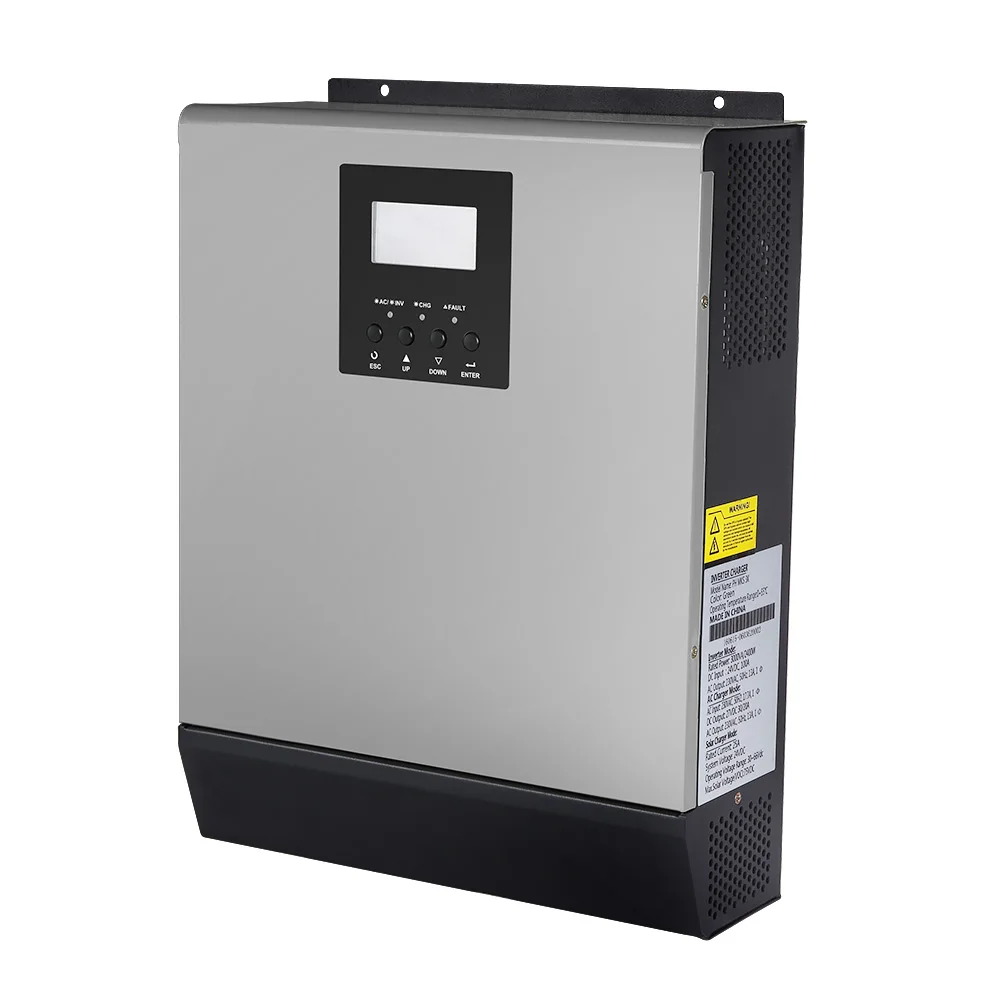

Off grid pure sine wave dc 12v 24v ac 110v 220v hybrid mppt solar charger inverter 3kva
|
Working mode: Inverter:battery voltage≤10.5V, switch to utility mode |
Product Description
Specifications:
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Parallel operation with up to 6 units only available for MHF 5K
| Rated power | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 4000VA/3200W | 5000VA/4000W | |
| Input | Voltage | 120VAC/230VAC | 230VAC | |||
| Selectable voltage range | 90-280VAC (for home appliances) | |||||
| Frequency range | 50Hz/60Hz (auto sensing) | |||||
| Best panel configuration | 500Wp (250Wp*2pcs) |
3000Wp (250Wp*12pcs) | ||||
| Pmax generated from solar charger | 25Amp, 600W | 60Amp, 3000W | ||||
| Voc is 1.5 or 2 times than battery, then it’s best efficiency | ||||||
| Output | AC voltage regulation (Batt.mode) |
110/120VAC±5% (user selectable) or 230VAC±5% |
230VAC±5% | |||
| Peak power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |
| Efficiency (peak) | 93% | |||||
| Transfer time | 10ms(for personal computers); 20ms (for home appliances) | |||||
| Waveform | Pure Sine Wave | |||||
|
Battery& AC charger |
Battery voltage | 24VDC | ||||
| Floating charge voltage | 27VDC | |||||
| Overcharge protection | 31VDC | |||||
| Maximum charge current | 0A or 10A/20A | 20A or 30A | ||||
| MAX PV array power | 600W | 3000W | ||||
| PWM range@ operating voltage | 30VDC-66VDC | 60VDC-115VDC | ||||
| Maximum PV array open circuit voltage | 75VDC | 145VDC | ||||
|
Maximum charging current |
25A | 60A | ||||
| Maximum efficiency | 98% | |||||
|
Standby power consumpsion |
2W | |||||
| Physical | Dimension, D*W*H(CM) | 43*35*24CM | 61*39*25CM | |||
| Net weight (kgs) | 7.3 | 7.6 | 8 | 12.5 | 13.5 | |
| Gross weight(kgs) | 9.5 | 9.8 | 10.2 | 14.5 | 15 | |
| Operating Environment | Humidity | 5%-95% relative humidity ( non-condensing) | ||||
| Operating temperature | 0℃-55℃ | |||||
| Storage temperature | -14.5℃-59℃ | |||||
| Cooling method | Auto detective cooling fan ≤42℃ Fan slow turning heat dissipation,≥45℃ Fan high turning heat dissipation | |||||
