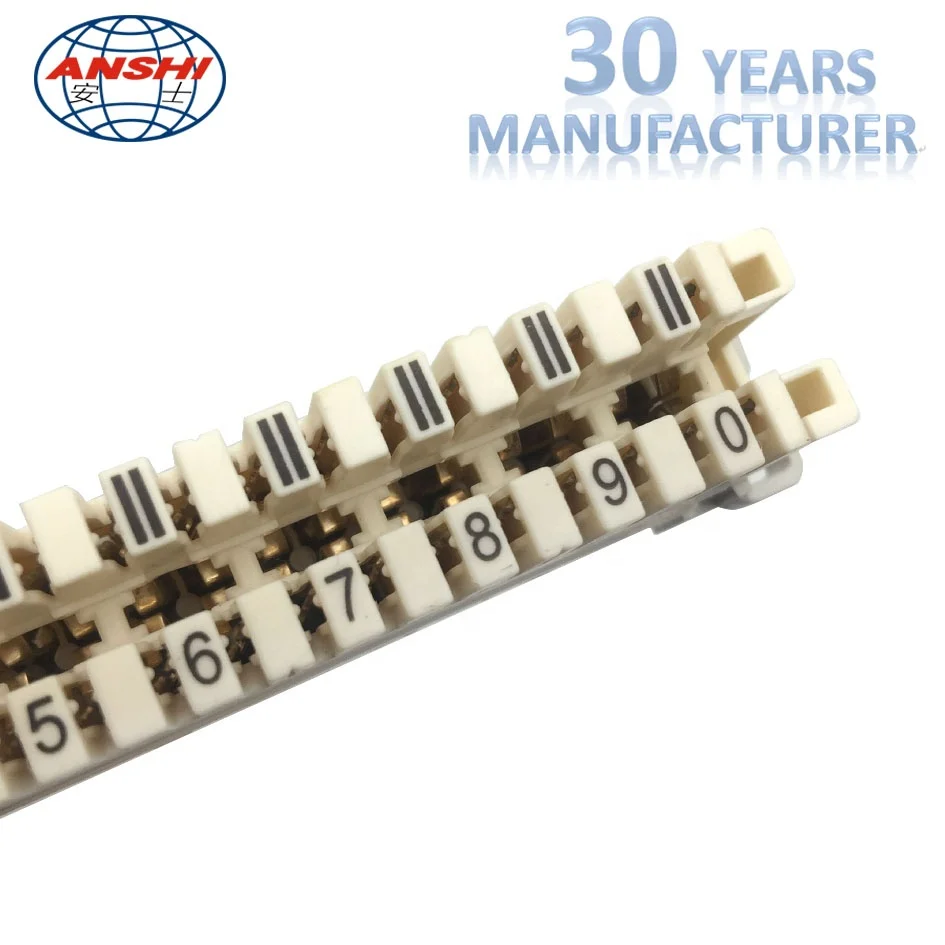

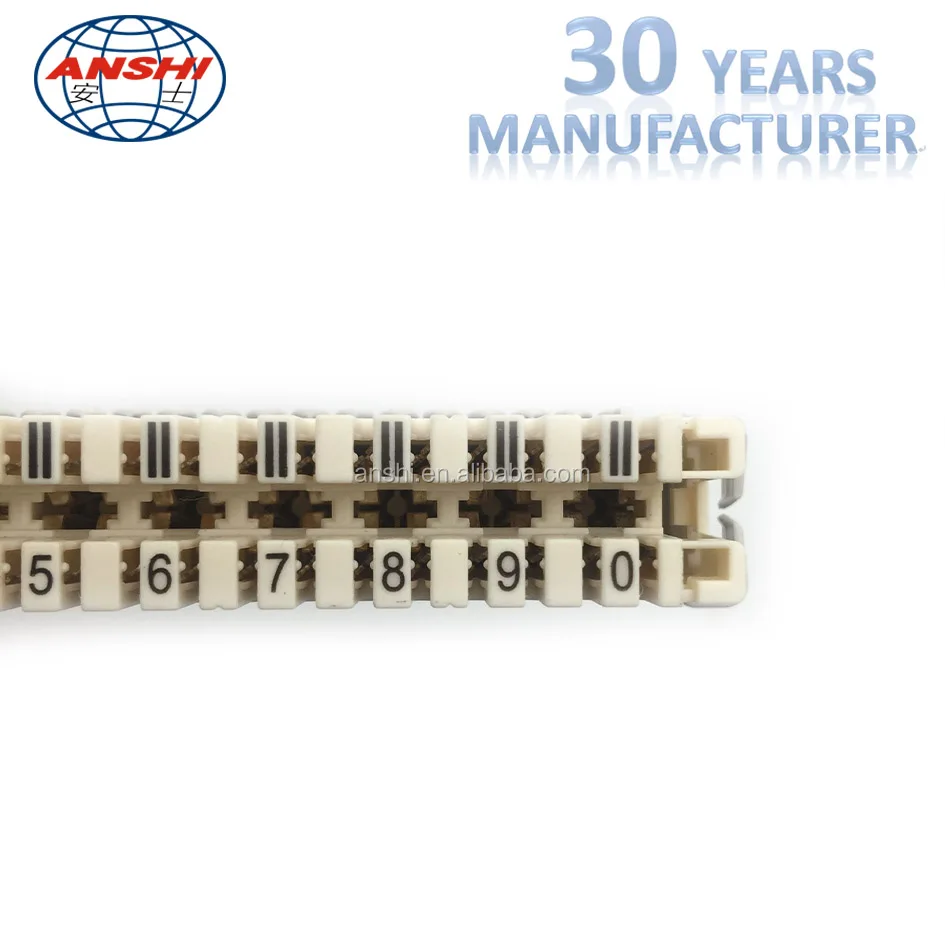

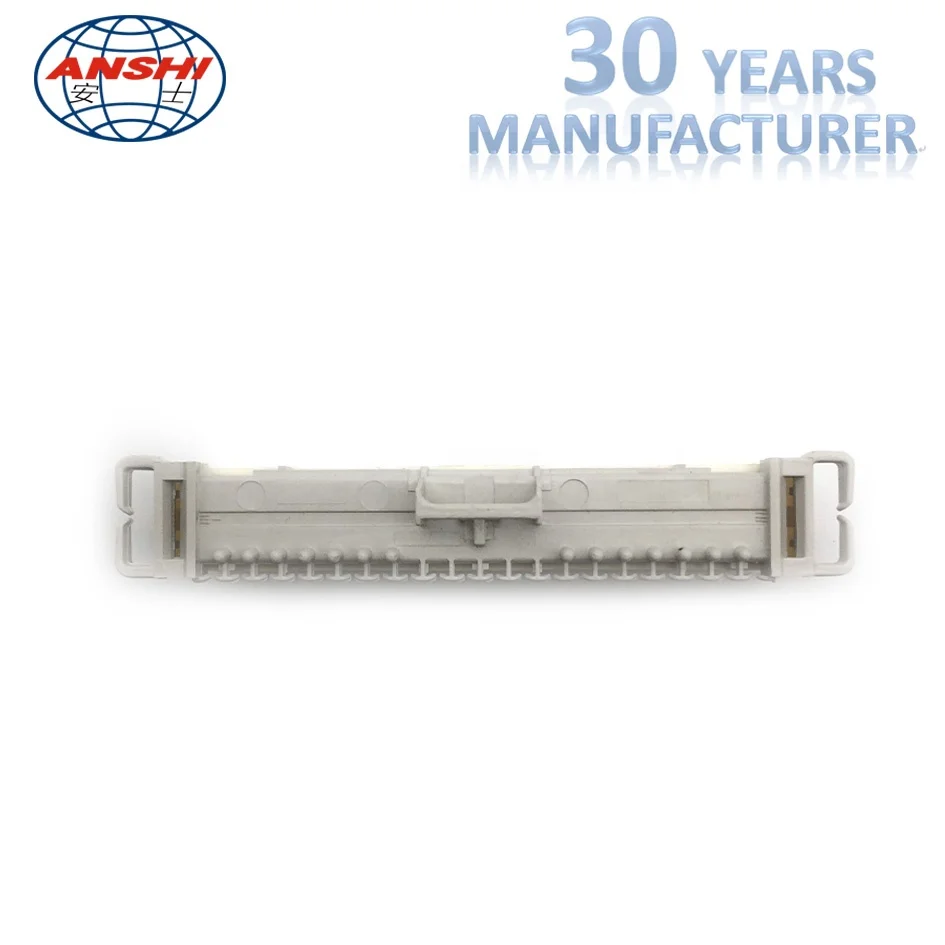

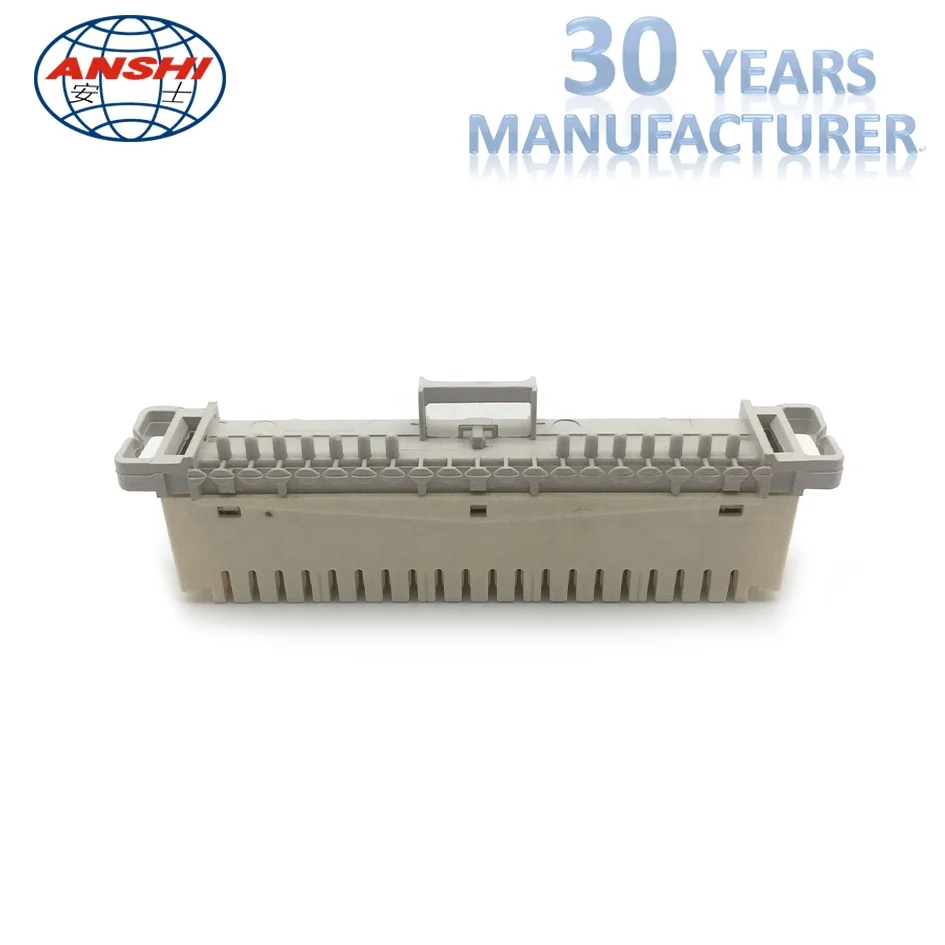

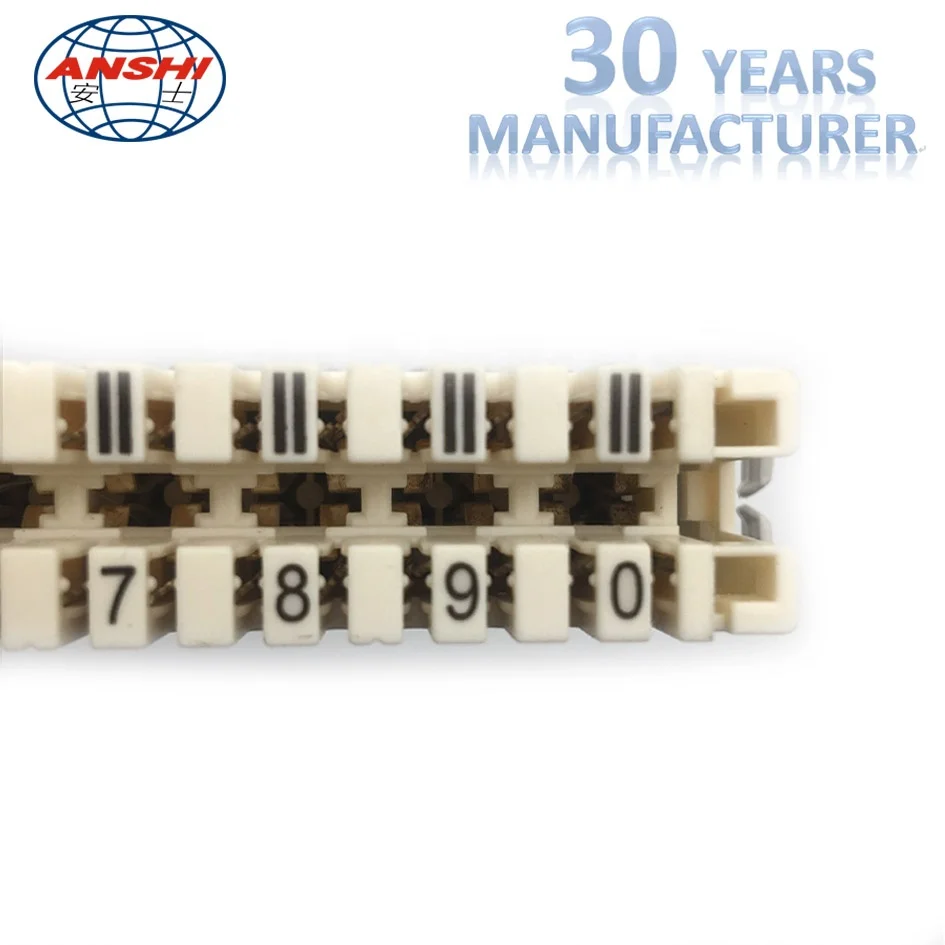

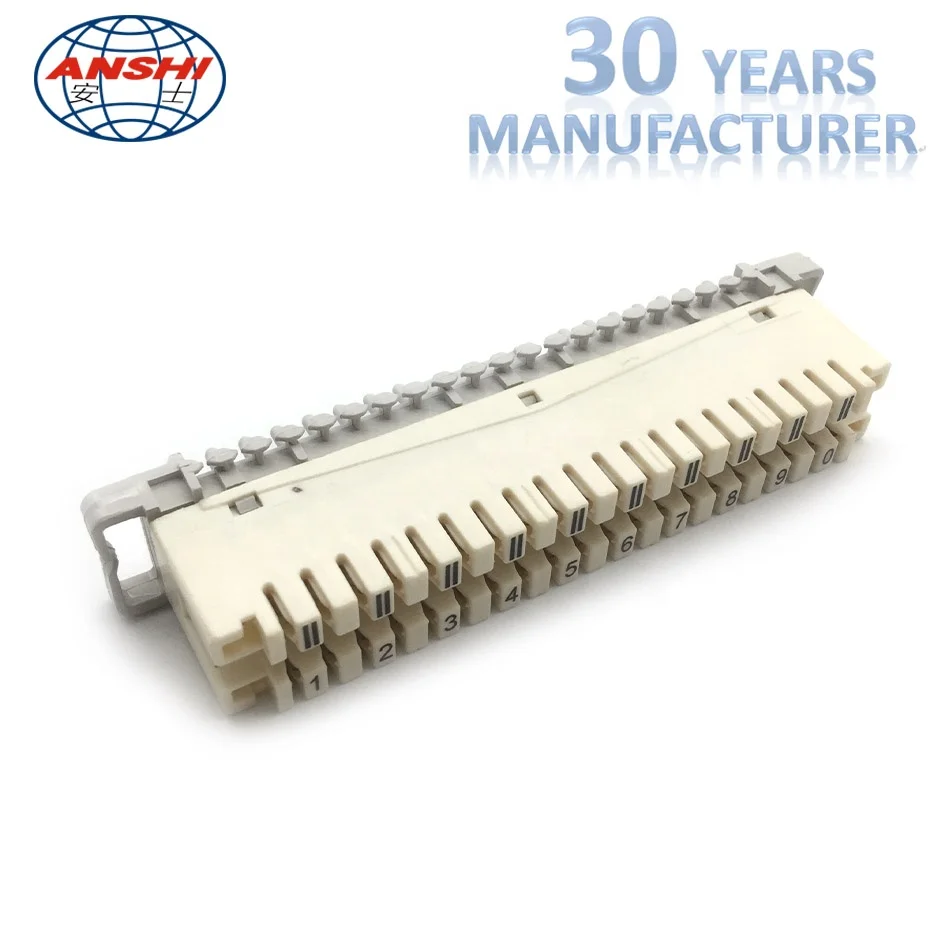

ANSHI 10 pairs LSA Plus Krone Switching Module MDF Main Distribution Frame

Feature:

1) Temperature: -5 - 40°C
2) Relative humidity: <85% (+30°C)
3) Atmospheric pressure: 70 106KPa
4) Material: stainless steel and cuprum, cuprum gold plating over nickel
5) Performance of anti-burn: PPT (UL94V-0) or anti-burn ABS (UL94V-0),
combustibility of GB/T 5169.7-1985 standard
6) Construction features: adopts modularization design, elegant
outlook and high endurance
7) Pulling-out force: tin bronze and silver plating (20 - 40uinch), pulling-out
force not less than 25N
8) Intermediate resistance between reed terminators: no more than 7m
(ohm between intermediate reeds under standard examination
condition)
9) Intermediate resistance: no more than 3m ohm under standard
examination condition
10) Performance impedance: 120Ω (balance)
11) Work rate: 2mb/s
12) Insulation resistance: 1,000mΩ / 500V (DC)
13) Resistance to voltage: no breakdown or arc for 1 minute under 1kV (DC)
14) Crosstalk ratio: ≥60dB (50kHz - 210MHz)
15) Plug-in loss: ≤0.4dB (50kHz - 210MHz)
16) Back wave loss: ≥18dB (50kHz - 210MHz)
17) Life: 200 cycles
