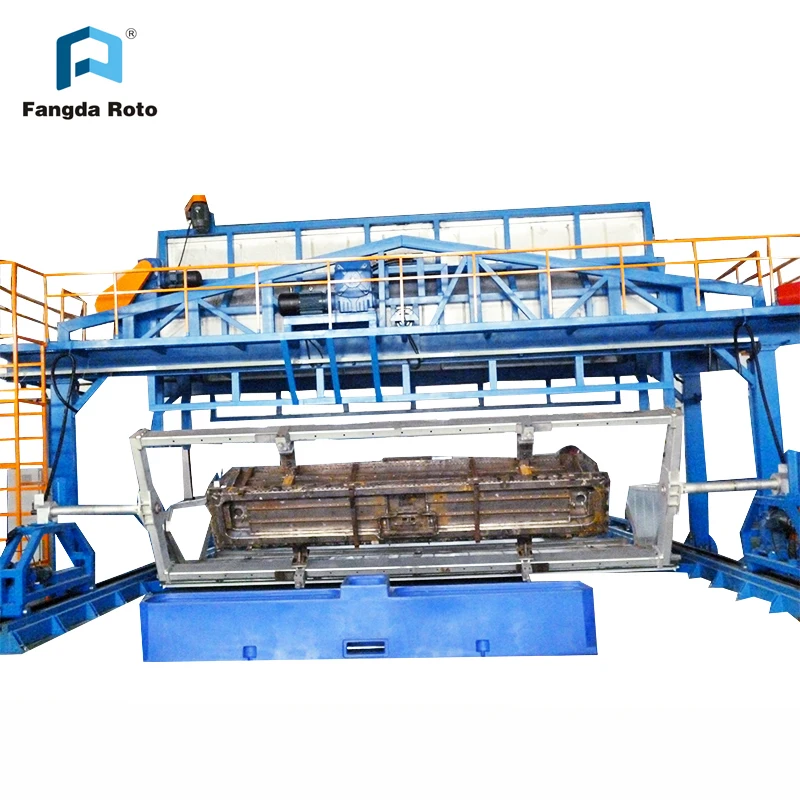

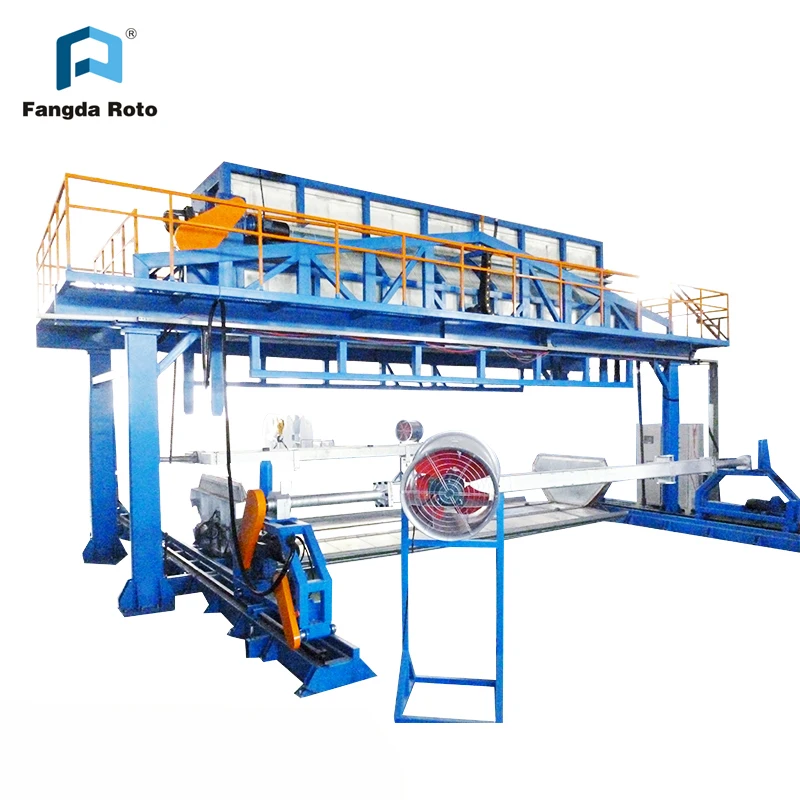

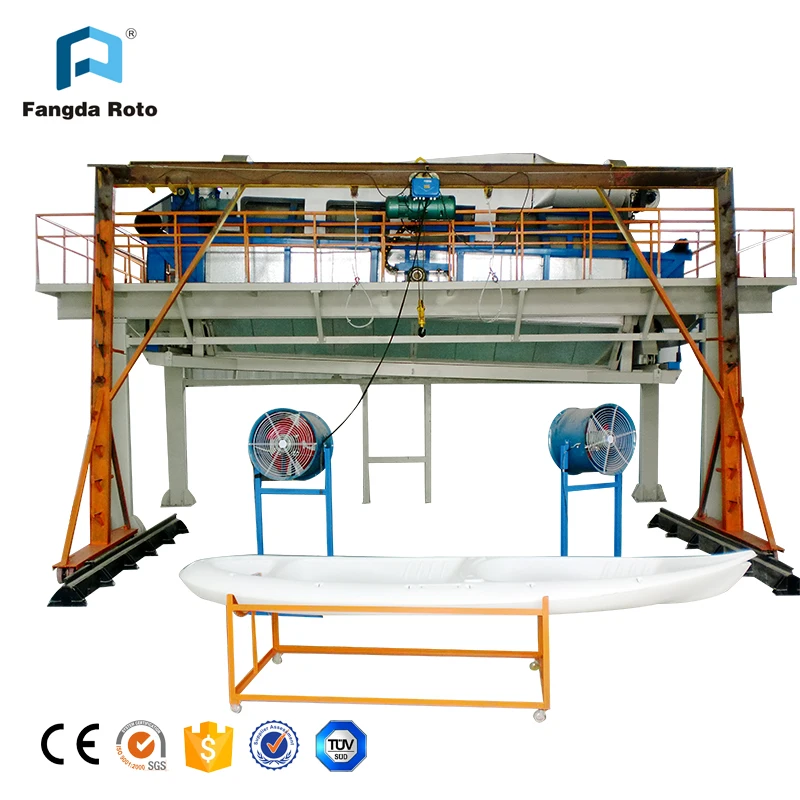

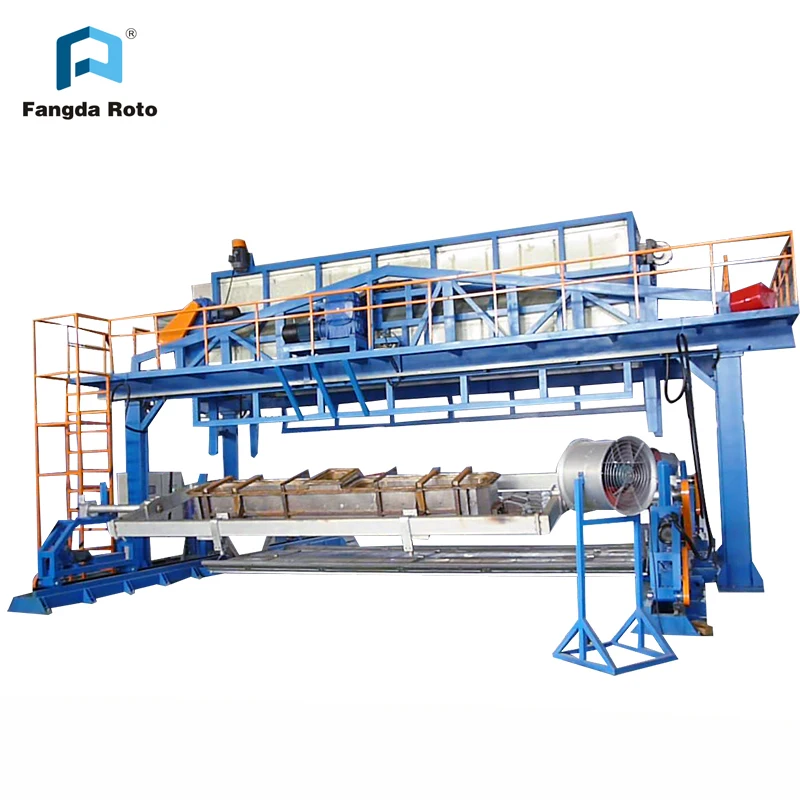

Rocking oven machine (Rock n roll machine) is one range of rock and roll machines and can produce slender type, long and thin shape rotomolding products, such as boat, kayak, water drinker, groove, etc. It is cost effective machine and occupies a limited area and use sufficiently the space in vertical direction.
MACHINE ADVANTAGE:
1.Suitable for leptosomatic products such as Kayak,trough or manger for animal husbandry,boat, water drinker, groove, etc.
2.Control the thickness along the length direction.
3.Fully automatic PLC control system,easy operation also save both time and effort.
4.Breakdown self-checking to increase the rate of finished products.
5.Perfect after-sale service system.
6. Mainly making products are water tanks, boats, kayak, etc.
Model No.
Machine Dimension(m)
Oven Inner Dimension (m)
Max. load(kg)
L(m)
W(m)
H(m)
FDYB2-2000
4
6
5
Φ2.0*6.0(adjustable)
1000
FDYB2-3000
5
7
6
Φ3.0*7.2(adjustable)
1500
FDYB-2500
8
4.3
3
Φ2.5*6.0
1500
FDYB-3000
9
5.3
4
Φ3.0*7.2
3000
FDYB-4000
10
6.3
5
Φ4.0*8.0
6000

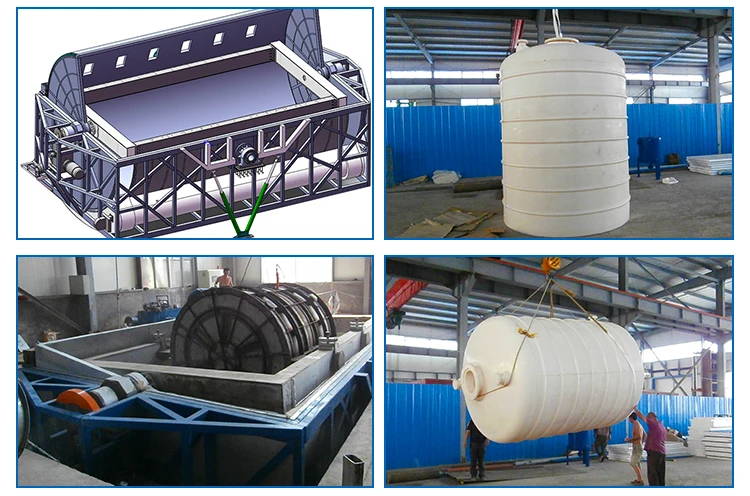

ROCK N ROLL ROTOMOLDING MACHINE TYPES:
ON THE GROUND:
UNDER THE GROUND:

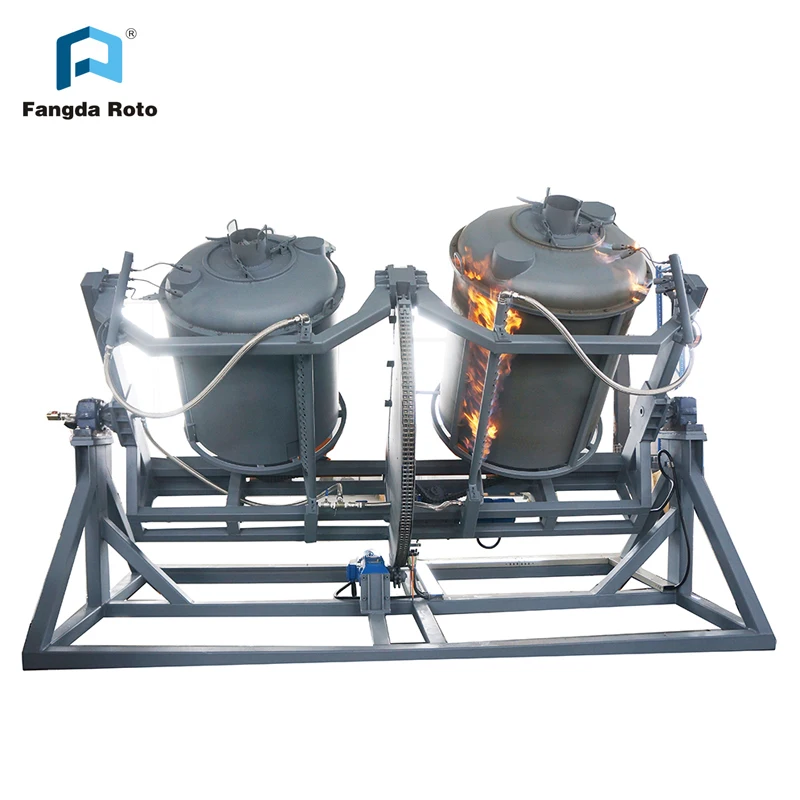

OPEN FLAME ROCK N ROLL MACHINE:
