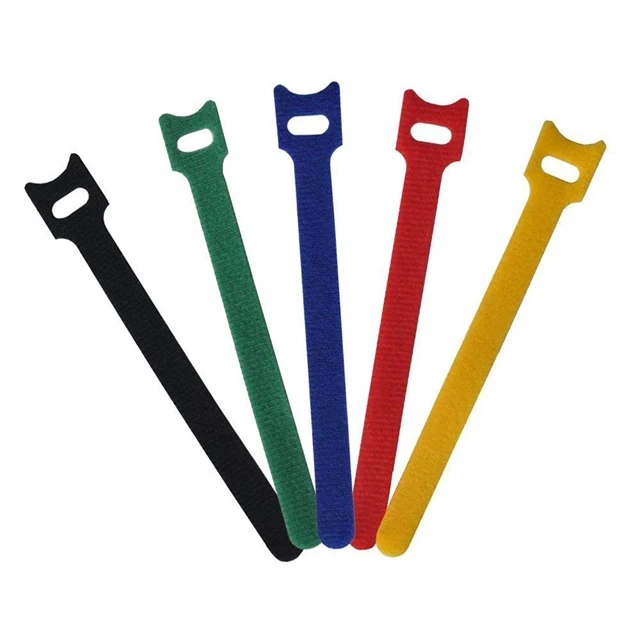

Reusable Double Sided Nylon Hook and Loop Tape Fastener Cable Ties Strap

Product Overview

Description

Part 1 Nylon cable ties strap Performance Show



Tianjin Xinghua Nylon cable ties strap is manufactured of the highest quality material and used on product applicatins across the world. Xinghua products are designed to meet the needs of any nearly any fastening requirement.

 Nylon cable ties strap Advantage



Only State-owned enterprises in China

Top quality and Competitive Prices

ISO ,Oeko-Tex Standard 100, REACH Approval

10000's of open and close cycle

Huge range of colours and Complete range of sizes

Best Sale Service and Delivery in time

Professional technical team and Quality Test

Long history more than 30 years



Part 2  Nylon cable ties strap details information

composition	Hook :100% polyamide Weft and warp  ,PA 6  Hook ,PA66  Base PA6 Coating type: Polyurethane adhesive Mono-Filament Loop : 100% polyamide   Weft and Warp ,PA6  Loop ,PA 6  Base PA6 Coating type: Polyurethane adhesive Multi-filament
construction	woven with cold-cut sewing edges
Shade range	Custom made
Available widths  (mm)	16,  20, 25, 30, 38, 50, 100,150,160
Width Tolerance (mm)	16,20,25mm: ±1.0mm  30,38,50mm: ±1.5mm 100mm: -1.0/+2.0mm
resistance to heat	softening point 180°C, melting point 200-215°C
resistance to temperature	no change at -30°C to +140°C
strength in water	retain 50% of closure strength in water and recovers 100% after drying
resistance to chemicals	resistance against diluted acids & alkalines at low temperature, trichloroethylene & solvents used for dry cleaning
influence of insects, mold	not affected
influence of humidity	in humidity over 90% RH, closure strength is somewhat reduced
resistance to UV	limited resistance, use polyester tape if exposure to high UV light
shrinkage after washing at 60°C /30 min. Test method: ISO 6330	hook & loop (lengthwise/widthwise): max. 2%
Fraying	None
Tensile strength (N/cm) ISO 13934-1:2013	Hook :200.0-384.0 Loop:200.0-301.0 Minimum for H&L: 200 Average: 300
Stretch at breaking (%) ISO 13934-	35%- 50% Minimum: 30% Actual or Average: 40%
Quality ISO	GB/T 19001-2008/     ISO9001:2008
Reach	Confirmed
dyestuffs	no harmful AZO dyestuffs
Dimethylfumarate (DMFu)	Do not contain
Oeko-tex	Oeko-tex standard 100 class I
Joints type	Hot melt
No of joints per roll	Most of  no any joints ,very few  roll have one or two joints
Contact Information
Contact		Lisa
Whatsapp :		0086 15522109329
Tel:		15522109329

  Nylon cable ties strap production process



\\

 Nylon cable ties strap Quality Test Machine



 Nylon cable ties strap Packing



Certificate

ISO Certificate



Oeko -Tex Standard 100

Our factory



1 Are you a manufacture?

Yes ,we are the only one state-owned corporation for producing the hook and loop from 1984 .



2 How do you control your H&L quality according to customer request ?

Before Production ,we send the pre-production sample to customers for approval .During the production we produce the goods strictly according to the approved samples .



When 1/3 to 1/2 of goods was produces ,we inspect the goods for fist time .



Before packing ,we inspect the goods for second time .



Before shipment ,we inspect the goods for third time and we send the shipment samples to customers for confirm again .



After customers confirmed the shipment samples ,we arrange the shipment .



3 How do you arrange to payment ?

TT .L/C ,Paypal all ok .



4  How  to transport ?

Ocean Shipping ,Air transport and Express ,DHL ,TNT ,Fedex etc .or customized .



5 What about samples ?

The free sample could be supplied for your test .But the freight ususlly be borned by customers firstly,then would be backed when customers place the order .



6 Do you accept the Small order ?

Yes ,we accept it .



7 What grade for your Hook and loop ?

A Grade - 100% Nylon /Polyamides

B Grade - 70% Nylon & 30% polyester

D Grade - 100% Polyester



8 Could you supply the quality certificate ?

 Yes ,we could supply the ISO Certificate and Oeko Certificate or customer request third party certificate.



9 What advantage do you have ?

 Experienced manufacturer

Advanced equipments

Professional engineers, skilled technicians

Factory sells directly, sufficient supplies and prompt delivery are guaranteed

Warm customer service and technical support



10 Do you accept the OEM &ODM ?

Available, accept logo printing, also can cut the Colorful Hook and Loop into different shapes as customer request .
