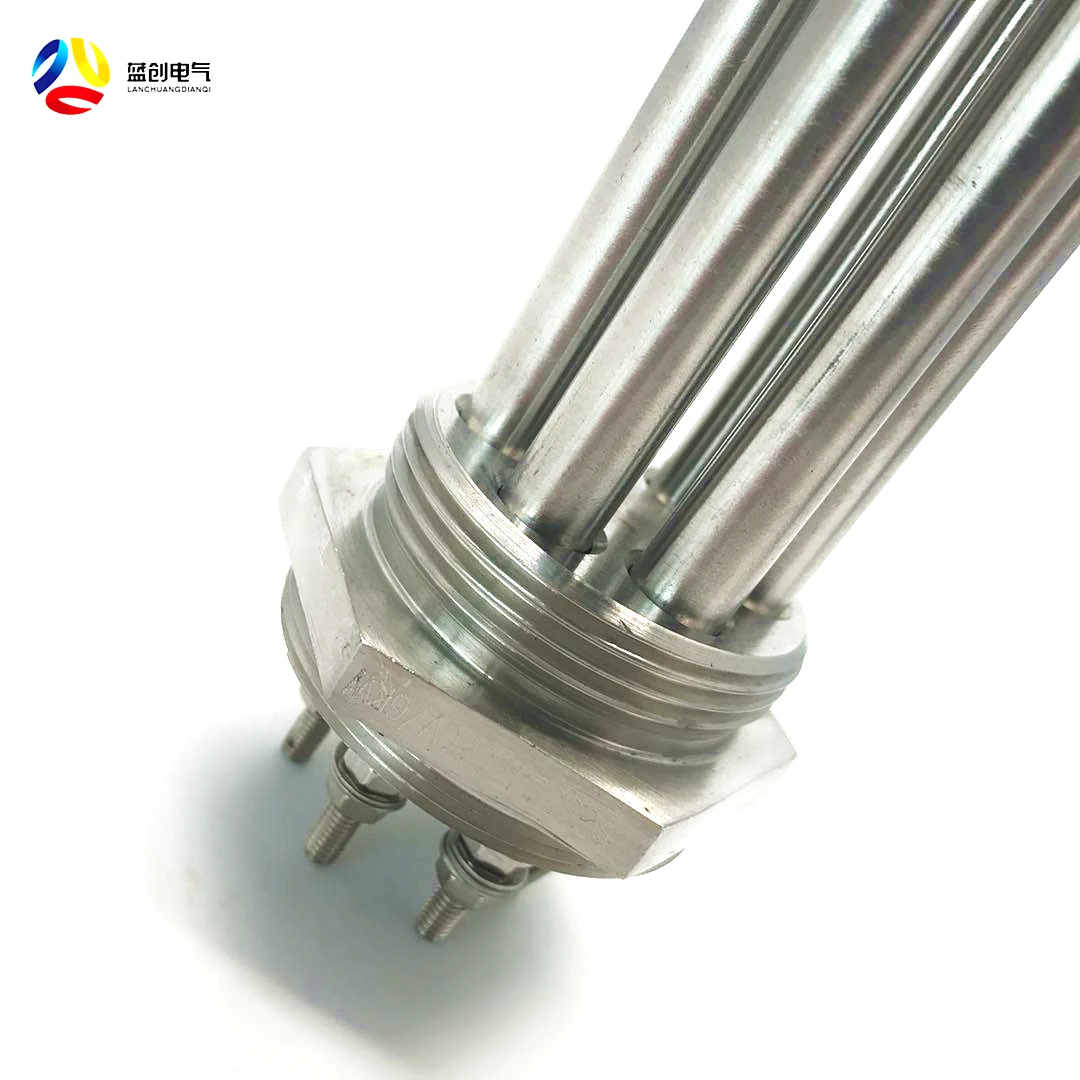

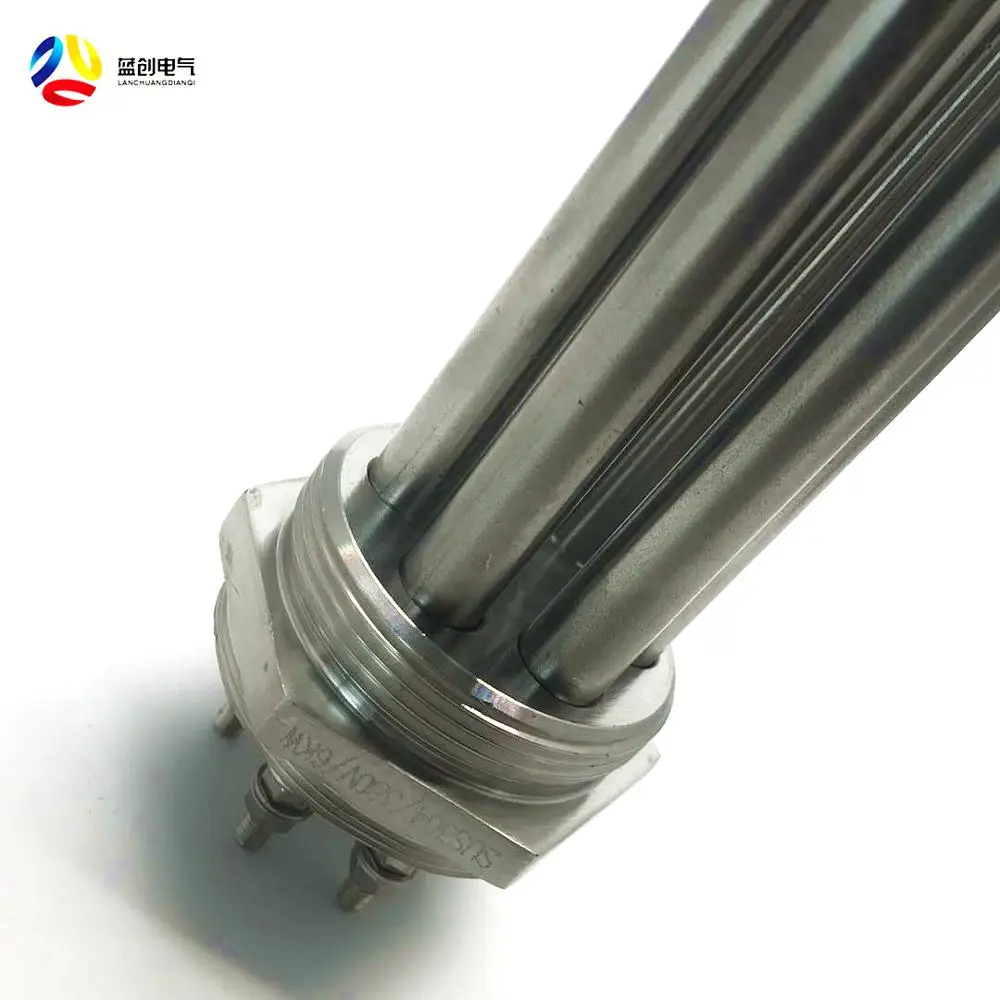

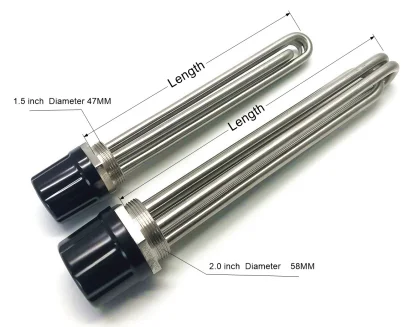

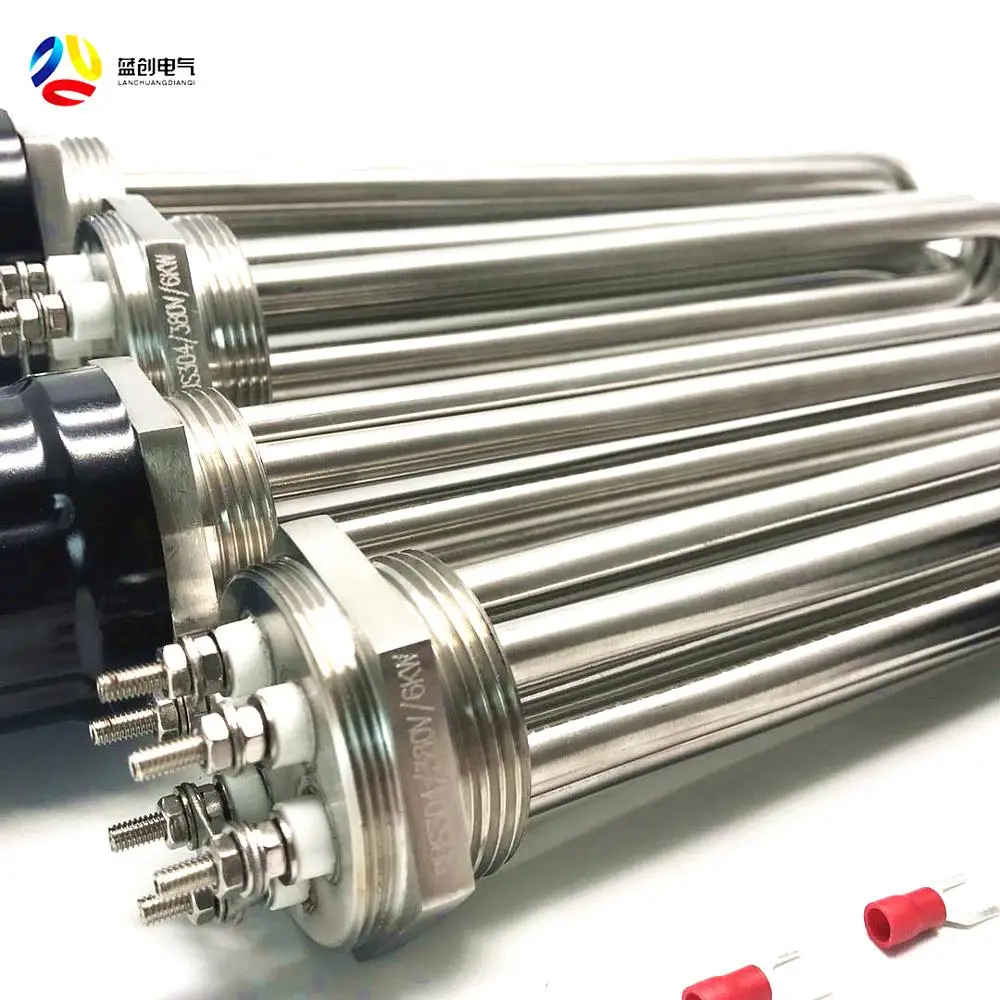

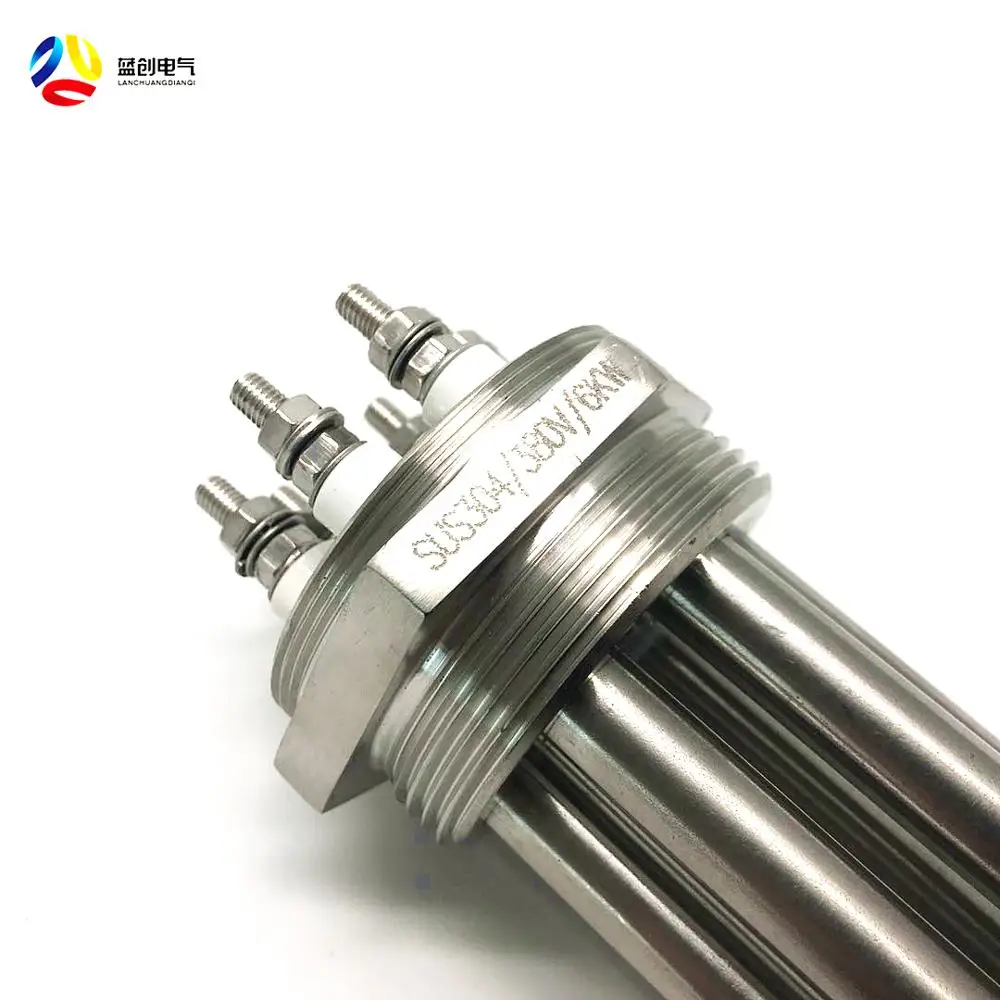

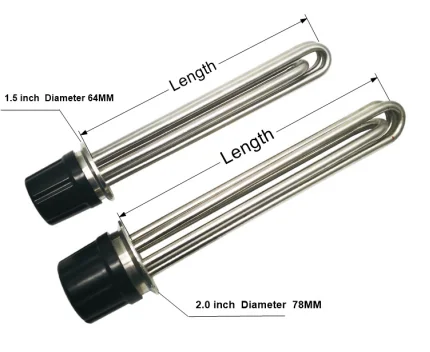

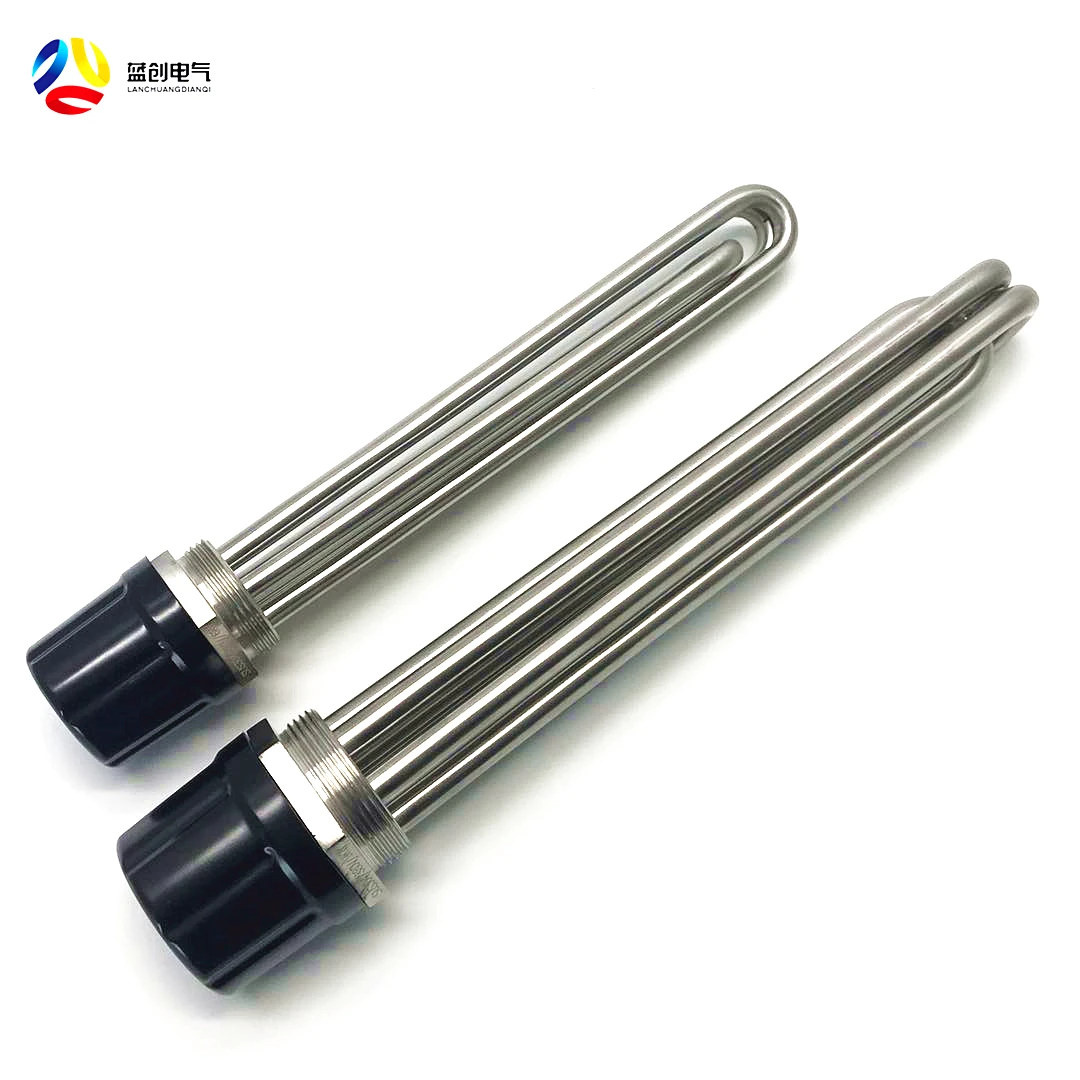

Tubular Heating Element For Solar Steamer Immersion Water Heater Rod
- Category: >>>
- Supplier: Yancheng Lan Chuang Electric Technology Co. Ltd.
Share on (60839732056):
Product Overview
Description
The electric heating tube is a metal tube, along the tube in the center of the central axis of the spiral electric heating alloy wire (nickel chromium, iron chromium alloy) filled with the gap with a good insulation thermal conductivity of magnesia sand, Or ceramic seal. Electric heating tube is a special electrical components into electrical energy, because of its cheap, easy to use, easy installation, no pollution, is widely used in a variety of heating occasions, stainless steel heating tube life is very long, generally designed to use Life of more than 10,000 hours.
| Product Name | immersion Heater |
| Sheath | Stainless Steel 304,310,316,Incoloy 800,840/(Optional) |
| Resistance Heating Wire | NiCr,FeCr (Optional) |
| Insulation Material | High-purity MgO |
| Certification | CE,ROHS |
| Rated Voltage | 110-400V |
| Rated Power | 50-10000W |
| Working Frequency | 50-60Hz |
| Continuous Operating Temperature | ≤100℃ |
| Maximum Working Temperature | Max 100℃ |
| Design Lifetime | 10000+ h |
| Insulation Resistance (cold) | ≥500MΩ |
| Maximum Leakage Current (cold) | ≤0.5mA |
| Internal Thermocouple | Type J or K available |
| Thermocouple Location | Disc End, Sheath, Center of Heater |
