Lonten Lonten 3.3V 12864 Graphic LCD Module with128x64 dots and ST7920 / ST7921 IC TN/STN Blue Backlight White Character3.3V For
- Category: Electronic Accessories & Supplies >>>
- Supplier: Shenzhen Lonten Technology Co. Limited
Share on (60839765470):
Product Overview
Description
Note: The price is Bundle(optiona)1,Lonten is a manufacturer and provide smart car electronic component ,for more please contact.
Item specifics
* :
* Demo Board Type: ARM
* Model Number: LCD12864-ST (3.3V Blue Backlight)
* Category: Graphic LCD
* Display construction: 128*64 DOTS
* Driver IC: ST7920 / ST7921
* Interface: Parallel / SPI
* Backlight: Blue
* Character Color: White
* Place of Origin: Guangdong, China (Mainland)
* Driving method: 1/33 duty,1/6 bias
* Connector: Pin / ZEBRA
Product Description
3.3V 12864 Graphic Matrix LCD Module with 128x64 dots and ST7920 / ST7921 IC TN/STN Blue Backlight White Character
Overview
128*64 DOTS, Graphic LCD module, White Character, Blue Backlight, 3.3V for Circuit.
Features
Display construction128*64 DOTSDisplay modeTN/STNDisplay typePositive TransflectiveBacklightLED, 5.0VVieg direction6 o'clock
Operating temperatureIndoorDriving voltageSingle powerDriving method1/33 duty,1/6 biasTypeCOB (Chip On Board)Number of data line
8-bit parallelConnectorPin / ZEBRAKey Parameters

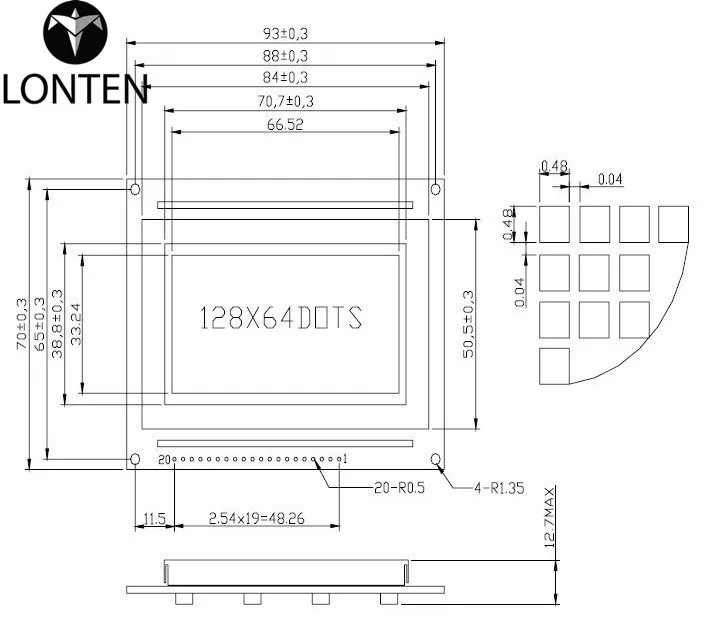

Driver ICST7920 / ST7921InterfaceParallel / SPIBacklightBlueCharacter ColorWhiteCharacter SetASCIIDimension93 * 70 * 13.5
Item specifics
* :
* Demo Board Type: ARM
* Model Number: LCD12864-ST (3.3V Blue Backlight)
* Category: Graphic LCD
* Display construction: 128*64 DOTS
* Driver IC: ST7920 / ST7921
* Interface: Parallel / SPI
* Backlight: Blue
* Character Color: White
* Place of Origin: Guangdong, China (Mainland)
* Driving method: 1/33 duty,1/6 bias
* Connector: Pin / ZEBRA
Product Description
3.3V 12864 Graphic Matrix LCD Module with 128x64 dots and ST7920 / ST7921 IC TN/STN Blue Backlight White Character
Overview
128*64 DOTS, Graphic LCD module, White Character, Blue Backlight, 3.3V for Circuit.
Features
Display construction128*64 DOTSDisplay modeTN/STNDisplay typePositive TransflectiveBacklightLED, 5.0VVieg direction6 o'clock
Operating temperatureIndoorDriving voltageSingle powerDriving method1/33 duty,1/6 biasTypeCOB (Chip On Board)Number of data line
8-bit parallelConnectorPin / ZEBRAKey Parameters
Driver ICST7920 / ST7921InterfaceParallel / SPIBacklightBlueCharacter ColorWhiteCharacter SetASCIIDimension93 * 70 * 13.5
