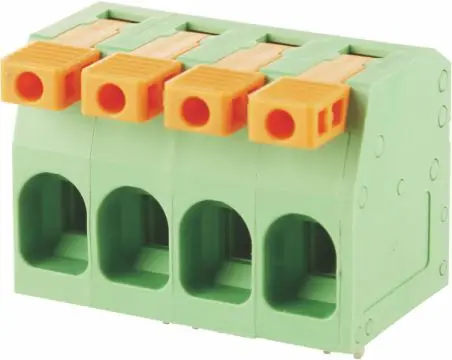

New design 10.0mm pitch high voltage and current double level pin header PCB spring Terminal Block Connector WJ240R 10
- Category: >>>
- Supplier: Cixi Wanjie Electronic Co. Ltd.
Share on (60839783496):
Product Overview
Description
Product Description

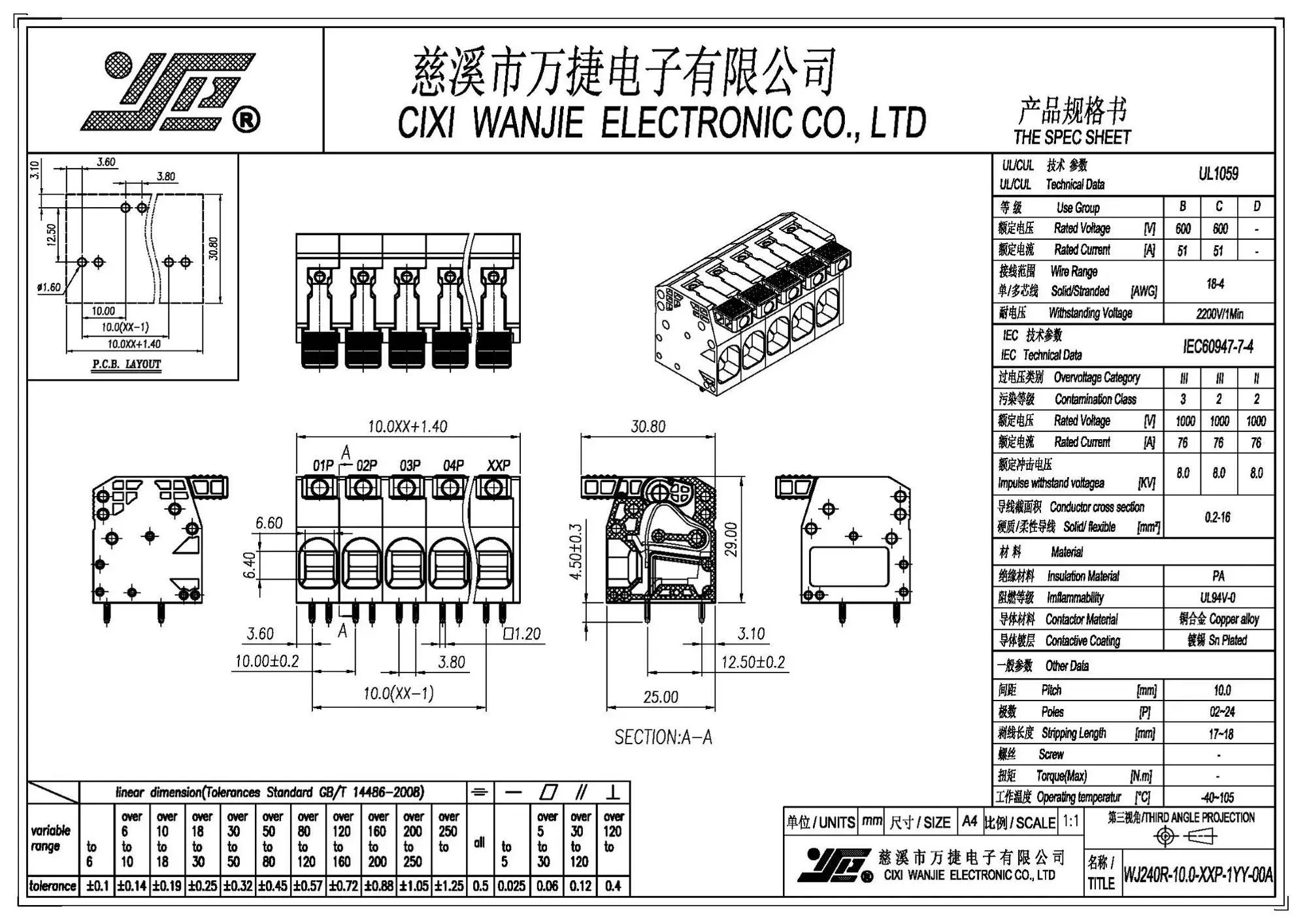

WJ240R-10.0

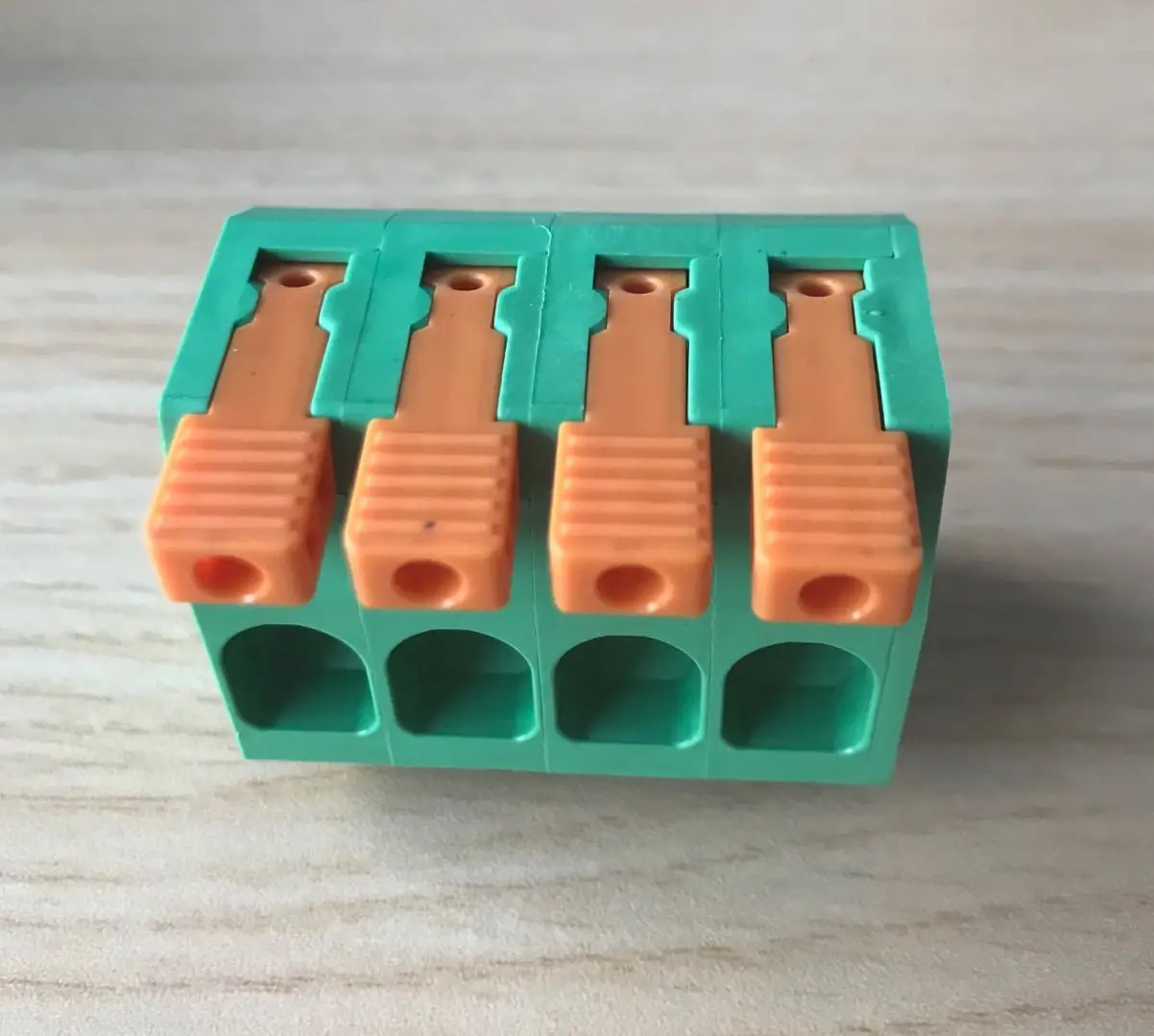

WJ240R-10.0
UL/CUL Technical Data | ||||
Use Group | B | C | D | |
Rated Voltage [V] | 600 | 600 | 600 | |
Rated Current [A] | 51 | 51 | 5 | |
Wire Range | Solid [AWG] | 18-4 | ||
Stranded [AWG] | 18-4 | |||
Dielectric Voltage-Withstand | 2.2KV | |||
IEC Technical Data | ||||
Overvoltage Category | III | III | II | |
Contamination Class | 3 | 2 | 2 | |
Rated Voltage [V] | 1000 | 1000 | 1000 | |
Rated Current [A] | 76 | 76 | 76 | |
Impulse withstand voltage [KV] | 8 | 8 | 8 | |
Conductor cross section | solid [mm²] | 0.2-16 | ||
flexible [mm²] | 0.2-16 | |||
Material | ||||
Insulation Material | PA66 | |||
Flame retardant rating | UL94V-0 | |||
Conductor Material | Copper alloy | |||
Plating of conductor surface | Sn plated | |||
Other Data | ||||
Pitch/Poles [mm]/[P] | 10.0/1-18 | |||
Stripping Length [mm] | 17-18 | |||
Operating temperature [℃] | -40~+105 | |||
Soldering temperature | 250℃/5S | |||
Pin dimensions [mm] | 1.2*1.2 | |||
PCB Hole Diameter [mm] | Ø1.6 | |||
If you can't find the exact product you need in the pictures, please don't go away.
Just contact us freely or send your sample and drawing to us.
We will reply you as soon as possible.
