High quality 250w led high bay light 300w high bay led light with 5 year warranty
- Category: Commercial & Industrial Lighting >>>
- Supplier: Shenzhen Lepower Opto Electronics Corp. Ltd.
Share on (60839825764):
Product Overview
Description
160lm/w UFO LED High Bay Light 60W 80W 100W 120W 150W 200W
S1 UFO high bay light series from 60W-200W.
Classic outlook with excellent system efficiency up to 160lm/w.
Patented heat dissipation design with lower weight.
Electric Data | |||||
LY-S1-60W | LY-S1-80W | LY-S1-100W | LY-S1-120W | LY-S1-150W | |
Power | 60W | 80W | 100W | 120W | 150W |
Input Voltage | AC 90-305V 50/60Hz | ||||
Photometric Specifications | |||||
LEDs | 5050 LED | ||||
CRI | >70(>80,>90 optional) | ||||
CCT | 3000K/4000/5000K/5500K | ||||
Beam Angle | 60°/90°/120° | ||||
Luminous Efficiency | 165Lm/w | 160Lm/w | 160Lm/w | 160Lm/w | 160Lm/w |
Luminous Flux | 9900lm±300lm | 12800lm±300lm | 16000lm±500lm | 19200lm±500lm | 24000lm±500lm |
LEDs Qty. | 40pcs | 40pcs | 50pcs | 60pcs | 80pcs |
Mechanial Specifications | |||||
IP Rate | IP65 | ||||
Working Environment | -40℃~50℃,20%~90% H.R | ||||
Storage Temperature | -40℃~85℃,10%~90% H.R. | ||||
Body Material | Aluminum | ||||
Lens Material | PC | ||||
Dimmable | 0-10V,PWM,Microwave motion sensor | ||||
N.W. | 2.5KG | 3.3KG | |||
Lamp Size(mm) | Ø273x182mm | Ø273x192.5mm | |||
Lamp Size(inch) | Ø10.75x7.16in | Ø10.75x7.58in | |||
Lifespan | >50,000 Hours (Ta=30℃@L70) | ||||

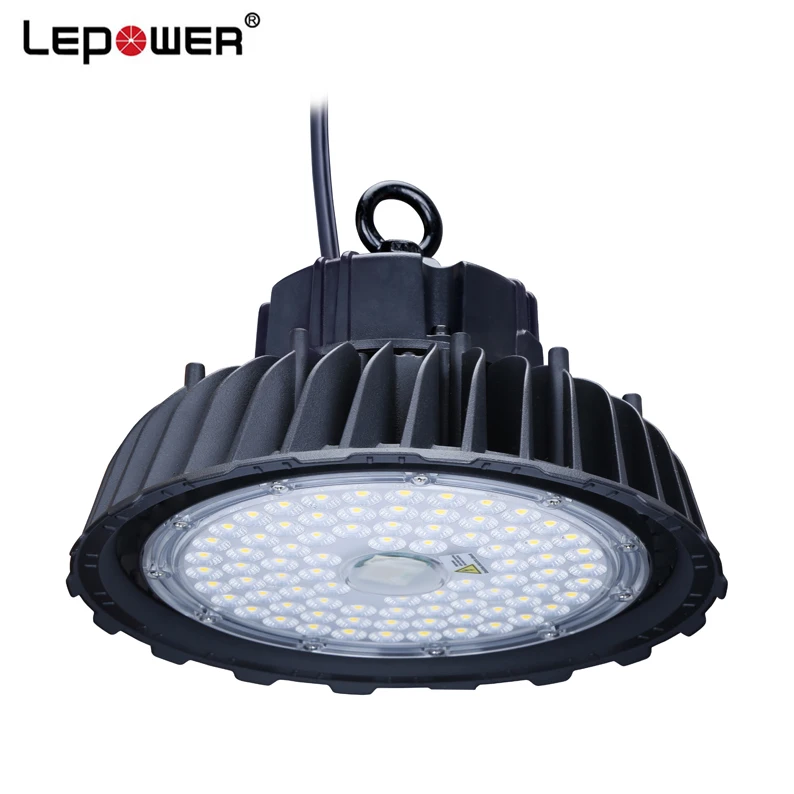

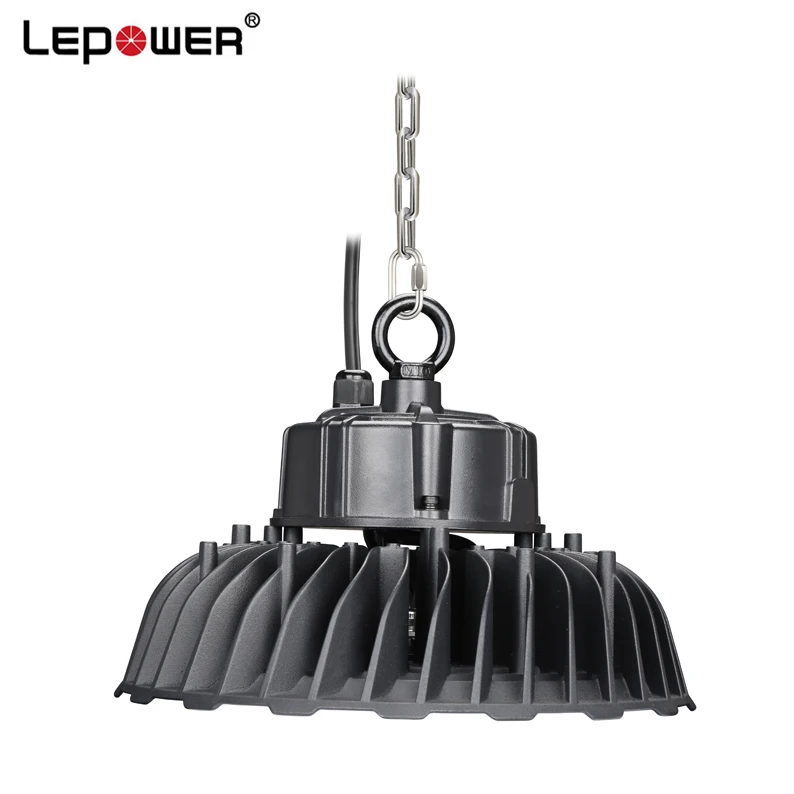

Pictures of UFO LED High Bay Light.
Wider diameter ensure the better heat dissipation.
Product Details
1. Heat sink for aluminium alloy with powder spraying process. Anti-corrosion,no toxicity or pollution.
2. USA Bridgelux chip,from TOP 5 LED chip manufacturer,delivering high luminous efficiency up to 200lm/w
3. Accurate engineered lens made of optical grade polycarbonate,light transmittance >98%
4. Multiple brackets improving installation time.
5. The steel safety rope offer double protection.
6. Ready for smart system. 0-10V,PWM,Microwave motion sensor available.
Why our S1 LED high bay light reach 160lm/w for complete light?
*Bridgelux 5050 LED chip reach 200lm/w, complete lamp >160lm/w
*Great durable heat sink,ensure the junction temperature rise less than 40°C.
*LEDs which packaged by multi-chips is high lumen, stable performance, low light failure and no dead lights.
Super high lumen UFO led high bay light. 20% luminous more than normal led light.
100w >16000lm
150w >24000lm
200w >32000lm
Maintenance instructions
1. Cut off power;
2. Remove the male and female connectors of the replacement parts or power wire,
remove the screw;
3. Take out the replacement parts to replace;
4. Retightening replacement parts, male and female cable connectors or power conductors;
5. Fasten the screws;
6. Repairing is completed;
Application
Quality Standard
LED High Bay Light Quaity Testing Equipments
1. Before the order to be confirmed, we will check the
material & colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party to check the quality.
2. We will be tracing the different phase of production from the beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party to check the quality.
5. We will try our best to help clients when problem occurred.
More product
Company Information
FAQ
Trading Conditions
1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.
2. Delivery time: 7-9 days for 50pcs; 15 days for 500pcs.
3. Samples time: 5 days.
4. Shipping terms: FOB Shenzhen.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.
Quality Control
1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party to check the quality.
5. We will try our best to help clients when problem occurred.
Warranty terms
1. 5 years warranty.
2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents
3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.
4. SAA/CE/RoHS/TUV/UL
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.
Q4. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide you the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.
Q4.I have a warehouse/workshop ,what's your suggestion?
A: please give me the below information:
1. the area of the warehouse/workshop
2. the installation height
3. the requirement of the illumination
After sales service
Terrific after-sales service: 24 hours around the clock & 12 months warranty
Life-long maintenance service for the product
For problematic items, We are ready to exchange them or replace them with an equivalent upon our receipt of previous.
For all your inquiries, please contact us immediately, We will reply you as soon as possible.
