Alloy Wheel Powder Coating Oven / High Temperature Oven
Alloy Wheel Powder Coating Oven / High Temperature Oven
Alloy Wheel Powder Coating Oven / High Temperature Oven
Alloy Wheel Powder Coating Oven / High Temperature Oven
Alloy Wheel Powder Coating Oven / High Temperature Oven
Alloy Wheel Powder Coating Oven / High Temperature Oven
Alloy Wheel Powder Coating Oven / High Temperature Oven

Alloy Wheel Powder Coating Oven / High Temperature Oven

Share on (60839914027):


Price:$1,800.00

Quantity:


Product Overview

Description


Product Description

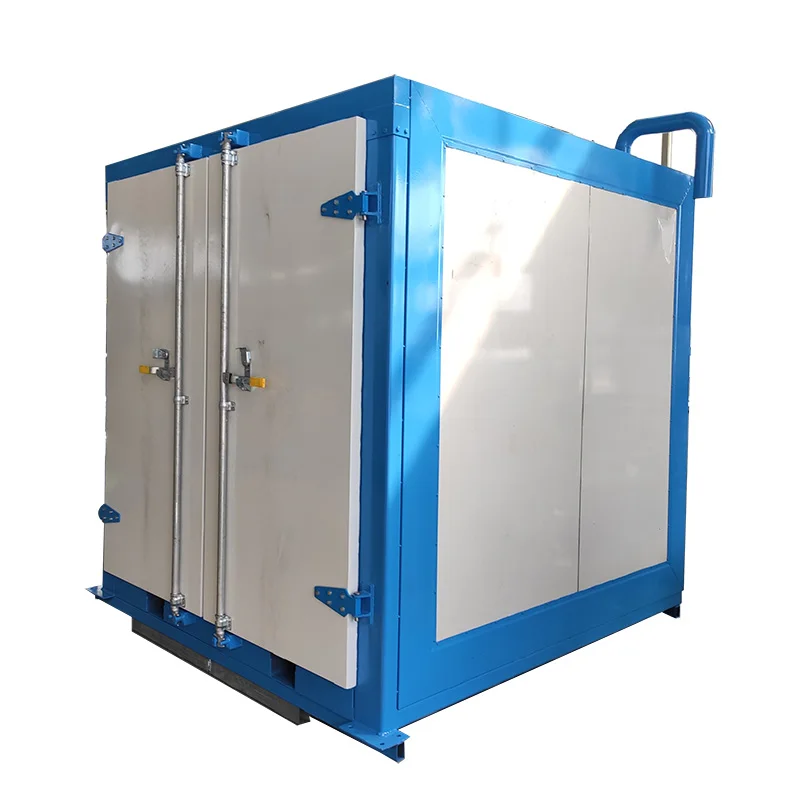

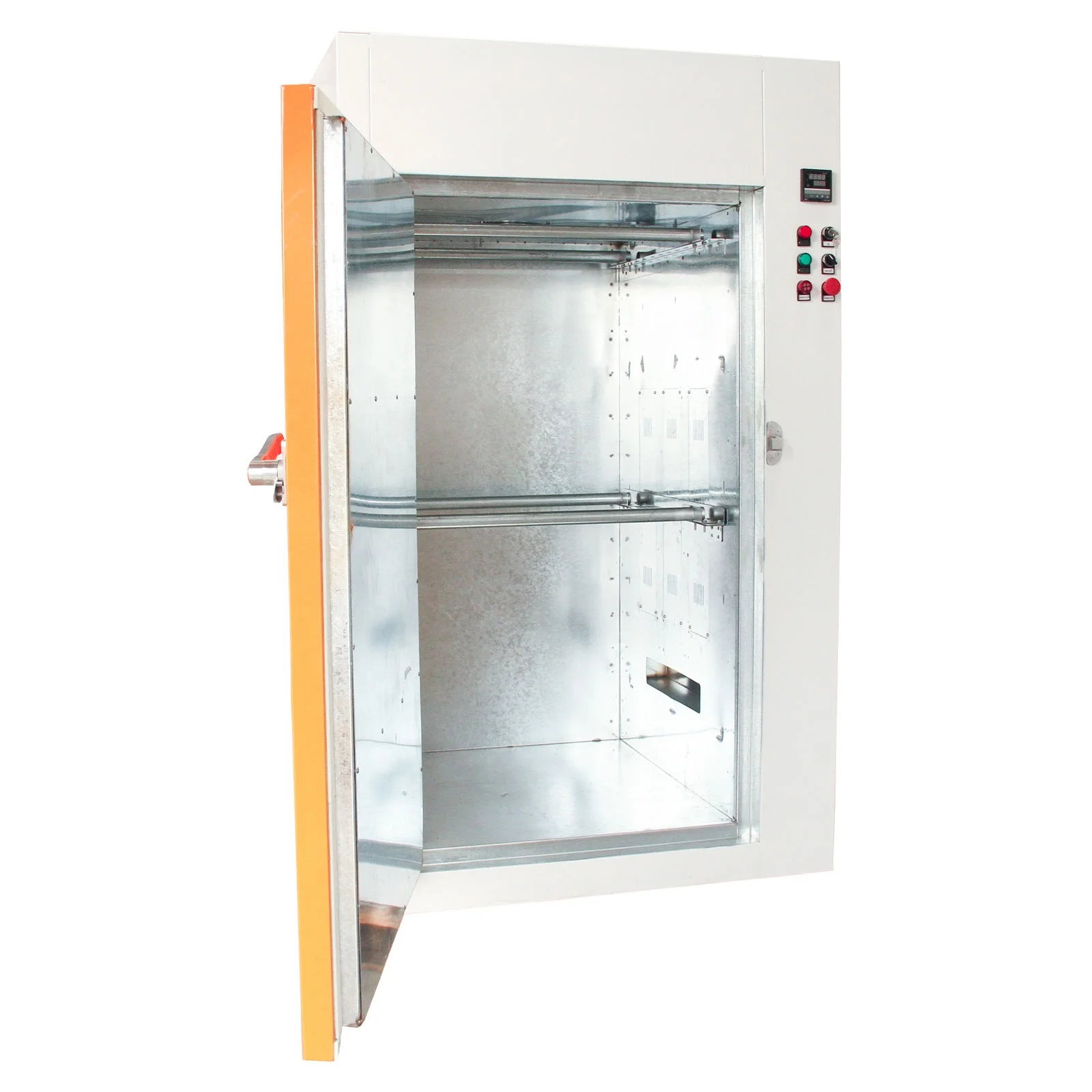

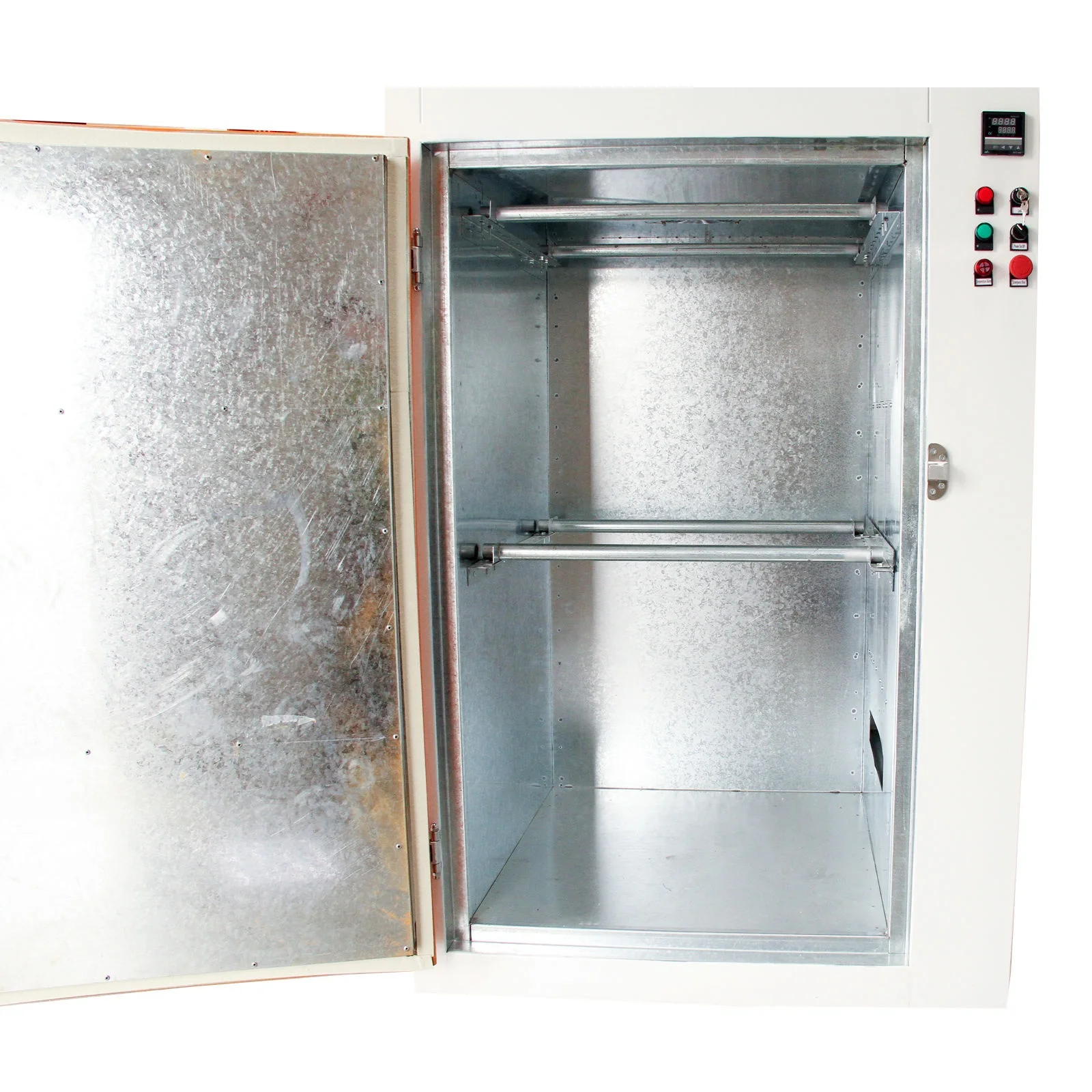

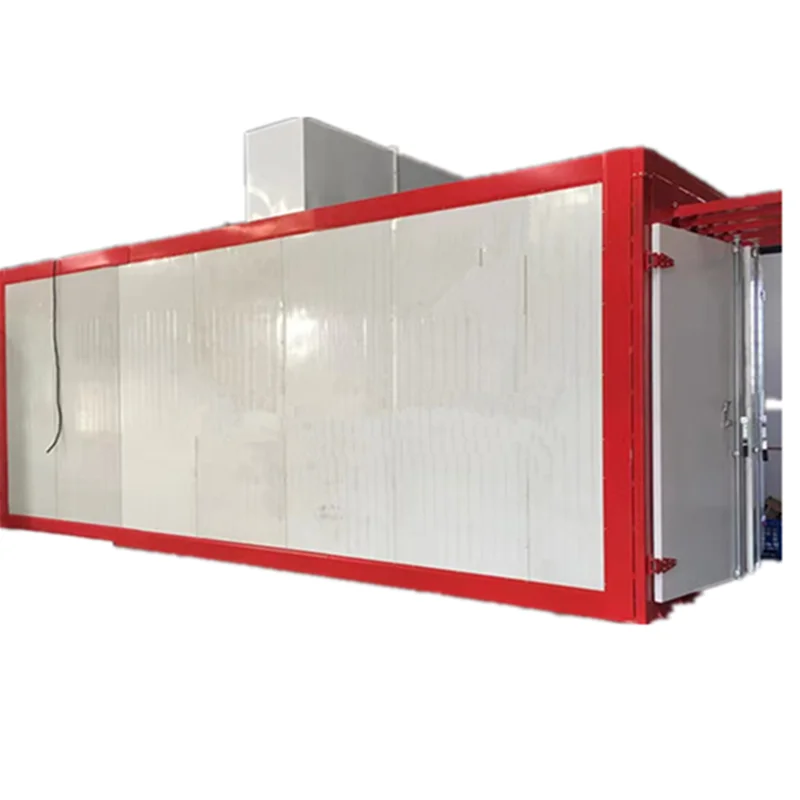

Powder coating oven :

Powder coating oven is use for high temperature powder curing . Usually powder curing temperature about 180-220 degree . This oven max temperature is 250 degree .  The oven heating system has diesel , natural gas, LPG and electric heating system etc .

For this oven size , voltage , overhead rail and ground trck will be special customized according this product and customer's reqirements .  Or please tell us your requriements , we have professional engineer will design it for you .

If you have any questions and requirements , please connect with us anytime .


Eva lv phone number : + 86 13686388084

Wechat and whatsapp : + 86 13686388084


Certifications
Detailed Images


Colin - 160


- Available dimensions: 875x845x1600mm (L*W*H);
- Exterior dimensions: 1115x 1165x 2040mm (L*W*H);
- Power supply: Electric/ 3x2kw
- Voltage/Frequency: 380V/220v(50-60hz);  The voltage will  be customized ;
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months

Colin - 300

- Available dimensions: 3000*1000*1600mm ( L*W*H );
- Exterior dimensions: 3300*1500*2100mm ( L*W*H );
- Power supply: FS5 LPG burner;
- 1 unit 0.55kw high temperature resisting
fan;
- Voltage/Frequency: 380V/220v(50-60hz);
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months

Colin - 330
- Available dimensions:
3125 * 3050 * 2500mm ( L*W*H );
- Exterior dimensions:
3550 * 3650 * 3000mm ( L*W*H );
- Power supply: FS10 Gas burner;
- 1 unit 1 unit 5.5kw Y5-48-4C high temperature resisting fan;
- Voltage/Frequency: 380V/220v(50-60hz);
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months

Colin - 460

- Available dimensions:
4600 * 2850* 2650 mm ( L*W*H );
- Exterior dimensions:
4850*3450*3200mm ( L*W*H );
- Power supply: Electric / 42sets *3kw =138kw Sustainless electric heating tubes;
- 2 unit 4kw YW5-47 high temperature resisting fan;
- Voltage/Frequency: 380V/220v(50-60hz);
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months

Colin -560

- Available dimensions:
5600*2300*3300mm ( L x W x H);
- Exterior dimensions:
5900*2600*3525mm ( L*W*H );
- Power supply: Diesel/ 1unit Riello Brand diesel burner G20
- 1 unit 5.5kw high temperature resisting fan;
- Voltage/Frequency: 380V/220v(50-60hz);
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months

Colin-600

- Available dimensions:
6000 * 1700* 3200 mm ( L x W x H);
- Exterior dimensions:
6300 * 2150 * 3580 mm ( L*W*H );
- Power supply: Diesel/ 1unit Riello Brand diesel burner FS20
- 1 unit 5.5kw Y5-48-5C high temperature resisting fan;
- Voltage/Frequency: 380V/220v(50-60hz);
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months

Colin -700

- Available dimensions:
7300*1700*2100mm ( L x W x H);
- Exterior dimensions:
7600*2300*2600mm ( L*W*H );
- Power supply: Electric/ 36units*3kw=108KW stainless steel electric heating tube;
- 2 units 4kw high temperature resisting fan YW5-47;
- Voltage/Frequency: 380V/220v(50-60hz);
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months

colin -1000

- Available dimensions:
10350x 2350x 2675mm ( L x W x H);
- Exterior dimensions:
10600x 2650x 2900mm ( L*W*H );
- Power supply: Gas/ units of Riello RS5 natural gas burner.
- 1 set 7.5kw high temperature resisting fan
- Voltage/Frequency: 380V/220v(50-60hz);
- Warm-up time: 15-30 min. (180°C)
- Temperature stability : < ± 1-3°C
- Temperature max. 250° C
- Warranty: 12 months


Our Service

Why choose Colin :

* Colin product , before shipping . Have worker pre- assemble all parts of powder coating equipment to sure every parts size and details are no problem . We also take pictures and video about pre-asseble to show customer .
* We will special customized this 3D install drawing for customer to help customer install this equipment .
* We also can support professional engineer can go to customer's workshop to guide install work .
* We have professtainal engineer as after-sale service . We can suer solve your questions within 24 hours .
