handheld control instrument professional Infrared thermal imager 320*240 TFT LCD display Thermal camera
- Category: >>>
- Supplier: Shanghai Yiniu Network Technology Limited
Share on (60839923155):
Product Overview
Description
Kindly Note Before Order
About product:Our products are 100% brand new and original, come from Chinese factory, support English, please rest assured purchase.
English manual:We have the English manual of this product, if you need, please contact me, I will send to your mailbox.
About tariff : Please do not worry about tariffs, we will write in accordance with your request low declaration of the price, Brazilian buyers need to provide tax ID
Warranty: All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.
Shipping:Most countries are take about 7-15 days.
product description
A multi-purpose machine, in addition to work it is still a young high-lattice toys, play is fun.
Going out for hunting and inspecting the environment
No matter how strong the light is, anything above 0 degrees in nature can be captured such as snakes, pheasants, wild boars, wild birds,
Applications: Electrical ,machinery equipment, HVAC industry, Factory manufacturing, Security ,enforcement, Electric, R & D and production, Building, Maritime border, Fire ,traffic, Production safety, Medical, search and rescue, etc.

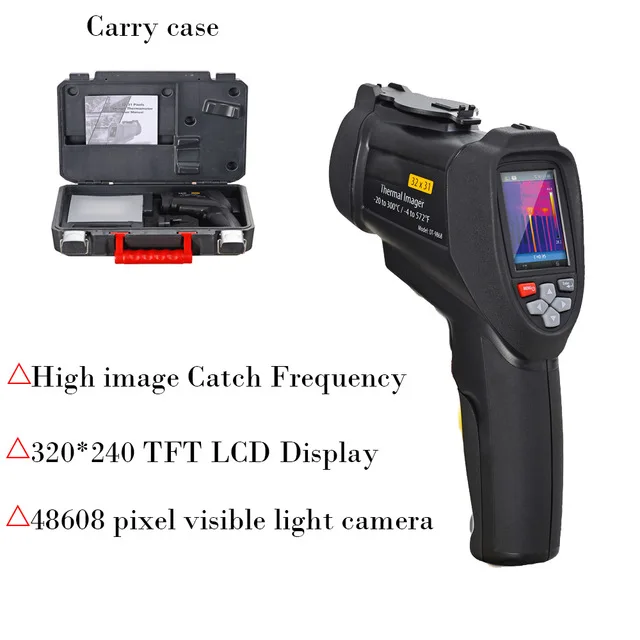

Features:
1. High image capture frequency
2.320 * 240 TFT LCD display
3.32 m 31-pixel infrared sensor
4. Hot and cold automatic capture
5.48608 pixel visible light camera
6. Thermal sensitivity ≤ 150MK
Specifications:
temperature |
|
Temperature measurement range | -20℃to+300℃ |
Accuracy of temperature measurement | ±2%±2℃ as tested(at 25℃) |
On-screen emissivity correction | YES |
Ambient temperature compensation on the screen | YES |
Image performance |
|
Image capture frequency | 9HZ |
sensor type | uncooled pyroelectric point |
Thermal sensitivity | ≤ 150MK |
Infrared spectral band | 6.5μm to 14μm |
Visible light camera | 48608 pixel |
Field of view | 40°×39° |
focal length | Fixed focal length |
Image display mode |
|
Color table |
|
Molten metal | Iron red, rainbow, high contrast, grayscale (white heat), grayscale (black hot) |
Level and span | automatic |
Fusion of information |
|
Visible and infrared fusion distance | 0.5m ,1.0m,2.0m,3.0m |
View options | 25% full-infrared to full-visible fusion |
Hot and cold spot tracking | YES |
Image capture and storage |
|
Take pictures | saving image checked before |
Storage media | Micro SD, Store up to 4000 photos/GB |
File format | BMP |
Memory view | you can view or delete stored photos by menu |
Operating temperature | 0℃to+50℃ |
Storage temperature | -20℃+60℃ |
Relative humidity | 10% to 90% No condensation |
Display | 2.2 foot,320×240 TFT LCD |
