5 inch lcd panel 800*480 TN color TFT LCD display touch panel with RTP
- Category: >>>
- Supplier: Shenzhen Amelin Electronic Technology Co. Ltd.
Share on (60839943291):
Product Overview
Description
Sunlight readable 5 inch lcd panel 800*480 TN color TFT LCD display
Product Description
Specifications:
LCD type : TFT
Model Number:AML500J01Z-00
Dot arrangement:480(RGB)× 800 dots
Driver IC:HX8264/HX8664
Interface:RGB24bit
Back Light :12-LEDs (white)
Viewing Angle :6 O'clock
Application:Industrial Application

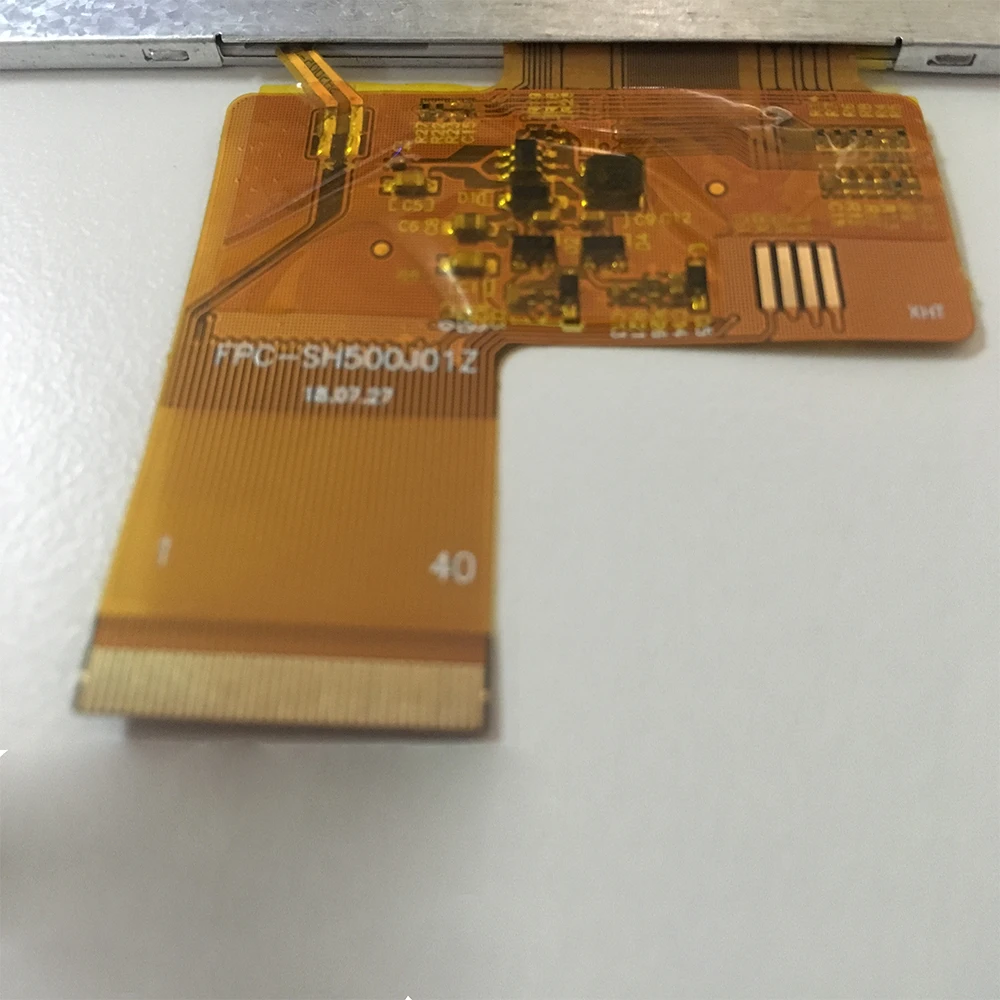

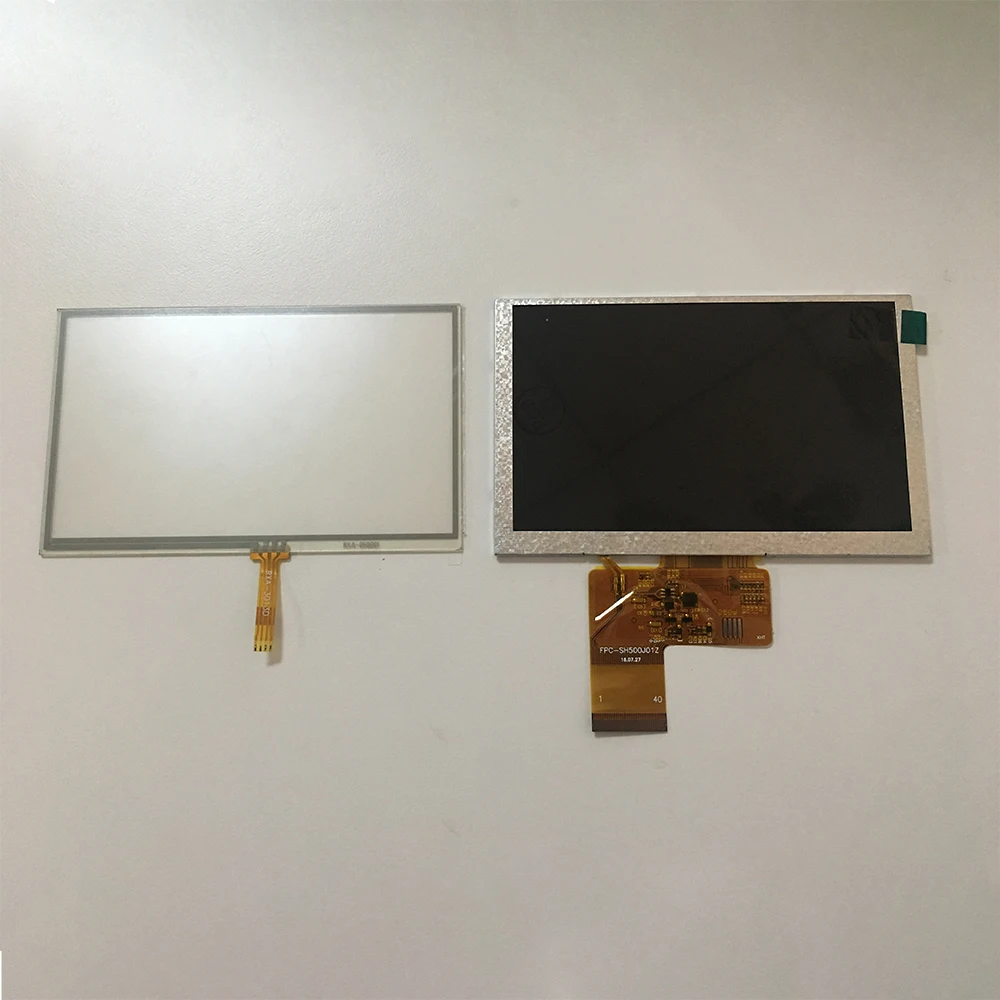

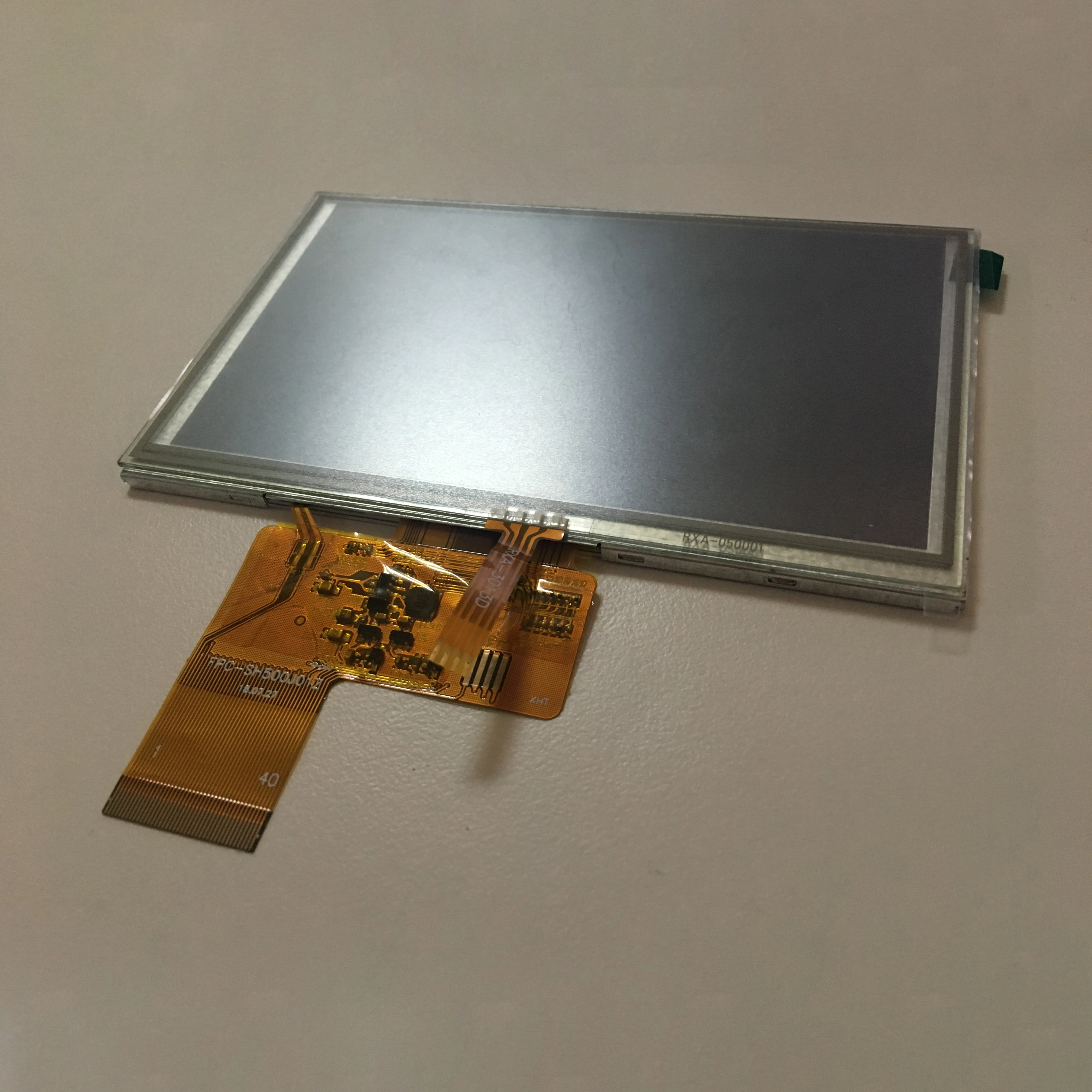

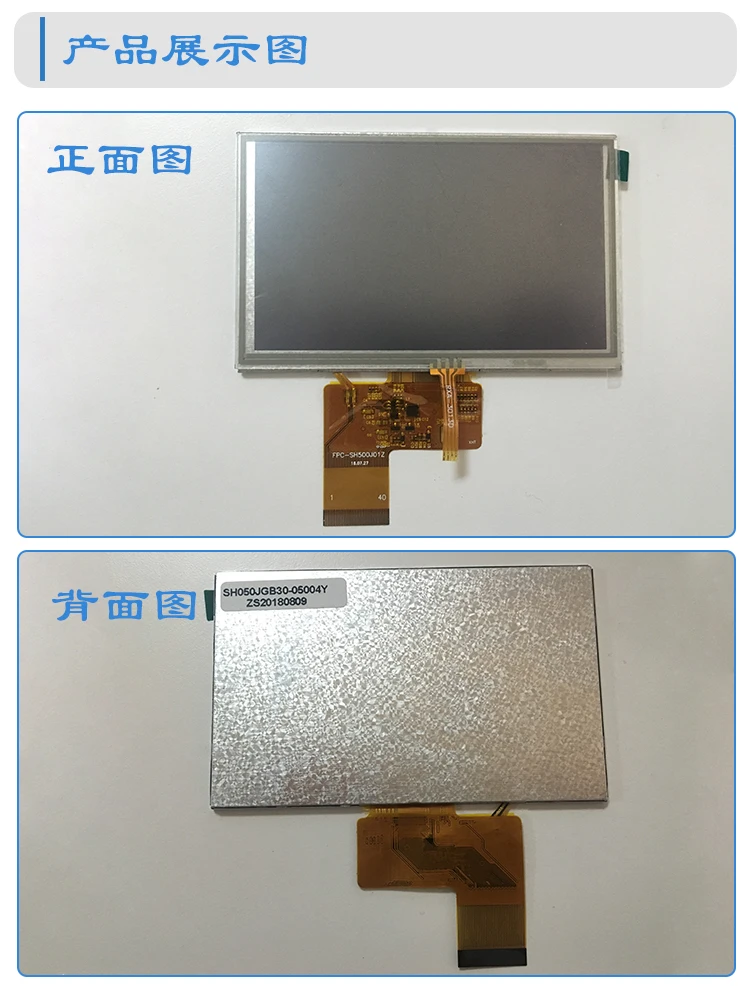

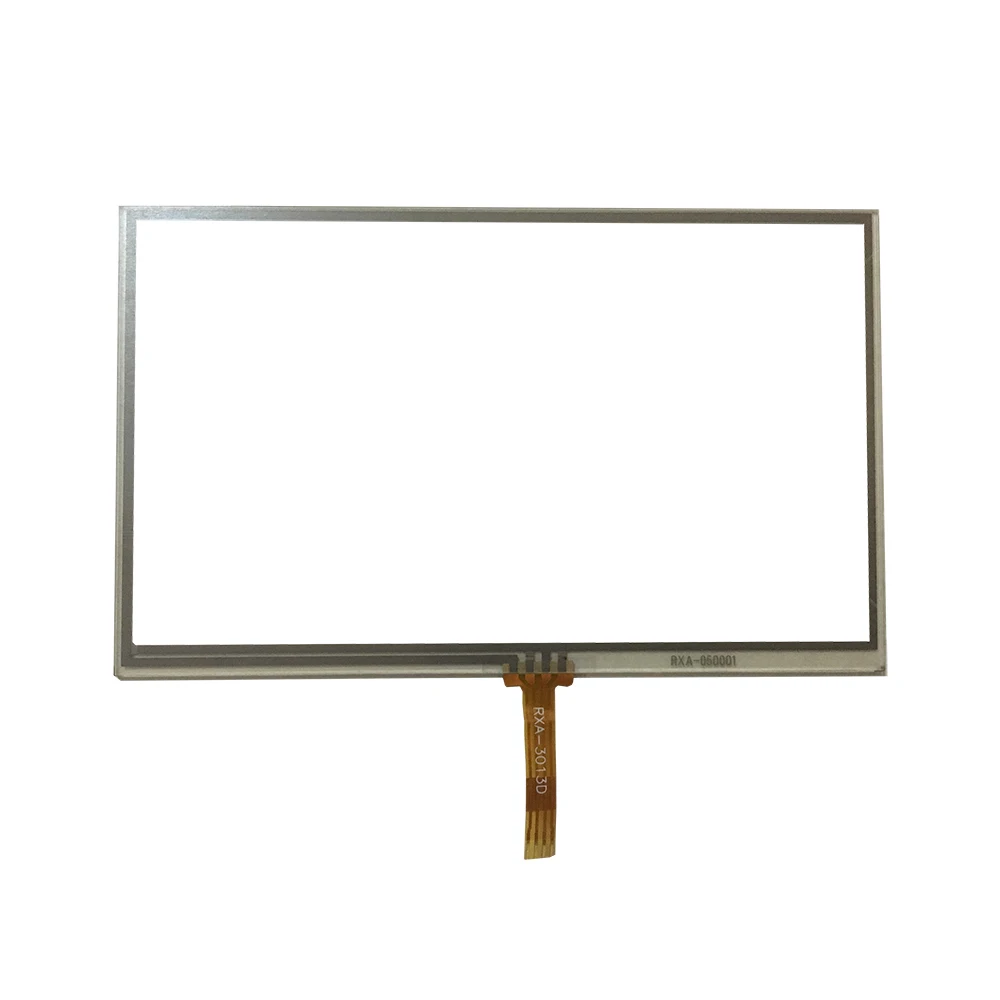

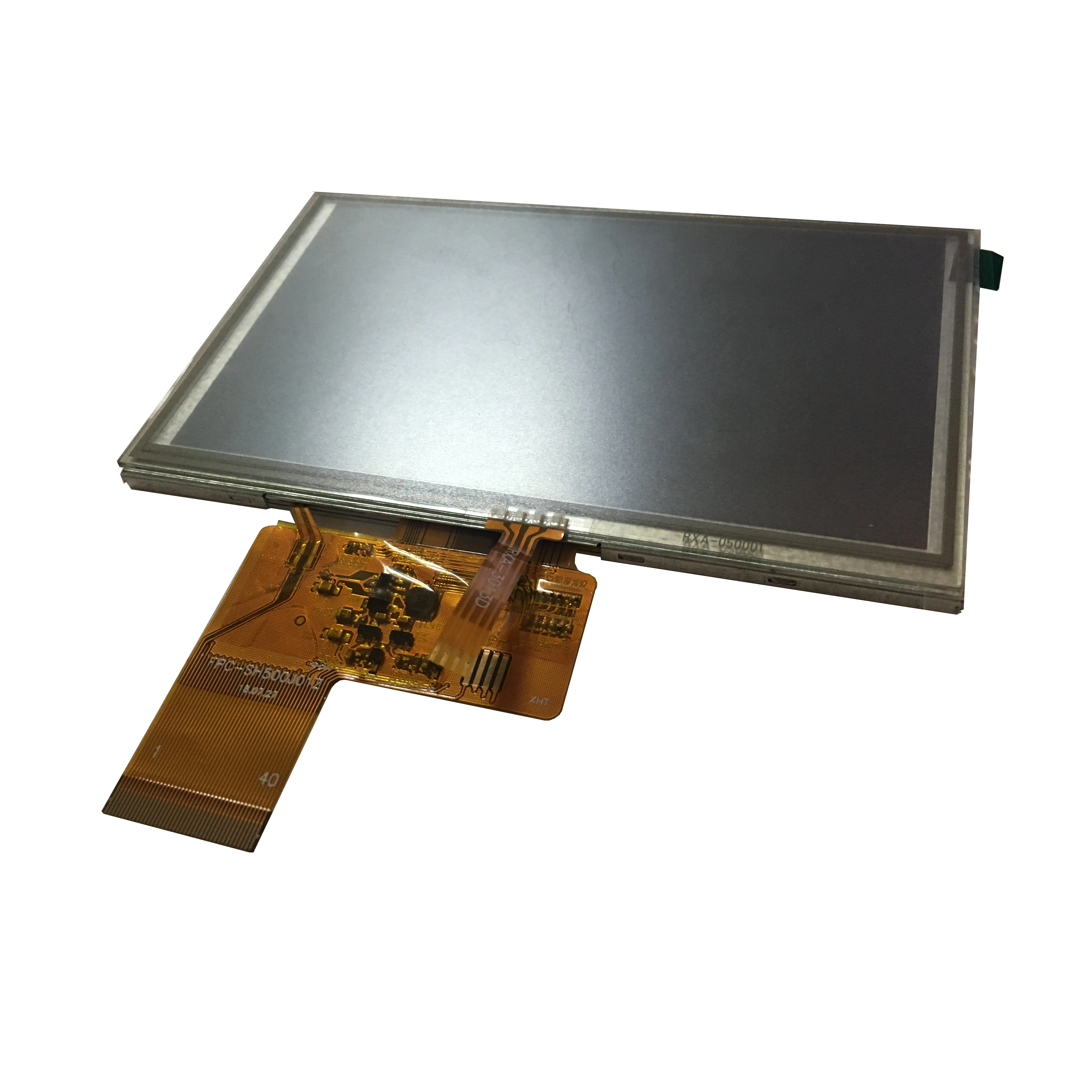

Pictures in kind
General Description
AML500J01Z-00 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 5.0" display area contains 800 x 480 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.
| Item | Contents | Unit |
| LCD Type | TFT | - |
| Display color | 16.7M | - |
| Viewing Direction | 6 | O’Clock |
| Operating temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Module size | Refer to outline drawing | mm |
| Active Area(W×H) | 108×64.8 | mm |
| Number of Dots | 800×RGB×480 | dots |
| Drive IC | HX8264/HX8664 | - |
| Power Supply Voltage | 3.3 | V |
| Outline Dimensions | Refer to outline drawing | - |
| Backlight | 12-LEDs (white) | pcs |
| Weight | --- | g |
| Data Transfer | RGB | - |
Outline Drawing
About us
Company profile
| Shenzhen Amelin Electronic Technology Co.,Ltd is located at Guangming New District, Shenzhen. We focus on TFT LCD module production, OLED, VR and R&D. The sizes of TFT LCD modules and OELD we are offering range from 0.66'' to 13.3''. Our products are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobiles, MP5, tablet PC, GPS navigator and so on. Our products are also exported to Europe and America, Japan and so on. We have become one of the suppliers of many multinational companies. |
Certificate
Production process
Packaging & Shipping
Lead time
Lead time
| quantity | lead time |
| 1-20(pieces) | Within one working day |
| 21-100(pieces) | Within two working days |
| 101-500(pieces) | Within three working days |
| 501-1000(pieces) | Within a week |
| 1000-3000(pieces) | Within two weeks |
| 3000-5000(pieces) | Within three weeks |
| 5000+ | Within four weeks |
FAQ
FAQ
1. Q:Can you provide technical assistance?
A: Yes,We can provide technical support on software and hardware.
2. Q: Does your product have any warranty?
A:Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
3. Q: Can we guarantee long-term supply?
A: Yes,Strong factory guarantee long-term supply.
4. Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
