3 Axle Lowbed Trailer Truck 80-ton Low Bed Semi Trailerfor Sale
US $12000-$14000

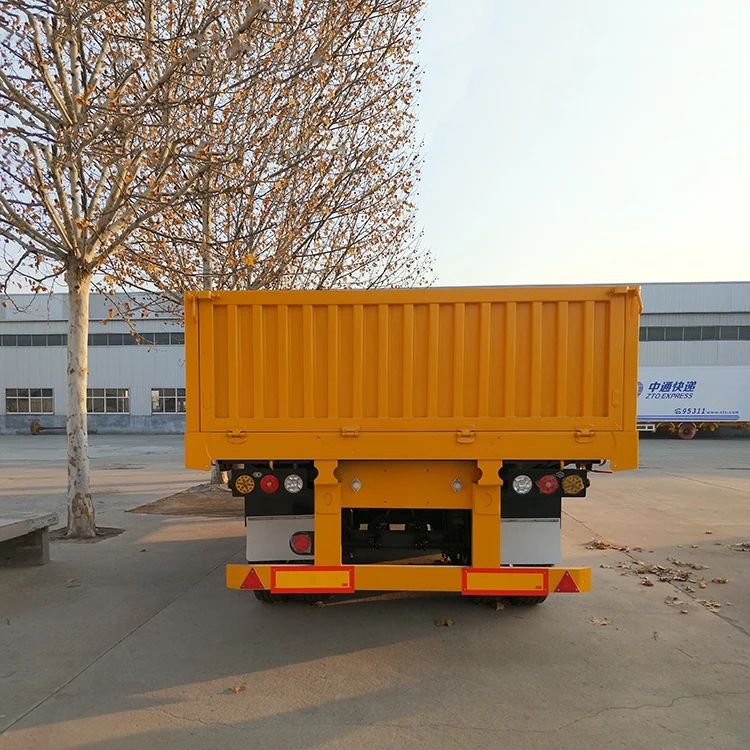

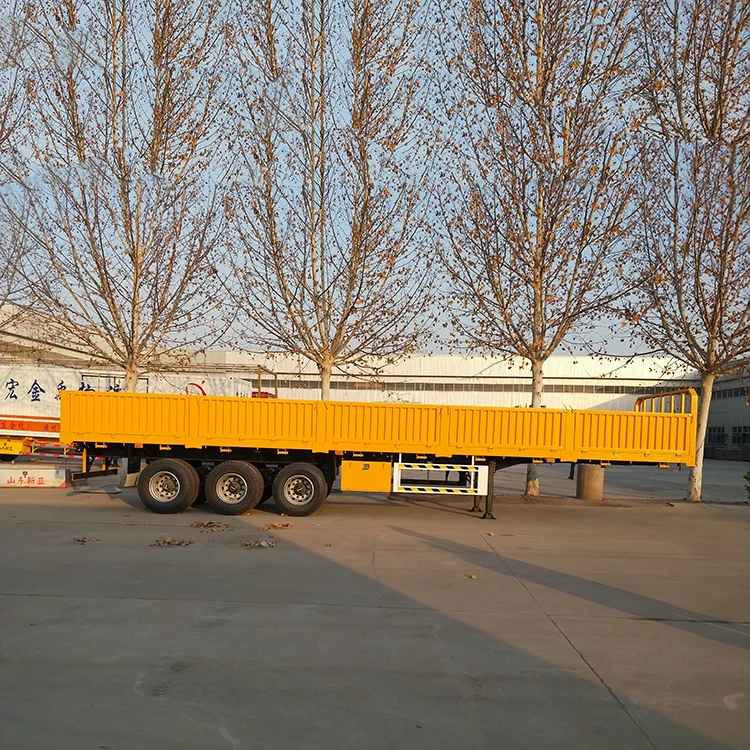

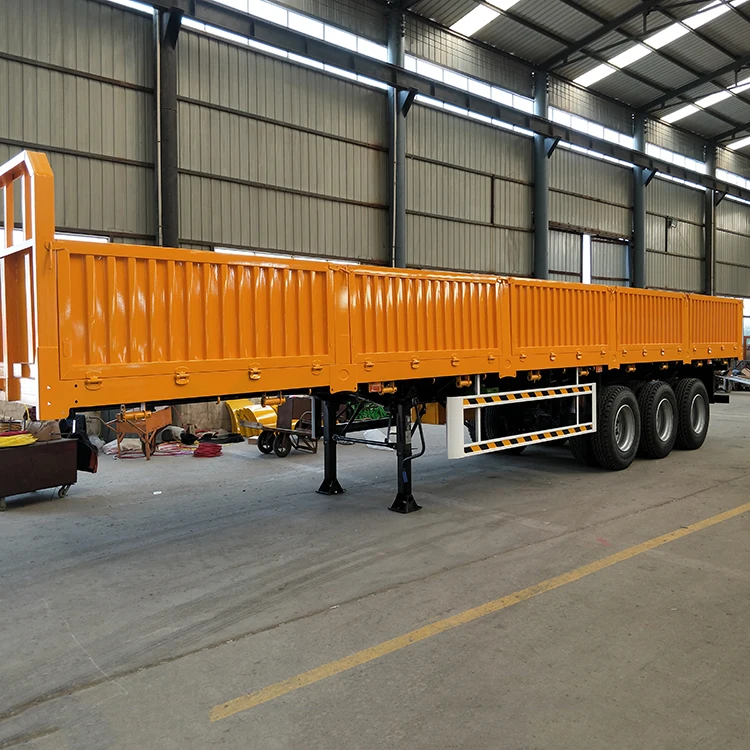

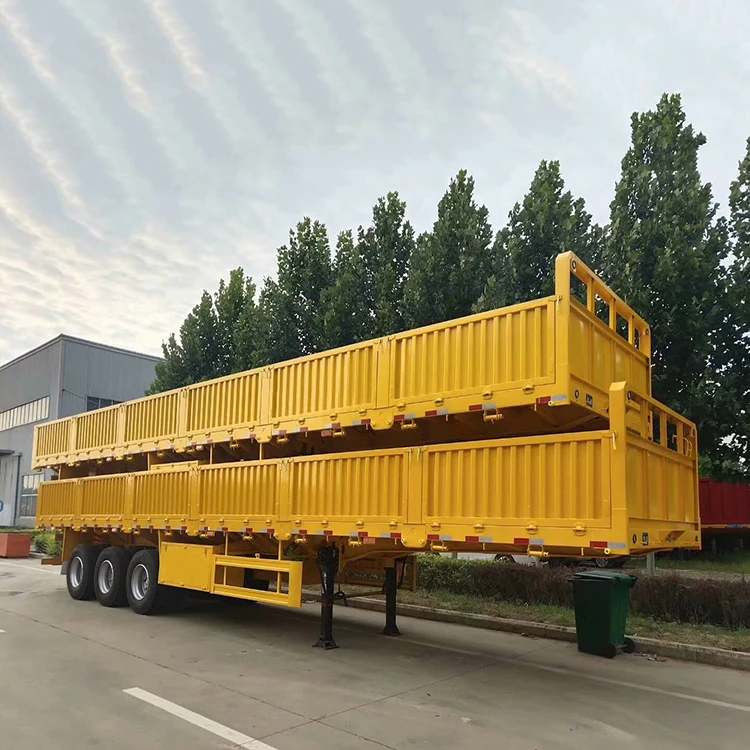

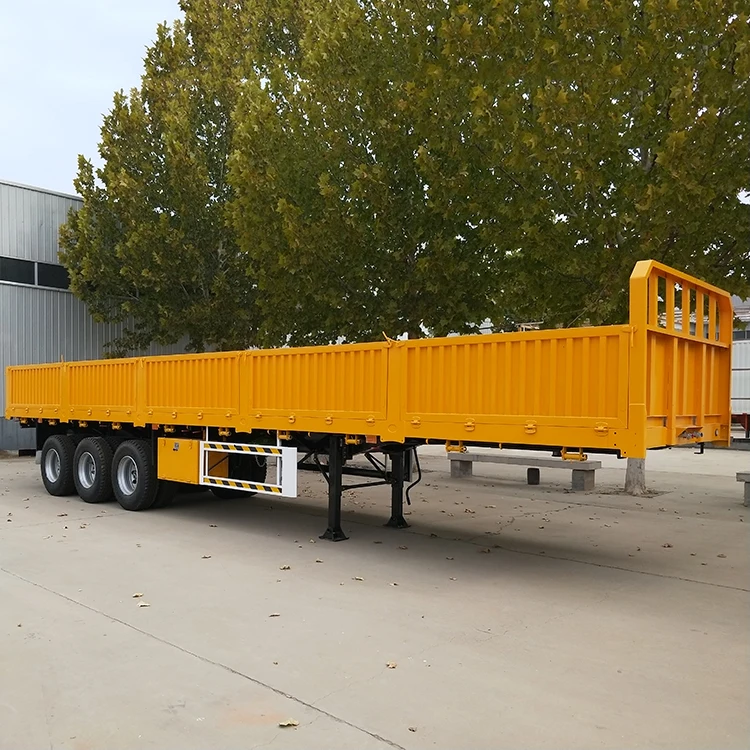

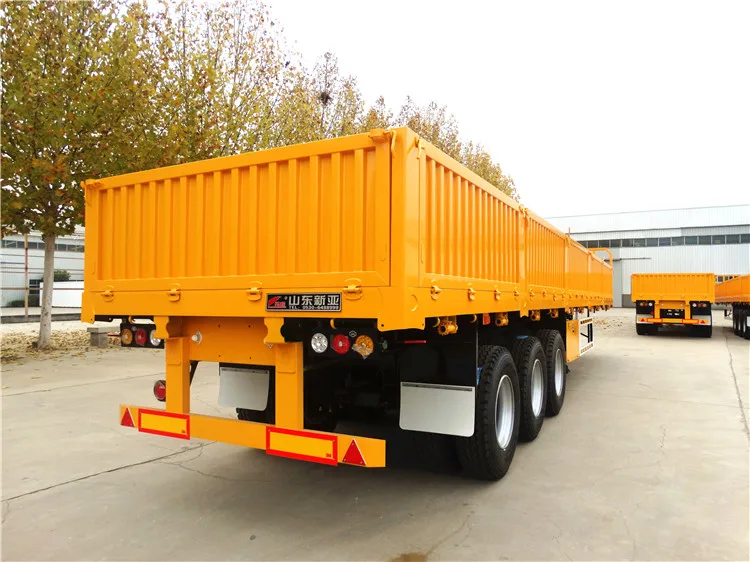

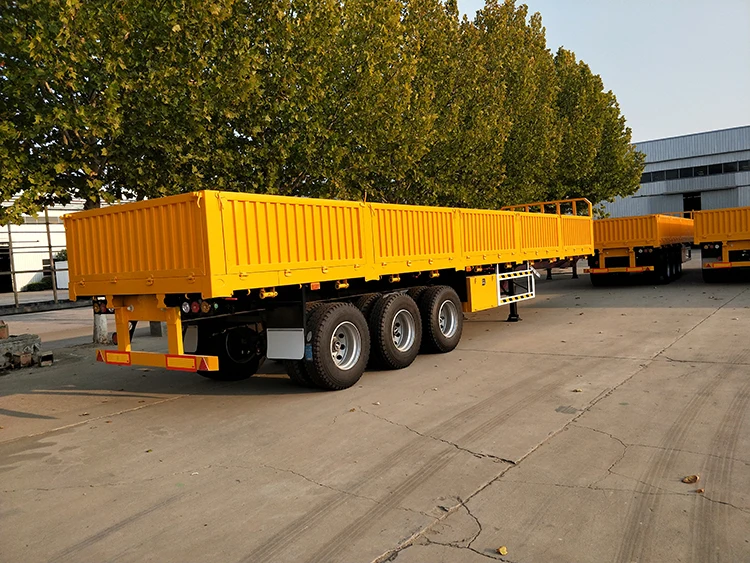

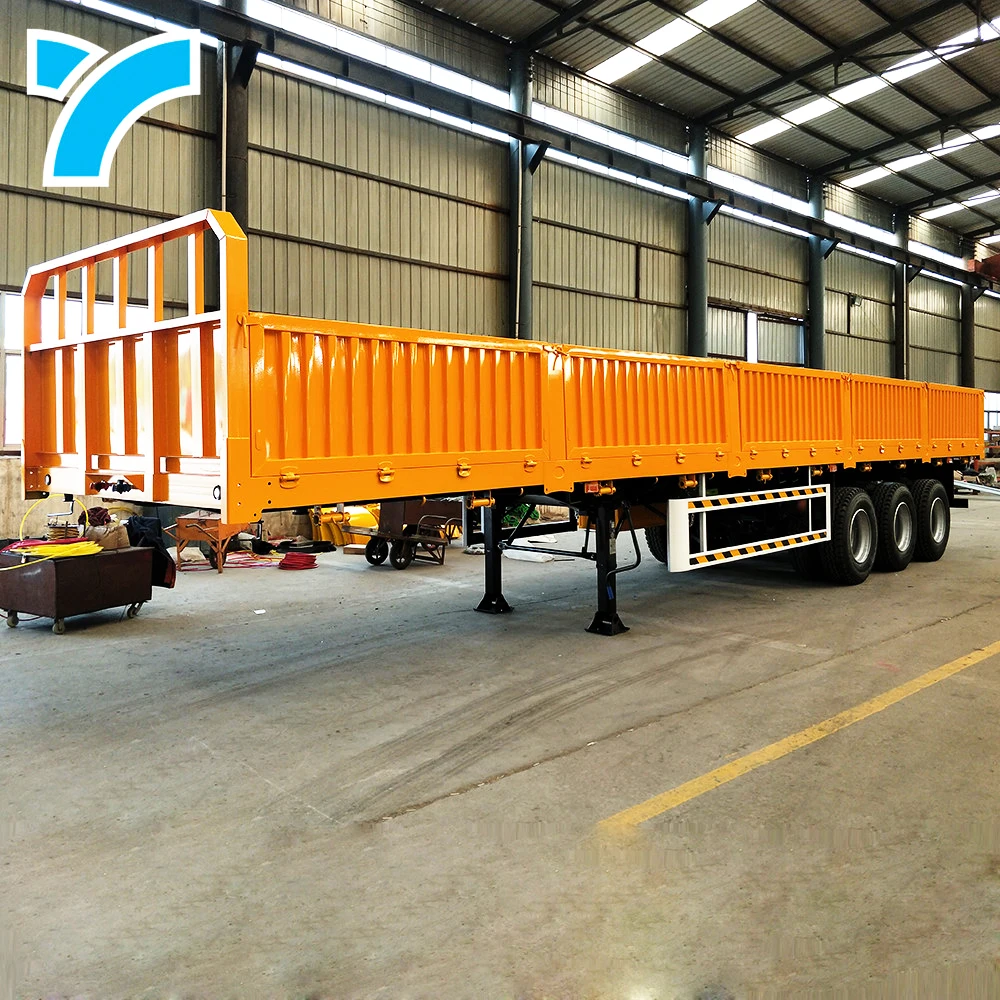

China factory 3/4 axles 40ft fence semi trailer cargo transport 600mm fence trailer
- Category: Trailers >>>
- Supplier: Shandong Yuncheng Xinya Trailer Manufacturing Co. Ltd.
Share on (60839972789):
Product Overview
Description
Products Description
Overall Dimension(L*W*H) | 12400*2500*2700 / 13000*2500*2900 |
Tare Weight | 7500KG |
Loading Weight | 65000KG |
Axle | 13T 3/4 pcs, BPW or FUWA or Yonglitai or Huajin Brand |
Leaf Spring | Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
Main Beam | Material is Q 345 Carbon Steel Beam is 500 mm Upper plate 14 mm, Bottom plate is 16 mm, Middle plate is 6/8 mm, |
Side Beam | 14#/16# channel steel (Q235) |
Cross member | 8#/10# channel steel (Q235) |
Platform plate | 3mm checker Plate or flatbed |
Side wall | Height 600mm / 800mm |
Container Twist Locks | 8 pcs or 12pcs |
Tyres | 12R22.5-18 12units |
Landing Gear | Standard 28Ton, JOST brand or FUWA brand or other china brand. |
Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 40L air tanks， |
Electrical system | 1. Voltage: 24V， LED lights 2. Tail lamp with turn signal, brake light & reflector, side lamp etc. 3.Receotacle: 7 ways (7 wire harness) |
Company Profile
Shandong Yuncheng Xinya Trailer Manufacturing Co., Ltd. was established in June 2010. It is the "bulletin" enterprise of the Ministry of industry
Main Semi Trailers: container Chassis trailer, van trailer, flatbed trailer, fence semi trailer, self-unloading trailer, dump trailer, wing open trailer, tank trailer, car trailer, glass fiber plate trailer, and spare parts.
Workshop I: Chassis production line 1
Chassis trailer, flatbed semi trailer, low bed trailer
Workshop 2: Chassis production line 2
Van box semi trailer, Curtain Semi Trailer
Workshop 3: Chassis production line
Fence semi trailer, sidewall semi trailer
Workshop 4: Chassis production Line 4
skeletal container chassis trailer
Workshop 5 : Powder tanker semi trailer production
cement tanker trailer V shape and W shape Trailer
Workshop 6: fuel tanker semi trailer production line
Fuel tanker trailers
Workshop 7: Van box trailer production line
Van box trailer , curtain semi trailer
Workshop 8: Curtain Trailer, Van trailer production line
Warehouse Show
Warehouse Corner 1: Center Pin
Warehouse Corner 2: U Shape Rod
Warehouse Corner 3: Suspensions
Warehouse Corner 4: Alexs
Warehouse Corner 5: Painted Suspension
Warehouse Corner 6: Suspensions
Ready for ship to Clients
Customer Photos
We exported the flatbed trailers, sidewall trailers, Fence trailer, dump trucks, tipper trailers,Low bed trailer to all over the world, especially for the Africa Market and Mid east markets, the clients come from Djibouti, Ghana, Mozambique, Mauritania, Saudi Arabia, Tanzania, Benin, Indonesia, Thailand and so on.
