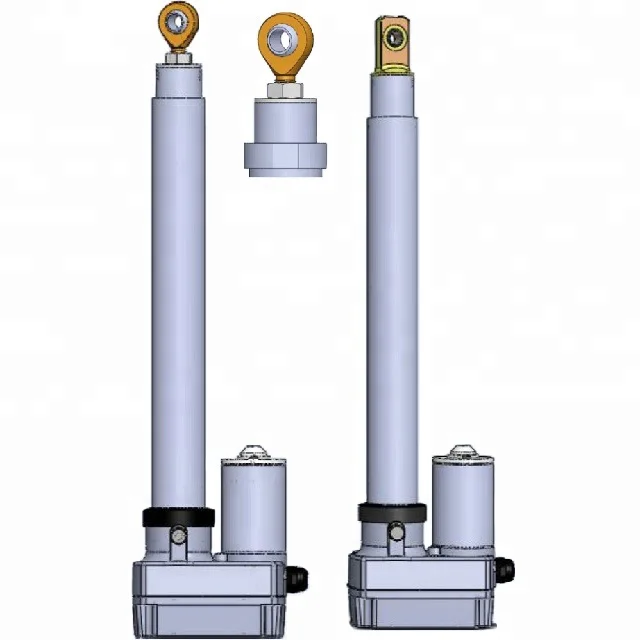

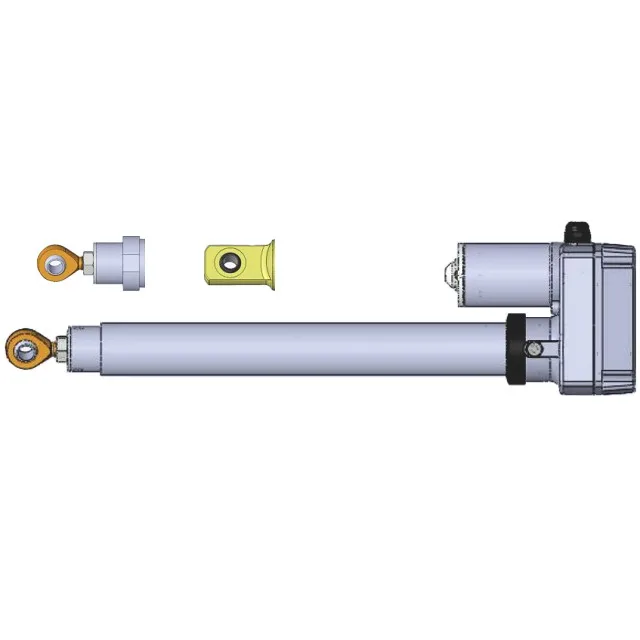

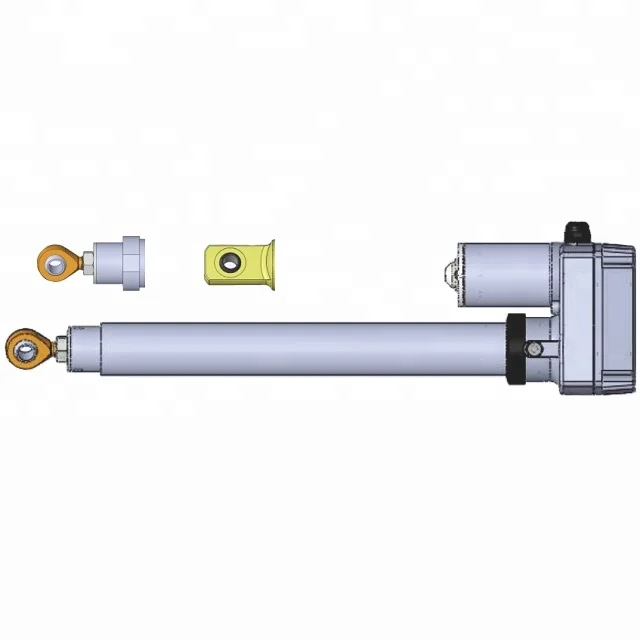

900mm stroke electric 24v Linear Actuator with reed switch sensor
- Category: >>>
- Supplier: Guangdong G-Motor Health Technology Co. Ltd.
Share on (60839973945):
Product Overview
Description
Product Description
Product Application

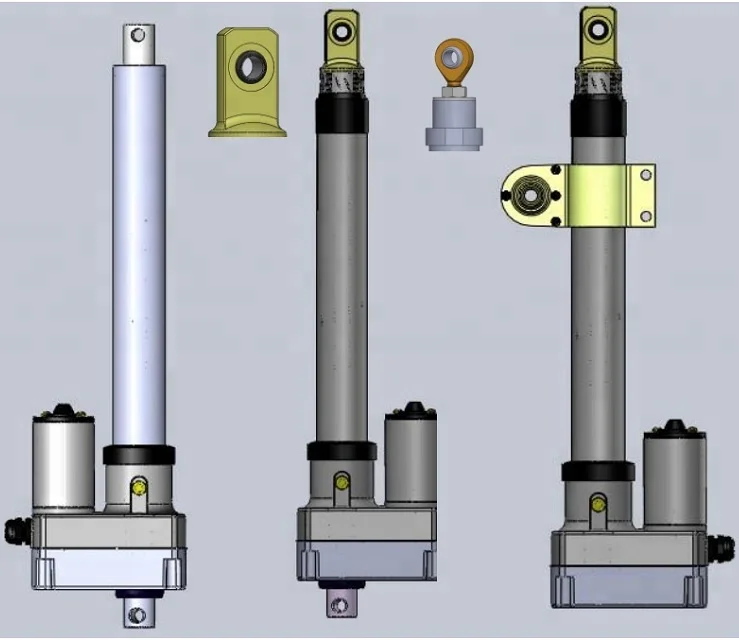

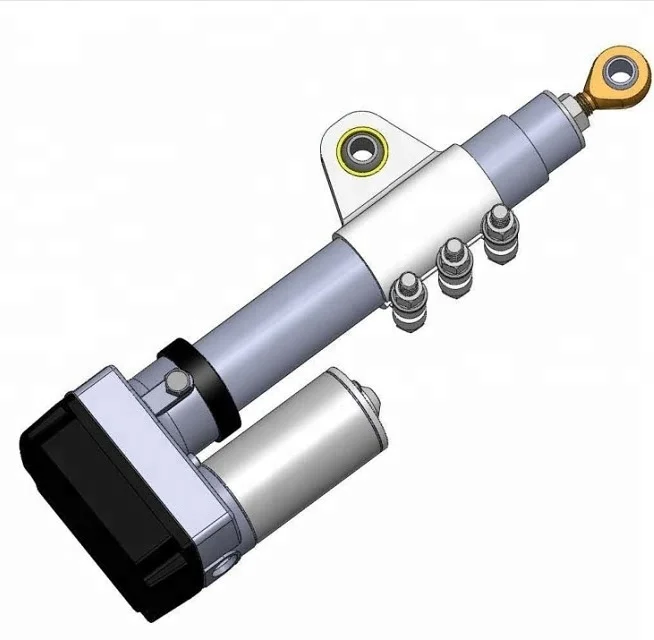

G-motor's GJ1500 series is the linear actuator for solar tracker,specially designed to be heavy duty for solar tracking system.This solar tracking actuator can also be used for antenna system.
| SPECIFICATIONS FOR GJ1500 SOLAR TRACKING ACTUATOR | |||
| Name | Solar tracking linear actuator | Duty Cycle | 20% |
| Model | GJ1500 | Temperature | -26˚C~65 ˚C(-15˚F~150˚F) |
| Input Voltage | 36VDC (/24VDC /12VDC) | Limit Switch | Adjustable |
| Load Capacity | 3500N | Sensor | Reed Switch Sensor/POT |
| Static Load | 9000N | Dynamic load | more than 12000N |
| Strock Length | 18'' 24'' 36'' | Gear Wheel | 3 Metal Gear Wheel |
| Load current) | less than 6A | ||
| Drive | BALL | ||
| Full Load Speed | 5mm/s | ||
Main Features
1)Easy in installation and maintation.
2) Heavy duty.
3) Sensor can be option.
4) Several strokes length are available.
5) Factory load test.
Company introduction
ENTERPRISE STRENGTH
Guangdong G-motor Health Technology Co,.Ltd is a listed company with the name:G-motor Health with security code 870960.G-motor was set up in the year 2004 specializing in lift motors,geared motors,linear
actuators and so forth.Our company is located in Dongguan city. Guangdong province where it is a powerful industrial zone of China.There are around
200 employees and most of them are professional workers and specialized management staff.
At the beginning of the incorporation,C-motor focused on design,manufacture and provided high quality lift motors
geared motors,linear actuators and related plastic/metal/electric parts.Now,G-motor is one of the National High Technology enterprise based at the head of business philosophy,high quality products and good service.
As an ISO9001:2015 company,G-motor is one of the most famous brands in the field of linear actuators in the markets
and a reliable supplier having customers all over the world.
Production Process
Exhibition
Certifications
Packing & Delivery
| Packaging | |
| Size | 900 (L) * 200(W) * 180 (D)(mm) |
| Weight | 9.3KG |
| Packaging Details | The normal package for sample is carton box(Size: L*W*H).Inside the carton box,there will fill with foam to protect the linear actuator from damage.There are four pcs in one carton box.We will also provide the drawing and test report inside the carton box. |
| Packaging | |
| Size | various |
| Weight | various |
| Packaging Details | Batch order package is carton box and wooden pallet(Size: L*W*H),which is usually shipped by sea.The wooden pallet will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Related Products
Heavy load DC linear actuator
91.8% Response Rate
Heavy load AC linear actuator
91.8% Response Rate
Adjustable bed linear actuator
91.8% Response Rate

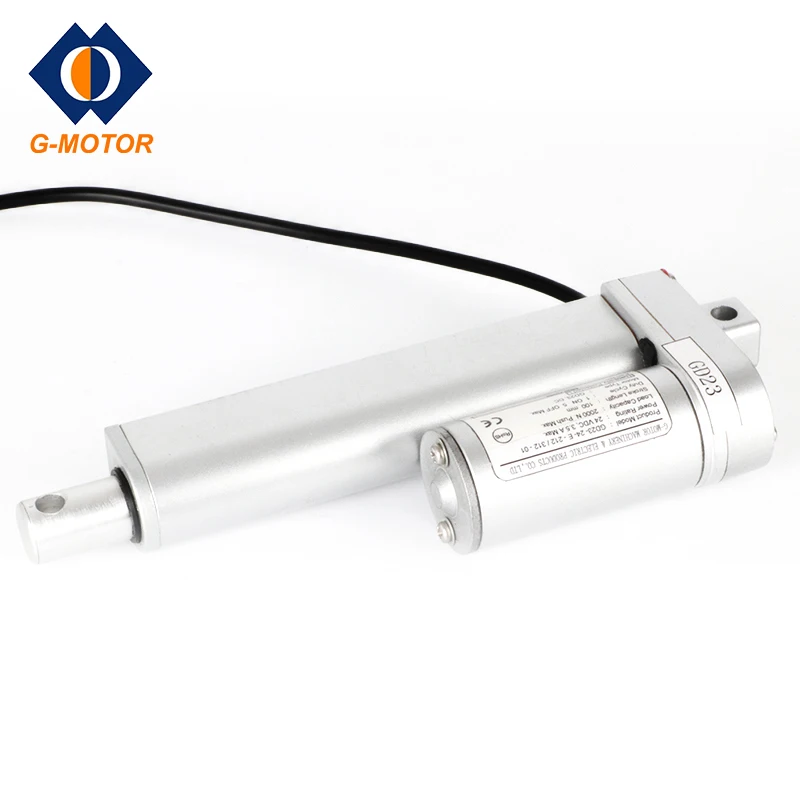

24 volt waterproof electric Linear Actuator Motor with position sensor
91.8% Response Rate
Permanent magnet DC Linear Actuator for medical care beds
91.8% Response Rate

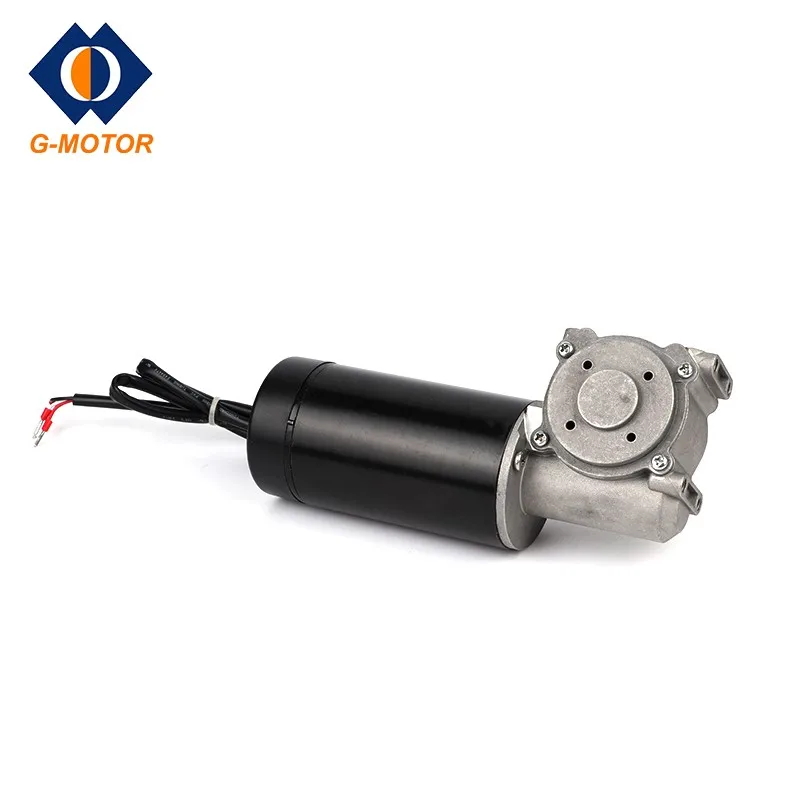

DC worm Gear Motor 24V for automatic sliding gate
91.8% Response Rate
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes one month.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q:How long is the warranty?
A:One year.
