High viscosity small UV gel glue cosmetic nail polish remover glass bottle filling capping machine
- Category: >>>
- Supplier: Changzhou Powerrig Machinery Technology Co. Ltd.
Share on (60839986608):
Product Overview
Description
Product Introduction

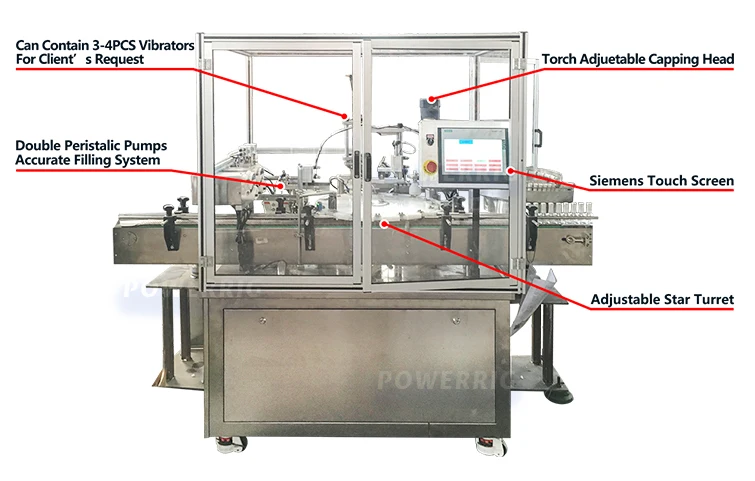

This machine is mainly available to fill nail glue into various round and flat glass and plastic bottles with the filling range from 5-20ml.High precision cam provides a regular plate to position, inner ,brush and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; peristaltic pump and pressure tank filling time measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine with advantage of high position .
Voltage | 220V 50Hz/380v |
Power | 2.5kw |
Air pressure | 0.6-0.8Mpa |
Air consumption | 30dm^3/MIN |
Production capacity | 20-30 bottles/minute |
Filling error | +/-1% |
Dimensions | 2000*1000*1800mm |
Weight | 500kg |

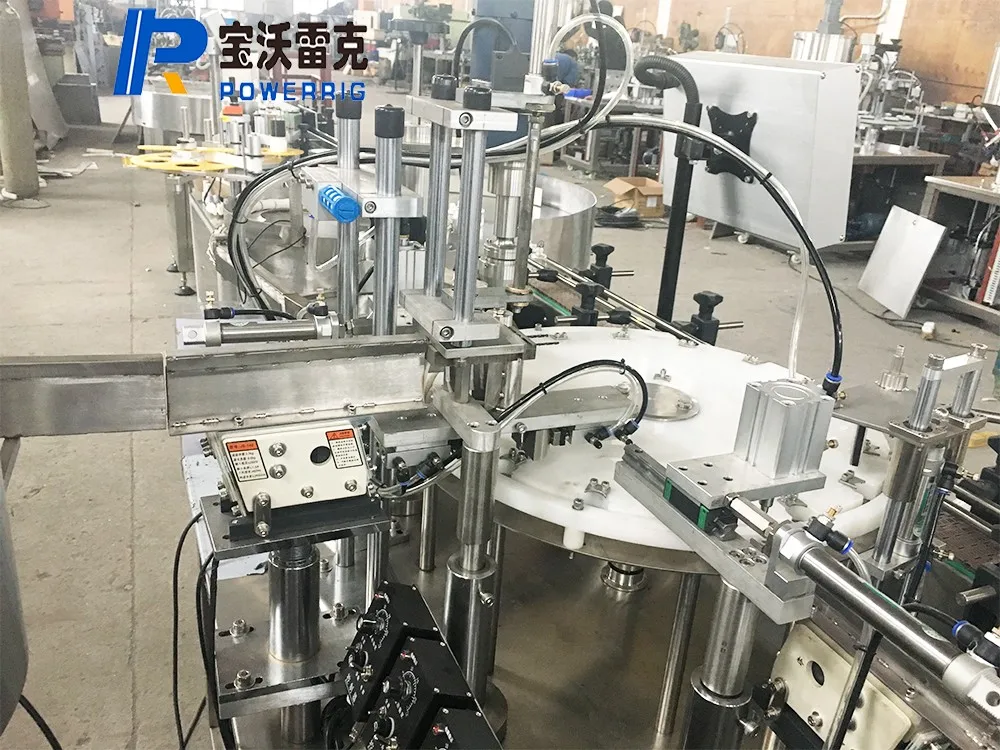

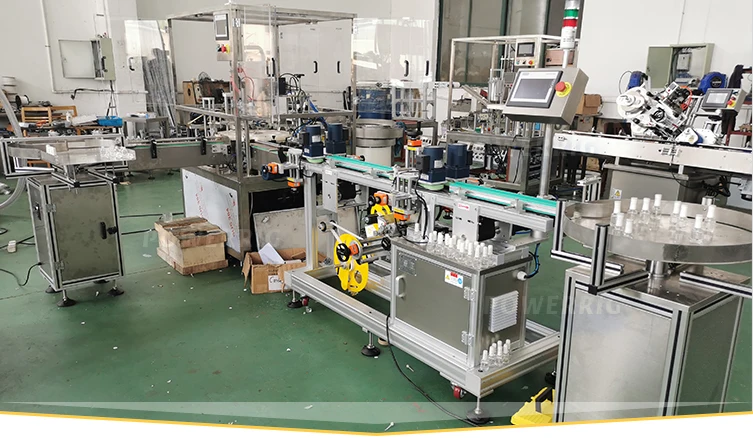

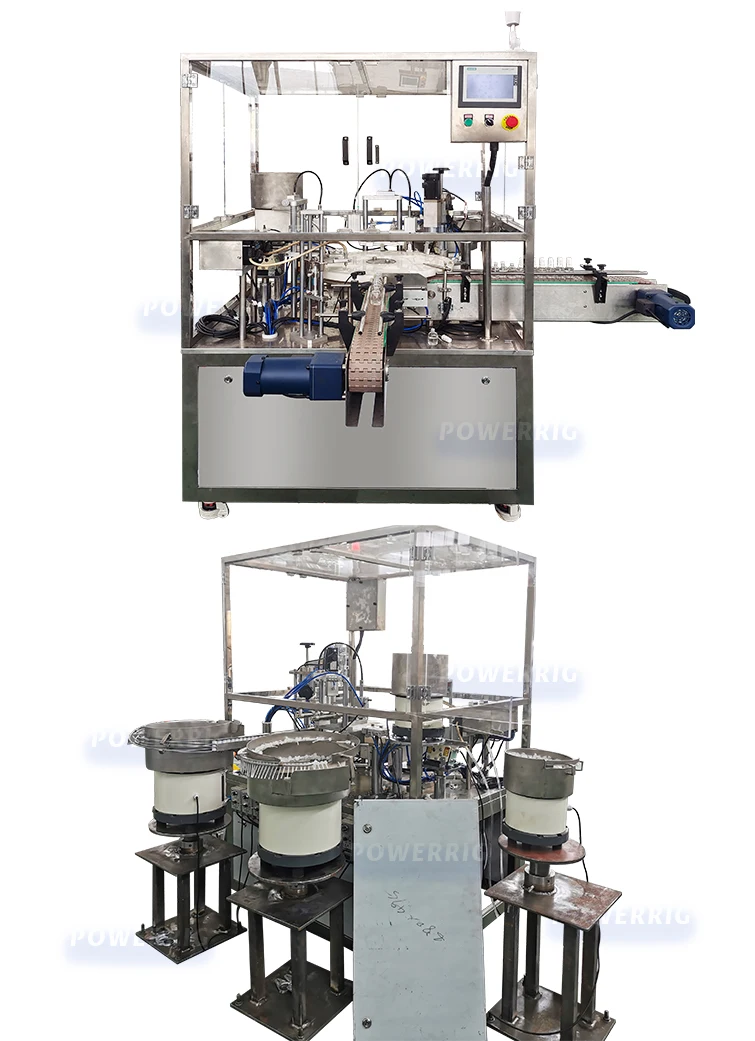

Whole view for machine line
The filling capping machine can connect with turn table and labeling machine to complete a whole production line.

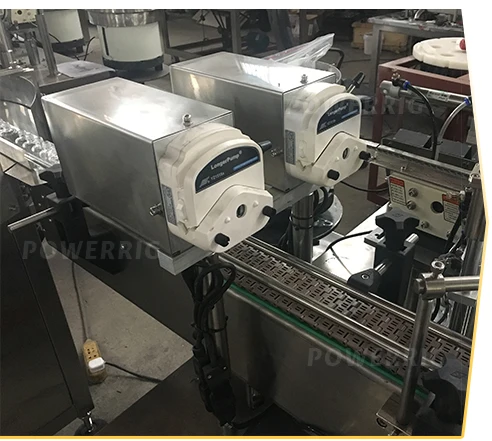

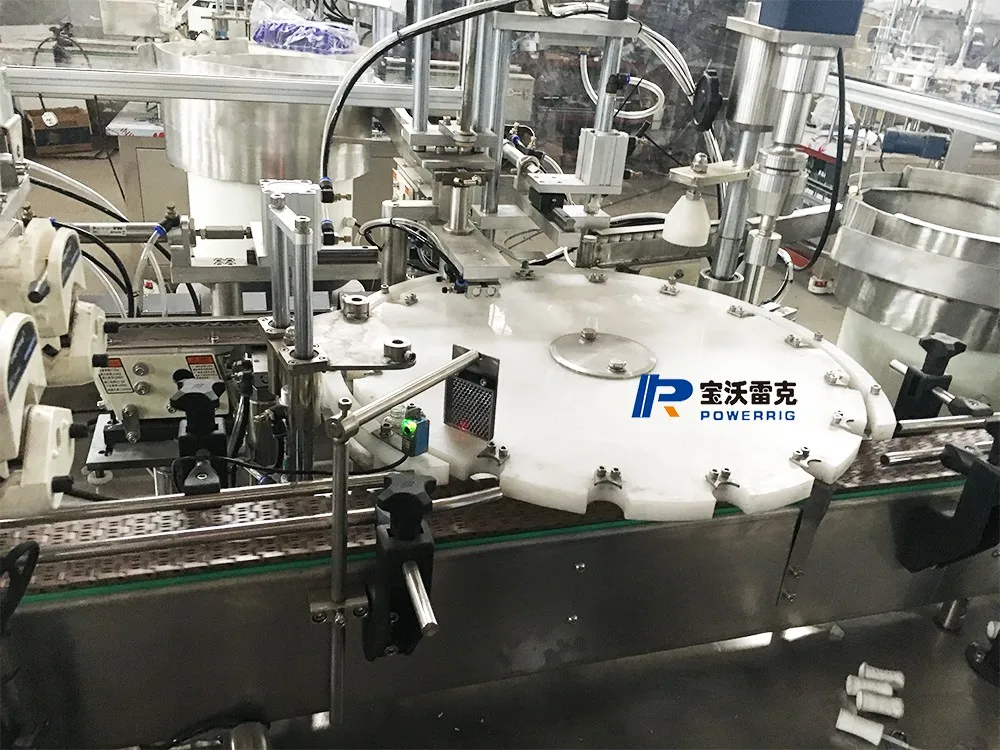

Filling nozzles with peristaltic pumps
Peristaltic pump or piston pump filling(depends on products density), measuring precision, convenient manipulation with anti-drip system.

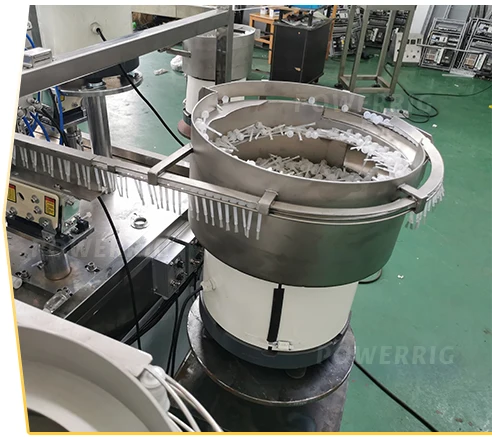

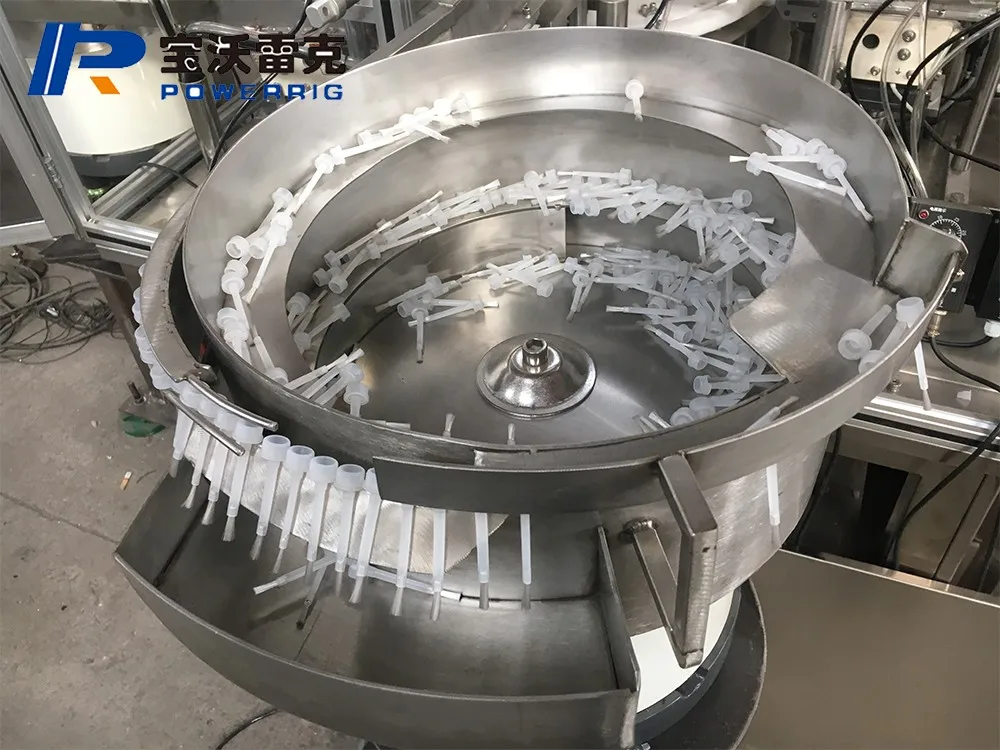

Vibrator for nail polish's brush
This vibrator is for auto loading the brush in the nail polish.

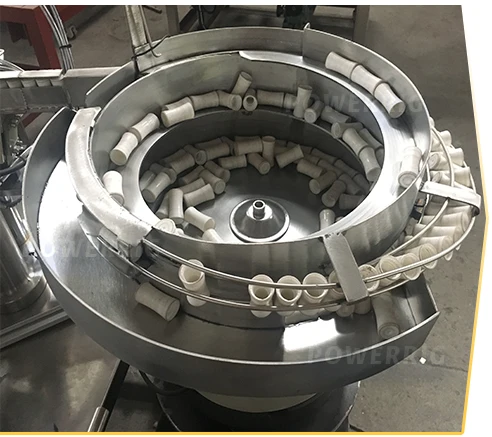

Vibrator for out side cap
Use mechanical arm to load cap onto bottle, which is stable and precise

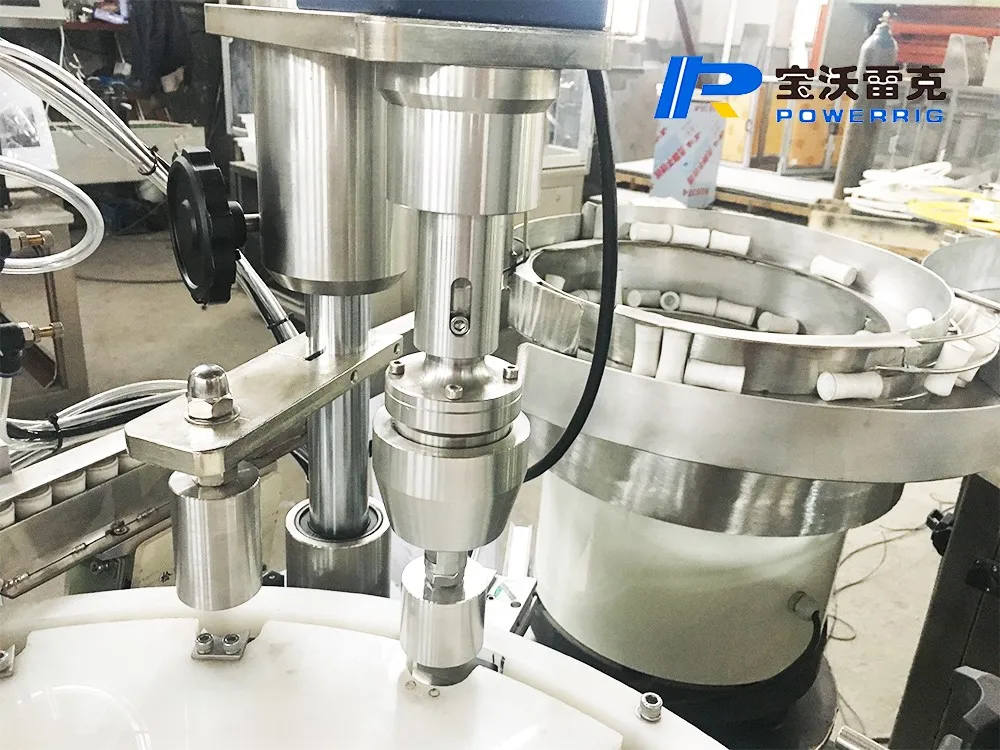

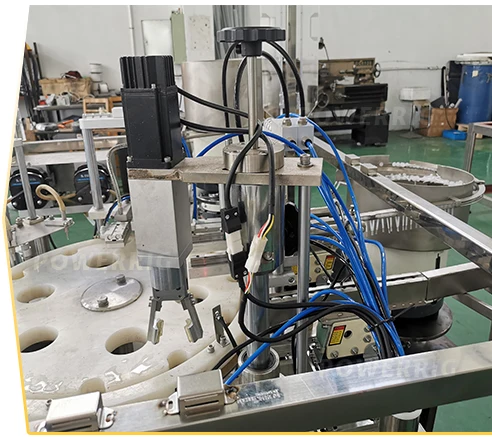

Cap screwing head
When caps are capped well,the bottles and the caps are relative static,the clutch releases,this can avoid bottles getting injured to achieve high qualified rate of capping.
