Original Manufacturer barcode reader, Parking wireless 2D barcode reader MS3392
- Category: Scanners >>>
- Supplier: Shenzhen,Effon,Limited
Share on:
Product Overview
Description

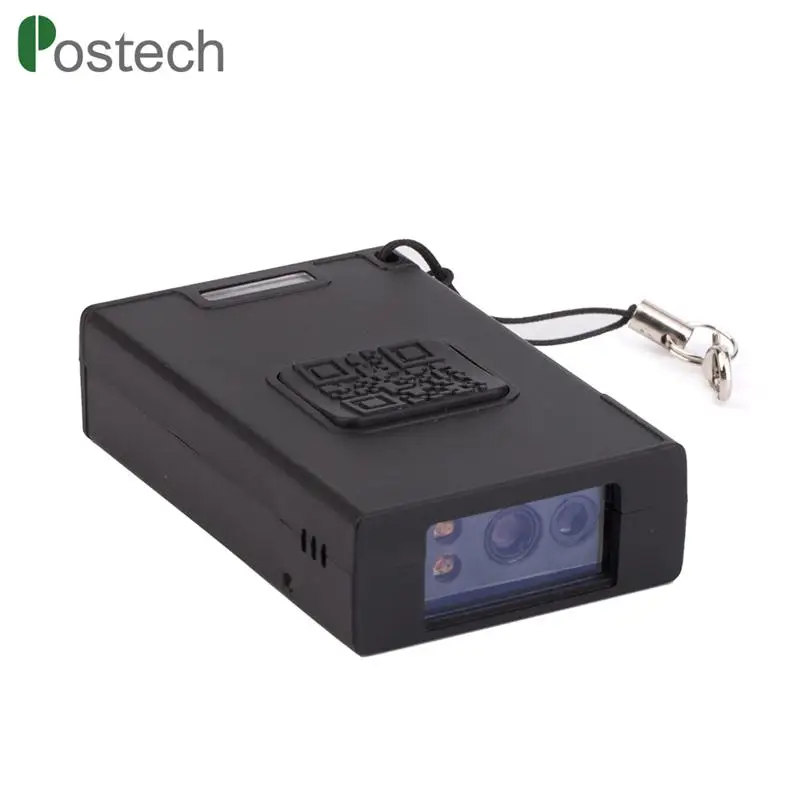

MS3392 Pocket-Sized Wireless 1D/2D Scanner

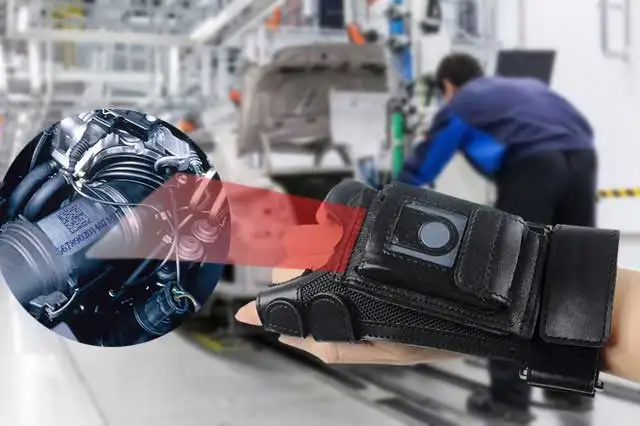

with Designed Glove for Airport luggage check
MS3392 2D Bluetooth Barcode scanjacket is small size and powerful new generation mini barcode scanner. It can combine with smartphone as professional data collection terminal. It can scan 1D, 2D barcode into your smartphone via bluetooth connection. By using MS3392 barcode scanjacket, or a special designed Glove, you do not need to buy expensive, heavy PDA.
It is an easy to use, lightweight, and high performance
barcode reader, It have dual field optics ,both high density and wide field in the same unit.Build in high volume Li-ion battery can read 20000 times when one seconds trigger.Glare reduction technology for reading barcode on shiny surfaces. Build in memeory can save 10000pcs barcode without any connection.
2D bluetooth barcode scanjacket MS3392 support Bluetooth Human Interface Device ( H-I-D) and SPP mode, MS3392-Human Interface Device ( H-I-D) is designed for iOS system. It no need install any driver or software to scan barcode in Mobile Phone just pairing bluetooth one time.Another mode is MS3392-SPP is designed for Google Android smartphone.You just install Bluetooth Input driver to make barcode scanner as external keyboard.So It will compatible
for any application in smartphone. This driver eliminate the work for system integration.
Product Details
* Support 3mil barcode types
* Bluetooth connections & IOS Android Windows
* IBMinput APP
* Multiple Language
* Customized Gloves (Large, Mudim, Small Size)
Parameter
| Weight | 30g |
| Electrical | DC5V Typical: 230mA DC5V |
| CPU | 32bit ARM CPU. |
| Communication | Class 3 Bluetooth H-I-D, SPP with 20M distance, USB, RS232 cable(optional). |
| Data storage | 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional). |
| OS | IOS, Android, Windows, Mac. |
| Scan mode | Manual mode, Continuous, Host, Sense mode. |
| Environment |
| Ambient illumination | Sunlight: Up to 9,000ft-candles/96,890 lux | ||
| Temperature | Operating: -10°C to 60°C (-4°F to 140°F) Storage: -40°C to 70°C (-40°F to 158°F) | ||
| Umidity | 5% to 90% (non-condensing) | ||
| Battery power | Internal Battery: Changeable 600mAh Li-ion Battery, Standby 5 days, working time after full charge with good decode as below: | ||
| Continuous trigger scanning interval | Decoding number | Working time | |
| 1S | 11800 | 3.3hours | |
| 5S | 6200 | 8.6hours | |
| 10S | 5900 | 16.4hours | |
| Charge time: About 1.5hours | |||
| Scan Engine |
| Sensor: | CMOS 1.2 Megapixel(1280 x 960) gray scale |
| Optical Resolution | High Density Field: 960 x 640, Wide Field: 960 x 640Field of View: High Density Field: 30° horizontal by 20° vertical, Wide Field: 50° horizontal by 33.5° vertical |
| Focal Point | High Density Field: approximately 100 mm, Wide Field: approximately 115 mm |
| Angle | Pitch: ± 60° (from front to back) Skew: ± 60° from plane parallel to symbol (side-to-side) Rotational Tolerance: ± 180° |
| Print Contrast Res | 25% (1D symbologies) or 35% (2D symbologies) absolute dark/light reflectance differential, measured at 650 nm. |
| Target Beam | Single, blue targeting bar |
Barcode Type |
| 1D barcode | Code 39, Code 128,BC 412, I2 of 5,UPC/EAN, Codabar, Code 93,Pharma code, PLANET, Post Net, Japanese Post, Australian Post, Royal Mail,Intelligent Mail, KIX Code. Stacked code:PDF417, Micro PDF417, GS1 Databar(Composite & Stacked) |
| 2D barcode | Data Matrix (ECC0-200),QR Code, Micro QR Code, Aztec Code |
| Decoding depth & Max. resolution |
| Barcode(1 mil = 0.0254 mm) | Decoding depth | Barcode(1 mil = 0.0254 mm) | Decoding depth |
| 3 mil Code 39 | 3.7 to 5.9"(95-150mm) | 7.5 mil Code 39 | 2.2 to 8.0"(55-205mm) |
| 4.2 mil Data Matrix | 3.7 to 4.5"(95-115mm) | 10 mil Data Matrix | 1.6 to 7.7"(40-195mm) |
| 5 mil Data Matrix | 3.7 to 5.1"(95-130mm) | 13 mil UPC | 2.0 to 10.8"(50-275mm) |
| 6.3 mil Data Matrix | 3.7 to 4.5"(95-115mm) | 20.8 mil Data Matrix | 1.6 to 9.4"(40-240mm) |
Packaging & Shipping
Product Application
Optional Wearable solutions
FS01 MS3391 WT05
Advantages
1: Supports 2 years quality guarantee
2: Direct manufaturer (quantity price will be favorable)
3: Software can be upgraded by user anytime
4: Flexible customized function/ OEM&ODM is Acceptable
5. After-sale service: We will undertake arround shipping charges if any items caused by quality problem
6: CE, ROHS, IP64, FCC, Laser safety, EMC, 1.2M drop testing 500times, LVD report etc. certifcation approved.
7: Excellent service of the express delivery goods fast and safely
2: Direct manufaturer (quantity price will be favorable)
3: Software can be upgraded by user anytime
4: Flexible customized function/ OEM&ODM is Acceptable
5. After-sale service: We will undertake arround shipping charges if any items caused by quality problem
6: CE, ROHS, IP64, FCC, Laser safety, EMC, 1.2M drop testing 500times, LVD report etc. certifcation approved.
7: Excellent service of the express delivery goods fast and safely
Company Information
Postech was found in 2008 in HONGKONG. It is a well-known domestic modern enterprise focused on technology research, product development, manufacturing, sales and services of wearable barcode equipment and embedded equipment. We specialize in mag-stripe swipe card reader, wearable barcode scanner and Point of Sale peripheral products. We as an enterprise do early independent research and development of wearable barcode equipment.
Core Competencies and Advantages
The company has established good working relationships with BMW, Wal-Mart, other domestic and foreign system integrators and independent software vendors. The company is in the process of establishing a dealer network throughout Europe and the Americas and is also in the process of establishing a comprehensive after sales service system to ensure rapid response and service to customers. In addition to all this, our company also has its own iOS, Android software, new product development capabilities along with a team of hardware engineers and associated infrastructure for testing and development. OEM/ODM flexible customization services in bulk or in small batches can be performed for customers from all walks of life. We offer 100% assistance to quickly turn around any customization requirements.
FAQ
Q1. What's your main products ?
- Pocket-size Barcode Scanner
- Image Barcode Scanner
- Glove designed for mini scanner
- Wearable armband mobile platform
- Magnetic stripe card reader msr
- Bluetooth Printer
Q2. Are you a manufacturer? Can you customized item?
Yes, our factory located in ShenZhen. and, with our R&D team support ODM/OEM customization.
Q3. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;
Q4.What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days for mass production after receipt of payments .
Q5. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country
If possible, let us know if you have any experience on barcode scanners business
Q6. Can I get a sample? And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be in formal order. Most of samples are in stock, it takes 3-6 days by express delivery.
Q7. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping.
Q8. What advantage do you have?
1.Full rang of barcode scanner products & Independent research and development department,Supply OEM.
2. We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping,
4. Certificates: Kinds of Invention Patents & CE&FCC& ROSH&ISO900:2008 and so on;
Q9. What is your Warranty?
All of our scanners support 2years quality warraty.
