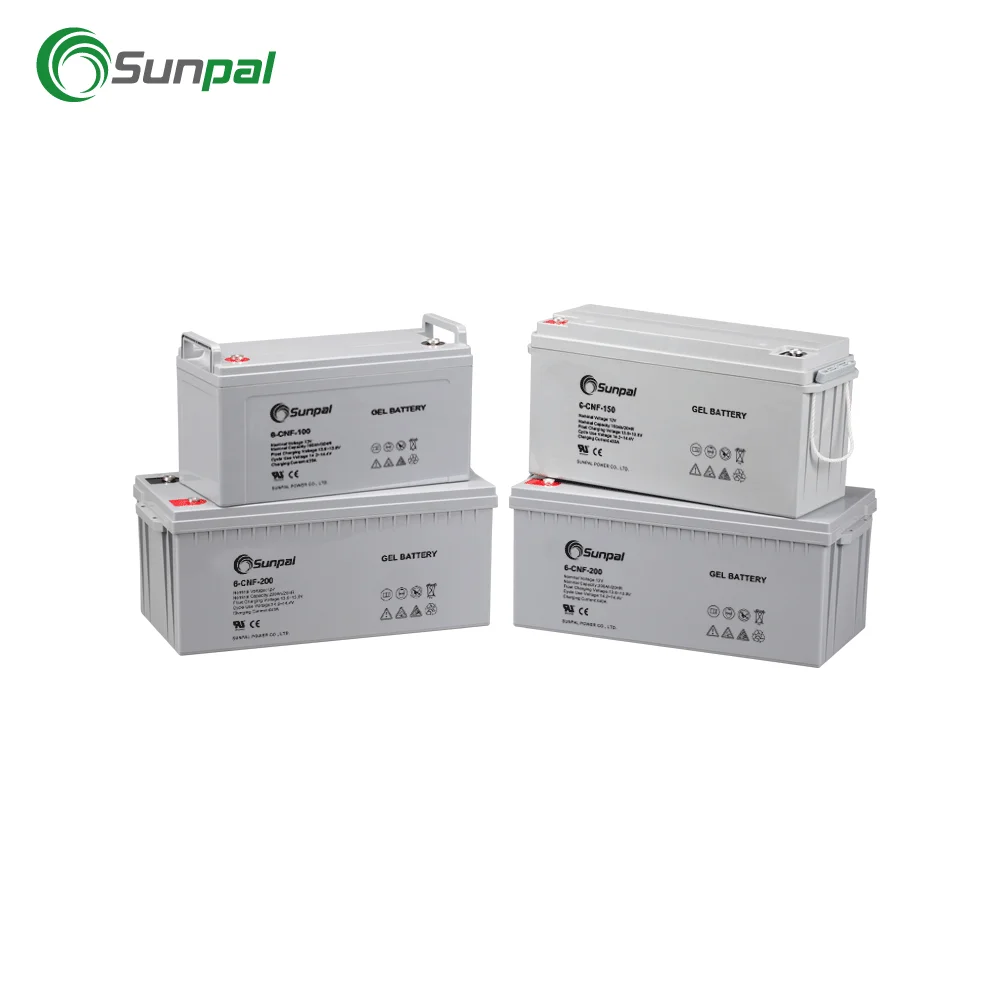

Nicd 150Ah Battery Maintenance Free Deep Cycle 12V 150Ah Agm Battery For UPS
- Category: Storage Batteries >>>
- Supplier: Sunpal Power Co. Ltd. [Anhui China]Sunpal
Share on (60840048870):
Product Overview
Description
Product Description
GEL 12V 200AH Specification

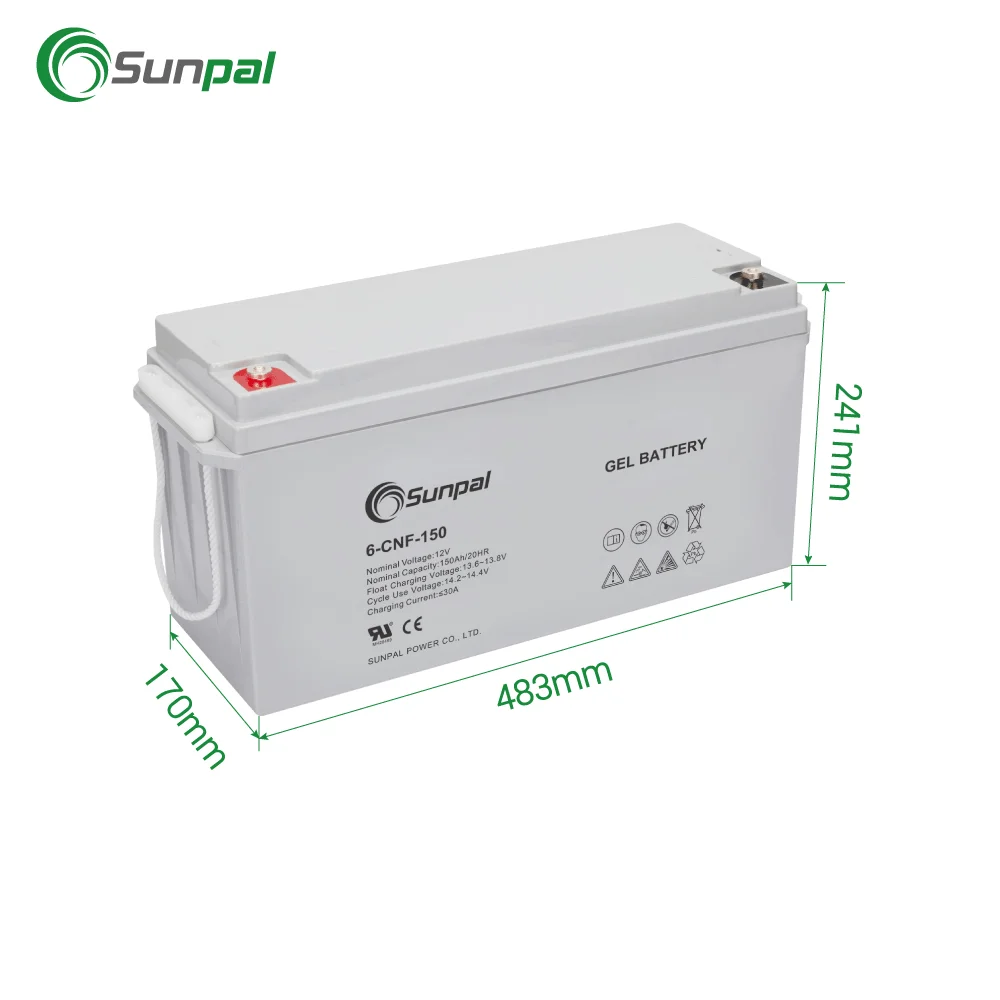

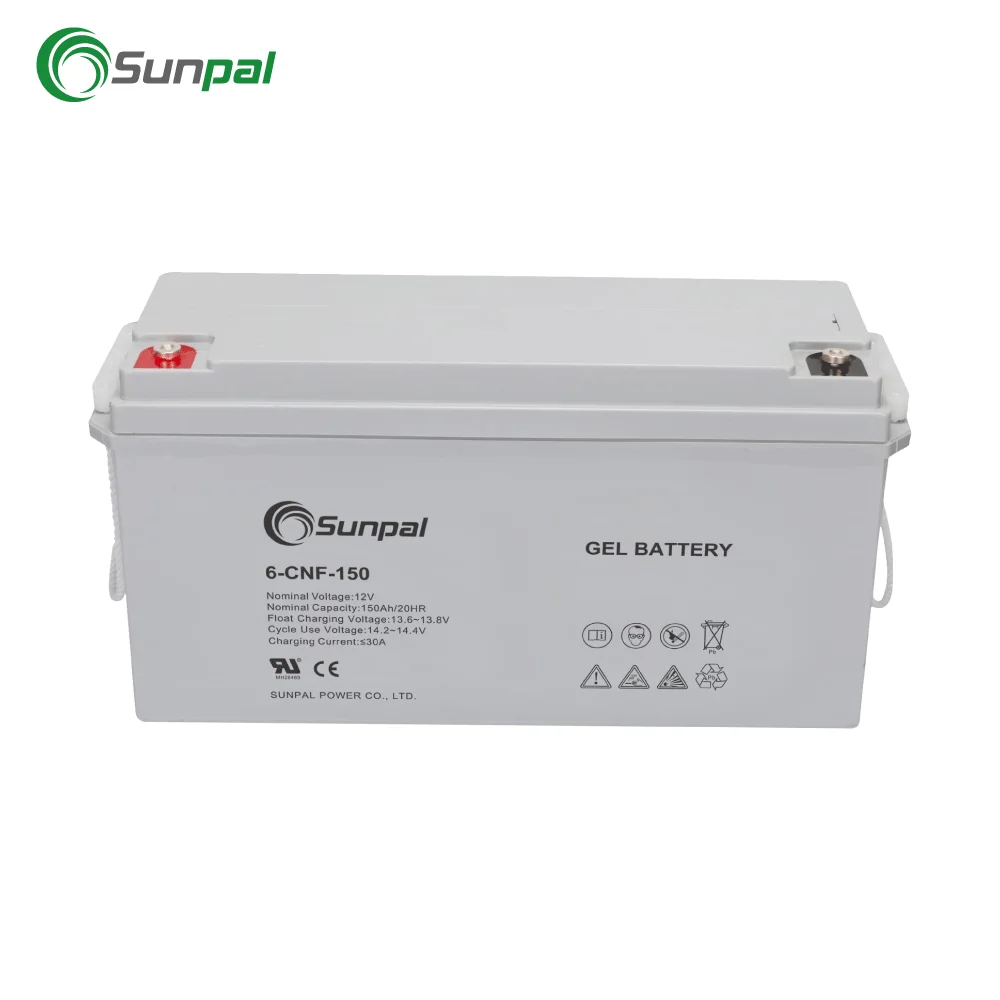

| Model | 6-CNF-150 |
| Cells Per Unit | 6 |
| Voltage Per Unit | 12 |
| Capacity | 150Ah@20hr-rate to 1.75V per cell @25℃ |
| Weight | Approx. 44.5Kg (Tolerance±1.5%) |
| Internal Resistance | Approx. 6 mΩ |

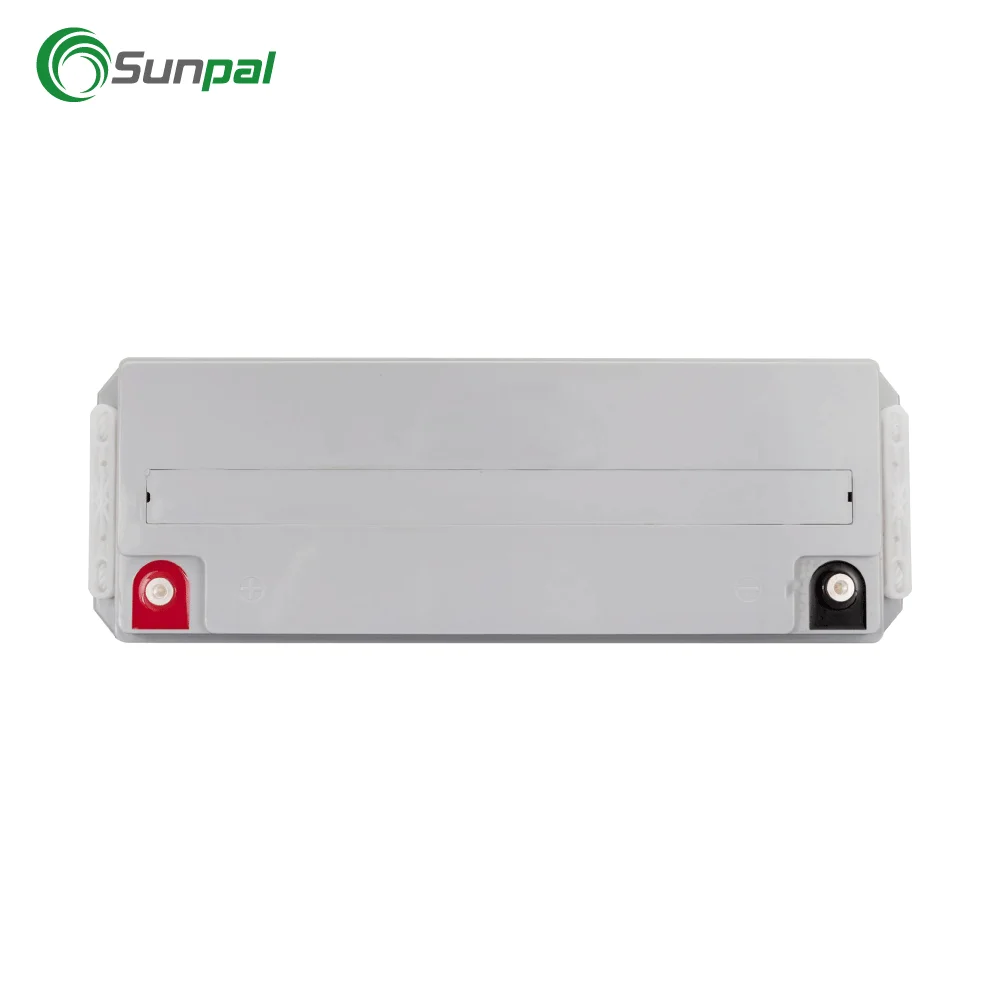

| Terminal | F5(M8)/F12(M8) |
| Max. Discharge Current | 1500A (5 sec) |
| Design Life | 15 years (floating charge) |
| Maximum Charging Current | 30.0A |
| Reference Capacity | C3 102.3AH C5 113.5AH C10 130.0AH C20 150.0AH |
| Float Charging Voltage | 13.6 V~13.8 V @ 25℃ Temperature Compensation: -3mV/℃/Cell |
| Cycle Use Voltage | 14.2 V~14.4 V @ 25℃ Temperature Compensation: -4mV/℃/Cell |
| Operating Temperature Range | Discharge: -40℃~60℃ Charge: -20℃~50℃ Storage: -40℃~60℃ |
| Normal Operating Temperature Range | 25℃±5℃ |
| Self Discharge | SUNPAL Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charged batteries before using. |
| Container Material | A.B.S. UL94-HB, UL94-V0 Optional. |
Constant Current Discharge Characteristics : A(25℃)
| F.V/Time | 15MIN | 30MIN | 1HR | 2HR | 4HR | 8HR | 10HR | 20HR |
| 1.60V | 205.2 | 137.5 | 83.8 | 50.2 | 28.4 | 16.0 | 13.5 | 8.25 |
| 16.5V | 201.0 | 136.4 | 83.5 | 49.8 | 28.3 | 15.9 | 13.4 | 7.95 |
| 1.70V | 197.9 | 136.4 | 82.7 | 49.4 | 28.2 | 15.8 | 13.3 | 7.73 |
| 1.75V | 190.6 | 133.4 | 81.9 | 49.0 | 27.9 | 15.6 | 13.2 | 7.50 |
| 1.80V | 177.7 | 128.8 | 80.0 | 48.2 | 27.2 | 15.4 | 13.0 | 7.05 |
| 1.85V | 161.3 | 121.8 | 76.0 | 46.0 | 25.9 | 14.7 | 12.6 | 6.75 |
Constant Power Discharge Characteristics : WPC(25℃)
| F.V/Time | 15MIN | 30MIN | 1HR | 2HR | 4HR | 8HR | 10HR | 20HR |
| 1.60V | 376 | 261 | 161 | 98.6 | 56.5 | 31.9 | 27.0 | 14.6 |
| 16.5V | 370 | 258 | 161 | 98.0 | 56.4 | 31.7 | 26.8 | 14.3 |
| 1.70V | 366 | 259 | 160 | 97.4 | 56.3 | 31.5 | 26.6 | 14.1 |
| 1.75V | 353 | 255 | 158 | 96.7 | 55.7 | 31.3 | 26.3 | 13.8 |
| 1.80V | 330 | 247 | 155 | 95.5 | 54.5 | 30.7 | 26.1 | 13.5 |
| 1.85V | 301 | 234 | 149 | 92.0 | 51.8 | 29.4 | 25.3 | 12.7 |
Professional Packing
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
Certifications
ISO14001 ISO9001 GB/T 28001
CE CNAS MSDS
